HOMEPAGE > TECTUS BY SIMONSWERK > TECTUS3D ADJ HINGE TE540 120KG SSS

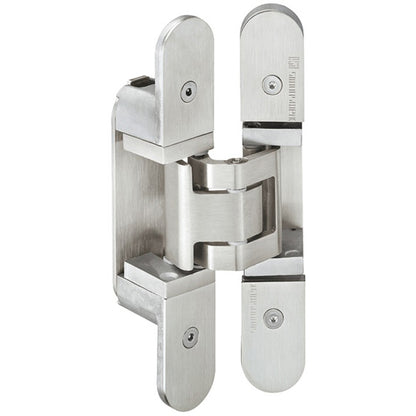

  • TECTUS3D ADJ HINGE TE540 120KG SSS – HI1299G2

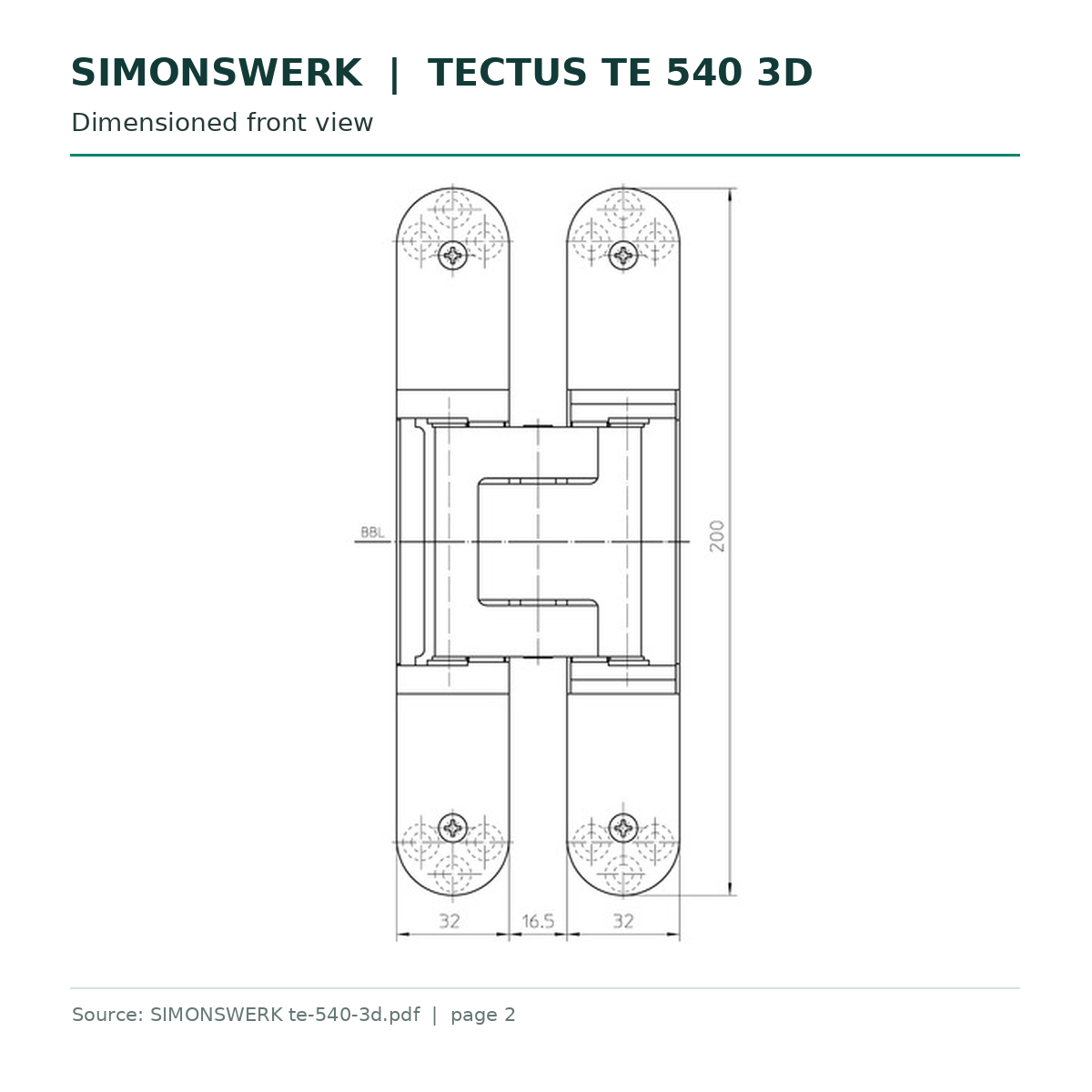

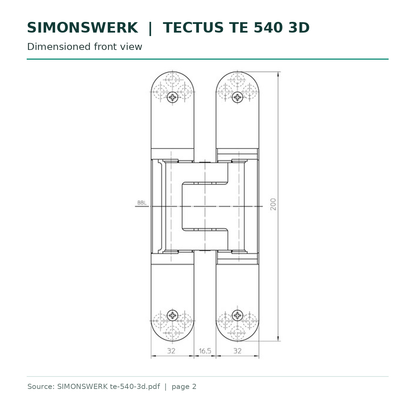

  • SIMONSWERK TECTUS TE 540 3D dimensioned front view technical drawing

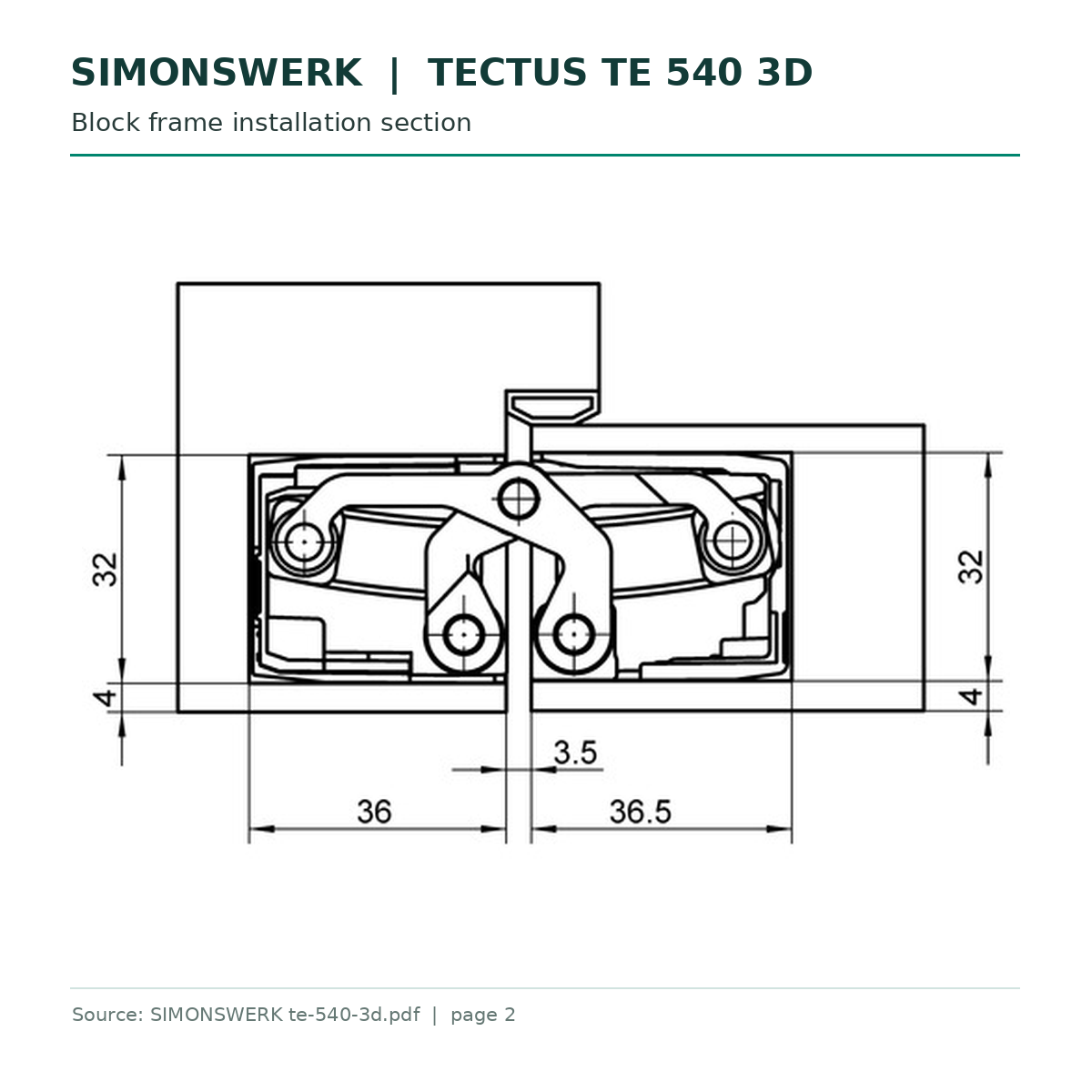

  • SIMONSWERK TECTUS TE 540 3D block frame installation section technical drawing

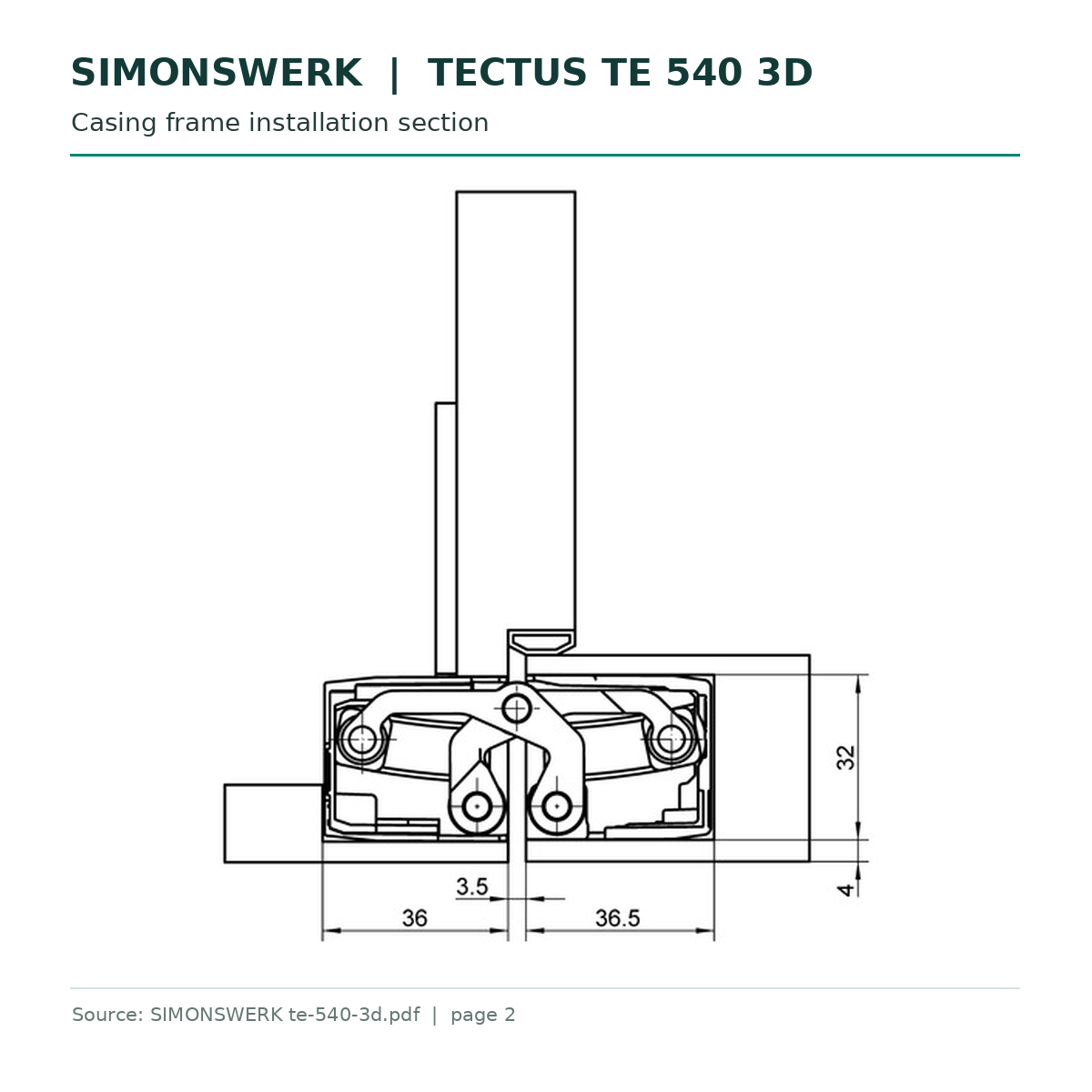

  • SIMONSWERK TECTUS TE 540 3D casing frame installation section technical drawing

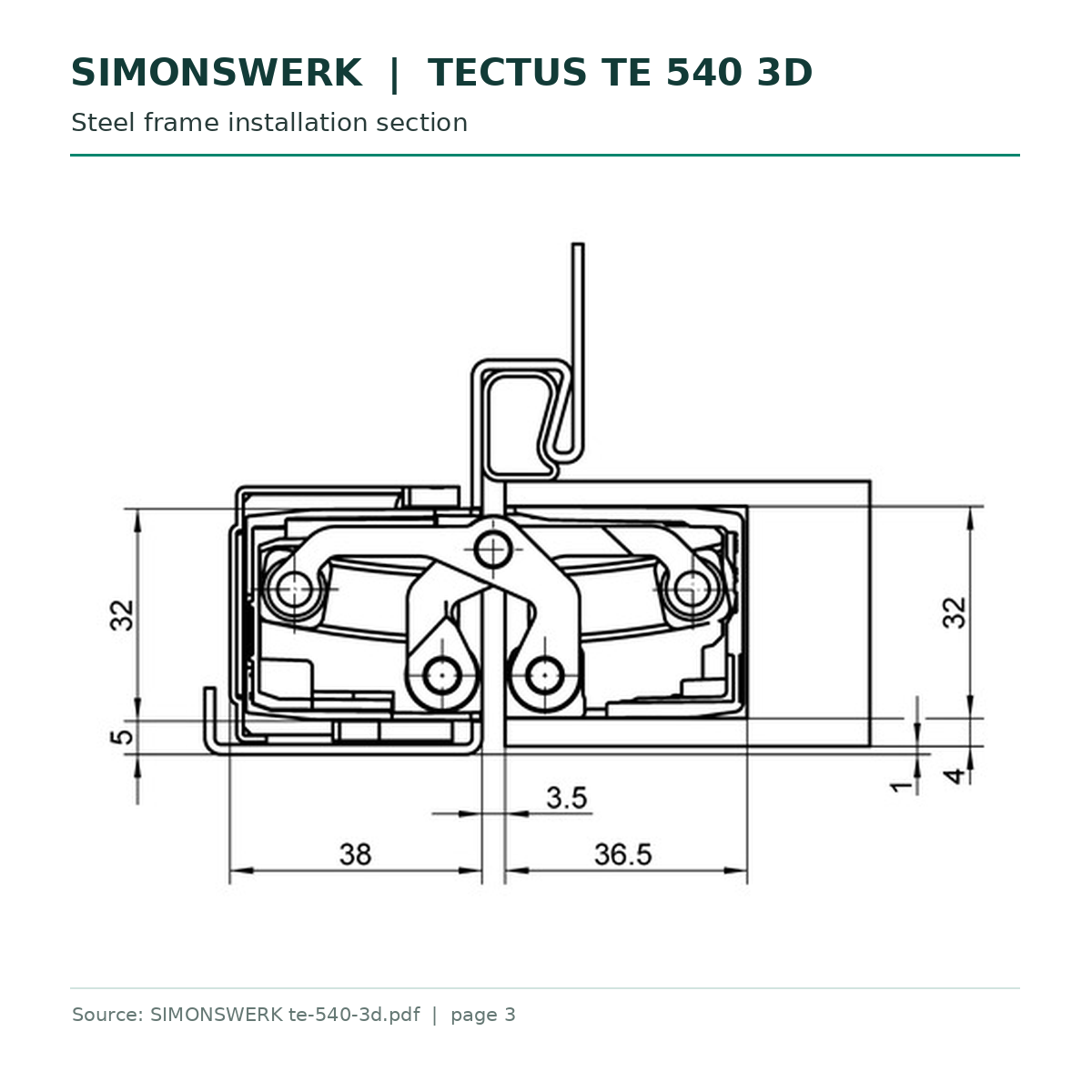

  • SIMONSWERK TECTUS TE540 steel-frame installation section drawing

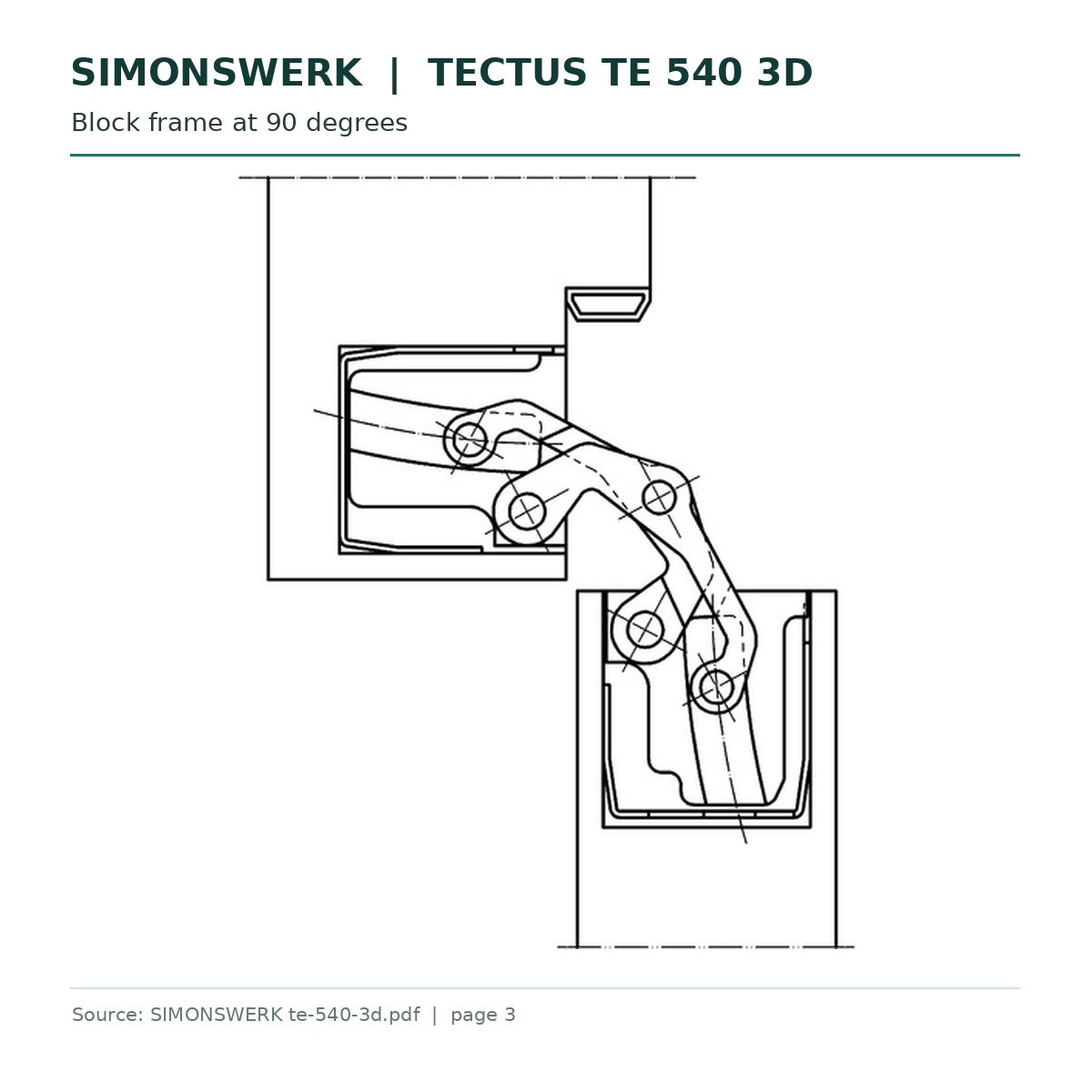

  • SIMONSWERK TECTUS TE540 block-frame installation, 90 degrees drawing

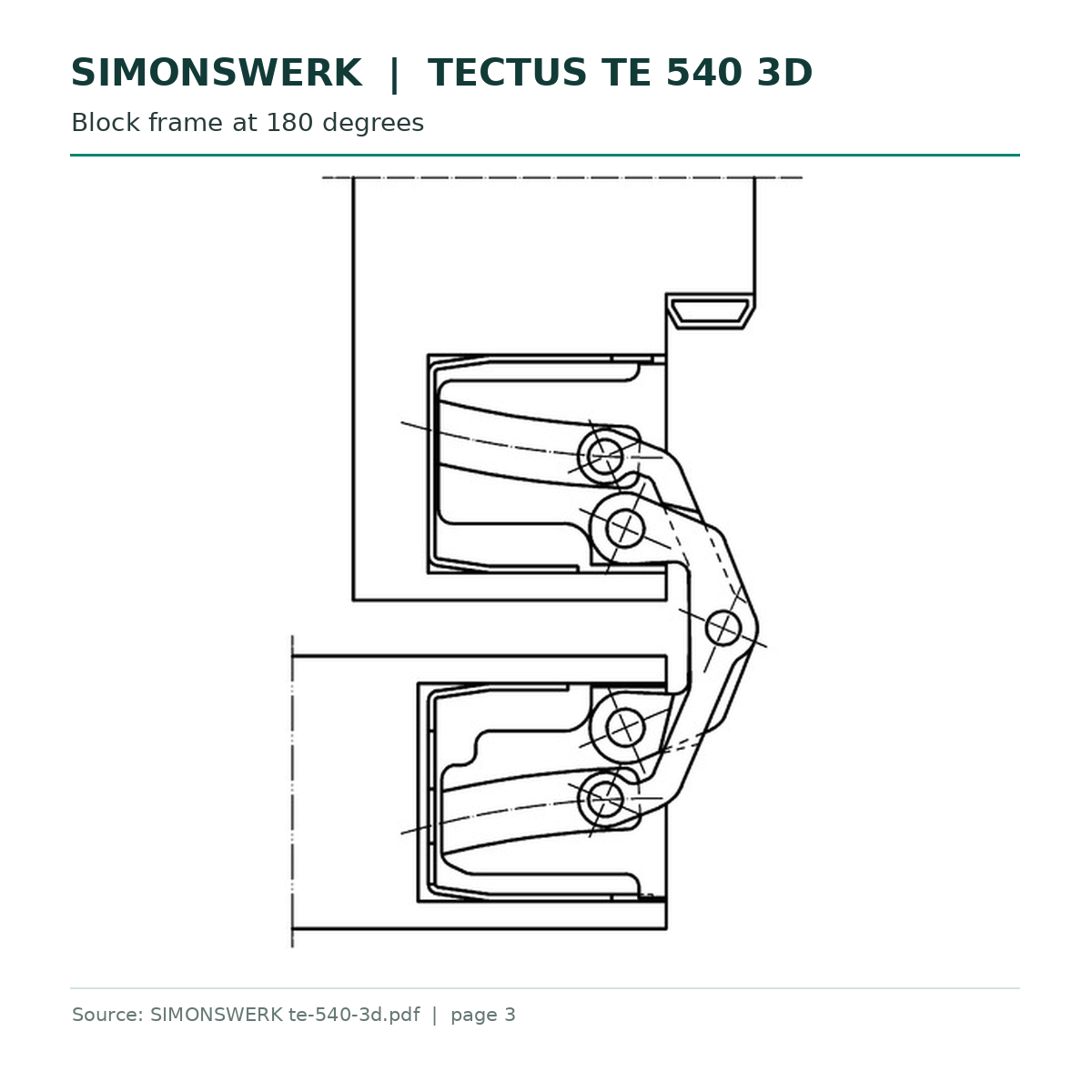

  • SIMONSWERK TECTUS TE540 block-frame installation, 180 degrees drawing
1 7

TECTUS3D ADJ HINGE TE540 120KG SSS

TECTUS3D ADJ HINGE TE540 120KG SSS

Stock Code: HI1299G2

£117.06 GBP
Sale
View full details
>
Previous
TECTUS3D ADJ HINGE TE528 100KG SSS
Next
TECTUS3D HINGE TE540 3D & INTUM MN

PRODUCT DESCRIPTION

Tectus3D Concealed Hinge
TE540, 120kg Capacity
200 x 80.5 x 34 mm
Satin stainless steel

TECHNICAL DETAILS

  • Application: Furniture Hinges
