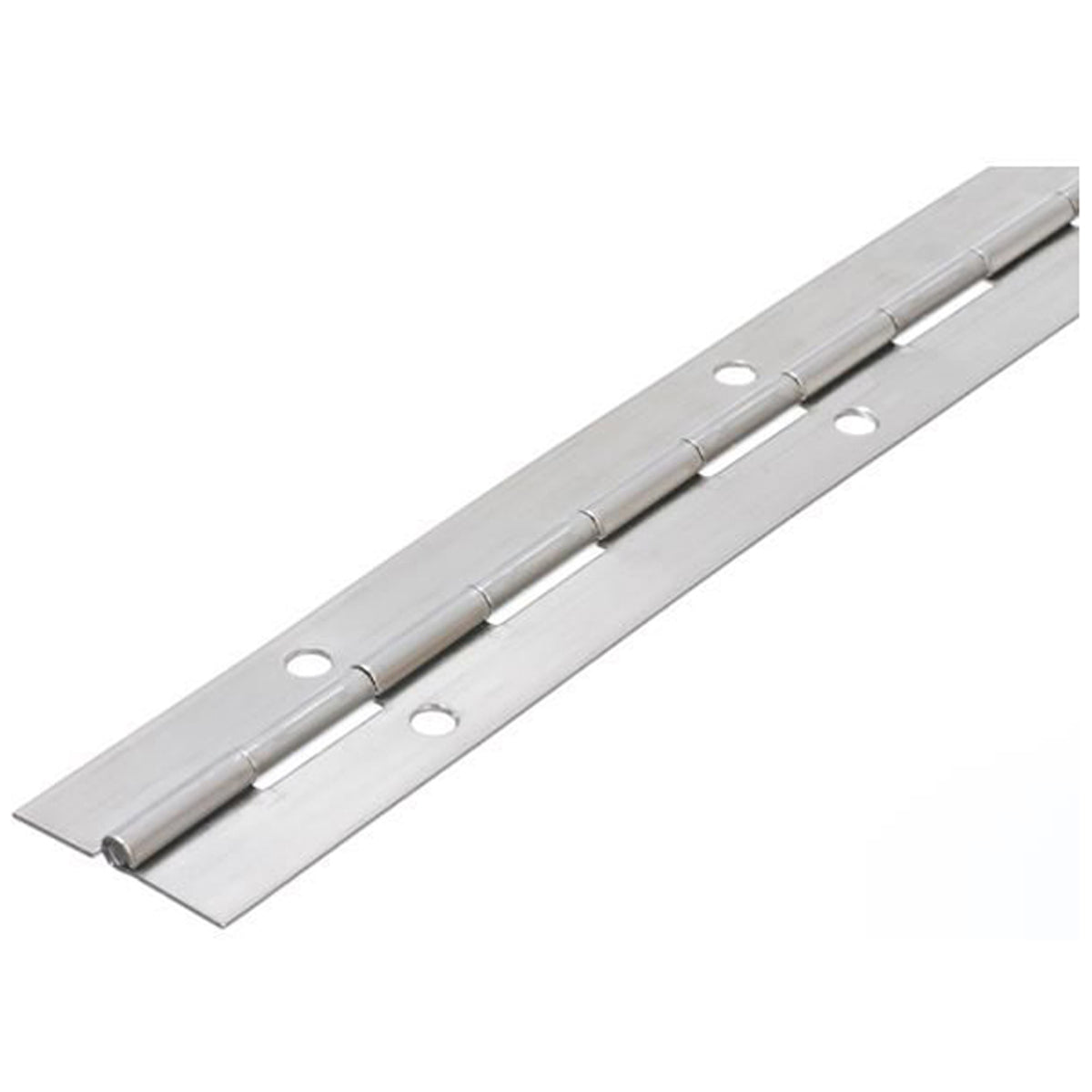

2000 × 76 × 2.5mm Grade 304 Stainless Steel Continuous Hinge

This architectural continuous piano hinge measures 2000mm long and 76mm wide when fully open. It is manufactured from 2.5mm-thick Grade 304 stainless steel with a satin-polished finish.

Designed to support the full hinged edge of an appropriately specified door, it is suitable for demanding architectural timber and steel door installations. Continuous support can help distribute movement and loading more evenly than several separate hinges.

The hinge has a 7mm-diameter pin, 25.4mm knuckle length and in-line countersunk holes at 101.6mm centres. The holes accept No.10 woodscrews or M5 machine screws.

It carries an EN 1935 Grade 14 classification with a 160kg test mass. The complete installation must still account for door dimensions, usage, frame construction, fixing strength and environmental conditions.

Supplied as one complete 2000mm hinge.

Key features

• Architectural continuous piano hinge
• Grade 304 stainless steel construction
• Satin-polished finish
• 2000mm overall length
• 76mm open width
• 2.5mm leaf thickness
• 7mm-diameter hinge pin
• 25.4mm knuckle length
• In-line countersunk fixing holes
• 101.6mm hole centres
• Countersunk for No.10 woodscrews or M5 machine screws
• EN 1935 Grade 14 classification
• 160kg test mass
• Continuous support along the door edge
• Suitable for appropriately specified timber or steel doors
• Supplied as one complete hinge

Specifications

Typical applications

• Architectural timber doors
• Architectural steel doors
• High-use public-building doors
• Commercial and institutional doors
• Security and anti-vandal installations
• Heavy access panels and enclosures
• Other demanding full-length hinge applications

Why use an architectural continuous hinge?

A continuous hinge supports the hinged edge along its length instead of concentrating forces at several separate hinge positions. This can help maintain alignment, distribute movement and reduce localised stress when the hinge and complete door assembly are correctly specified and installed.

Installation and specification

1. Confirm that the hinge dimensions suit the door and frame.
2. Check the complete door specification, usage level and required classification.
3. Align and support the entire hinge before marking the fixing positions.
4. Use suitable No.10 woodscrews or M5 machine screws for the substrate.
5. Use tamper-resistant fasteners where required by the project specification.
6. Test door movement, alignment and clearances before final tightening.
7. Inspect and maintain the complete door assembly at suitable intervals.

Fixings and any fire-door accessories are not confirmed as included and must not be advertised as supplied.

Questions and answers

What size is this continuous hinge?

It measures 2000mm long, 76mm wide when fully open and 2.5mm thick.

What material is it manufactured from?

It is manufactured from Grade 304 stainless steel with a satin-polished finish.

What is the correct knuckle length?

The correct knuckle length is 25.4mm. The previous 12mm description was inaccurate.

What is the hinge-pin diameter?

The hinge has a 7mm-diameter pin.

How are the fixing holes arranged?

The countersunk fixing holes are positioned in line at 101.6mm centres.

What fixings should be used?

The countersinks accept No.10 woodscrews or M5 machine screws. Select the correct fixing material and length for the door, frame and environment.

What does Grade 14 / 160kg mean?

This is the declared EN 1935 classification and test mass. It must not be treated as a universal maximum door weight without considering door dimensions, use, installation and the complete door assembly.

Can it be used on timber and steel doors?

Yes, it is intended for appropriately specified timber or steel doors using compatible fixings.

Is this hinge FD60 fire rated?

Do not describe the hinge alone as FD60 fire rated. A compatible intumescent fire-door kit is available separately, but any fire-door installation requires the correct complete door assembly, supporting evidence and professional specification.

Can the hinge be shortened?

It may be professionally cut where appropriate, but cutting can alter hole positions and may affect classification or fire-door suitability. Confirm the finished specification before modification and remove all burrs and sharp edges.

Are fixing screws included?

Fixing screws are not confirmed as included.

Is Grade 304 stainless steel suitable outdoors?

Grade 304 stainless steel provides useful corrosion resistance, but exposure and maintenance must be assessed. Do not describe it as corrosion-proof or suitable for marine environments.
