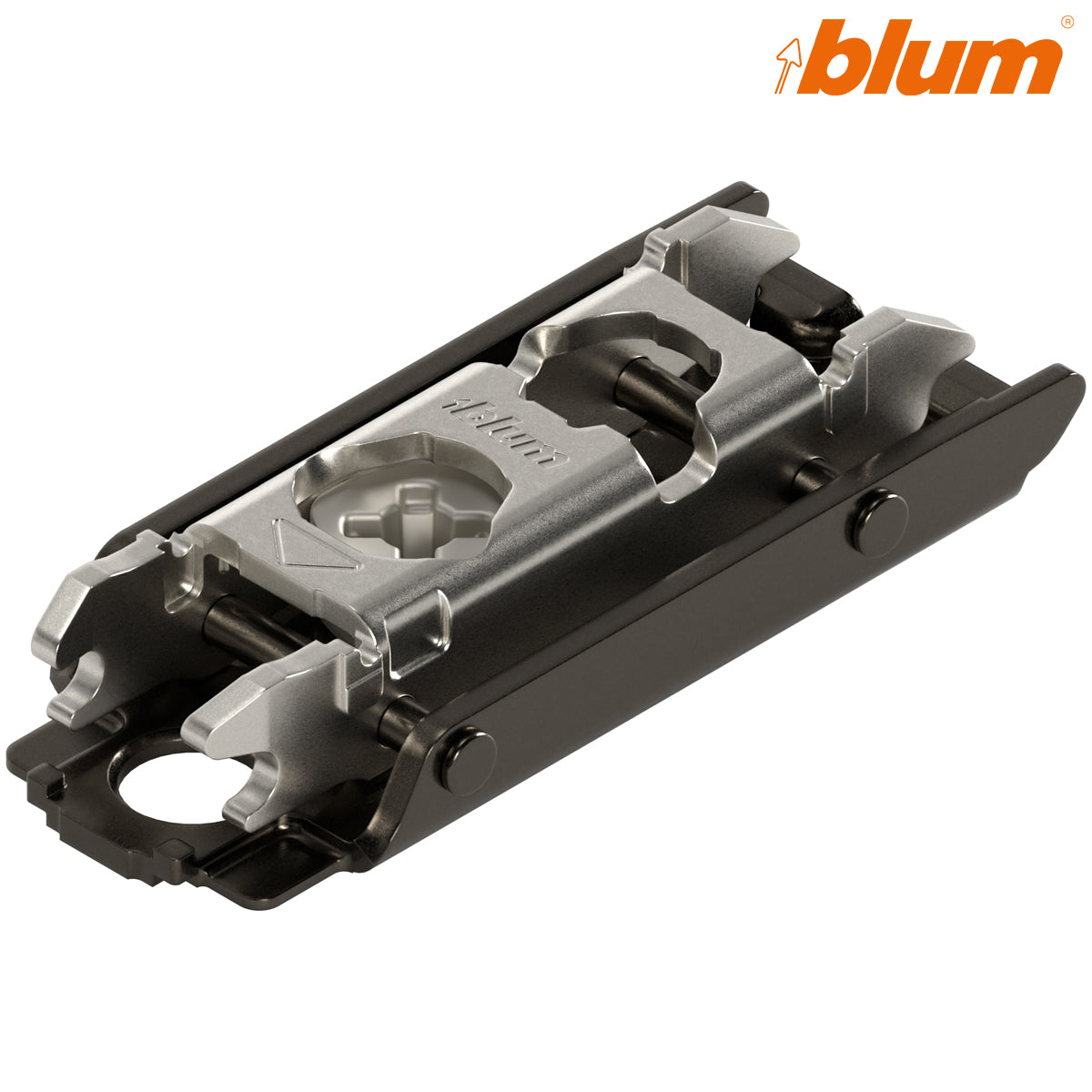

Blum 175H3100 CLIP top 0 mm narrow mounting plate – Onyx Black

The Blum 175H3100 is a narrow CLIP top mounting plate for restricted-width cabinet constructions where a standard cruciform plate may not fit. Its Onyx Black finish coordinates with compatible dark cabinet hardware, and its countersunk chipboard-screw fixing is suited to the specified cabinet-side installation.

Use this plate as part of a planned CLIP top hinge installation. Check the narrow profile, nominal spacing, physical height and fixing method against the cabinet and hinge before drilling.

Technical details

• Blum part number: 175H3100
• Hart Wholesale SKU: HIO175H3100
• Type: narrow CLIP top mounting plate
• Nominal plate spacing: 0 mm
• Physical plate height: 8.5 mm
• Fixing: countersunk chipboard screw
• Profile: narrow, for restricted-width cabinet constructions
• Material: steel
• Finish: Onyx Black
• Quantity: one mounting plate
• Hinge: supplied separately

Understanding the 0 mm measurement

The 0 mm figure is the nominal spacing used when planning the compatible hinge and cabinet. It is not the physical plate height. This narrow plate has an 8.5 mm physical height, which must be considered when checking the hinge position and door overlay.

Choosing a narrow mounting plate

Use a narrow plate where the cabinet side or internal construction limits the space available for a standard cruciform plate. Confirm the hinge, overlay or inset position, plate height and fixing method against the complete cabinet planning dimensions before installation.

Browse the Blum CLIP top mounting plate range and the Blum CLIP top hinge range when planning the installation.

Matching components

For the same 175H3100 specification in nickel, see the verified Blum HI175H3100 nickel narrow mounting plate. Pair this plate with a compatible Onyx CLIP top hinge selected for the required overlay, inset position and opening action.

Frequently Asked Questions

What is this narrow mounting plate used for?

It is designed for compatible CLIP top hinge installations in restricted-width cabinet constructions where a standard cruciform plate may not fit.

Is this a 0 mm or an 8.5 mm plate?

Both measurements describe different features. The nominal plate spacing is 0 mm, while the physical plate height is 8.5 mm.

How is the plate fitted?

It is fixed with a countersunk chipboard screw. Prepare the cabinet side correctly and follow the applicable installation information.

Is the hinge included?

No. This listing is for one mounting plate. Select a compatible CLIP top hinge separately.

What colour is the plate?

The plate has an Onyx Black finish for use with compatible dark cabinet hardware.

Is the nickel version available?

Yes. The verified nickel counterpart is HI175H3100, using the same 175H3100 part number and narrow 0 mm specification.
