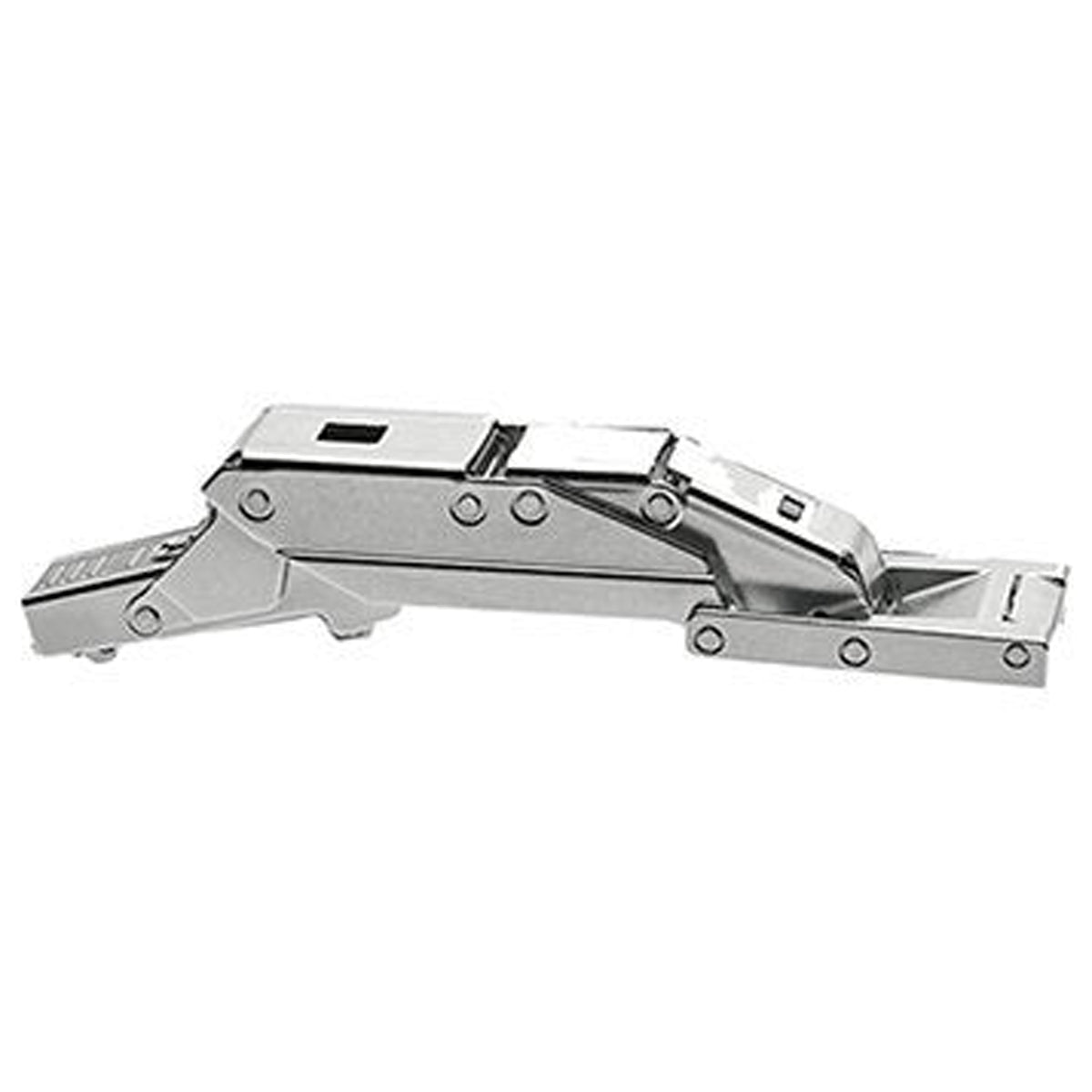

Blum 71T4500C CLIP top CRISTALLO 110° Sprung Glass and Mirror Door Hinge

The Blum 71T4500C is a specialist CLIP top CRISTALLO hinge for frameless glass and mirror cabinet doors between 3mm and 8mm thick.

Rather than drilling through the glass, the hinge attaches without tools to a separately purchased CRISTALLO adhesion plate. The plate is permanently bonded to the glass or mirror front, creating a clean installation without visible hinge-cup holes.

This system is suitable for glass display cabinets, kitchen furniture, bathroom cabinets, living-room furniture and other premium glazed cabinet applications.

Sprung self-closing action

The 71T4500C contains a closing spring that pulls the glass door into its closed position. It is self-closing but does not contain integrated BLUMOTION soft-close damping.

For integrated soft-close, see the Blum 71B4500C CRISTALLO BLUMOTION hinge.

Glue-on CRISTALLO installation

The hinge clips onto a Blum 70T4568C CRISTALLO adhesion plate, which is glued to the glass or mirror front. No glass drilling is required.

Blum recommends that the adhesive and bonding process be selected and completed by an experienced glass manufacturer. Adequate gaps must be maintained around the glass to reduce the risk of breakage.

The position of the adhesion plate and the selected cabinet mounting plate determine whether the finished door is overlay, half overlay or inset.

Key features

• Genuine Blum CLIP top CRISTALLO hinge
• Blum part number: 71T4500C
• For frameless glass and mirror doors
• Suitable for glass between 3mm and 8mm thick
• No glass drilling required
• Tool-free hinge-to-adhesion-plate attachment
• 110° opening angle
• Sprung and self-closing
• No integrated BLUMOTION soft-close
• Three-dimensional door adjustment
• Tool-free CLIP assembly and removal
• Suitable for overlay, dual and inset applications
• Nickel-plated steel construction
• Supplied as one hinge
• Adhesion plate and cabinet mounting plate sold separately

Technical specifications

Frequently Asked Questions

Does the 71T4500C clamp directly onto the glass edge?

No. The hinge clips onto a CRISTALLO adhesion plate that has been professionally bonded to the glass or mirror front.

Does the glass need to be drilled?

No. The glue-on adhesion plate allows the hinge to be fitted without drilling holes through the glass.

What glass thickness can be used?

The CRISTALLO system is designed for glass or mirror fronts between 3mm and 8mm thick.

Is the CRISTALLO adhesion plate included?

No. The 70T4568C adhesion plate must be purchased separately for each hinge.

Is the cabinet mounting plate included?

No. A compatible Blum CLIP cabinet mounting plate must also be selected separately according to the required application.

Is this a soft-close glass hinge?

No. The 71T4500C is sprung and self-closing but does not have integrated BLUMOTION. The 71B4500C is the integrated soft-close version.

Can it be used for overlay and inset glass doors?

Yes. Overlay, dual and inset applications can be achieved by changing the adhesion-plate position and selecting the appropriate cabinet mounting plate.

Who should glue the adhesion plate to the glass?

Blum recommends that the adhesive selection and bonding process be handled by an experienced glass manufacturer.

Is the hinge supplied individually?

Yes. This listing is for one hinge. The adhesion plate and cabinet mounting plate are not included.
