Name: BLUM CLIP WIDE HINGE 155deg DUAL UNSPRUNG SCREW-ON
Brand: JULIUS BLUM UK LTD
SKU: HI70T7650.TL
Price: 5.70 GBP
Availability: InStock

PRODUCT DESCRIPTION

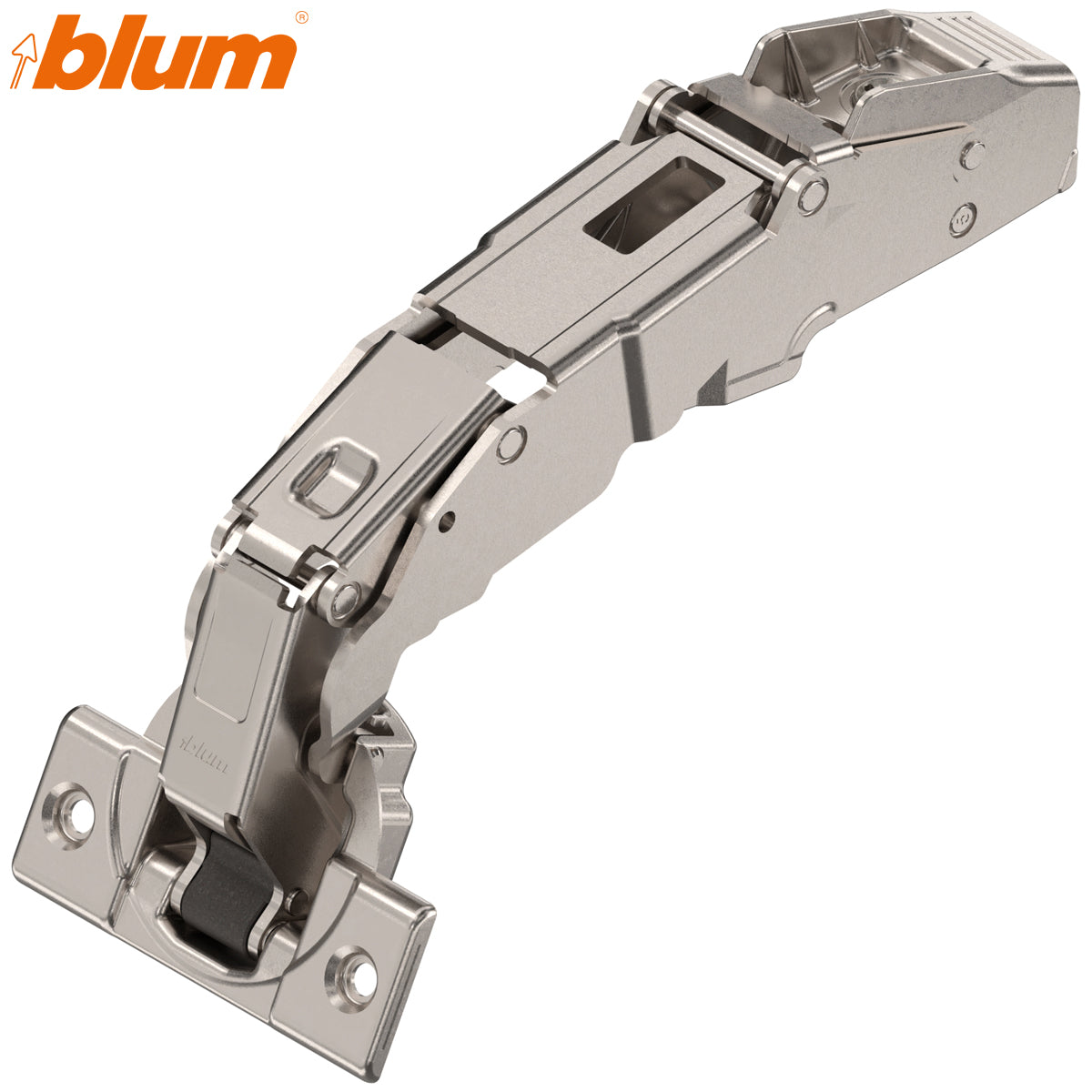

Blum Clip Wide Hinge 155° - Dual (Half Overlay), Unsprung, Screw-On, Nickel

A Blum Clip Top wide-angle hinge opening to 155° for dual (half overlay) applications, where two doors share a central cabinet partition each overlapping by half. Provides near-full access to cabinet contents with maximum door clearance. Screw-on boss fixing. Unsprung for use with Blumotion or other soft-close mechanisms.

SKU: HI70T7650.TL
Blum part number: 70T7650.TL
Opening angle: 155°
Application: Dual / Half overlay
Closing mechanism: Unsprung
Fixing: Screw-on boss
Finish: Nickel
Compatible with: Blum Clip Top boss plates and Blumotion
Supplied as 1 piece

Technical attributes

application	wide angle hinge
Cranking	Dual application
Opening angle	155
Closing mechanism	unsprung
hinge variant	with free movement for TIP-ON
Cover cap type	70.4503
Cover cap type	70T7504 - boss cover cap
Boss material	Steel boss
boss finish	Nickel plated
Boss assembly	screw-on
Flange width	57
Flange length	22
Flange height	3.2
diameter hinge boss drilling	35
distance between drillings	45
eccentric position of fixing holes to hinge boss hole	9.5
boss drilling depth	11.7
Minimum drilling distance	3
Maximum drilling distance	8
arm material	Zinc
arm finish	Nickel plated
collision measurement (hinge arm height)	72
Fixed dimension / factory setting	1.5
Type of side adjustment	With screw
Side adjustment	+/-2
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+3/-2
Gap	1.5
Item package	1 piece
packaging	Commercial packing
product combination	No

Supplied as a single hinge. Boss plates and soft-close mechanisms sold separately.

TECHNICAL DETAILS

Application: Dual
Finish: Nickel Plated
Colour: Nickel
Material: Zinc
