KitLock Nano KL90 – Compact Electronic Cam Lock

The KitLock Nano (KL90) by Codelocks is a sleek, minimal electronic lock engineered for lockers, cupboards, and drawers. With the same ultra-small footprint as the original, the upgraded Nano delivers performance and functionality far beyond its size — stronger build, smarter design, better lock.

Surface-mounted or flush-fitted, the KL90 retrofits in place of standard cam locks using just two additional fixings. For new installations, only three small holes are required — fitted in minutes, ideal for large-scale projects and individual applications alike.

Key Features

• 8-digit Master and Sub-Master Codes
• 4-digit User Code
• 6-digit Technician Code
• Up to 15,000 operations per 2 × AAA battery cycle (batteries included)
• Vertical orientation (right-hand horizontal also available)

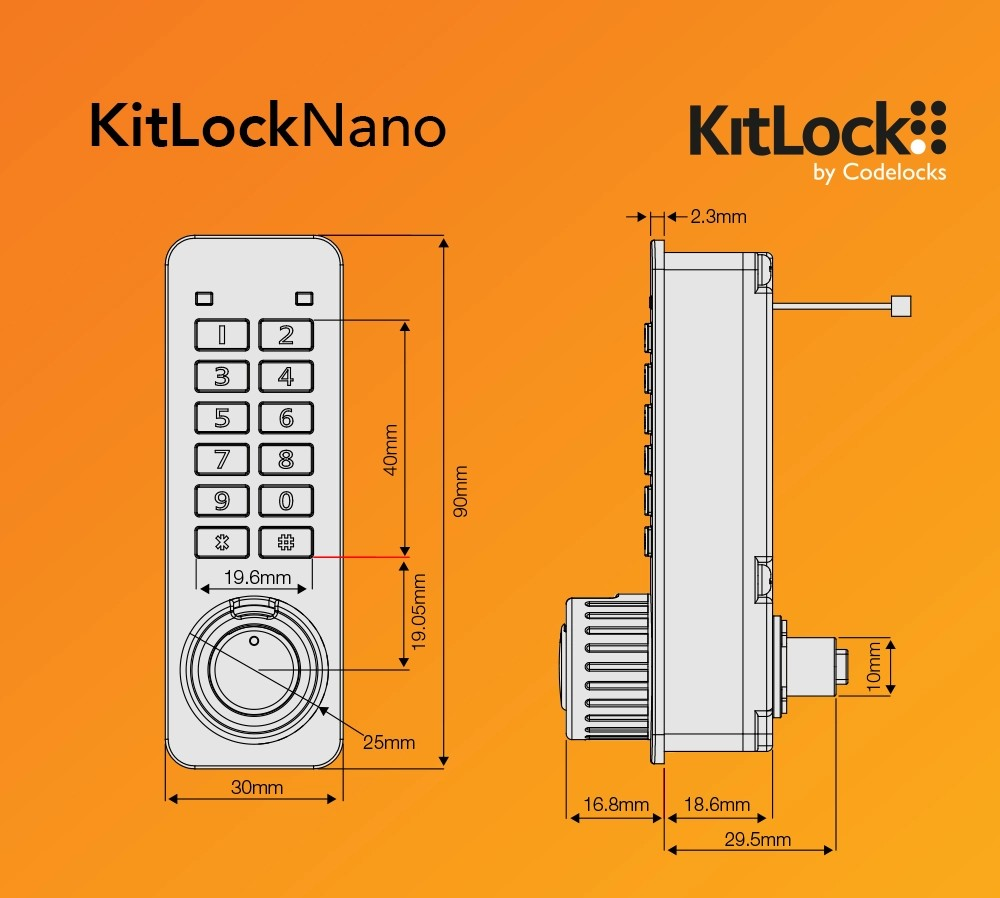

• Suitable for doors up to 22mm surface-mounted or 32mm flush-fitted
• IP54 rated – suitable for internal and external use
• Red/blue LED indicators for locked/unlocked status
• Key override available separately (with protective dust cover)
• Non-volatile memory – retains codes even when power is lost
• Low battery warning: red LED flashes on opening
• Battery override via external 9V PP3 contacts
• Supplied with all parts, fixings, and product literature

Functions

Private Function (default): Ideal for personal storage — the same user repeatedly accesses the same locker or drawer using a fixed code.

Public Function: A user sets a personal 4-digit code to secure the locker; the code is automatically erased after unlocking, ready for the next user. Perfect for hot-desking, shared offices, gyms, and sports club lockers.

Technical Specifications

• Brand: KitLock by Codelocks
• Finish: Black
• Buttons: 12 individual (2 × 6 layout)
• Code Change Method: Keypad (on door)
• Latch Type: Cam
• Lock Material: Plastic
• Handed: Vertical & Right-Handed
• Function: Private, Public
• User Levels: Master, Sub-Master, Technician, Standard User
• User Types: Code
• IP Rating: IP54
• Fit Doors Up To: Surface: 1–22mm | Flush: 1–32mm
• Battery Override: 9V PP3 placed against external contacts
