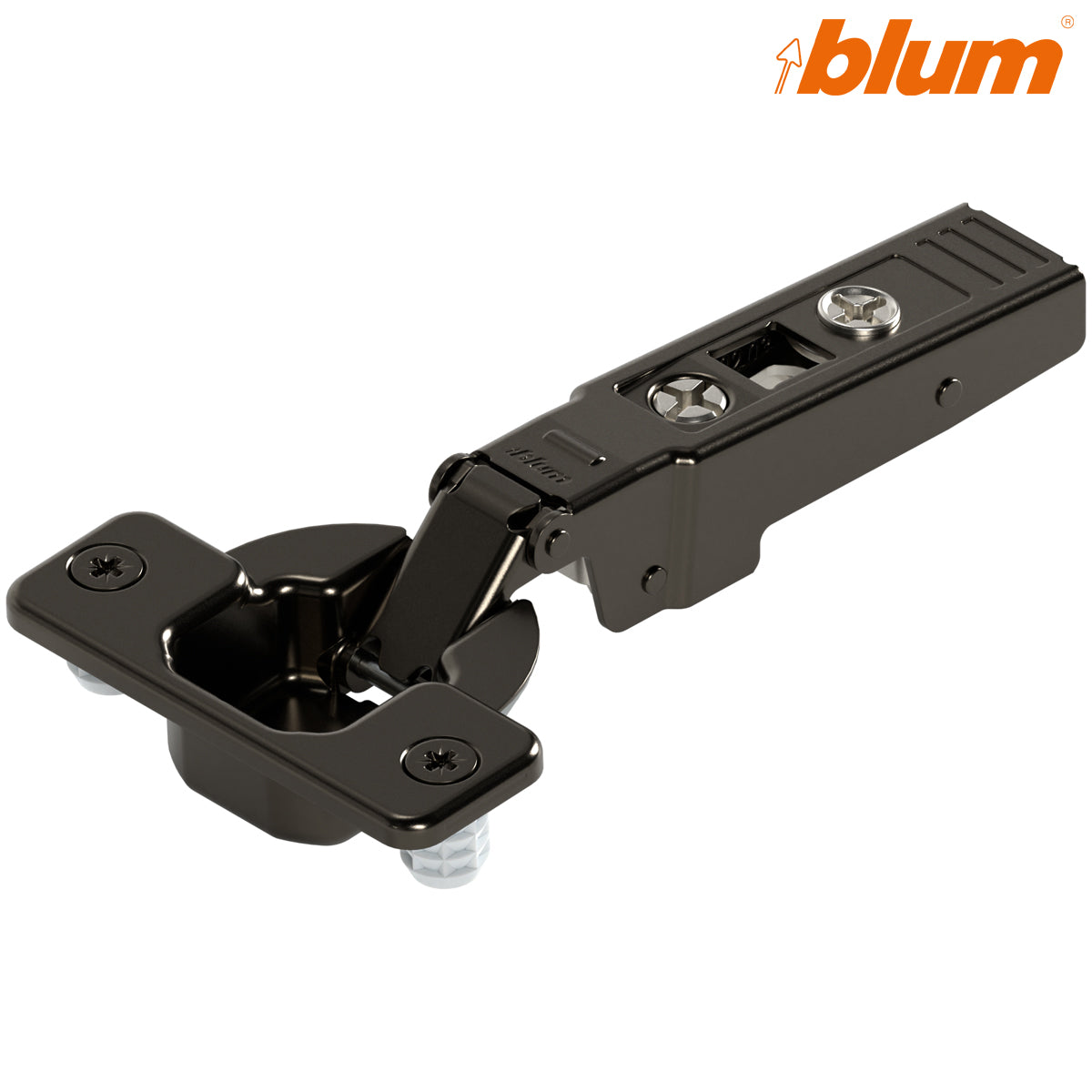

  • Blum 70T9580.TL CLIP top 95 degree unsprung knock-in hinge for thick overlay doors in Onyx Black
1 1

Blum CLIP top 95° Thick/Profile Door Overlay Unsprung Knock-In Hinge – Onyx | HIO70T9580TL

Blum CLIP top 95° Thick/Profile Door Overlay Unsprung Knock-In Hinge – Onyx | HIO70T9580TL

Stock Code: HIO70T9580TL

£2.92 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum CLIP top 95° unsprung hinge for thick and profiled doors

The Blum 70T9580.TL CLIP top hinge is designed for thick, heavily profiled and decorative wooden cabinet fronts that require more clearance than a conventional 110° cabinet hinge can provide. Its specialist long-arm geometry and controlled 95° opening help reduce the risk of thick door edges or raised mouldings contacting the adjoining cabinet front.

This straight-arm version is intended for overlay applications. It is suitable for kitchen doors, wardrobes, bedroom furniture and bespoke cabinetry with front thicknesses up to approximately 30mm. For thicker doors or unusually deep decorative profiles, Blum recommends completing a trial installation to check the reveal, opening clearance and mounting position.

The hinge has an unsprung or free-swing mechanism. It does not pull the door closed and does not contain integrated BLUMOTION soft close. This makes it suitable for compatible handleless push-to-open arrangements where the door must move freely without resistance from a closing spring.

Its Onyx Black finish provides a discreet appearance on dark doors, dark cabinet interiors and design-led furniture. The finish is especially effective where the hinge may remain partially visible when the cabinet door is open.

Key features

  • Genuine Blum 70T9580.TL CLIP top concealed hinge
  • Designed for thick and decoratively profiled wooden doors
  • Suitable for door thicknesses up to approximately 30mm
  • Straight-arm overlay application
  • Approximately 95° opening angle
  • Unsprung, free-swing closing mechanism
  • No integrated BLUMOTION soft close
  • Compatible with appropriate TIP-ON push-to-open arrangements
  • Knock-in or press-in hinge cup fixing
  • Pre-mounted dowels for efficient production fitting
  • Tool-free CLIP attachment to the mounting plate
  • Three-dimensional door adjustment with a suitable plate
  • Onyx Black finish

Technical specification

Manufacturer Blum
Blum part number 70T9580.TL
Hart stock code HIO70T9580TL
Product range CLIP top
Door application Overlay
Hinge arm Straight arm
Recommended door type Thick or decoratively profiled wooden cabinet fronts
Maximum standard door thickness Up to approximately 30mm
Opening angle Approximately 95°
Closing mechanism Unsprung / free swing
Self-closing No
Soft close No integrated BLUMOTION
Hinge cup fixing Knock-in / press-in
Hinge cup diameter 35mm
Hinge cup depth 12.7mm
Fixing-hole centres 45mm
Boss drilling distance 3–7mm, subject to door thickness and required overlay
Adjustment Three-dimensional adjustment with a suitable mounting plate
Material Steel
Finish Onyx Black
Mounting plate included No – purchase separately
Quantity supplied One hinge

Why use a 95° hinge on a thick door?

Thick doors and fronts with raised mouldings can project further into the cabinet opening as they rotate. The 95° hinge geometry provides additional clearance and limits the opening movement, helping prevent a thick door edge or decorative profile from striking an adjacent front.

Final clearance depends on the door thickness, cup drilling distance, mounting plate height and shape of the door profile. Trial fitting is recommended whenever the front has an unusually deep moulding or exceeds 30mm in thickness.

Knock-in hinge cup fixing

The knock-in version uses pre-mounted dowels that press into the correctly drilled fixing holes around the 35mm hinge cup. It is intended for accurate production drilling and provides fast, consistent installation without separate hinge-cup screws.

If a conventional screw-on fixing is preferred, see the Blum 70T9550.TL 95° unsprung screw-on hinge in Onyx.

Mounting plate and TIP-ON compatibility

A compatible mounting plate is required and must be ordered separately. Select the correct plate height and fixing method from the Blum CLIP top mounting plate range.

For handleless furniture, combine the hinge with a correctly specified product from the Blum TIP-ON for doors range. The TIP-ON unit must be selected according to the door size, weight and required opening force.

For an integrated soft-close alternative, consider the Blum 71B9580 95° BLUMOTION knock-in hinge in Onyx.

Browse more Blum CLIP top hinges or visit the Blum hinges guide.

Frequently asked questions

What type of door is the 70T9580.TL designed for?

It is intended for thick or decoratively profiled wooden cabinet doors where a conventional hinge may not provide enough opening clearance.

What is the maximum door thickness?

Blum’s standard planning information covers doors up to approximately 30mm thick. A trial installation is recommended for thicker or unusually profiled fronts.

Is this hinge self-closing?

No. It is an unsprung or free-swing hinge and does not pull the cabinet door closed.

Does it include soft close?

No. The 70T9580.TL does not contain integrated BLUMOTION.

Can it be used with TIP-ON?

Yes, it can be used in an appropriately planned TIP-ON push-to-open door application.

What is the difference between knock-in and screw-on?

The knock-in version has pre-mounted dowels that press into accurately drilled fixing holes. The screw-on 70T9550.TL version uses separate screws to secure the hinge cup.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
