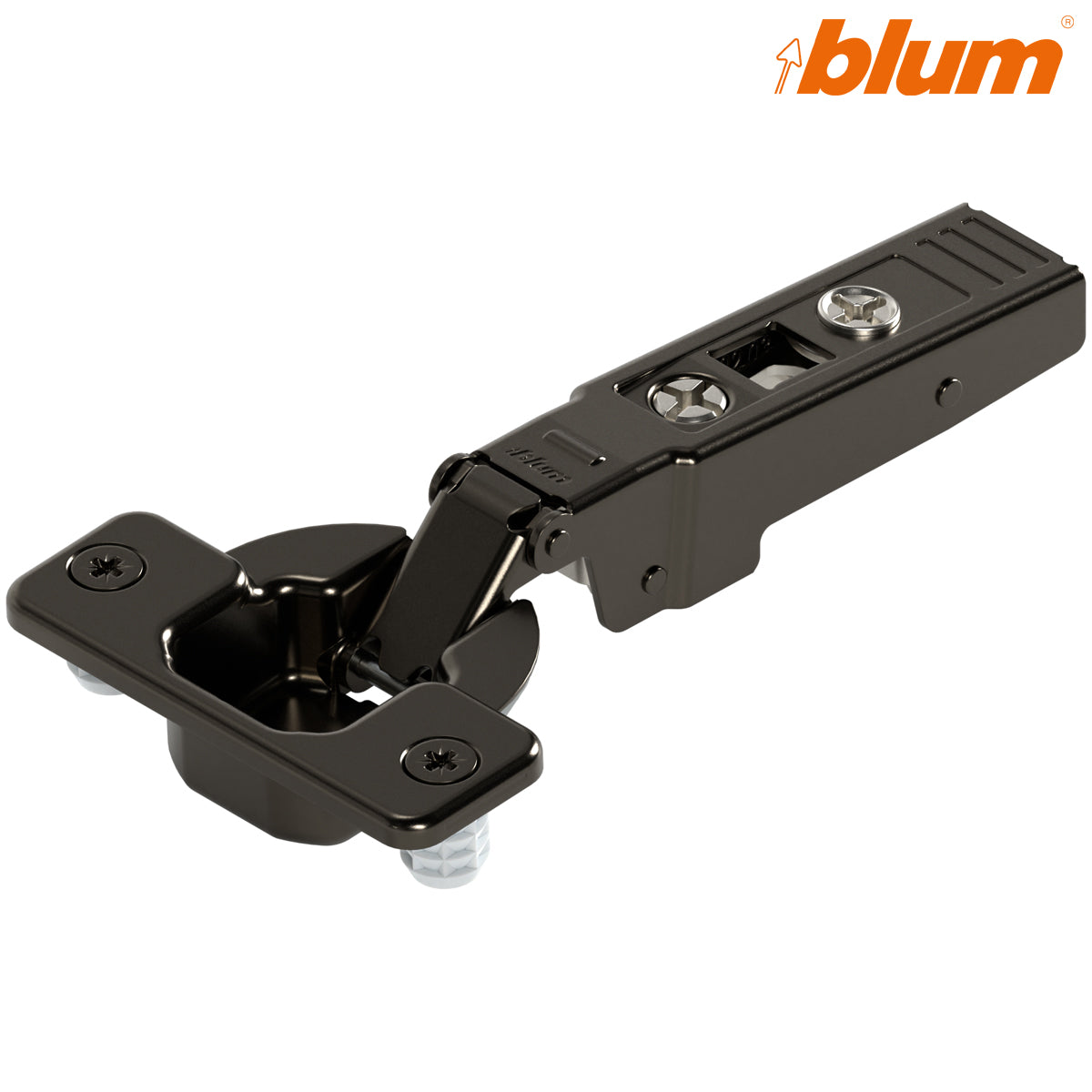

Blum 70T9580.TL CLIP top 95° Thick-Profile Door Overlay Unsprung Knock-In Hinge | Onyx Black

Blum 70T9580.TL CLIP top 95° Thick-Profile Door Overlay Unsprung Knock-In Hinge | Onyx Black

Stock Code: HIO70T9580TL

£2.92 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 70T9580.TL CLIP top 95° thick-profile door overlay unsprung knock-in hinge – Onyx Black

The Blum 70T9580.TL is a specialist CLIP top hinge for thick, heavily profiled or decorative cabinet doors that need more clearance than a conventional 110° hinge can provide. Its 95° opening angle and long-arm geometry help reduce the risk of a thick door edge or raised moulding contacting the adjoining cabinet front.

This straight-arm version is intended for overlay applications and is suitable for kitchens, wardrobes, bedroom furniture and bespoke cabinetry. Blum’s standard planning guidance covers door fronts up to approximately 30 mm thick, with trial fitting recommended for thicker or unusually deep profiles.

The hinge is unsprung and free-swing, with no integrated BLUMOTION soft close. It can be used in a compatible handleless push-to-open arrangement where the door must move freely without resistance from a closing spring. Its Onyx Black finish suits dark doors, cabinet interiors and contemporary furniture.

Technical details

  • Blum part number: 70T9580.TL
  • Hart Wholesale SKU: HIO70T9580TL
  • Type: CLIP top concealed profile-door hinge
  • Application: overlay
  • Hinge arm: straight arm
  • Recommended door type: thick or decoratively profiled cabinet fronts
  • Maximum standard door thickness: approximately 30 mm
  • Opening angle: 95°
  • Closing mechanism: unsprung/free swing
  • BLUMOTION: no
  • Hinge-cup fixing: knock-in/press-in with pre-mounted dowels
  • Hinge-cup diameter: 35 mm
  • Hinge-cup depth: 12.7 mm
  • Fixing-hole centres: 45 mm
  • Boss drilling distance: 3–7 mm, subject to door thickness and overlay
  • Adjustment: three-dimensional with a suitable mounting plate
  • Material: steel
  • Finish: Onyx Black
  • Quantity: one hinge

Planning and fitting

The knock-in hinge cup uses pre-mounted dowels that press into accurately drilled fixing holes around the 35 mm cup. It is intended for consistent production drilling and does not use separate hinge-cup screws.

Select a compatible Blum CLIP mounting plate separately. Final clearance depends on the door thickness, cup drilling distance, mounting-plate height and profile shape, so trial fit any unusually deep moulding or front above approximately 30 mm before production drilling.

For handleless furniture, pair the hinge with a correctly specified Blum TIP-ON door unit. Use matching unsprung hinges throughout the door and do not mix this hinge with sprung or soft-closing hinges.

For a conventional screw-on cup, compare the Blum 70T9550.TL 95° unsprung screw-on hinge in Onyx Black. Browse the Blum CLIP top hinge range for compatible components.

Matching components

The mounting plate, TIP-ON unit and any soft-close alternative are supplied separately. Check the selected mounting plate and door-opening system against the cabinet construction before ordering.

Frequently Asked Questions

What type of door is the 70T9580.TL designed for?

It is intended for thick or decoratively profiled overlay cabinet doors where a conventional hinge may not provide enough opening clearance.

What is the maximum door thickness?

Blum’s standard planning guidance covers doors up to approximately 30 mm thick. Trial fitting is recommended for thicker or unusually profiled fronts.

Is this hinge self-closing?

No. It is an unsprung, free-swing hinge and does not pull the cabinet door closed.

Does it include soft close?

No. The 70T9580.TL does not contain integrated BLUMOTION.

Can it be used with TIP-ON?

Yes. It can be used in an appropriately planned TIP-ON push-to-open door application.

What is the difference between knock-in and screw-on?

The knock-in version has pre-mounted dowels that press into accurately drilled fixing holes. The screw-on 70T9550.TL version uses separate screws to secure the hinge cup.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
