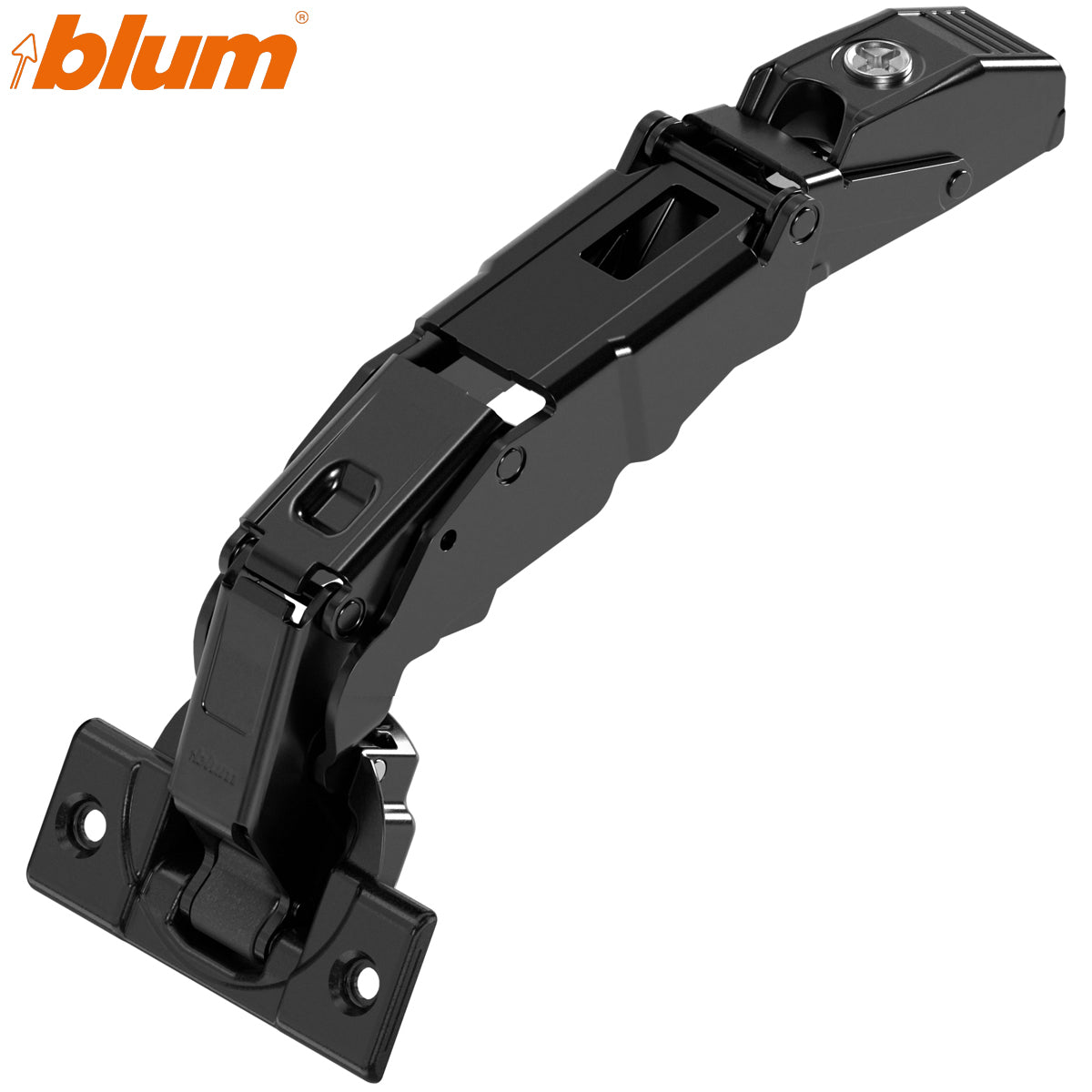

Name: BLUM CLIP WIDE HINGE 0-PROTRUSION 155deg OVERLAY UNSPRUNG SCREW-ON
Brand: JULIUS BLUM UK LTD
SKU: HIO70T7550.TL
Price: 5.52 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum CLIP top 155° Zero-Protrusion Unsprung Screw-On Hinge – Onyx Black

The Blum 70T7550.TL CLIP top hinge is a 155° wide-angle, full-overlay cabinet hinge designed for handleless cabinets containing internal drawers, pull-out shelves, baskets or larder fittings. Its zero-protrusion movement is designed to carry the open door clear of the cabinet’s internal working width, allowing pull-outs to travel forward without striking the door.

This is the unsprung, free-swing version with a traditional screw-on hinge cup. It is intended for use with a separate Blum TIP-ON door unit, creating a push-to-open cabinet door without handles.

The premium Onyx Black finish complements dark furniture, black cabinet interiors and contemporary handleless kitchens.

Zero-protrusion access for internal pull-outs

Standard cabinet hinges can leave part of the open door projecting into the cabinet opening. This may prevent an internal drawer, shelf or wire basket from moving past the door.

When the 70T7550.TL is correctly planned and installed, its zero-protrusion geometry moves the door clear of the internal cabinet width. This makes it particularly useful for pantry cabinets, larder units and furniture containing drawers behind a single outer door.

Key features

Blum CLIP top wide-angle concealed hinge
155° maximum opening angle
Zero/nil-protrusion movement
Full-overlay cabinet-door application
Unsprung, free-swing closing mechanism
Suitable for Blum TIP-ON push-to-open doors
Traditional screw-on hinge-cup fixing
Tool-free CLIP connection to the mounting plate
Three-dimensional door adjustment with a suitable plate
Steel construction with Onyx Black finish

Screw-on hinge-cup fixing

The hinge cup is secured to the door using suitable fixing screws, providing a familiar installation method for cabinetmakers and furniture manufacturers. Blum specifies Ø3.5 x 17mm screws for this screw-on version.

The hinge arm connects to a compatible mounting plate using Blum’s CLIP mechanism. This allows the door to be attached or removed without unscrewing the mounting plate.

A compatible Blum CLIP mounting plate must be ordered separately. Plate height and fixing position should be selected according to the required overlay and cabinet construction.

Technical specification

Manufacturer	Blum
Blum part number	70T7550.TL
Onyx reference	70T7550.TL.ONS
Hart stock code	HIO70T7500.TL
Product range	CLIP top
Application	Full overlay
Opening angle	155° maximum
Door movement	Zero/nil protrusion when correctly planned
Closing mechanism	Unsprung/free swing
BLUMOTION soft close	No
Recommended opening system	Blum TIP-ON for doors
Hinge-cup fixing	Screw-on
Recommended cup-fixing screws	Ø3.5 x 17mm
Mounting-plate connection	Tool-free CLIP mechanism
Door thickness at 155°	20–24mm
Thicker-door option	Up to 31mm with the compatible 92° opening-angle stop and correct planning
Side adjustment	±2mm
Depth adjustment	+3/-2mm via spiral screw
Height adjustment	Via the selected mounting plate
Material	Steel
Finish	Onyx Black
Quantity	One hinge

Door-thickness guidance

The unrestricted 155° installation is intended for doors from 20mm to 24mm thick. Doors up to 31mm may be possible when the compatible Blum 92° opening-angle stop is installed. Using this stop reduces the hinge opening to approximately 92°.

Door thickness, drilling distance, overlay and mounting-plate height must be checked during planning. A trial installation is recommended for unusual overlays, mitred fronts or cabinets positioned directly beside a wall.

What must be ordered separately?

This listing is for one hinge only. The CLIP mounting plate, TIP-ON unit, opening-angle stop and decorative cover caps are available separately.

If tool-free hinge-cup installation is preferred, choose the Blum 70T7590.TL unsprung INSERTA version.

For integrated soft closing rather than push-to-open operation, choose the Blum 71B7550 BLUMOTION screw-on hinge.

Explore the complete Blum hinge collection for alternative opening angles, fixing types and door applications.

Frequently asked questions

What does zero protrusion mean?

When correctly planned, the hinge moves the open door clear of the cabinet’s internal working width. This helps internal drawers and pull-outs travel past the door without obstruction.

Is this hinge suitable for pantry and larder cabinets?

Yes. Cabinets containing internal drawers, shelves, wire baskets and pull-out storage are the principal applications for this hinge.

Does the 70T7550.TL have soft close?

No. It is an unsprung, free-swing hinge without BLUMOTION. The 71B7550 is the corresponding screw-on version with integrated soft close.

Why is the hinge unsprung?

An unsprung hinge does not pull the door closed. This allows a compatible TIP-ON unit to push the door outward when the front is pressed.

What is the difference between 70T7550.TL and 70T7590.TL?

Both are unsprung, 155° zero-protrusion overlay hinges. The 70T7550.TL has a screw-on hinge cup, while the 70T7590.TL uses tool-free INSERTA cup fixing.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can it be used with a door thicker than 24mm?

Doors up to 31mm may be possible when the hinge is fitted with the compatible 92° opening-angle stop. The reduced opening angle and complete installation must be checked against Blum planning information.

Can sprung and unsprung hinges be mixed?

For a normal TIP-ON application, use matching unsprung hinges throughout the door. Do not mix different closing systems unless the arrangement has been specifically confirmed through Blum planning.

TECHNICAL DETAILS

Application: Overlay
Finish: Onyx Black
Colour: Onyx Black
Material: Steel
