Name: Blum CLIP top 155° Zero-Protrusion Unsprung INSERTA Hinge – Onyx | 70T7590.TL
Brand: Blum
SKU: HIO70T7590.TL
Price: 6.51 GBP
Availability: InStock

PRODUCT DESCRIPTION

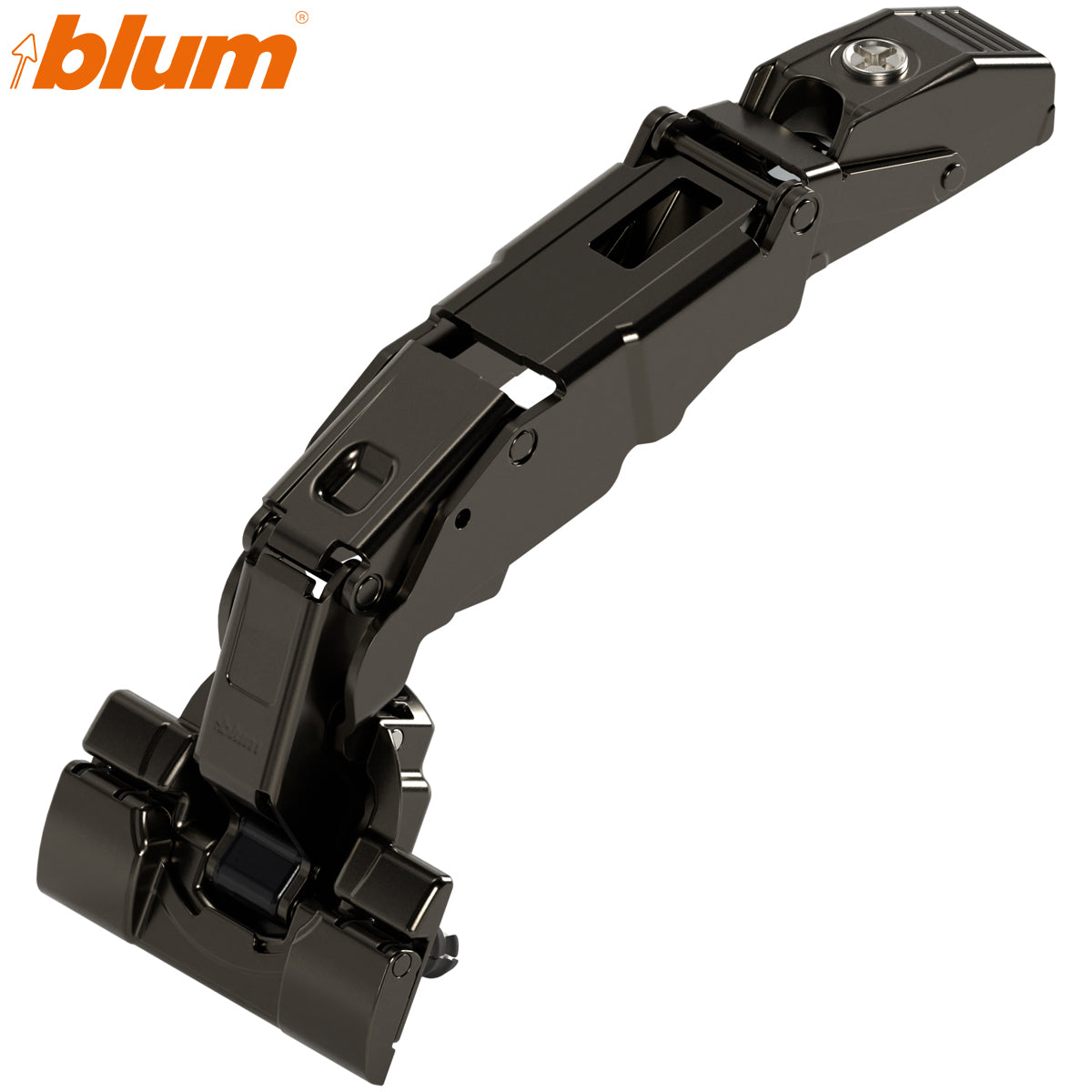

Blum CLIP top 155° Zero-Protrusion Unsprung INSERTA Hinge – Onyx Black

The Blum 70T7590.TL CLIP top hinge is a wide-angle, full-overlay cabinet hinge designed for handleless cabinets containing internal drawers, pull-out shelves or larder fittings. Its 155° opening angle provides excellent access, while the zero-protrusion geometry is designed to carry the open door clear of the cabinet’s internal working width.

This is the unsprung, free-swing version intended for use with a separate Blum TIP-ON door unit. Pressing the closed door activates TIP-ON and releases it outwards, while the unsprung hinge allows the door to open without resistance from a conventional closing spring.

Finished in contemporary Onyx Black, the hinge coordinates with dark cabinets, black mounting plates and premium handleless furniture.

Why choose a zero-protrusion hinge?

With an ordinary wide-angle hinge, part of the open door can remain inside the cabinet opening and obstruct an internal drawer or pull-out. When correctly planned and installed, the zero-protrusion movement of the 70T7590.TL brings the door clear so that internal drawers and pull-out fittings can travel forward without striking it.

This makes it particularly suitable for:

Kitchen larder and pantry cabinets
Cabinets with internal drawers
Pull-out shelves and wire storage systems
Handleless furniture using TIP-ON
Wide doors requiring generous access
Dark cabinetry where an Onyx Black hinge is preferred

Tool-free INSERTA and CLIP installation

The INSERTA hinge cup secures into the prepared door drilling without conventional fixing screws. The hinge arm then connects to a compatible mounting plate using Blum’s tool-free CLIP mechanism. This enables fast installation and allows the door to be removed and refitted without disturbing the mounting plate.

A compatible Onyx Black CLIP mounting plate must be ordered separately. The required plate height and drilling position depend on the cabinet construction and desired overlay.

Key features

Blum CLIP top wide-angle concealed hinge
155° maximum opening angle
Zero-protrusion design for internal drawers and pull-outs
Full-overlay cabinet-door application
Unsprung, free-swing mechanism
Designed for handleless doors using Blum TIP-ON
Tool-free INSERTA hinge-cup fixing
Tool-free CLIP connection to the mounting plate
Three-dimensional door adjustment when combined with a suitable plate
Premium Onyx Black finish

Technical specification

Manufacturer	Blum
Blum part number	70T7590.TL
Onyx reference	70T7590.TL.ONS
Hart stock code	HIO70T7590.TL
Product range	CLIP top
Application	Full overlay
Opening angle	155° maximum
Protrusion	Zero/nil protrusion when correctly planned
Closing mechanism	Unsprung/free-swing
BLUMOTION soft close	No
Recommended opening system	Blum TIP-ON for doors
Door fixing	INSERTA tool-free hinge-cup assembly
Mounting-plate connection	Tool-free CLIP mechanism
Door thickness at 155°	20–24mm
Thicker-door option	Up to 31mm when used with the compatible 92° opening-angle stop and correctly planned
Side adjustment	±2mm
Depth adjustment	+3/-2mm via spiral screw
Height adjustment	Via the selected mounting plate
Material	Steel
Finish	Onyx Black
Quantity	One hinge

Door-thickness and opening-angle guidance

The standard 155° configuration is intended for door thicknesses from 20mm to 24mm. Doors up to 31mm may be possible when the hinge is fitted with the compatible Blum 92° opening-angle stop. The stop reduces the maximum opening angle, so the hinge will no longer open to 155°.

Door thickness, overlay, drilling distance and mounting-plate height must be checked during planning. A trial installation is recommended for unusual overlays, mitred doors or cabinets installed directly beside a wall.

Important ordering information

This product is supplied as one hinge only. The CLIP mounting plate, TIP-ON door unit, opening-angle stop and decorative cover caps are available separately.

For a soft-closing version with the same INSERTA fixing and wide-angle zero-protrusion movement, see the Blum 71B7590 155° BLUMOTION INSERTA hinge in Onyx Black.

Explore the complete Blum hinge collection for alternative opening angles, fixing methods and door applications.

Frequently asked questions

What does zero protrusion mean?

When correctly planned, the hinge moves the open door clear of the cabinet’s internal working width. This allows internal drawers, shelves and pull-outs to pass the door without obstruction.

Is this hinge suitable for internal drawers?

Yes. Internal drawers and pull-out storage are the principal applications for this zero-protrusion hinge.

Does the hinge have soft close?

No. The 70T7590.TL is unsprung and does not contain BLUMOTION. Choose the 71B7590 alternative if integrated soft closing is required.

Why is the hinge unsprung?

The free-swing mechanism allows it to work with Blum TIP-ON push-to-open door units. A conventional sprung hinge would resist the TIP-ON opening movement.

What does INSERTA mean?

INSERTA is Blum’s tool-free method of securing the hinge cup into a correctly drilled cabinet door. No conventional cup-fixing screws are required.

Is the mounting plate included?

No. Select and order a compatible Blum CLIP mounting plate separately according to the required overlay and cabinet construction.

Can it be used on doors thicker than 24mm?

Doors up to 31mm may be possible when the compatible 92° opening-angle stop is used. This reduces the opening angle and the complete installation must be checked against Blum planning information.

Can sprung and unsprung hinges be mixed on one door?

For a normal TIP-ON application, use matching unsprung hinges throughout. Do not mix different closing mechanisms unless the application has been specifically checked using Blum planning guidance.

TECHNICAL DETAILS

Application: Overlay
Finish: Onyx Black
Colour: Onyx Black
Material: Steel
