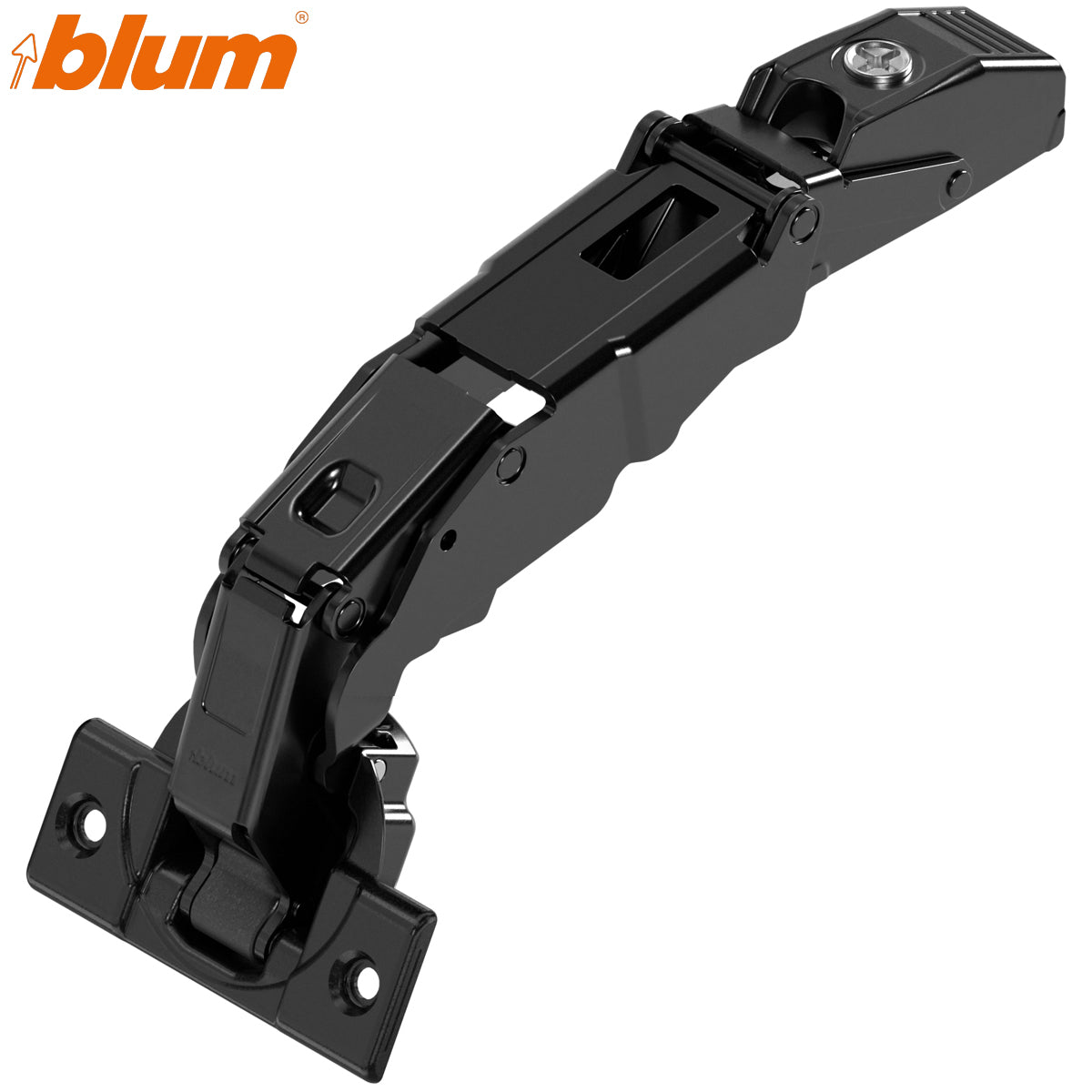

Blum 70T7550.TL CLIP top 155° Zero-Protrusion Unsprung Screw-On Hinge | Onyx Black

Blum 70T7550.TL CLIP top 155° Zero-Protrusion Unsprung Screw-On Hinge | Onyx Black

Stock Code: HIO70T7550.TL

£5.52 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 70T7550.TL CLIP top 155° zero-protrusion unsprung screw-on hinge – Onyx Black

The Blum 70T7550.TL is a wide-angle CLIP top hinge for full-overlay cabinet doors where internal drawers, pull-outs, baskets or larder fittings need the open door to clear the cabinet working width. Its zero-protrusion geometry is designed for correctly planned 155° installations.

This is the unsprung, free-swing version with a screw-on hinge cup. It can be used with a compatible Blum TIP-ON door unit for push-to-open handleless cabinets. The Onyx Black finish suits dark cabinet interiors and contemporary furniture.

Technical details

  • Blum part number: 70T7550.TL
  • Hart Wholesale SKU: HIO70T7550.TL
  • Type: CLIP top wide-angle concealed hinge
  • Application: full overlay
  • Opening angle: 155° maximum
  • Door movement: zero/nil protrusion when correctly planned
  • Closing mechanism: unsprung/free swing
  • BLUMOTION: no
  • Hinge-cup fixing: screw-on
  • Recommended cup-fixing screws: Ø3.5 x 17 mm
  • Mounting-plate connection: tool-free CLIP mechanism
  • Door thickness at 155°: 20–24 mm
  • Thicker-door option: up to 31 mm with the compatible 92° opening-angle stop and correct planning
  • Adjustment: side ±2 mm, depth +3/-2 mm via spiral screw, height via the selected mounting plate
  • Material: steel
  • Finish: Onyx Black
  • Quantity: one hinge

Planning and fitting

Select a compatible Blum CLIP mounting plate separately and plan the overlay, drilling distance, door thickness and cabinet position together. For doors over 24 mm, the compatible 92° opening-angle stop may be required and reduces the opening angle to approximately 92°.

For a TIP-ON application, use matching unsprung hinges throughout the door unless the arrangement has been specifically confirmed through Blum planning. The hinge cup, mounting plate, TIP-ON unit, opening-angle stop and decorative cover caps are supplied separately.

Browse the Blum CLIP top hinge range and the Blum hinge accessories range when planning the installation.

Matching components

For the nickel counterpart of this hinge, see the verified Blum HI70T7550.TL nickel hinge. For tool-free hinge-cup installation, compare the compatible 70T7590.TL unsprung INSERTA version.

Frequently Asked Questions

What does zero protrusion mean?

When correctly planned, the hinge moves the open door clear of the cabinet’s internal working width. This helps internal drawers and pull-outs travel past the door without obstruction.

Is this hinge suitable for pantry and larder cabinets?

Yes. Cabinets containing internal drawers, shelves, wire baskets and pull-out storage are principal applications for this hinge.

Does the 70T7550.TL have soft close?

No. It is an unsprung, free-swing hinge without BLUMOTION. The 71B7550 is the corresponding screw-on version with integrated soft close.

Why is the hinge unsprung?

An unsprung hinge does not pull the door closed, allowing a compatible TIP-ON unit to push the door outward when the front is pressed.

What is the difference between 70T7550.TL and 70T7590.TL?

Both are unsprung, 155° zero-protrusion overlay hinges. The 70T7550.TL has a screw-on hinge cup, while the 70T7590.TL uses tool-free INSERTA cup fixing.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and ordered separately.

Can it be used with a door thicker than 24 mm?

Doors up to 31 mm may be possible when the compatible 92° opening-angle stop is fitted. The reduced opening angle and complete installation must be checked against the planning requirements.

Can sprung and unsprung hinges be mixed?

For a normal TIP-ON application, use matching unsprung hinges throughout the door. Do not mix closing systems unless the arrangement has been specifically confirmed through Blum planning.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Onyx Black
  • Colour: Onyx Black
  • Material: Steel
