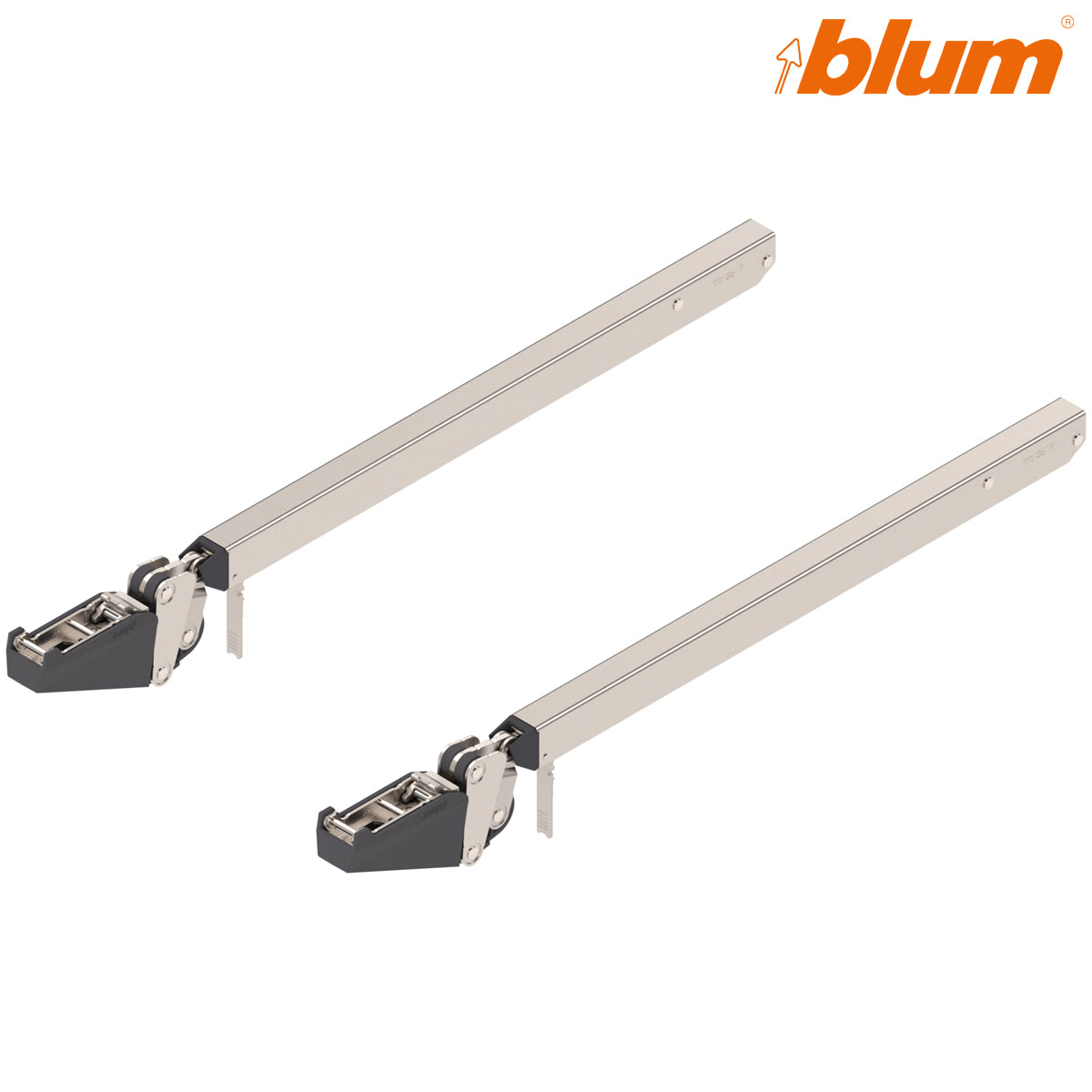

The Blum AVENTOS HF top 22F3500 telescopic arm set connects the lift mechanisms to a two-part bi-fold cabinet front for cabinet heights from 600 to 910 mm. Two symmetrical nickel-plated steel arms provide the linkage required by the compatible HF top system.

This arm set belongs specifically to the current AVENTOS HF top generation. Select the matching lift mechanism set separately using the power-factor calculation for the cabinet dimensions and combined front weight.

Key features

• Genuine Blum AVENTOS HF top telescopic arm set
• Blum article number 22F3500
• Stock code HI22F3500
• For cabinet heights 600–910mm (symmetrical fronts)
• Two symmetrical arms supplied
• Nickel-plated steel

Arm set selection by cabinet height

Required separately

• Compatible HF top lift mechanism set (22F2500 or 22F2800)
• Cabinet and centre hinges with mounting plates
• Front-fixing hardware
• Cover cap set

Product details

• Manufacturer: Blum
• Range: AVENTOS HF top
• Blum article number: 22F3500
• Stock code: HI22F3500
• Cabinet height: 600–910mm
• Finish: Nickel-plated
• Barcode: 9009494771664

Browse the Blum AVENTOS HF top range for compatible mechanisms and accessories.

Frequently asked questions

Are two arms included?

Yes. Two symmetrical telescopic lever arms are supplied.

Does the set include the lift mechanisms?

No. Select the compatible HF top lift mechanism set separately using the power-factor calculation.

Is this the same as 22F3200?

No. 22F3200 covers 480–610mm. This 22F3500 set covers 600–910mm. Match the arm set to your cabinet height.
