Name: BLUM AVENTOS HK-XS LIFT MECHANISM 0200-1000 LD TIP-ON SET
Brand: JULIUS BLUM UK LTD
SKU: HI20K1101TSET
Price: 19.68 GBP
Availability: InStock

PRODUCT DESCRIPTION

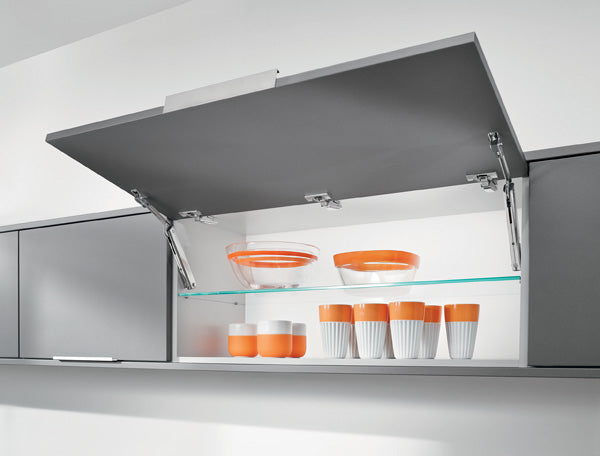

The Blum AVENTOS HK-XS 20K1101T TIP-ON lift set is the lightest mechanical push-to-open mechanism in the HK-XS range, specified for applications with a power factor of 180–800 LF. It is designed for compact handleless wall cabinets, fitted units and over-refrigerator storage where a small single-piece front needs controlled upward movement without a conventional handle.

HK-XS uses little cabinet space. Pressing the closed front activates the separately planned TIP-ON unit; the front can then be opened and held at a convenient position. Correct selection and installation are essential.

Light-duty TIP-ON mechanism for handleless fronts
The 20K1101T is intended for the lightest HK-XS TIP-ON applications. It sits below the 20K1301T 500–1200 and 20K1501T 800–1600 mechanisms. Choose by calculated power factor rather than by labels such as light, medium or heavy duty alone.

This is a mechanical TIP-ON version. Pressing the front activates a compatible TIP-ON plunger and releases the door for opening. It is not the standard 20K1101 mechanism, and it does not contain BLUMOTION soft close. Blum’s TIP-ON planning arrangement uses compatible unsprung CLIP top hinges so a self-closing hinge spring does not oppose the push-to-open action.

Calculate the correct power factor
The verified 180–800 figure is Blum’s power-factor range, abbreviated LF. It is not a weight in grams. Calculate LF by multiplying cabinet height in millimetres by the complete front weight in kilograms. Use the weight of the finished front, including fitted components, then check the result against current Blum planning information.

The mechanism is symmetrical. Suitable applications may use one side; with mechanisms on both sides, Blum states that power factor is doubled. Use the stronger mechanism where ranges overlap and trial borderline applications.

Planning dimensions and movement
Blum specifies AVENTOS HK-XS for cabinet heights from 240–600mm. The normal minimum internal cabinet depth is 125mm. A depth of 100mm can be possible with Blum’s special drilling position, but it must be planned from the official drilling information rather than treated as the standard layout.

The nominal mechanism opening angle is 105°. A hinge with a smaller opening angle will limit the front’s opening. Check ceilings, cornices and adjacent furniture before drilling. When properly selected and adjusted, HK-XS provides light operation and a variable stopping position.

Key features

Genuine Blum AVENTOS HK-XS mechanical TIP-ON lift set
Blum article number 20K1101T
Stock code HI20K1101TSET
Verified power-factor range: 180–800 LF
Lightest power class in the HK-XS TIP-ON mechanism range
For single-piece handleless stay-lift fronts
Mechanical push-to-open operation with compatible TIP-ON components
Nominal opening angle: 105°
Cabinet-height range: 240–600mm
Normal minimum internal cabinet depth: 125mm
100mm depth possible only with the specified special drilling position
Symmetrical mechanism for left- or right-side planning
Variable stopping position when correctly selected and adjusted
Nickel finish

Compatible components
A complete HK-XS TIP-ON application requires the correct cabinet fixing, front bracket, TIP-ON unit, unsprung hinges and mounting plates. Blum lists 20K5101 screw-on or 20K51E1 EXPANDO cabinet fixing. Front-fixing options include 20K4101 screw-on, 20K41E1 EXPANDO and 20K4101A for narrow aluminium frames.

For cabinets up to 600mm high, Blum specifies a short 956-series TIP-ON unit with magnet. Its catch plate and fixing method must suit the front surface; a self-adhesive catch plate is unsuitable for powder-coated, waxed or oiled surfaces. The set contents are not expressly confirmed by the product record — do not assume components are included.

Blum’s standard TIP-ON plan uses unsprung CLIP top hinges 70T3550.TL screw-on or 70T3590.TL INSERTA with suitable 0mm mounting plates such as 175H3100 screw-on or 177H3100E EXPANDO. Match the complete front, hinge, plate, fixing and drilling arrangement.

Product details

Manufacturer	Blum
Range	AVENTOS HK-XS
Blum article number	20K1101T
Stock code	HI20K1101TSET
Motion technology	Mechanical TIP-ON push-to-open
Power factor	180–800 LF
Opening angle	105° nominal
Cabinet height	240–600mm
Minimum internal depth	125mm normally; 100mm only with special drilling position
Front action	Single-piece stay lift
Application	Lightweight handleless fronts with compatible unsprung hinges and TIP-ON components
Finish	Nickel
Supplied quantity	1 set

Frequently asked questions

Is the correct range 200–1000?
No. That range belongs to the standard 20K1101 mechanism. Blum specifies 180–800 LF for the TIP-ON 20K1101T mechanism used by HI20K1101TSET.

Does 180–800 mean door weight in grams?
No. It is a power-factor range, not weight. Calculate LF from cabinet height and complete front weight, then verify the result with current Blum planning information.

Does this mechanism provide BLUMOTION soft close?
No. The 20K1101T is the mechanical TIP-ON version for push-to-open fronts. It does not provide BLUMOTION or soft-close functionality.

Which hinges should be used?
TIP-ON planning uses compatible unsprung hinges. Blum’s standard example includes 70T3550.TL screw-on or 70T3590.TL INSERTA with suitable mounting plates. Confirm the complete arrangement for the front.

Are hinges and fixing components included?
The set contents are not expressly confirmed by the product record. The correct TIP-ON unit, fixing parts, hinges and mounting plates must all be present for the selected application. Confirm the complete component list before ordering.

Browse the Blum AVENTOS HK-XS range to compare the other standard and TIP-ON power classes.
