PRODUCT DESCRIPTION

Blum AVENTOS HL 20L2900 heavy-duty lift mechanism set

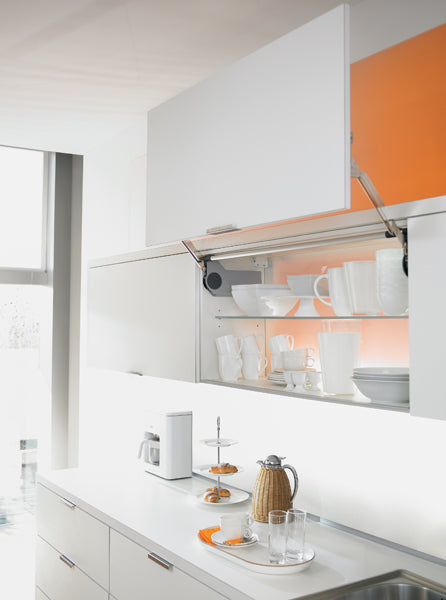

The Blum AVENTOS HL 20L2900 is the heavy-duty lift mechanism set for higher-load applications within the original-generation AVENTOS HL range. Its parallel-lift movement raises a single-piece cabinet front vertically while keeping it parallel to the cabinet, providing unobstructed access without the front projecting into the main working area.

This higher-strength option is intended for front combinations within the documented height and weight bands below. Integrated BLUMOTION gives controlled, soft closing, while the variable-stop function allows a correctly specified and adjusted front to remain in the desired position. The mechanisms are screw-fixed to the cabinet sides and must be combined with the correct original AVENTOS HL arms and accessories.

Key features

  • Heavy-duty 20L2900 mechanism set
  • Original-generation Blum AVENTOS HL parallel-lift system
  • For a single-piece front that moves upwards parallel to the cabinet
  • Integrated BLUMOTION soft-close action
  • Variable stop when correctly specified and adjusted
  • Screw-on cabinet fixing
  • Zinc-plated steel construction
  • Maximum cabinet/front width: 1800 mm
  • Minimum internal cabinet depth: 278 mm
  • Minimum internal cabinet height: 174 mm

Front height and weight guide
The suitable front-weight range depends on the selected original AVENTOS HL lever arm and cabinet height:

  • 350-399 mm front height: 13.50-20.00 kg
  • 400-550 mm front height: 10.50-20.00 kg
  • 450-580 mm front height: 08.25-16.50 kg

These values are selection guides for 20L2900, not a single universal weight rating. Use the BLUM Product Configurator below to verify the complete component combination against the actual cabinet dimensions, front material and total front weight, including the handle.

What is included

  • 1 left-hand AVENTOS HL lift mechanism
  • 1 right-hand AVENTOS HL lift mechanism
  • 10 chipboard screws, 4.0 × 35 mm

Required separately
This mechanism pair is not a complete lift-system kit. Select the correct original AVENTOS HL lever arm set for the cabinet height, together with the appropriate cross stabiliser, front fixing brackets and cover caps. The 1061 mm oval cross stabiliser can be cut to suit the cabinet width, and a joining set may be needed for wider applications. Choose front fixings to match the front construction.

Compatibility note

Check the system generation before ordering: 20L2900 belongs to the original AVENTOS HL range. Use compatible original 20L/21L-series HL arms and original-system accessories selected for the application. It is not an AVENTOS HL top 22L-series mechanism. Do not combine it with HL top 22L/22Q arms, stabilisers or covers unless BLUM documentation for the complete application explicitly confirms compatibility.

Product details

  • Brand: Blum
  • Manufacturer part number: 20L2900.05
  • Hart stock code: HI20L2900
  • Barcode: 9002617778151
  • System: AVENTOS HL, original generation
  • Duty range: Heavy duty
  • Movement: Parallel lift
  • Closing system: BLUMOTION
  • Material/finish: Zinc-plated steel
  • Cabinet fixing: Screw-on

TECHNICAL DETAILS

  • Finish: Zinc plated
  • Colour: Zinc
  • Material: Steel
