BLUM AVENTOS HL LIFT MECHANISM MHD

BLUM AVENTOS HL LIFT MECHANISM MHD

Stock Code: HI20L2700

£50.75 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum AVENTOS HL 20L2700 medium/heavy-duty lift-mechanism set

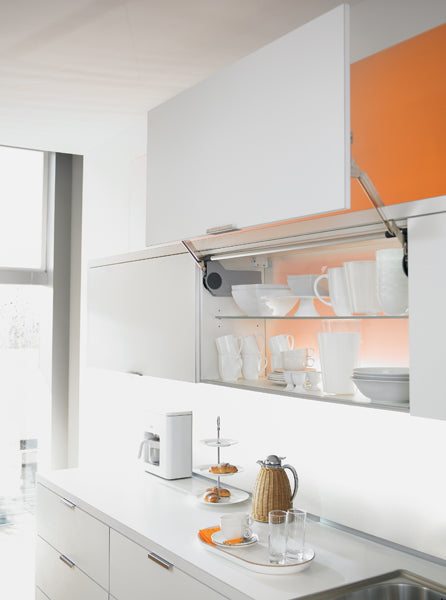

The Blum AVENTOS HL 20L2700.05 lift-mechanism set provides the lifting force for an original-generation AVENTOS HL parallel-lift installation. When combined with the correctly selected lever arms and system components, it guides a single-piece cabinet front vertically upwards while keeping the front parallel to the cabinet.

This medium/heavy-duty mechanism set contains two symmetrical lift mechanisms with integrated BLUMOTION and the cabinet-fixing screws. The supported front weight depends on the cabinet height and selected standard or SERVO-DRIVE lever-arm set. The arms, stabiliser, front fixings, covers and any electrical components are supplied separately.

Key features

  • Original-generation Blum AVENTOS HL lift-mechanism set
  • Designed for a single-piece parallel-lift cabinet front
  • Two symmetrical lift mechanisms
  • Integrated BLUMOTION for soft and effortless closing
  • Light operating forces when correctly adjusted
  • Variable stopping position
  • Suitable for correctly configured cabinets up to 1800 mm wide
  • Steel construction with a zinc-plated finish
  • Compatible with standard and SERVO-DRIVE AVENTOS HL arm sets

What is included

  • 2 x symmetrical AVENTOS HL lift mechanisms
  • 10 x chipboard fixing screws, 4 x 35 mm

Lever-arm and front-weight selection
Select the lever-arm set according to the cabinet height. The supported total front weight includes the handle:

Cabinet height Standard arm set SERVO-DRIVE arm set Total front weight
300–349 mm 20L3200.06 21L3200.01 11.00–20.00 kg
350–399 mm 20L3500.06 21L3500.01 8.00–14.75 kg
400–550 mm 20L3800.06 21L3800.01 5.75–11.75 kg
450–580 mm 20L3900.06 21L3900.01 4.25–9.25 kg

Where mechanism ranges overlap with another AVENTOS HL mechanism, Blum recommends the more powerful mechanism. Confirm the cabinet height, total front weight and complete component specification before ordering.

Required separately
This lift-mechanism set is not a complete AVENTOS HL installation. The following components must be selected separately:

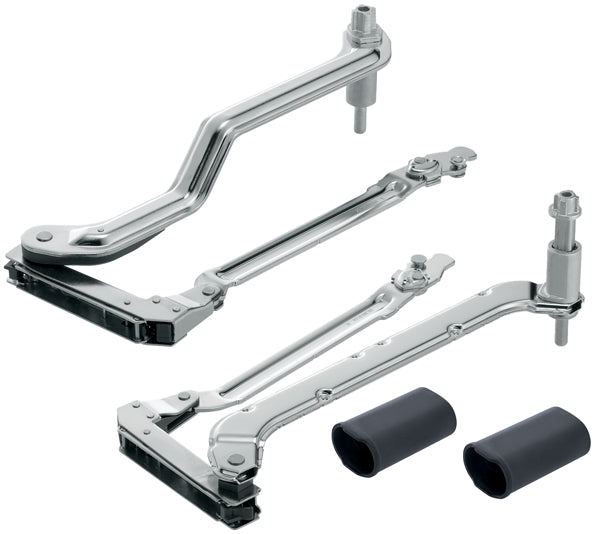

  • Correct standard or SERVO-DRIVE lever-arm set for the cabinet height
  • 20Q1061UA oval cross-stabiliser rod, cut to the required length
  • 20Q153ZA cross-stabiliser joining kit for internal cabinet widths of 1190 mm and above
  • Suitable front fixing brackets
  • Original AVENTOS HL cover-cap set
  • SERVO-DRIVE drive unit, switches, power supply and cabling when electrical motion support is required

For applications requiring a higher-capacity mechanism, view the 20L2900.05 AVENTOS HL heavy-duty lift-mechanism set.

Compatibility warning
Check the system generation before ordering: 20L2700.05 belongs to the original AVENTOS HL range. Do not combine it with AVENTOS HL top 22L/22Q arms, stabilisers or covers as a direct substitute. AVENTOS HL is a parallel-lift system and must not be confused with the AVENTOS HF bi-fold system.

Product details

  • Brand: Blum
  • System: Original AVENTOS HL
  • Component: Medium/heavy-duty lift-mechanism set
  • Movement: Parallel lift for a single-piece cabinet front
  • Manufacturer part number: 20L2700.05
  • Blum article ID: 09008292
  • Hart SKU: HI20L2700
  • Barcode: 9002617778144
  • Material: Steel
  • Finish: Zinc plated
  • Pack quantity: 1 set
  • Complete installation: No — lever arms and other system components are required

Browse the Blum AVENTOS lift systems and components or use the Blum Product Configurator below to verify the complete installation specification.

TECHNICAL DETAILS

  • Finish: Zinc plated
  • Colour: Zinc
  • Material: Steel
