Blum AVENTOS HL 20L3200 arm set for 300–349 mm cabinets

The Blum AVENTOS HL 20L3200.06 lever arm set is designed for standard original-generation AVENTOS HL parallel-lift installations with cabinet heights from 300 to 349 mm. It connects the selected lift mechanisms to a single-piece front and guides the front vertically upwards while keeping it parallel to the cabinet.

The set contains matching left and right lever arms plus two oval cross-stabiliser cover caps. It is one component of a complete AVENTOS HL installation. Lift mechanisms, cross stabiliser, front fixing brackets and mechanism covers must be selected separately.

Key features

• Standard lever arm set for original-generation AVENTOS HL
• Suitable cabinet height: 300–349 mm
• Guides a single-piece front in a vertical parallel-lift movement
• Includes matching left and right lever arms
• Supplied with two oval cross-stabiliser cover caps
• Steel construction with a nickel-coloured finish
• Suitable for correctly configured cabinets up to 1800 mm wide

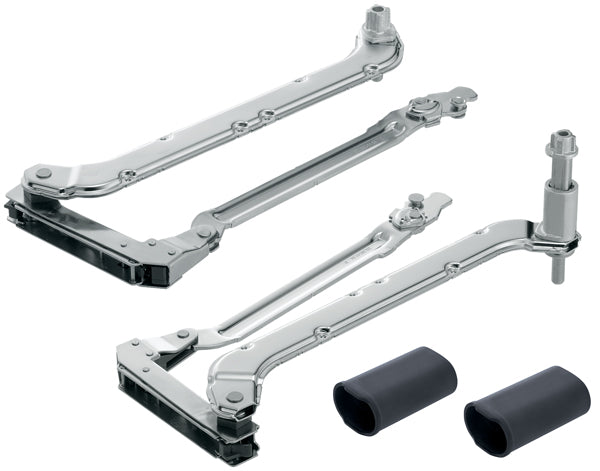

What is included

• 1 x left-hand lever arm
• 1 x right-hand lever arm
• 2 x oval cross-stabiliser cover caps

Lift-mechanism selection for 300–349 mm cabinets

The arm set does not determine the front-weight capacity by itself. Select the original AVENTOS HL lift-mechanism set according to the total front weight, including the handle:

Where the weight ranges overlap, Blum recommends the more powerful lift mechanism. Confirm the cabinet height, total front weight and complete component specification before ordering.

Required separately

This arm set is not a complete AVENTOS HL installation. A completed installation requires:

• Correctly selected original AVENTOS HL lift-mechanism set
• 20Q1061UA oval cross-stabiliser rod, cut to the required size
• 20Q153ZA stabiliser connecting set for internal cabinet widths of 1190 mm and above
• Suitable front fixing brackets
• Original AVENTOS HL cover-cap set

SERVO-DRIVE alternative

For an original AVENTOS HL installation using SERVO-DRIVE electrical motion support, use the separate 21L3200.01 SERVO-DRIVE arm set for 300–349 mm cabinets with the required electrical components.

Compatibility warning

Check the system generation before ordering: 20L3200.06 belongs to the standard original AVENTOS HL range. It must not be confused with the 21L3200.01 SERVO-DRIVE arm set or combined with AVENTOS HL top 22L/22Q mechanisms, arms, stabilisers or covers as a direct substitute.

Product details

• Brand: Blum
• System: Original AVENTOS HL
• Component: Standard lever arm set
• Movement: Parallel lift for a single-piece front
• Cabinet-height application: 300–349 mm
• Maximum cabinet width: 1800 mm
• Manufacturer part number: 20L3200.06
• Blum article ID: 05059530
• Hart SKU: HI20L3200
• Barcode: 9002617868586
• Material: Steel
• Finish/colour: Nickel
• Pack quantity: 1 set
• Complete installation: No — additional AVENTOS HL components are required

Browse the Blum AVENTOS lift systems and components or use the Blum Product Configurator below to verify the complete installation specification.
