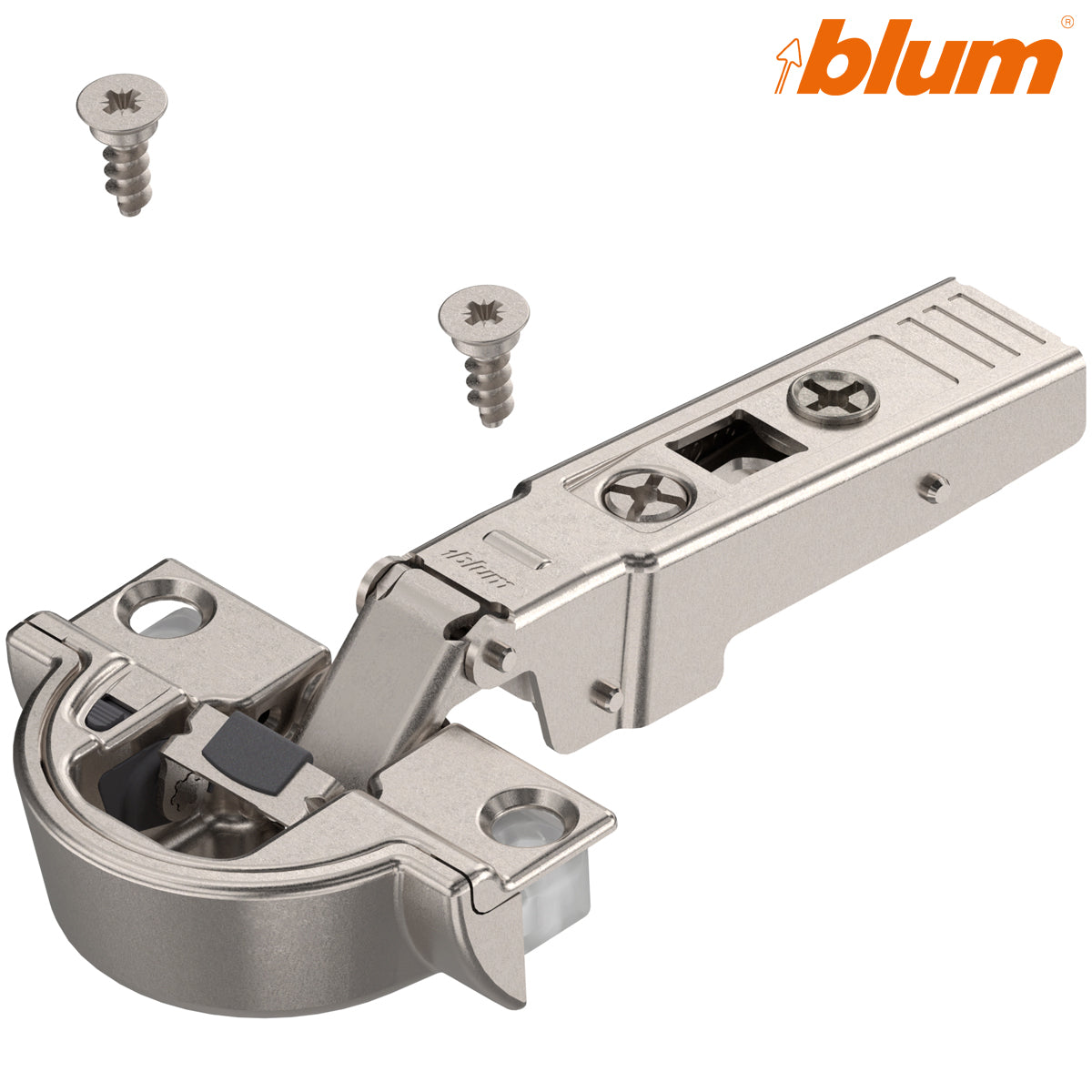

  • BLUM CLIP BLUMOTION ALUMINIUM HINGE 95deg OVERLAY SCREW-ON by JULIUS BLUM UK LTD
1 1

BLUM CLIP BLUMOTION ALUMINIUM HINGE 95deg OVERLAY SCREW-ON

BLUM CLIP BLUMOTION ALUMINIUM HINGE 95deg OVERLAY SCREW-ON

Stock Code: HI71B950A

£5.39 GBP
Sale
View full details
Previous
BLUM CLIP BLUMOTION WIDE HINGE 155deg DUAL SCREW-ON
Next
BLUM CLIP BLUMOTION PROFILE HINGE 95deg OVERLAY SCREW-ON

PRODUCT DESCRIPTION

Blum 71B950A CLIP top BLUMOTION Overlay Aluminium-Frame Hinge

The Blum 71B950A is a 95° concealed hinge for narrow aluminium-profile cabinet doors in an overlay application. It positions the closed door over the cabinet side, making it suitable for cabinets where the aluminium-framed front is intended to conceal most of the carcase edge.

BLUMOTION soft close is integrated into the hinge arm, allowing the door to close smoothly and quietly without a separate damper. The damping function can also be switched off at an individual hinge, helping installers adjust the closing performance for different door sizes and weights.

Key features

  • Genuine Blum part number 71B950A
  • Overlay aluminium-frame door application
  • Designed for narrow aluminium-profile framed doors
  • 95° opening angle
  • Integrated BLUMOTION soft close
  • Switchable damping function
  • Sprung and self-closing hinge action
  • Screw-on shaped boss for a routed aluminium profile
  • Boss fixing screws included
  • Tool-free CLIP mounting-plate connection
  • Three-dimensional door adjustment
  • Spiral depth-adjustment screw
  • Nickel-plated finish

Technical specification

Hart Wholesale stock code HI71B950A
Blum part number 71B950A
Product range CLIP top BLUMOTION
Application Overlay
Door construction Narrow aluminium-profile framed door
Opening angle 95°
Closing action Sprung and self-closing
Soft close Integrated, switchable BLUMOTION
Door fixing Screw-on shaped boss for a routed aluminium profile
Cabinet connection Tool-free CLIP mounting-plate connection
Side adjustment Approximately ±2 mm
Depth adjustment Approximately +3/-2 mm
Height adjustment Approximately ±3 mm, depending on mounting plate
Finish Nickel plated
Supplied One hinge with boss fixing screws
Mounting plate Not included; order separately

What is an overlay application?

An overlay hinge positions the closed door in front of the cabinet side. The aluminium-framed front therefore covers most of the cabinet edge rather than sitting inside the cabinet opening.

The exact overlay depends on the cabinet construction, mounting-plate height, aluminium profile dimensions and hinge adjustment. Check the intended overlay and door clearances using the Blum planning information before machining the profiles.

Integrated BLUMOTION soft close

BLUMOTION slows the door during the final part of the closing movement. This produces a controlled, quiet close and helps reduce impact on the aluminium frame, door panel and cabinet.

The BLUMOTION function can be deactivated using the switch on the hinge. This is useful when a small or lightweight door closes too slowly with every hinge damper operating.

Use the appropriate number of matching CLIP top BLUMOTION hinges on each door. Do not combine BLUMOTION and non-BLUMOTION hinges on the same door.

Made for narrow aluminium-profile doors

The 71B950A has a shaped fixing boss manufactured specifically for routed aluminium door profiles. It is not a standard round 35 mm cup hinge and should not be fitted as though it were a conventional timber, MDF or chipboard door hinge.

Blum’s planning table covers different combinations of aluminium side-frame width and frame thickness. Door clearance and minimum gap requirements change according to the selected profile. A trial installation is recommended where the profile dimensions approach the limits shown in the planning information.

Installation and adjustment

The shaped boss is secured to the prepared aluminium profile using the supplied fixing screws. The hinge arm then clips onto a compatible Blum mounting plate without tools, allowing the assembled door to be attached or removed without disturbing the plate.

Side, depth and height adjustment allow the door overlay and gaps to be refined after installation. The spiral depth-adjustment screw provides controlled adjustment without needing to loosen the hinge from the mounting plate.

Mounting plate required

The cabinet mounting plate is not supplied with this hinge. Choose the correct plate height and fixing pattern from our Blum CLIP top mounting plates.

Related aluminium-frame hinges

Frequently asked questions

What does overlay mean?

An overlay door closes in front of the cabinet side and covers most of the carcase edge. The precise overlay depends on the aluminium profile, mounting plate and cabinet construction.

Is the Blum 71B950A suitable for timber or MDF doors?

No. It is designed for narrow aluminium-profile framed doors and uses a specially shaped screw-on boss. It is not a standard 35 mm cup hinge.

Is BLUMOTION included?

Yes. The BLUMOTION soft-close mechanism is integrated into the hinge arm and can be switched off at an individual hinge when required.

Are the aluminium-profile fixing screws included?

Yes. The boss fixing screws used to attach the hinge to the prepared aluminium profile are included.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be ordered separately. Select the plate height and fixing pattern required for the cabinet.

What is the difference between 71B950A, 71B960A and 71B970A?

The 71B950A is for overlay doors, the 71B960A is for dual or half-overlay doors, and the 71B970A is for inset doors. Each version positions the closed aluminium-framed door differently in relation to the cabinet side.

TECHNICAL DETAILS

  • Application: Overlay
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
