BLUM CLIP HINGE 100deg OVERLAY SCREW-ON

BLUM CLIP HINGE 100deg OVERLAY SCREW-ON

Stock Code: HI71M255

£0.95 GBP
Sale
View full details
Previous
Blum 71M2750 CLIP 100° Inset Screw-On Hinge – Box of 250
Next
Blum 71B3690 CLIP top BLUMOTION 110° Half-Overlay INSERTA Hinge

PRODUCT DESCRIPTION

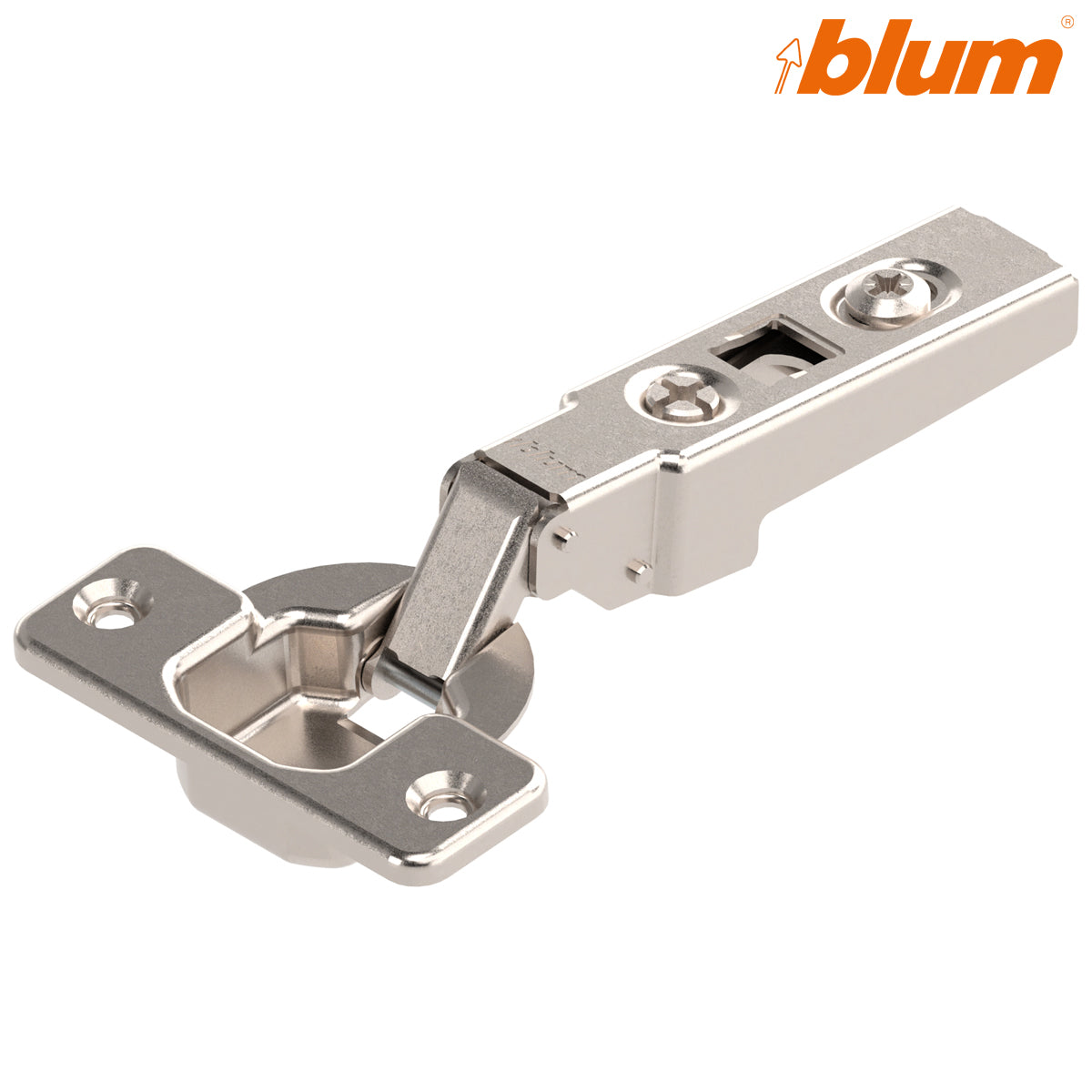

Blum Clip Top Hinge - 100°, Overlay, Sprung, Screw-On, Nickel - HI71M255

The Blum Clip Top Hinge opening to 100° for overlay applications in a sprung configuration with screw-on boss plate fixing is a precision-engineered cabinet hinge designed for professional kitchen and furniture installations. The screw-on boss plate provides secure, adjustable fixing with tool-free clip release for fast door removal and rehanging. The sprung hinge features built-in spring tension, keeping the door closed without the need for a separate soft-close device.

Part of the Blum Clip Top Hinges range. Pair with a Blum Clip Top Mounting Plate and Blum Blumotion Device for a complete hinge solution. For the full Blum range visit our Blum collection.

  • Part number: HI71M255
  • Opening angle: 100°
  • Application: Overlay
  • Soft-close: Sprung – built-in spring tension keeps door closed
  • Fixing: Screw-on boss plate – secure, adjustable fixing
  • Boss hole: 35mm standard cup
  • Finish: Nickel
  • Supplied as: 1 piece
  • Tool-free door removal and rehanging
  • 3-dimensional adjustment for precise door alignment

Technical attributes

application standard hinge
Cranking Overlay application
Opening angle 100
Closing mechanism with spring
Cover cap type 90M2503
Cover cap type 70.1553
Boss material Steel boss
boss finish Nickel plated
Boss assembly screw-on

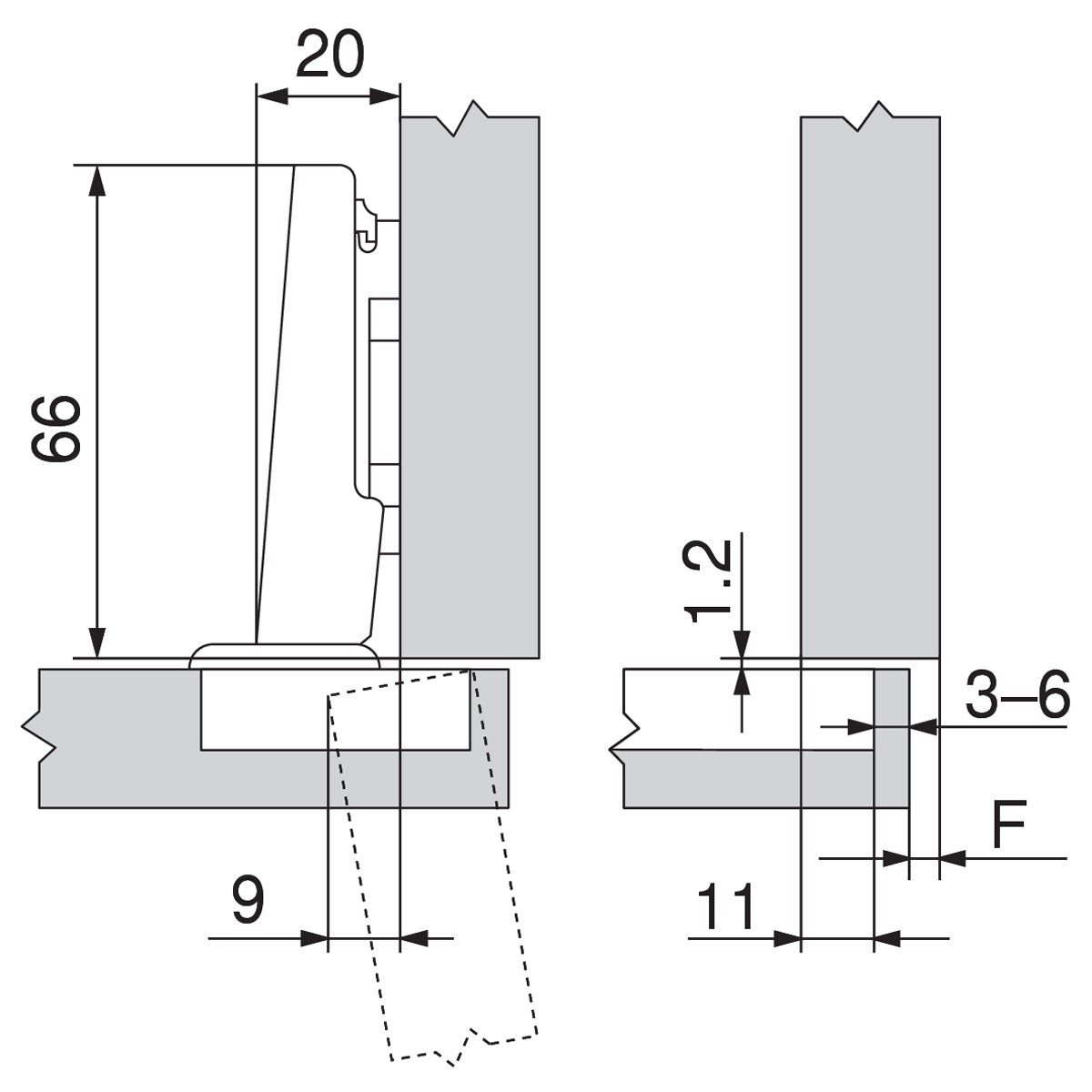

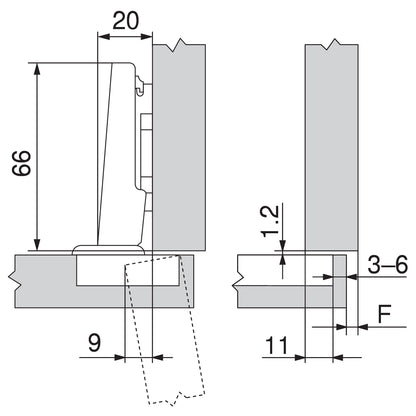

Flange width 57 mm
Flange length 20 mm
Flange height 3.2 mm
diameter hinge boss drilling 35 mm
distance between drillings 45 mm
eccentric position of fixing holes to hinge boss hole 9.5 mm
boss drilling depth 10.5 mm
Minimum drilling distance 3 mm
Maximum drilling distance 6 mm
arm material Steel
arm finish Nickel plated
collision measurement (hinge arm height) 20 mm
Fixed dimension / factory setting 11 mm
Type of side adjustment With screw
Side adjustment +/-2 mm
Type of depth adjustment With screw
Depth adjustment +3/-1 mm
Gap 1.2 mm
Item package 1 piece
packaging industrial packing
product combination No



All Blum products are backed by a Lifetime Guarantee, ensuring lasting quality in every professional installation.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
