Blum CLIP 100° Overlay Sprung Screw-On Hinge HI71M255

Blum CLIP 100° Overlay Sprung Screw-On Hinge HI71M255

Stock Code: HI71M255

£0.95 GBP
Sale
View full details

PRODUCT DESCRIPTION

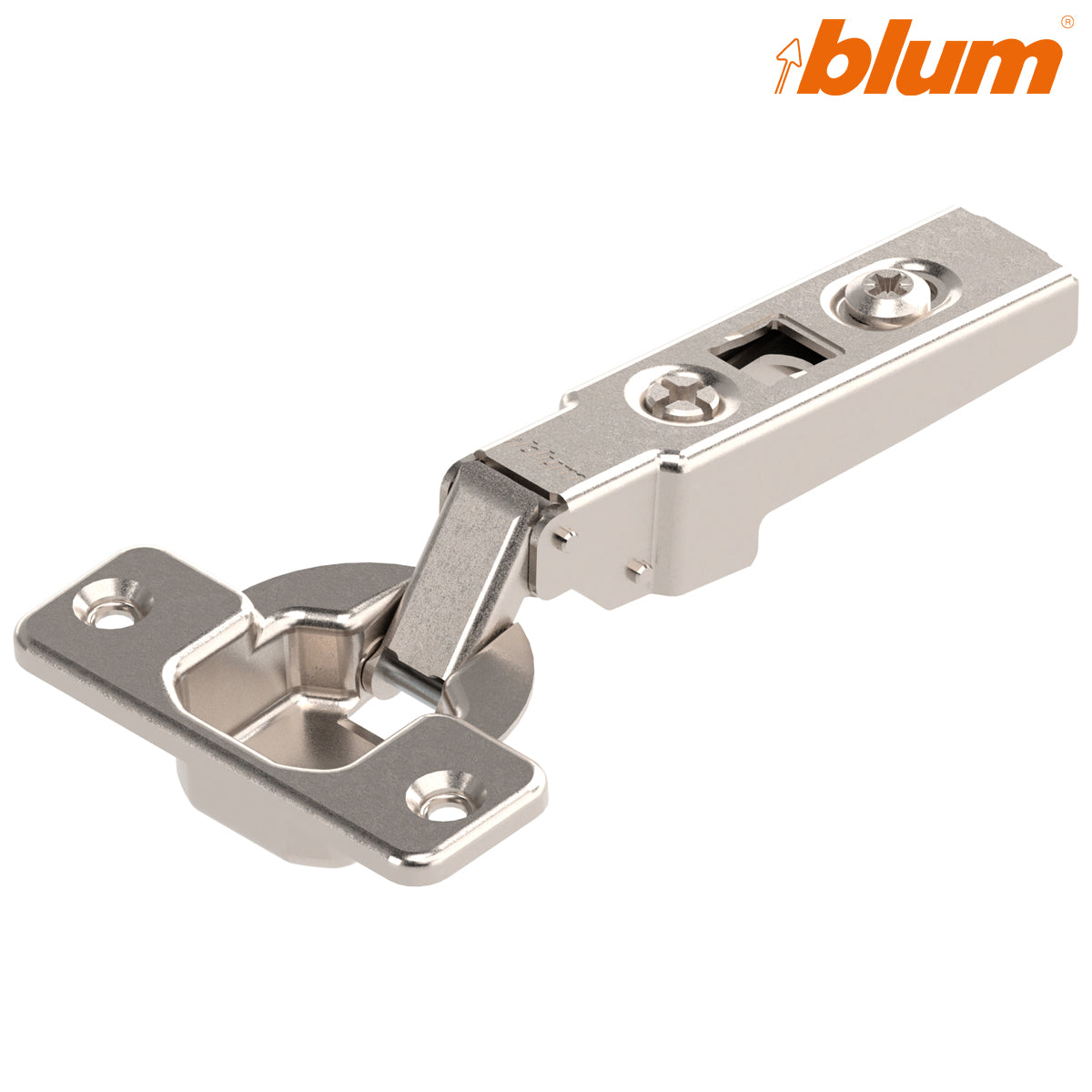

Blum CLIP 100° Overlay Screw-On Hinge HI71M255

This nickel-plated steel Blum CLIP hinge opens to 100° for an overlay cabinet-door application. Its spring provides a self-closing action, but this model does not have integrated BLUMOTION soft close. The 35 mm cup screws to a correctly bored door, while the hinge arm clips to a separately selected compatible Blum mounting plate for tool-free door removal and rehanging.

Key features and fitting

  • Hart Wholesale SKU HI71M255; 100° overlay, sprung hinge.
  • 35 mm screw-on cup; stated drilling depth 10.5 mm, fixing holes on 45 mm centres with 9.5 mm offset.
  • Stated drilling distance 3–6 mm; check the exact Blum application plan before machining.
  • Nickel-plated steel, one hinge supplied; mounting plate separate.
  • Side adjustment ±2 mm and depth adjustment +3/−1 mm; height depends on mounting plate.

Overlay means the closed door covers the cabinet side. Choose the matching plate height and fixing style for the required overlay and cabinet construction. Screw-on refers to the cup-to-door fixing, not the mounting plate. Compare Blum CLIP mounting plates and the CLIP top hinge range. If soft closing is required, select a verified compatible damping solution separately rather than assuming spring action is soft close.

Technical details

Application Overlay; 100° opening; sprung
Cup material and finish Nickel-plated steel; screw-on
Cup boring 35 mm diameter; 10.5 mm stated depth; 45 mm fixing centres and 9.5 mm offset
Drilling distance 3–6 mm, subject to application planning
Flange 57 mm wide, 20 mm long, 3.2 mm high
Adjustments Side ±2 mm; depth +3/−1 mm
Supplied One hinge; cabinet mounting plate separate

Frequently Asked Questions

Does this hinge have soft close?

No integrated soft-close mechanism is identified for this sprung CLIP hinge. Spring action helps the door close but is not BLUMOTION.

What does overlay mean?

The closed door covers the cabinet side rather than sitting inside the opening.

Does screw-on refer to the cabinet plate?

No. It describes the hinge cup fixing to the door. Select a compatible cabinet mounting plate separately.

Is this supplied as a pair?

No. This listing is for one hinge.

Blum product configurator for cabinet hinge planning

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
