Name: BLUM CLIP HINGE 110deg DUAL SCREW-ON
Brand: JULIUS BLUM UK LTD
SKU: HI71T3650
Price: 1.69 GBP
Availability: InStock

PRODUCT DESCRIPTION

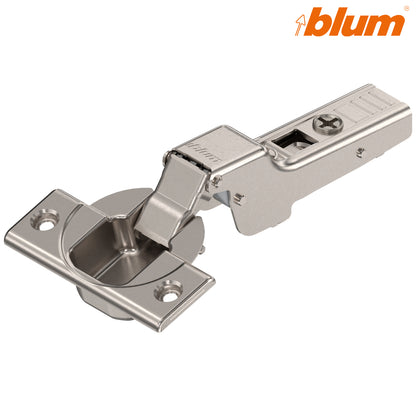

Blum Clip Top Standard Hinge 110° - Dual (Half-Overlay), Sprung, Screw-On, Nickel

A Blum Clip Top standard hinge opening to 110° for dual (half-overlay) applications, where two doors share a central cabinet partition. Sprung. Screw-on back plate fixing. Suits cabinet doors up to 24mm thick.

SKU: HI71T3650
Blum part number: 71T3650
Opening angle: 110°
Application: Dual (half-overlay)
Sprung
Fixing: Screw-on back plate
3-dimensional front adjustment
Tool-free door-to-cabinet assembly and removal
Compatible with INSERTA tool-free boss assembly
Suits cabinet doors up to 24mm thick
Finish: Nickel
Blum Lifetime Guarantee
Supplied as 1 piece

Supplied as a single hinge. Back plates sold separately.

Technical attributes

application	standard hinge
Cranking	Overlay application
Opening angle	110
Closing mechanism	with spring
Cover cap type	90M2503
Cover cap type	70.1503
Boss material	Steel boss
boss finish	Nickel plated
Boss assembly	tool-free with INSERTA
Flange width	57 mm
Flange length	27.5 mm
Flange height	6.4 mm
diameter hinge boss drilling	35 mm
diameter of fixing holes	8 mm
distance between drillings	45 mm
eccentric position of fixing holes to hinge boss hole	9.5 mm
boss drilling depth	13 mm
Minimum drilling distance	3 mm
Maximum drilling distance	7 mm
arm material	Steel
arm finish	Nickel plated
collision measurement (hinge arm height)	21.5 mm
Fixed dimension / factory setting	11 mm
Type of side adjustment	With screw
Side adjustment	+/-2 mm
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+3/-2 mm
Gap	1.5 mm
Item package	1 piece
packaging	industrial packing
product combination	No
