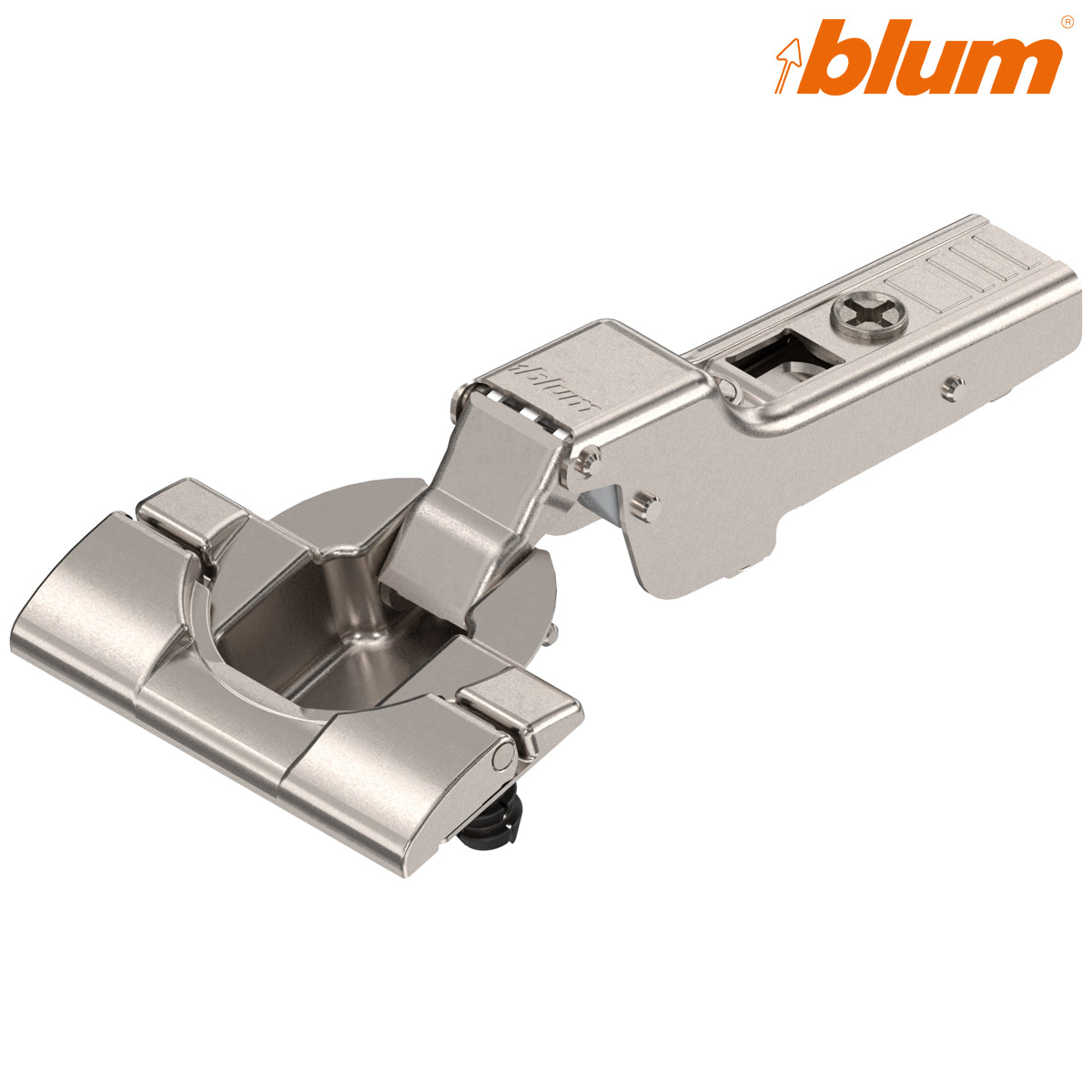

Blum 71T3690 CLIP Top 110° Dual Half-Overlay INSERTA Hinge – Nickel

Blum 71T3690 CLIP Top 110° Dual Half-Overlay INSERTA Hinge – Nickel

Stock Code: HI71T3690

£2.27 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71T3690 CLIP Top 110° Dual Half-Overlay INSERTA Hinge – Nickel

The Blum 71T3690 is a sprung CLIP top concealed hinge for dual or half-overlay cabinet-door applications. Its cranked hinge arm allows two doors to be fitted to opposite sides of the same central cabinet partition, with each door covering only part of the shared panel.

This version combines a 110° opening angle with Blum’s INSERTA tool-free hinge-cup fixing. It is particularly useful for furniture production where accurately prepared doors need to be assembled quickly and consistently without conventional cup-fixing screws.

The hinge is sprung to provide a self-closing action. It does not contain integrated BLUMOTION soft close.

Key features

  • Genuine Blum CLIP top concealed cabinet hinge
  • Blum part number 71T3690
  • Dual or half-overlay application
  • Cranked hinge arm
  • 110° opening angle
  • Sprung self-closing action
  • INSERTA tool-free hinge-cup fixing
  • 35mm steel hinge cup
  • Two 8mm INSERTA fixing holes at 45mm centres
  • Suitable for cabinet doors up to 24mm thick
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment with a suitable mounting plate
  • Convenient spiral screw depth adjustment
  • Nickel-plated finish
  • Supplied as one hinge
  • Mounting plate supplied separately

Technical specifications

Specification Details
Manufacturer Blum
Product range CLIP top
Blum part number 71T3690
Hart stock code HI71T3690
GTIN 9002617778199
Door application Dual/half overlay
Hinge arm Cranked
Opening angle 110°
Closing action Sprung/self-closing
Integrated BLUMOTION No
Hinge-cup fixing INSERTA
Cup diameter 35mm
INSERTA fixing holes Two 8mm holes at 45mm centres
Door thickness Up to 24mm
Cup drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3mm/−2mm
Height adjustment Through the selected mounting plate
Material Steel
Finish Nickel plated
Quantity One hinge
Mounting plate included No

What is a dual or half-overlay hinge?

A dual hinge is used when two doors share the same central cabinet partition. One door is hinged from one side of the panel and the second door from the opposite side.

The cranked hinge arm positions each door so it partially covers the shared panel rather than creating the larger overlay associated with a straight-arm hinge. The final overlay depends on the cup drilling distance, mounting-plate height and hinge adjustment.

For a standard full-overlay door with INSERTA fixing, use the Blum 71T3590 overlay INSERTA hinge.

How does INSERTA fixing work?

INSERTA is Blum’s tool-free system for securing the hinge cup to the cabinet door. The door must be prepared with a 35mm cup drilling and two 8mm fixing holes positioned at 45mm centres. The hinge is inserted into the prepared drilling and secured using its locking mechanism, without conventional cup-fixing screws.

INSERTA describes only the hinge-to-door connection. It does not refer to the cabinet-side mounting plate.

Choosing between INSERTA and screw-on fixing

The correct fixing version should match the existing door drilling or the chosen production method. The 71T3690 uses INSERTA tool-free hinge-cup fixing, while the 71T3650 uses a conventional screw-on hinge cup. Both perform the same dual or half-overlay function but use different methods of securing the cup to the door. The 71T3690 requires the complete INSERTA drilling pattern and cannot be fitted into a single 35mm cup hole without the additional 8mm holes.

Sprung without integrated soft close

The 71T3690 contains a closing spring that helps pull the door into its closed position. It is not a BLUMOTION hinge and should not be described as having switchable soft close.

For the equivalent dual INSERTA hinge with integrated soft closing, choose the Blum 71B3690 CLIP top BLUMOTION hinge.

Tool-free CLIP mounting

Once fitted to the door, the hinge arm clips onto a compatible Blum mounting plate without tools. This allows the complete door to be removed and rehung without releasing the INSERTA cup from the door.

Three-dimensional adjustment enables the door position and gaps between adjoining doors to be aligned accurately.

Mounting plate required

This listing supplies one hinge. A compatible Blum CLIP mounting plate is required and must be ordered separately. Confirm the required plate height and fixing method against the cabinet construction and desired door overlay.

View the complete Blum CLIP top hinge collection for alternative applications, fixing methods and closing mechanisms.

Frequently asked questions

Does the Blum 71T3690 have soft close?

No. It is a sprung, self-closing hinge without integrated BLUMOTION. The soft-close INSERTA equivalent is part number 71B3690.

What does INSERTA mean?

INSERTA is Blum’s tool-free hinge-cup fixing. It secures the hinge to a correctly prepared cabinet door without conventional cup-fixing screws.

Does INSERTA refer to the mounting plate?

No. INSERTA describes how the hinge cup attaches to the door. A separate Blum CLIP mounting plate is still required on the cabinet.

Is this hinge for half-overlay doors?

Yes. The cranked arm is intended for dual or half-overlay applications where two doors share a central cabinet partition.

Is the mounting plate included?

No. The product is supplied as one hinge only. A compatible Blum CLIP mounting plate must be purchased separately.

Can the door be removed without tools?

Yes. The CLIP connection allows the hinge arm to be released from the cabinet-side mounting plate without removing the INSERTA cup from the door.
