Name: BLUM CLIP HINGE 107deg OVERLAY SCREW-ON
Brand: JULIUS BLUM UK LTD
SKU: HI75T155
Price: 1.06 GBP
Availability: InStock

PRODUCT DESCRIPTION

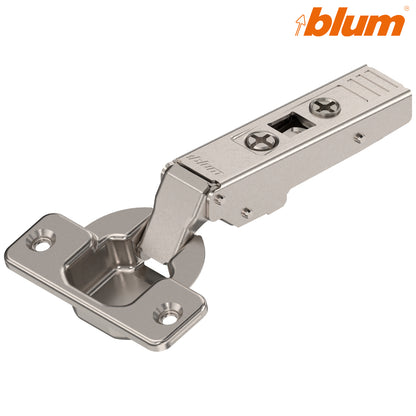

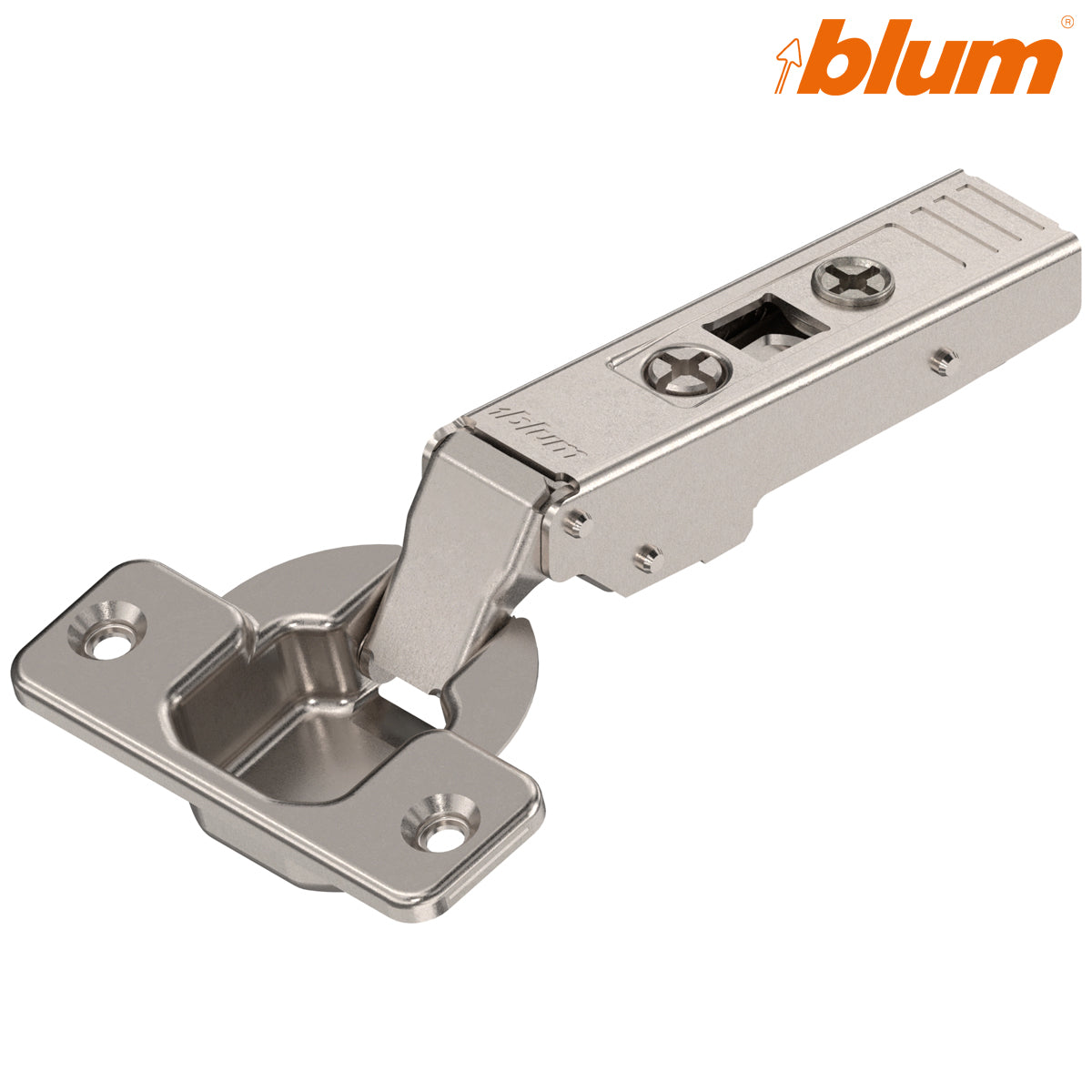

Blum Clip Top Thin Door Hinge - 107°, Overlay, Sprung, Screw-On, Nickel - HI75T155

The Blum Clip Top Thin Door Hinge opening to 107° for overlay applications in a sprung configuration with screw-on boss plate fixing is engineered for thin cabinet doors typically 15-24mm thick. The integrated spring mechanism provides controlled closing action, while the screw-on boss plate delivers secure, adjustable fixing with tool-free clip release for fast door removal and rehanging.

Part of the Blum Clip Top Hinges range. Pair with a Blum Clip Top Mounting Plate and Blum Blumotion Device for a complete hinge solution. For the full Blum range visit our Blum collection.

Part number: HI75T155
Opening angle: 107°
Application: Overlay
Door thickness: 15-24mm thin door
Soft-close: Sprung - integrated spring mechanism
Fixing: Screw-on boss plate
Finish: Nickel
Supplied as: 1 piece

Technical attributes

application	standard hinge
Cranking	Overlay application
Opening angle	107
Closing mechanism	with spring
Cover cap type	90M2503
Cover cap type	70.1503
Boss material	Steel boss
boss finish	Nickel plated
Boss assembly	screw-on
Flange width	57 mm
Flange length	20 mm
Flange height	3.2 mm
diameter hinge boss drilling	35 mm
distance between drillings	45 mm
eccentric position of fixing holes to hinge boss hole	9.5 mm
boss drilling depth	11.5 mm
Minimum drilling distance	3 mm
Maximum drilling distance	6 mm
arm material	Steel
arm finish	Nickel plated

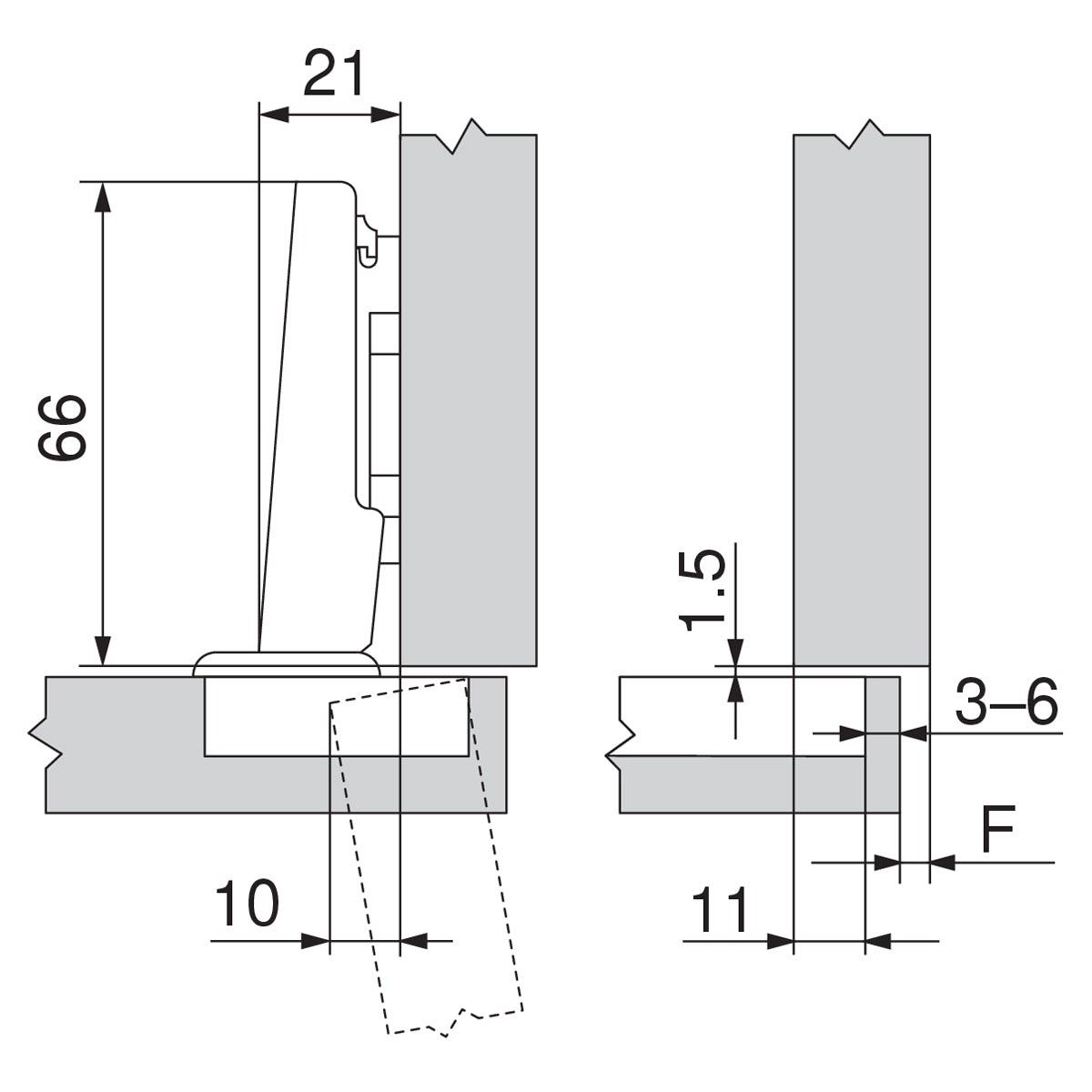

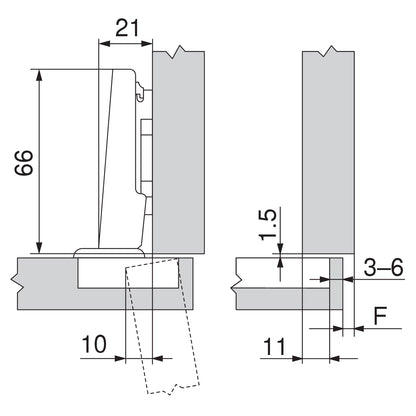

collision measurement (hinge arm height)	21 mm
Fixed dimension / factory setting	11 mm
Type of side adjustment	With screw
Side adjustment	+/-2 mm
Type of depth adjustment	convenient with spiral screw
Depth adjustment	+3/-2 mm
Gap	1.5 mm
Item package	1 piece
packaging	industrial packing
product combination	No
