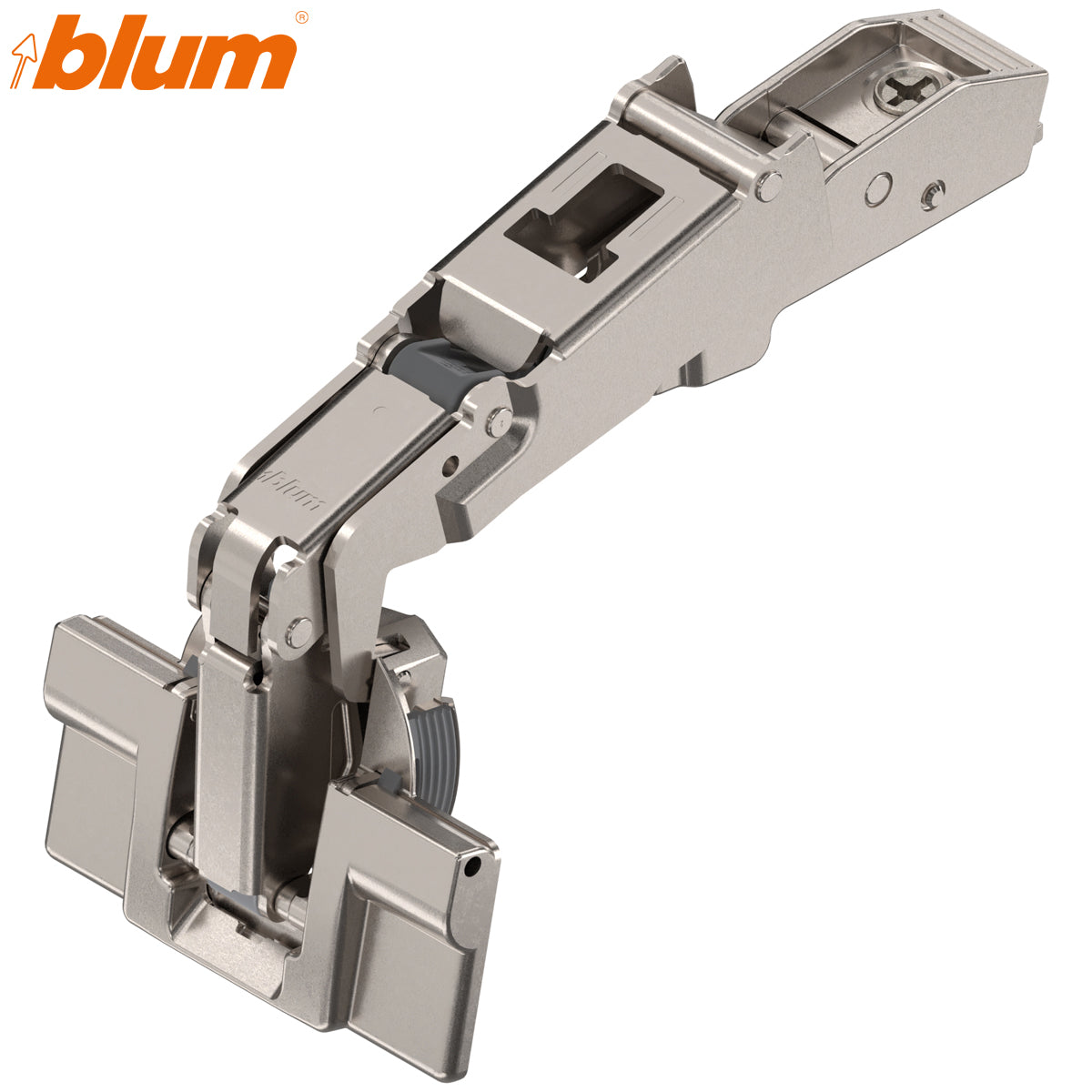

Blum 71T6540B CLIP top 170°
Wide-Angle Overlay INSERTA Hinge - Nickel

The Blum 71T6540B CLIP top hinge provides an exceptionally wide 170° opening angle for full-overlay cabinet doors. It is ideal for corner cabinets, wide-opening cupboards and furniture where the door needs to open almost flat against the adjacent cabinet or panel.

This is a sprung, self-closing hinge. The internal spring pulls the cabinet door into its closed position, but the hinge does not contain integrated BLUMOTION soft-close damping. Soft close can be added using the compatible Blum 973A6000 clip-on BLUMOTION damper, available separately.

Tool-free INSERTA hinge-cup fixing

The 71T6540B uses Blum's INSERTA fixing system to secure the hinge cup to a correctly drilled cabinet door without conventional cup-fixing screws. Once positioned in the prepared drilling pattern, the integrated locking mechanism expands the fixings and holds the hinge securely.

INSERTA refers to the connection between the hinge cup and the cabinet door. A compatible cabinet-side Blum CLIP mounting plate is still required and must be ordered separately.

Key features

• Genuine Blum CLIP top wide-angle concealed hinge
• Blum manufacturer part number: 71T6540B
• Hart Wholesale stock code: HI71T6540
• GTIN: 9002617657661
• Designed for full-overlay cabinet doors
• Extra-wide 170° opening angle
• Sprung and self-closing
• No integrated BLUMOTION damper
• Compatible with the optional Blum 973A6000 clip-on damper
• Tool-free INSERTA hinge-cup fixing
• Tool-free CLIP attachment to the mounting plate
• Three-dimensional door adjustment
• Convenient spiral-screw depth adjustment

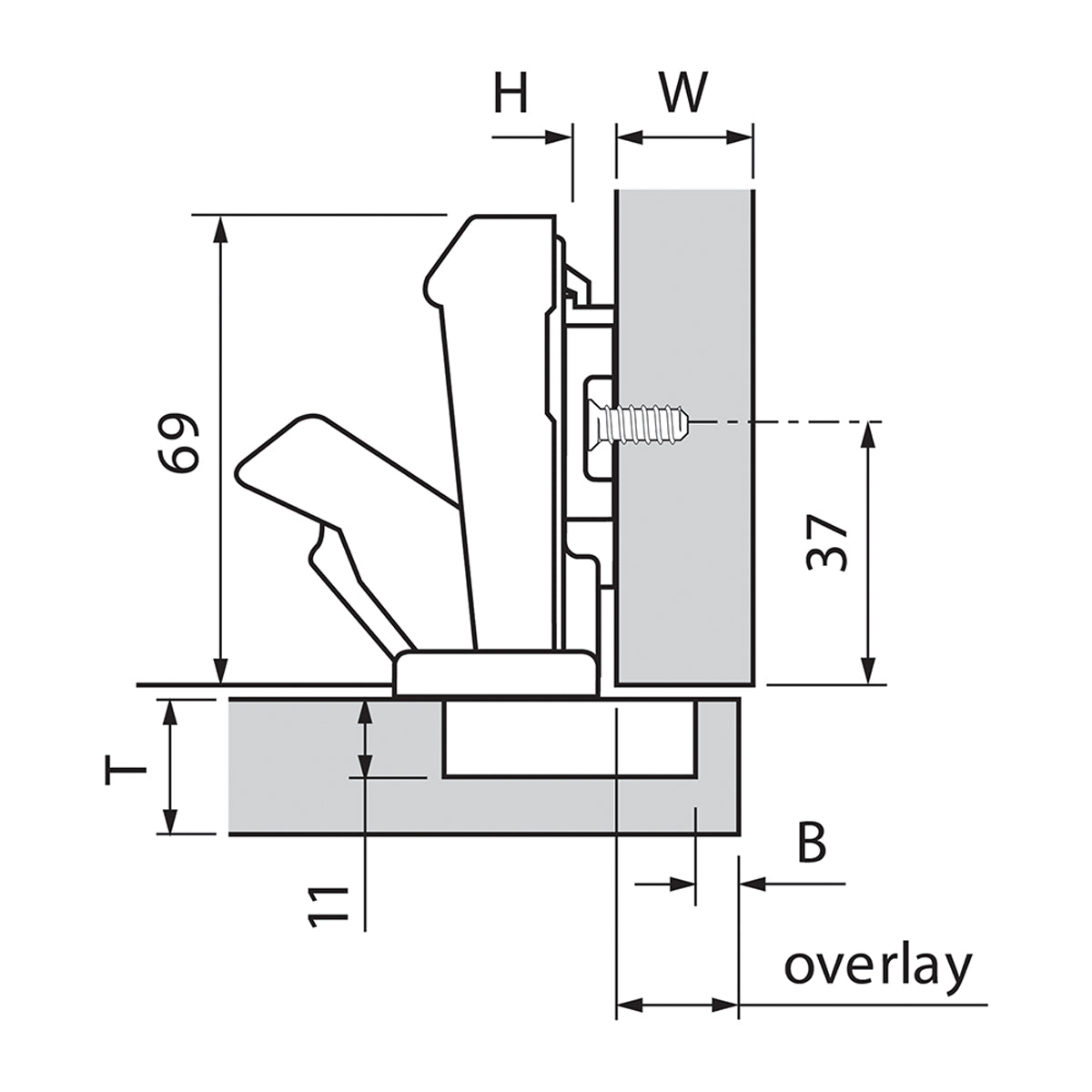

• Suitable for cabinet doors up to 24mm thick, subject to application planning
• Optional 130° opening-angle restrictor available
• Nickel-plated zinc construction
• Supplied as one hinge
• Mounting plate sold separately

Technical attributes

Wide opening without integrated soft close

The sprung mechanism closes the cabinet door automatically but does not slow the closing movement. For a quieter, more controlled close, add the compatible Blum 973A6000 damper. The damper clips directly onto the hinge arm without replacing the hinge.

Important difference between 170° and 0-protrusion hinges

A 170° opening gives exceptionally wide access, but it does not automatically provide a 0-protrusion movement. If internal drawers or pull-out shelves must pass an open door, check the cabinet planning carefully. A Blum 155° 0-protrusion hinge may be the more suitable choice.

Blum also advises using a 155° 0-protrusion hinge instead of a standard 170° hinge on furniture that can be accessed by young children.

Compatible products and alternatives

• Blum 973A6000 clip-on BLUMOTION damper
• Blum 0mm CLIP cruciform mounting plate
• Blum 71T6550 170° overlay screw-on hinge
• Blum 71T6580 170° overlay knock-in hinge
• Blum 71T7550 155° 0-protrusion overlay hinge
• View all Blum CLIP top hinges

Frequently asked questions

Does the Blum 71T6540B include soft close?

No. It is a sprung, self-closing hinge without integrated BLUMOTION. Add the separate Blum 973A6000 clip-on damper if soft closing is required.

Is the 71T6540B an unsprung hinge?

No. It contains a closing spring that pulls the cabinet door into its closed position.

What is the advantage of a 170° hinge?

The extra-wide opening moves the door well away from the front of the cabinet, providing improved access to corner cupboards and wide cabinet openings.

Does 170° opening mean that this is a 0-protrusion hinge?

No. Wide opening and 0-protrusion are different features. For internal drawers and pull-outs, check the door movement carefully or choose a suitable 155° 0-protrusion hinge.

What does INSERTA mean?

INSERTA is Blum's tool-free method of securing the hinge cup to a correctly prepared cabinet door without conventional cup-fixing screws.

Are INSERTA back plates sold separately?

No. The INSERTA locking components form part of the hinge cup. However, the cabinet-side CLIP mounting plate is a separate product.

Can the opening angle be reduced?

Yes. A compatible Blum 70.6103 opening-angle stop can reduce the maximum opening from 170° to approximately 130°.

What is the difference between 71T6540B and 71T6550?

Both are sprung 170° full-overlay hinges. The 71T6540B uses tool-free INSERTA cup fixing, while the 71T6550 has a conventional screw-on hinge cup.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

How many hinges are supplied?

The product is priced and supplied as one hinge.
