Name: Blum 71T6540B CLIP top 170° Overlay Sprung INSERTA Hinge, Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI71T6540
Price: 4.65 GBP
Availability: InStock

PRODUCT DESCRIPTION

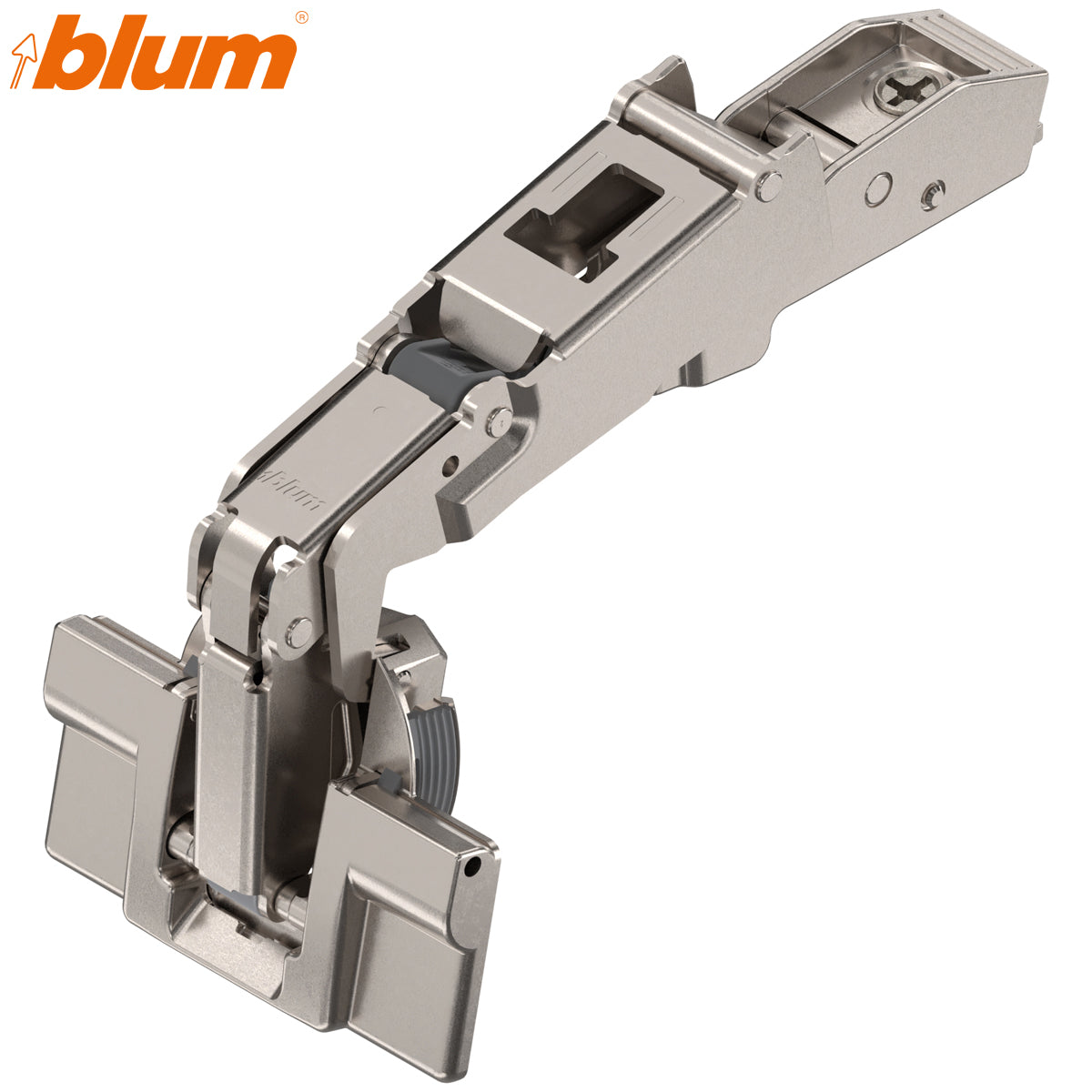

Blum 71T6540B CLIP top 170° Overlay INSERTA Hinge

Open a full-overlay cabinet door wide for access to a corner cupboard or broad storage compartment. The Blum 71T6540B is a nickel-plated wide-angle CLIP top hinge with a 170° opening and a closing spring. It uses INSERTA tool-free hinge-cup fixing to a correctly prepared door. Hart Wholesale SKU HI71T6540; one hinge is supplied.

Plan the wide opening

The straight-arm overlay application positions the door over the cabinet side, while the wide-angle motion can provide access beyond a standard 110° hinge. A 170° opening does not by itself guarantee zero door protrusion for internal drawers or pull-outs. Check the cabinet, adjacent front, handle and pull-out clearances against the full Blum planning diagram before drilling. Overlay, plate height and cup position determine the final door position.

INSERTA cup and CLIP mounting

INSERTA secures the door-side cup without conventional cup screws. The recorded hinge specification lists a 35 mm cup, two 8 mm fixing holes at 45 mm centres, 11.2 mm cup drilling depth and 3–8 mm drilling distance; confirm the complete pattern against the current 71T6540B fitting plan. The arm connects to a separately selected compatible Blum CLIP mounting plate. INSERTA does not mean the plate is included or that every plate fits every cabinet.

Sprung closing and optional damping

Its spring draws the door closed, but this hinge has no integrated BLUMOTION soft close. The existing product specification identifies it as a hinge for a separate 973A-family BLUMOTION damper; check the exact damper variant and suitability for the finished installation before ordering. Do not confuse an optional damper with damping included in the hinge.

Key specifications

Manufacturer part 71T6540B; Hart Wholesale SKU HI71T6540; barcode 9002617657661
170° wide-angle full-overlay hinge, sprung and self-closing
Tool-free INSERTA cup fixing and CLIP connection to compatible cabinet-side plate
35 mm cup; recorded 8 mm fixing holes at 45 mm centres and 11.2 mm cup depth, subject to the current fitting plan
Nickel-plated zinc cup and arm; one hinge, mounting plate and any damper sold separately

Explore the Blum CLIP top hinge collection for other opening angles and cup-fixing methods.
