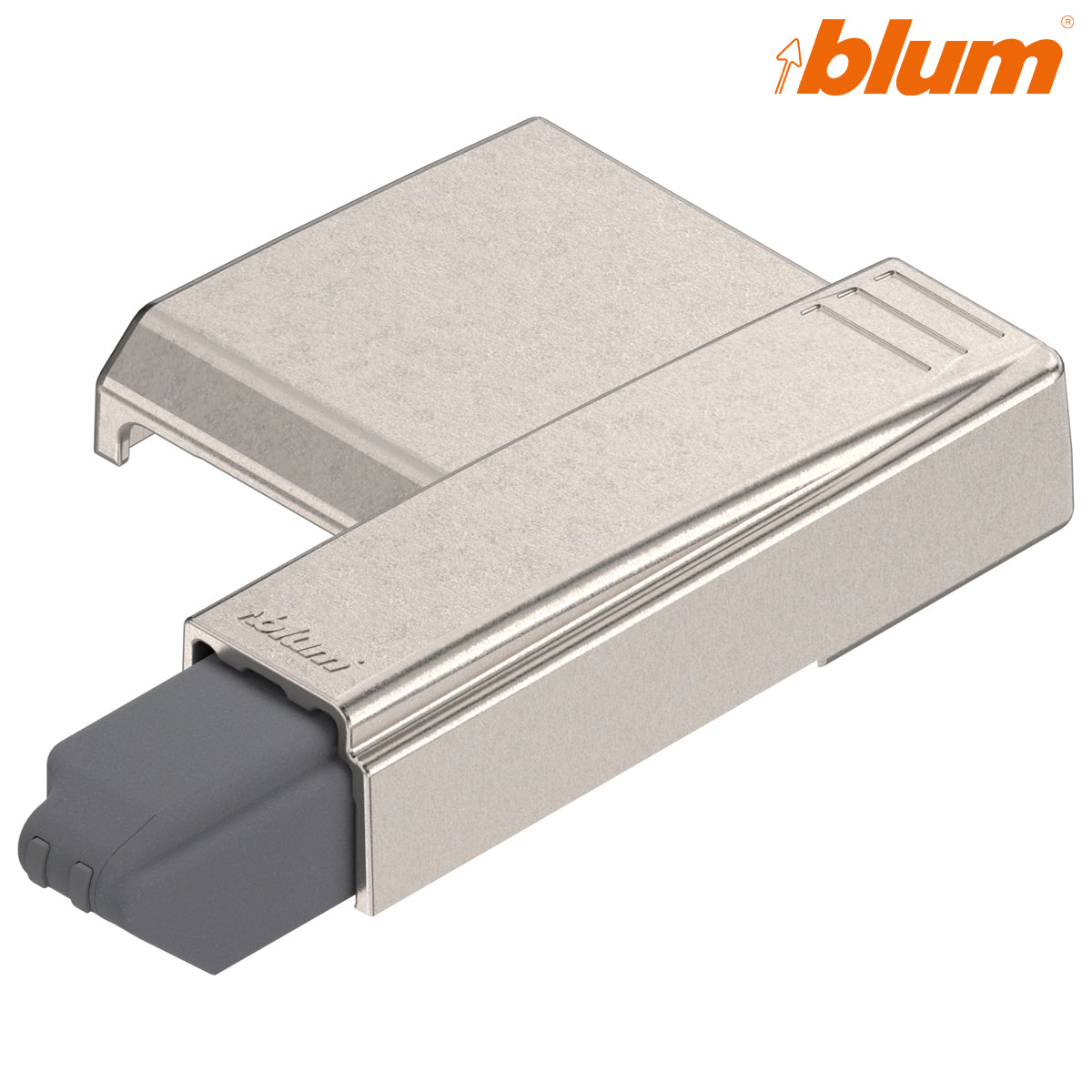

Blum 973A6000 BLUMOTION Damper for 170° CLIP top Hinges

The Blum 973A6000 is a clip-on BLUMOTION soft-close attachment for compatible Blum CLIP top 170° wide-angle hinges. It can be used with the appropriate overlay and dual or half-overlay hinge configurations.

The damper clips onto the compatible hinge arm and controls the cabinet door during the final stage of closing. This provides smoother, quieter movement without replacing the complete hinge.

This product is the BLUMOTION attachment only. The 170° hinge, cabinet mounting plate and fixing screws are not included.

Key features

• Adds BLUMOTION soft closing to a compatible 170° hinge
• Suitable for specified overlay and dual/half-overlay applications
• External clip-on damper—not an integrated hinge
• Suitable for retrofitting to compatible hinges
• Tool-free clip-on installation
• Controls the final stage of cabinet-door closing
• Nickel-plated housing with engineered plastic components
• Supplied individually

Technical specifications

Compatibility guidance

Blum 973A dampers are shaped for particular hinge families. Before ordering, confirm that the existing hinge is a compatible Blum CLIP top 170° model and requires damper number 973A6000.

The number of dampers required depends on the door’s dimensions, weight and closing behaviour. Trial fitting is recommended. Adding a damper does not convert an unsprung hinge into a sprung or self-closing hinge.

Browse our Blum BLUMOTION devices and Blum CLIP top hinges.

Frequently asked questions

Is the 973A6000 a complete hinge?

No. It is a clip-on BLUMOTION damper. The 170° hinge and cabinet mounting plate are purchased separately.

Which hinges does the 973A6000 fit?

It is designed for compatible Blum CLIP top 170° overlay and dual/half-overlay hinges. Check the hinge number before ordering.

Is the BLUMOTION mechanism built into the hinge?

No. The 973A6000 is an external attachment that clips onto the compatible hinge arm.

Can it be fitted to an existing cabinet door?

Yes, provided that the existing hinge is a compatible Blum CLIP top 170° model.

Does installation require tools?

No. The attachment clips onto the compatible hinge without drilling or separate cabinet fixings.

Will it make an unsprung hinge self-closing?

No. BLUMOTION provides dampening but does not add a closing spring to an unsprung hinge.

How many dampers are required per door?

The quantity depends on the size, weight and closing force of the door. Trial fitting is recommended.

What is included?

One Blum 973A6000 BLUMOTION damper is supplied. The hinge, mounting plate and screws are not included.
