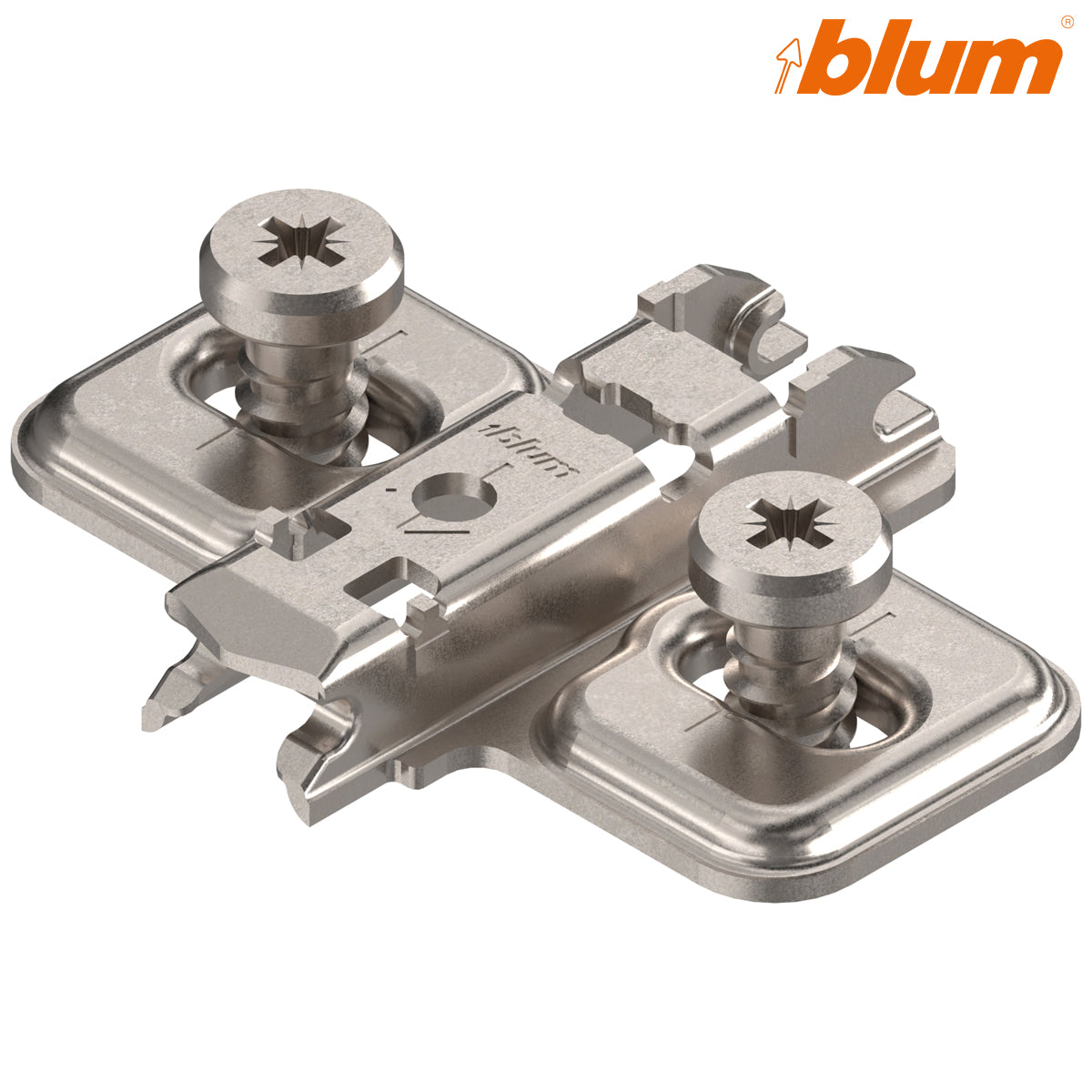

Blum 173L8100 CLIP top cruciform mounting plate

The Blum 173L8100 is a cruciform mounting plate for a correctly planned Blum CLIP top hinge installation. It uses pre-mounted system screws and a 37/32 mounting pattern. The plate has 0 mm nominal spacing, an 8.5 mm physical height and ±3 mm height adjustment.

This is the nickel-plated steel plate for system-screw fixing. It is supplied as one mounting plate; select the hinge separately for the door application and required overlay.

Technical details

• Blum part number: 173L8100
• Hart Wholesale SKU: HI173810
• Type: Cruciform CLIP top mounting plate
• Nominal mounting-plate spacing: 0 mm
• Physical height: 8.5 mm
• Height adjustment: ±3 mm
• Mounting pattern: 37/32
• Fixing: Pre-mounted Ø6 mm system screws
• Material: Steel
• Finish: Nickel plated
• Quantity: One mounting plate

Choosing the correct mounting plate

The 0 mm figure refers to mounting-plate spacing used in hinge planning; it is not the plate's physical height. Confirm the cabinet drilling, hinge model and required door overlay against Blum's planning information. This system-screw plate has a different fixing method from a chipboard-screw or EXPANDO plate.

See the Blum CLIP top mounting plates range for other fixing methods and plate heights. The hinge is selected and purchased separately.

Frequently asked questions

Does 0 mm describe the plate's physical height?

No. Its nominal spacing is 0 mm; its physical height is 8.5 mm.

How is the height adjusted?

The mounting plate provides ±3 mm height adjustment when positioning the plate.

Are the mounting screws pre-mounted?

Yes. Blum specifies pre-mounted Ø6 mm system screws for part 173L8100. Check that the cabinet drilling suits this fixing method.

Is a hinge included?

No. This listing supplies one mounting plate. Choose a compatible hinge separately.
