BLUM CLIP WIDE HINGE 0-PROTRUSION 155deg OVERLAY UNSPRUNG INSERTA ONYX

BLUM CLIP WIDE HINGE 0-PROTRUSION 155deg OVERLAY UNSPRUNG INSERTA ONYX

Stock Code: HIO70T7590.TL

£6.51 GBP
Sale
View full details
Previous
Blum 71T950A CLIP top 95° Aluminium-Frame Overlay Hinge | Screw-On | Onyx Black
Next
Blum 70T7550.TL CLIP top 155° Zero-Protrusion Unsprung Screw-On Hinge | Onyx Black

PRODUCT DESCRIPTION

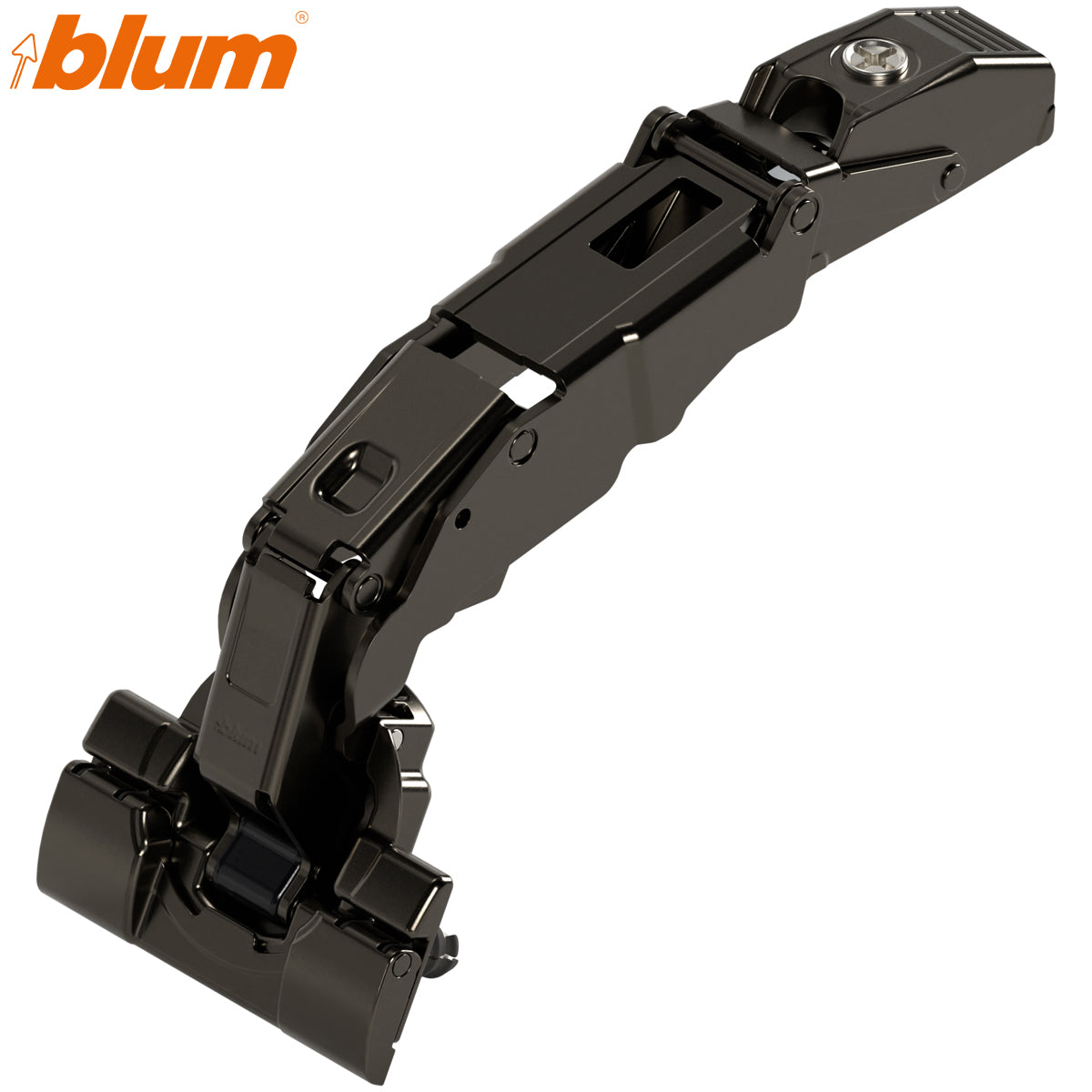

Blum 70T7590.TL CLIP top 155° zero-protrusion unsprung INSERTA hinge – Onyx Black

The Blum 70T7590.TL is a wide-angle CLIP top hinge for full-overlay cabinet doors where internal drawers, pull-outs, baskets or larder fittings need the open door to clear the cabinet working width. Its zero-protrusion geometry is designed for correctly planned 155° installations.

This is the unsprung, free-swing version with tool-free INSERTA hinge-cup fixing. It can be used with a compatible Blum TIP-ON door unit for push-to-open handleless cabinets. The Onyx Black finish suits dark cabinet interiors and contemporary furniture.

Technical details

  • Blum part number: 70T7590.TL
  • Hart Wholesale SKU: HIO70T7590.TL
  • Type: CLIP top wide-angle concealed hinge
  • Application: full overlay
  • Opening angle: 155° maximum
  • Door movement: zero/nil protrusion when correctly planned
  • Closing mechanism: unsprung/free swing
  • BLUMOTION: no
  • Hinge-cup fixing: INSERTA tool-free assembly
  • Mounting-plate connection: tool-free CLIP mechanism
  • Door thickness at 155°: 20–24 mm
  • Thicker-door option: up to 31 mm with the compatible 92° opening-angle stop and correct planning
  • Adjustment: side ±2 mm, depth +3/-2 mm via spiral screw, height via the selected mounting plate
  • Material: steel
  • Finish: Onyx Black
  • Quantity: one hinge

Planning and fitting

Select a compatible Blum CLIP mounting plate separately and plan the overlay, drilling distance, door thickness and cabinet position together. INSERTA requires accurately drilled door preparation. For doors over 24 mm, the compatible 92° opening-angle stop may be required and reduces the opening angle to approximately 92°.

For a TIP-ON application, use matching unsprung hinges throughout the door unless the arrangement has been specifically confirmed through Blum planning. The hinge, mounting plate, TIP-ON unit, opening-angle stop and decorative cover caps are supplied separately.

Browse the Blum CLIP top hinge range and the Blum INSERTA hinge range when planning the installation.

Matching components

For a soft-closing version with the same INSERTA fixing and wide-angle zero-protrusion movement, compare the Blum 71B7590 BLUMOTION INSERTA hinge in Onyx Black. The nickel counterpart record for 70T7590.TL is archived, so confirm current availability before ordering.

Frequently Asked Questions

What does zero protrusion mean?

When correctly planned, the hinge moves the open door clear of the cabinet’s internal working width. This allows internal drawers, shelves and pull-outs to pass the door without obstruction.

Is this hinge suitable for internal drawers?

Yes. Internal drawers and pull-out storage are principal applications for this zero-protrusion hinge.

Does the hinge have soft close?

No. The 70T7590.TL is unsprung and does not contain BLUMOTION. Choose a compatible BLUMOTION alternative if integrated soft closing is required.

Why is the hinge unsprung?

The free-swing mechanism allows it to work with Blum TIP-ON push-to-open door units. A conventional sprung hinge would resist the TIP-ON opening movement.

What does INSERTA mean?

INSERTA is Blum’s tool-free method of securing the hinge cup into a correctly drilled cabinet door. No conventional cup-fixing screws are required.

Is the mounting plate included?

No. Select and order a compatible Blum CLIP mounting plate separately according to the required overlay and cabinet construction.

Can it be used on doors thicker than 24 mm?

Doors up to 31 mm may be possible when the compatible 92° opening-angle stop is used. This reduces the opening angle and the complete installation must be checked against Blum planning information.

Can sprung and unsprung hinges be mixed on one door?

For a normal TIP-ON application, use matching unsprung hinges throughout. Do not mix different closing mechanisms unless the application has been specifically checked using Blum planning guidance.
