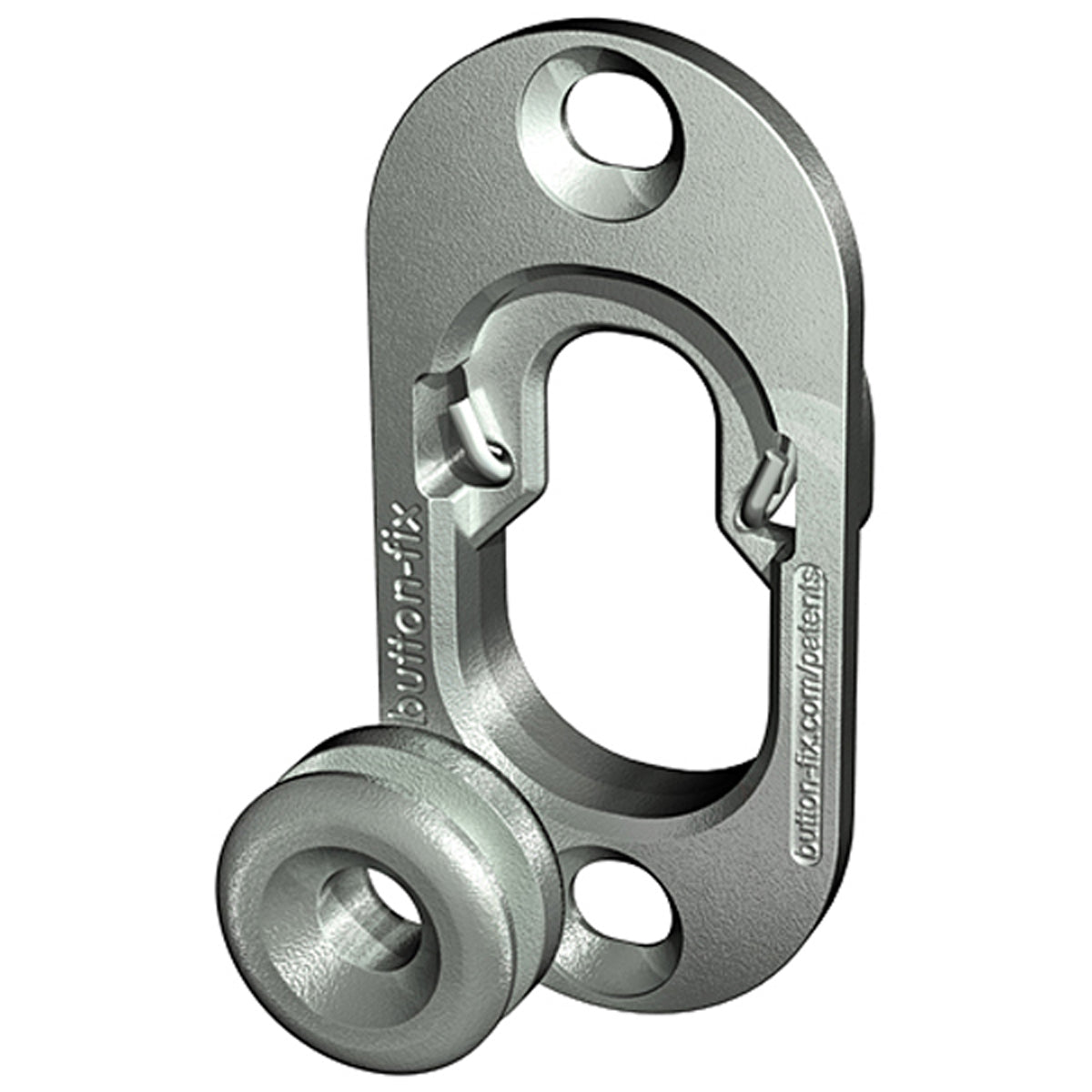

Type 1 Flush Metal Fixing, Zinc, 10 Pack

Choose the zinc Type 1 Flush Metal fixing for a panel layout that specifies the metal version. The zinc-alloy body and stainless-steel spring distinguish it from the plastic range, with applications including repeatedly removed panels and installations exposed to vibration or shock loading.

Key details

• Type 1 Flush Metal
• Zinc alloy with stainless-steel spring
• Pack of 10
• Country of origin: United Kingdom
• Stock code: BNF022

Application and load guidance

The existing application guidance includes fire-retardant panels, interiors where smoke toxicity is a concern, maritime and transport interiors, vibration or shock loading and frequently removed panels. Suitability depends on the complete assembly; this is not a fire-rating claim.

Guide loads for a panel with four Fixes are up to 350kg vertically or 230kg in a ceiling orientation. Match screws and substrate correctly and follow all installation instructions. Tests used 18mm MDF or plywood; allow for different panels and test critical applications.

Choosing this component

The metal construction is a distinct option from the black plastic Flush component. Select by the specified fixing design and assembly requirements, rather than treating material choice alone as a fire-rating approval.

Related panel fixings and tools

Compare Type 1 Flush Panel Fixing, Black or browse the related products. Match the fixing type and mounting arrangement to the current installation instructions.

Frequently asked questions

Does the fixing give a panel a fire rating?

No. Any fire performance depends on the complete tested assembly and its installation, not on the fixing material alone.

How do I identify this item when ordering?

Use Hart Wholesale stock code BNF022 and check the listed component and quantity against your order. Follow the fitting instructions for the chosen fixing system.
