Choose the right concealed panel fixing

• Type 1: connects parallel panels using drop-down or sideways engagement. Choose the black Type 1 Fix or the Fix and green-button combination. Plan the sliding direction and mounting arrangement before fitting.

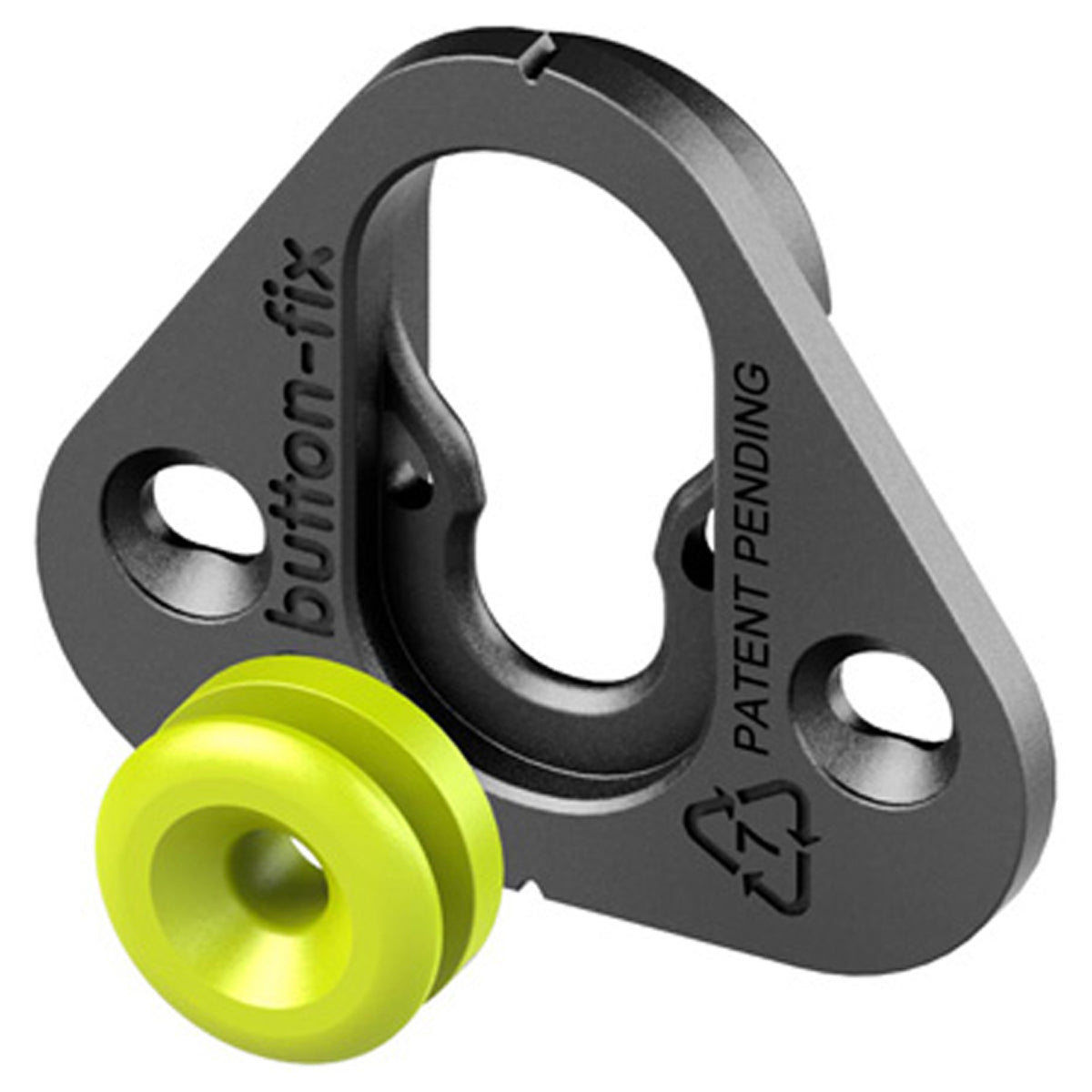

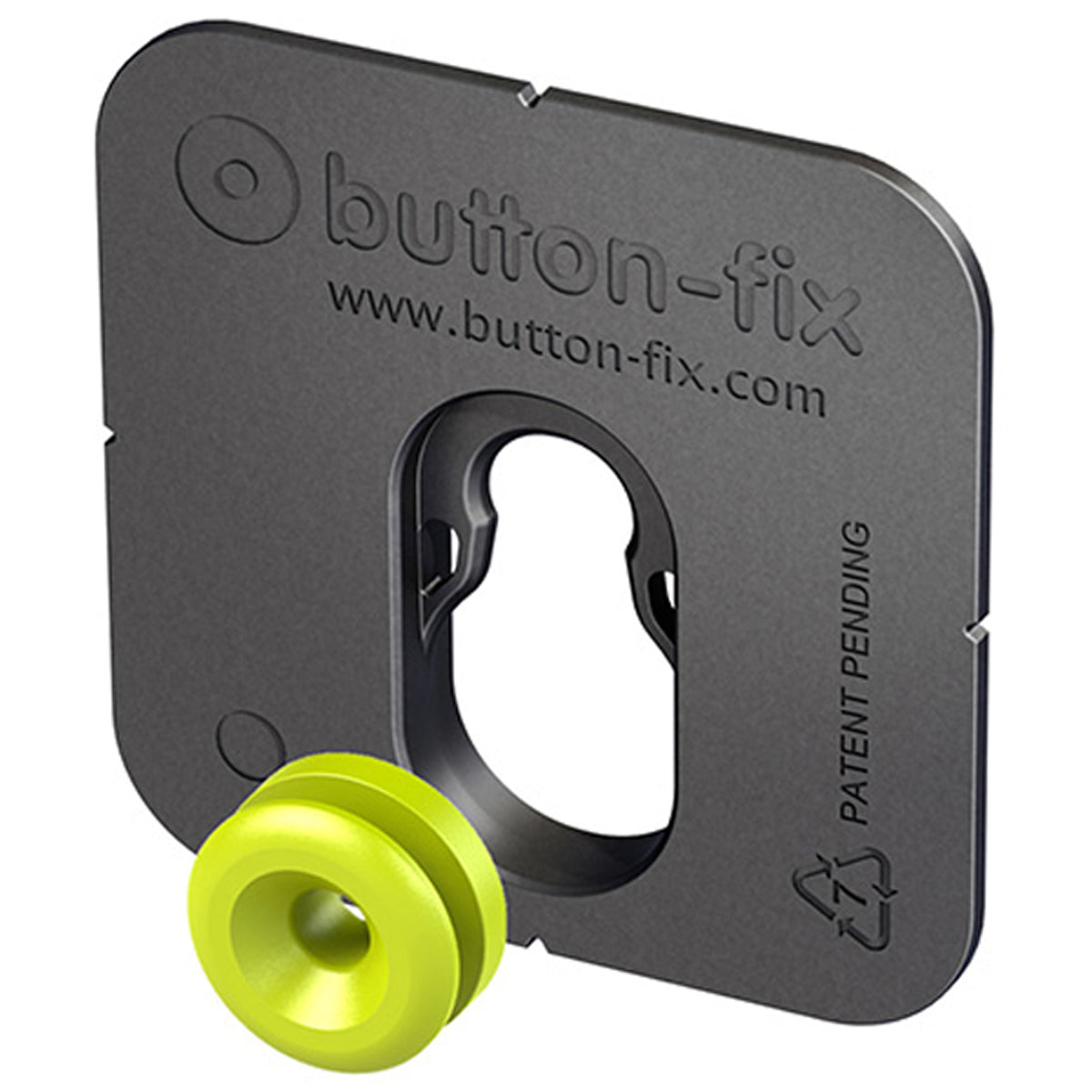

• Type 1 Bonded: an option where direct screw fixing into the panel is unsuitable. Compare the bonded Fix and the square bonded version. The adhesive must suit both surfaces and the intended installation.

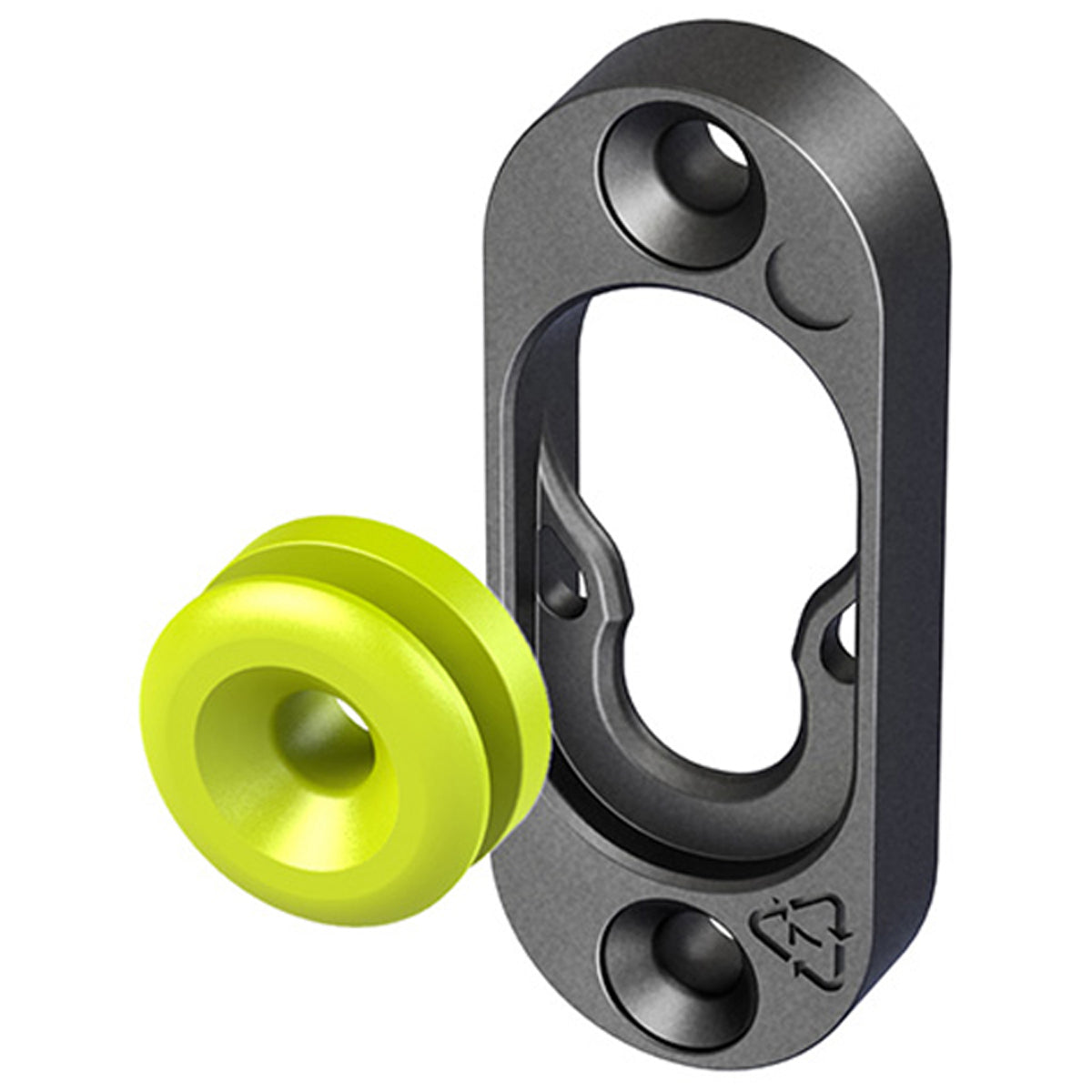

• Type 1 Flush: a recessed connection for panel-to-panel contact without a gap. Choose the black Flush Fix or Flush Fixes with green buttons. Check the recess and panel-thickness requirements before machining.

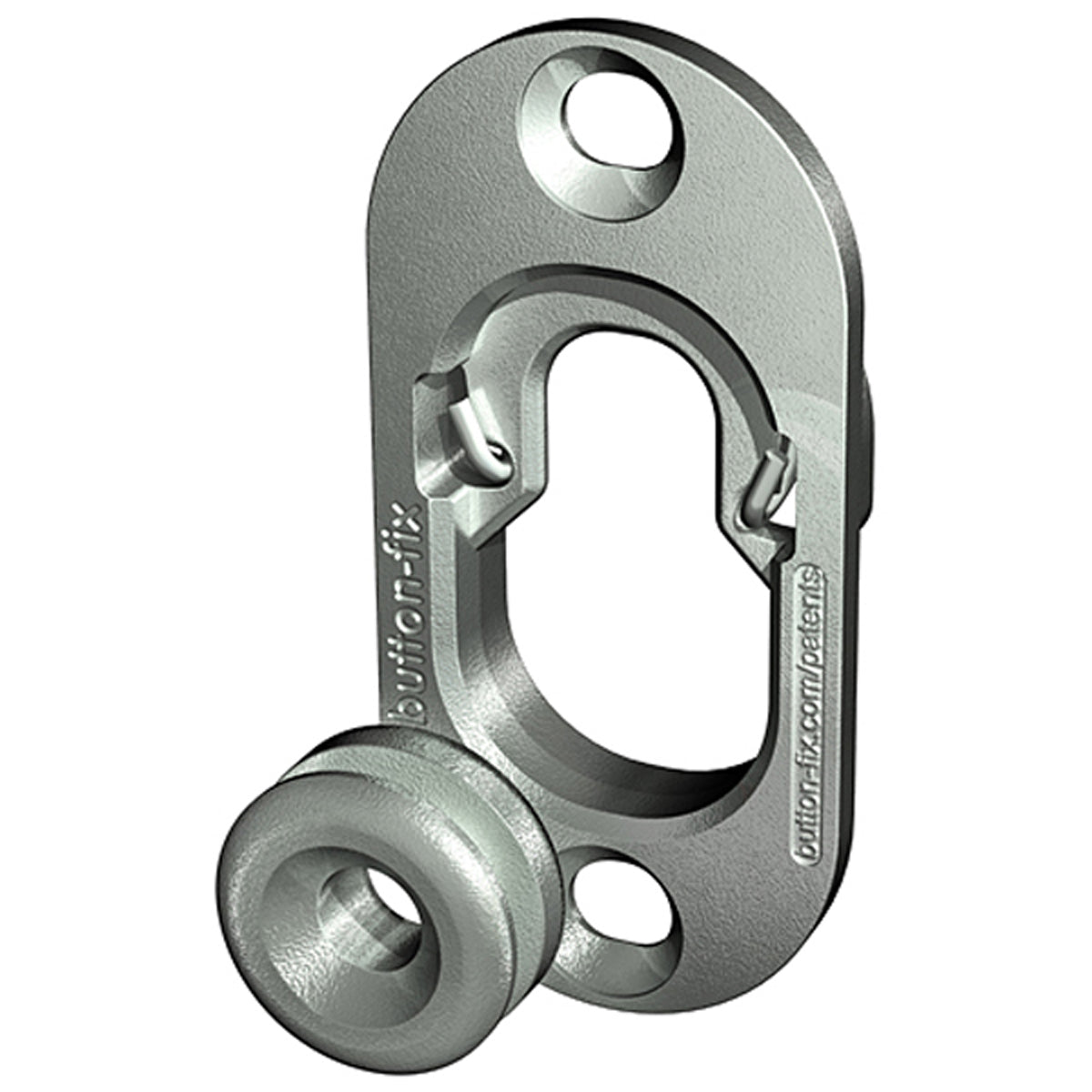

• Type 1 Flush Metal: the zinc-alloy version with a stainless-steel spring offers a distinct metal construction. Select it against the installation specification; material choice alone does not establish a fire rating.

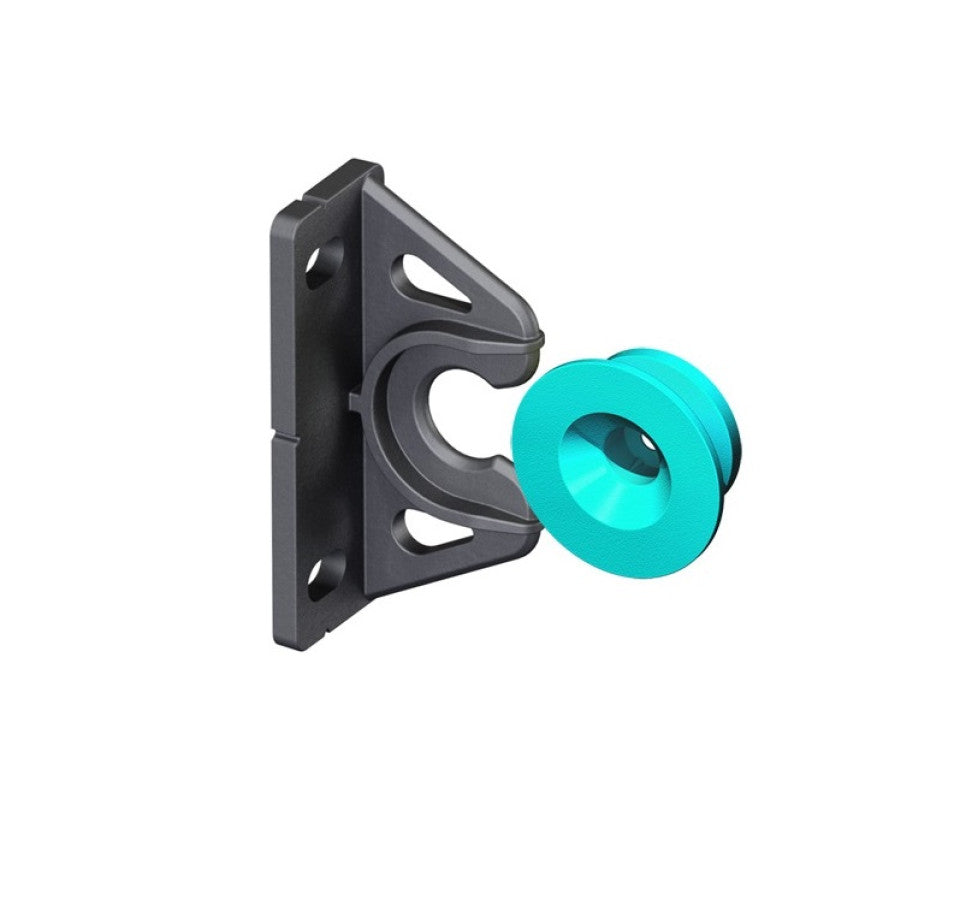

• Type 2: a 90-degree or panel-to-frame connection with straight push-on engagement, useful for removable service panels. Compare the Fix and turquoise-button combination with the separate black fixing.
• Type 2 Compact: a shallower format for space-limited access-panel layouts. Choose the complete push-on version or the complete drop-down version. These use different engagement methods and installation limits. Never use the Compact push-on Fixes on ceiling panels.

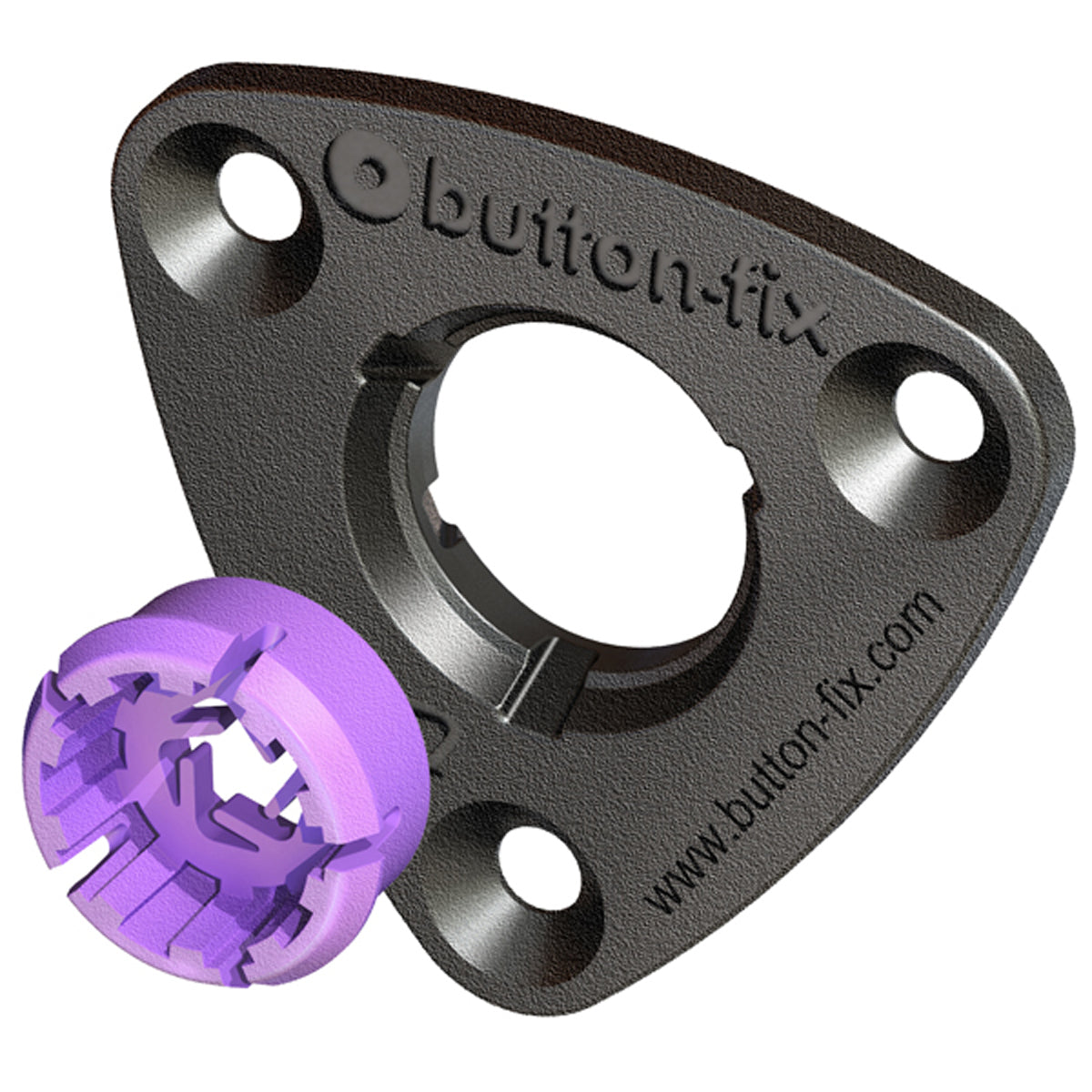

• Type 3: direct push-on/pull-off engagement for parallel panels. Compare the face-fit and purple-button combination with the flush-fit version. Match the mounting format to the required panel gap or panel-to-panel contact.

Buttons, marking tools and routing accessories

Order mating components by their specified format. The green countersunk button is for wood screws; the orange Euro-screw button is a separate option. The Type 2 Compact button pack belongs to the Compact system.

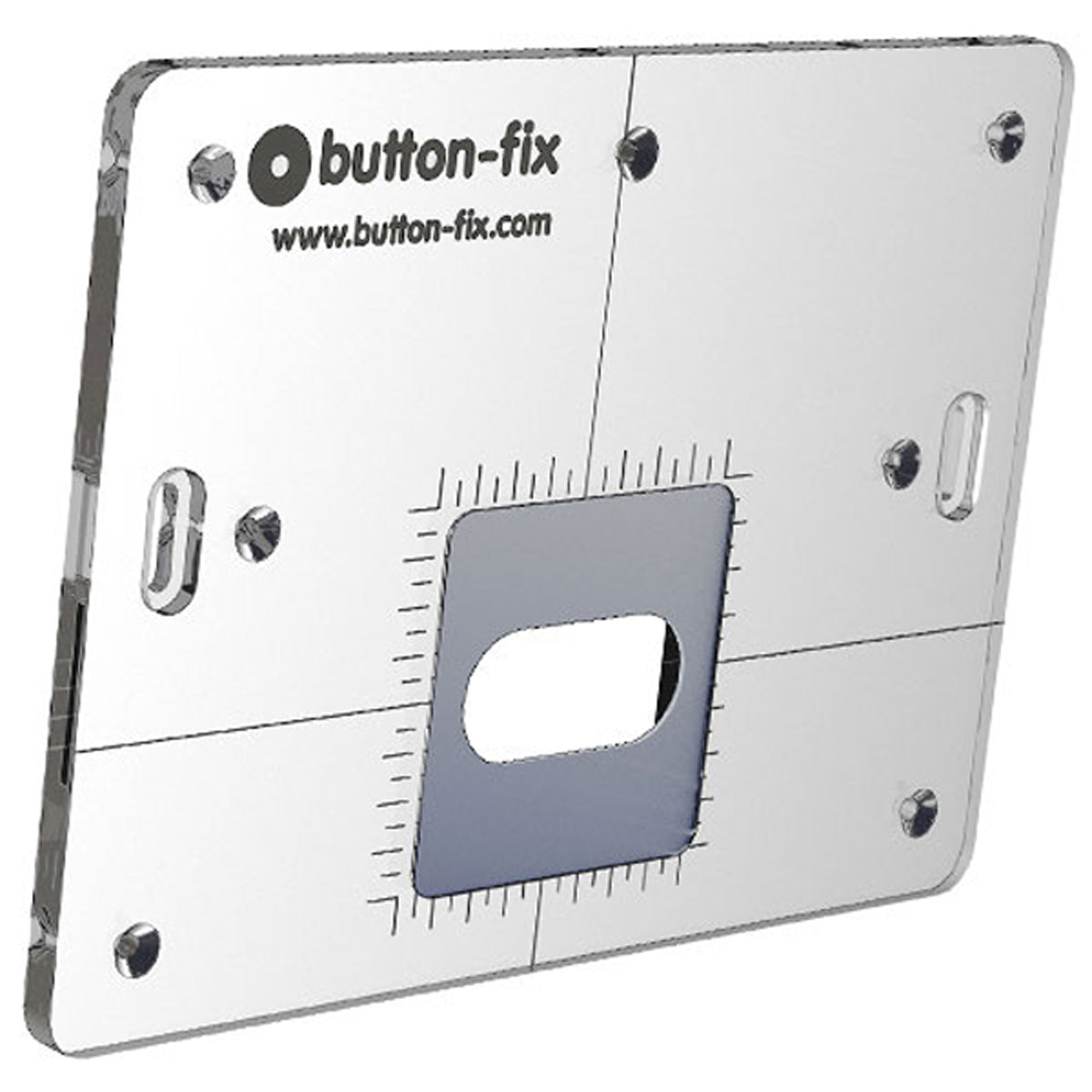

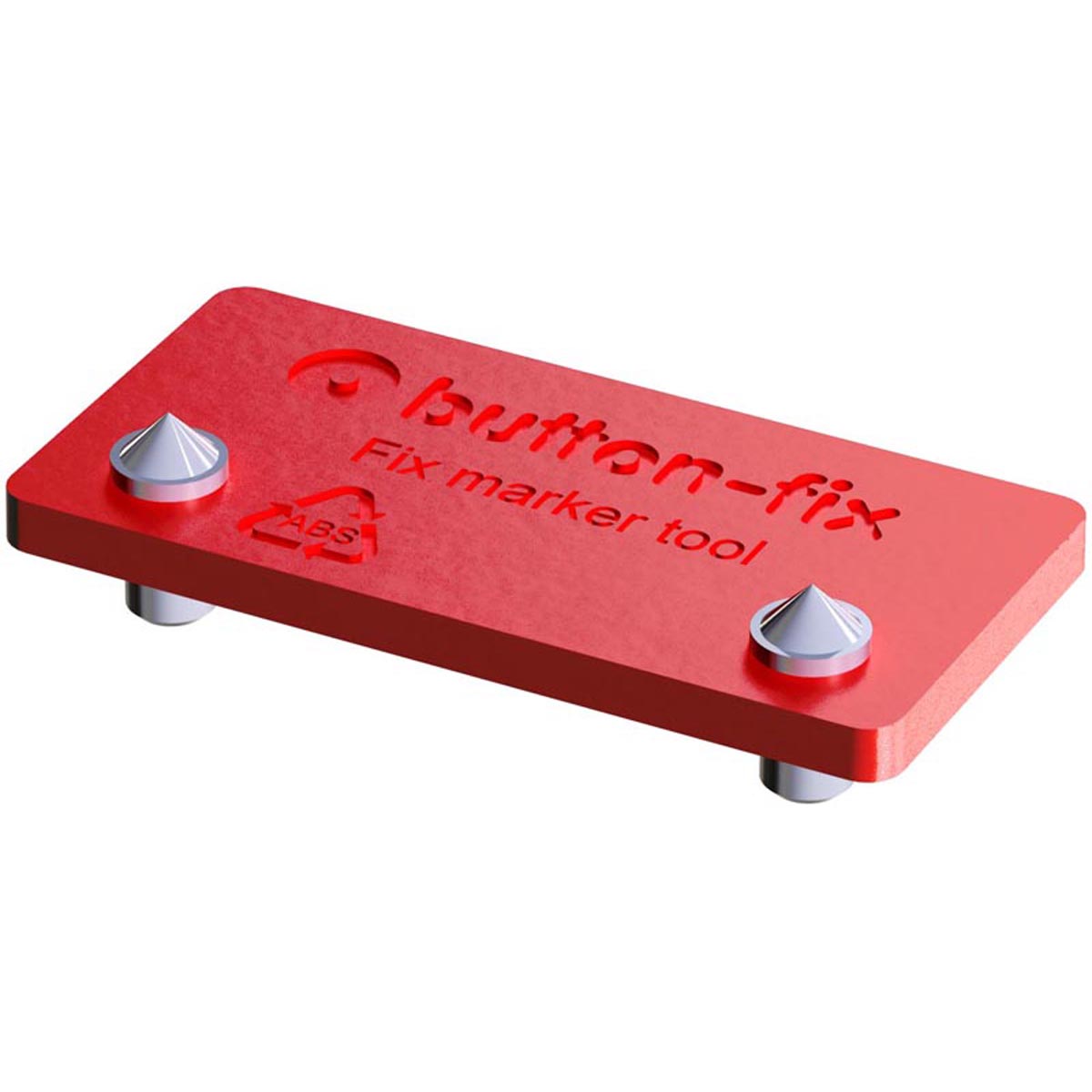

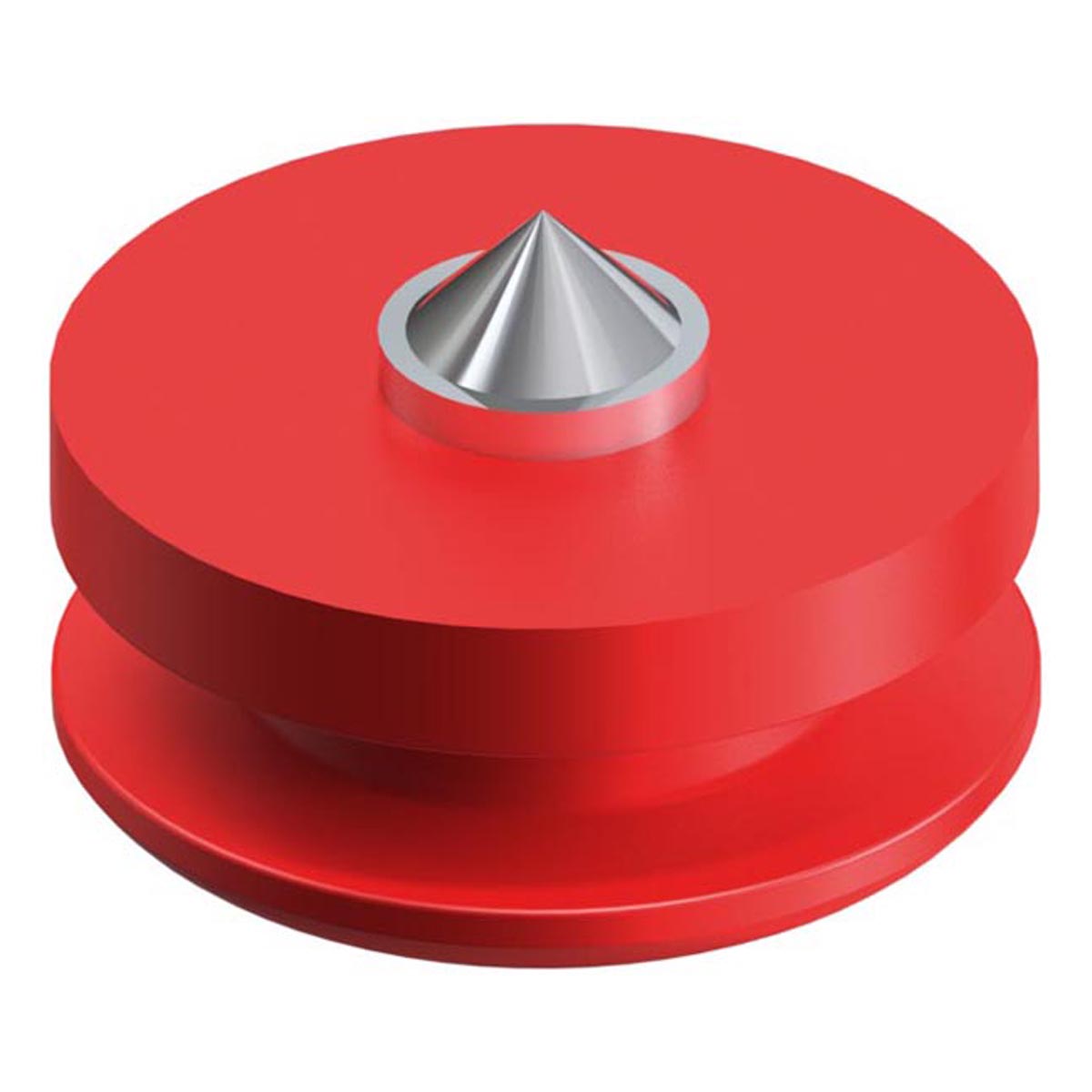

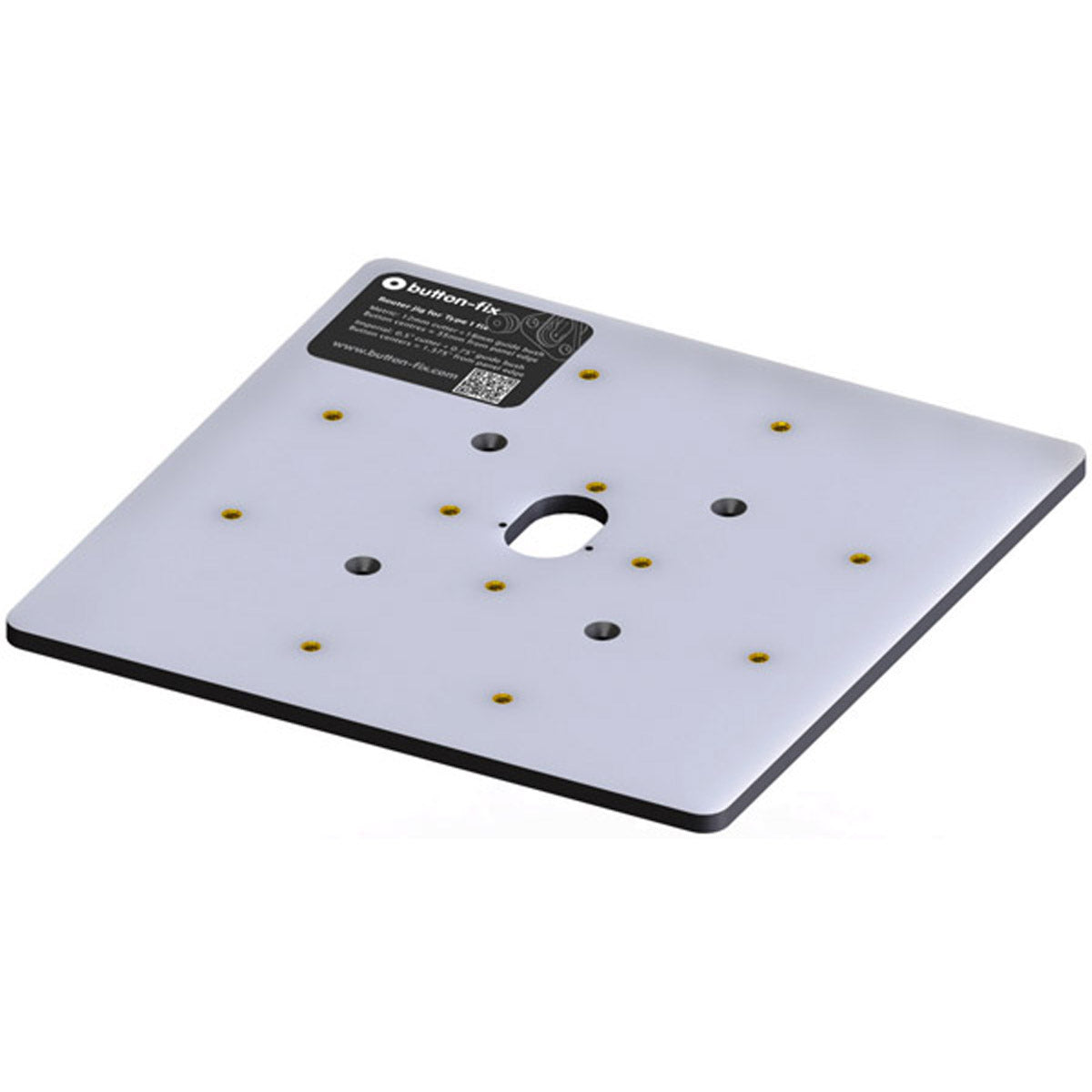

For setting out, compare button markers, Type 2 marker tools and dedicated Type 2 Compact markers. The router multijig is a preparation tool, supplied separately from the panel connectors. Check the tool instructions for the chosen fixing.

The Type 2 safety cord and self-adhesive pads are separate accessories. Confirm their intended fitting arrangement before use.

Frequently asked questions

Which Buttonfix should I choose for an access panel?

Original Type 2 and Type 2 Compact provide options for connections at 90 degrees or to a frame. Select by the available depth, engagement direction and removal space. For parallel panels, compare Type 1 or Type 3 instead.

Does every listing contain both the Fix and the button?

No. The range includes Fix-only components, button-only components and combinations. Read the individual listing and check the order quantity before choosing the parts for your assembly.

Can all versions be used for ceiling panels?

No. Suitability depends on the exact version, orientation and complete assembly. Compact push-on Fixes must not be used on ceiling panels. Follow the current instructions for any proposed overhead installation.

Are quoted loads ratings for one fixing?

Do not assume so. The guide loads retained on relevant product pages refer to assemblies using four Fixes and depend on the screws, substrate, orientation and fitting method. Check the exact product guidance and test critical applications.

Can panels be removed for maintenance?

The systems provide demountable connections, but the removal movement differs between sliding, push-on and drop-down versions. Allow the necessary access and clearance when designing the panel.
