PRODUCT DESCRIPTION

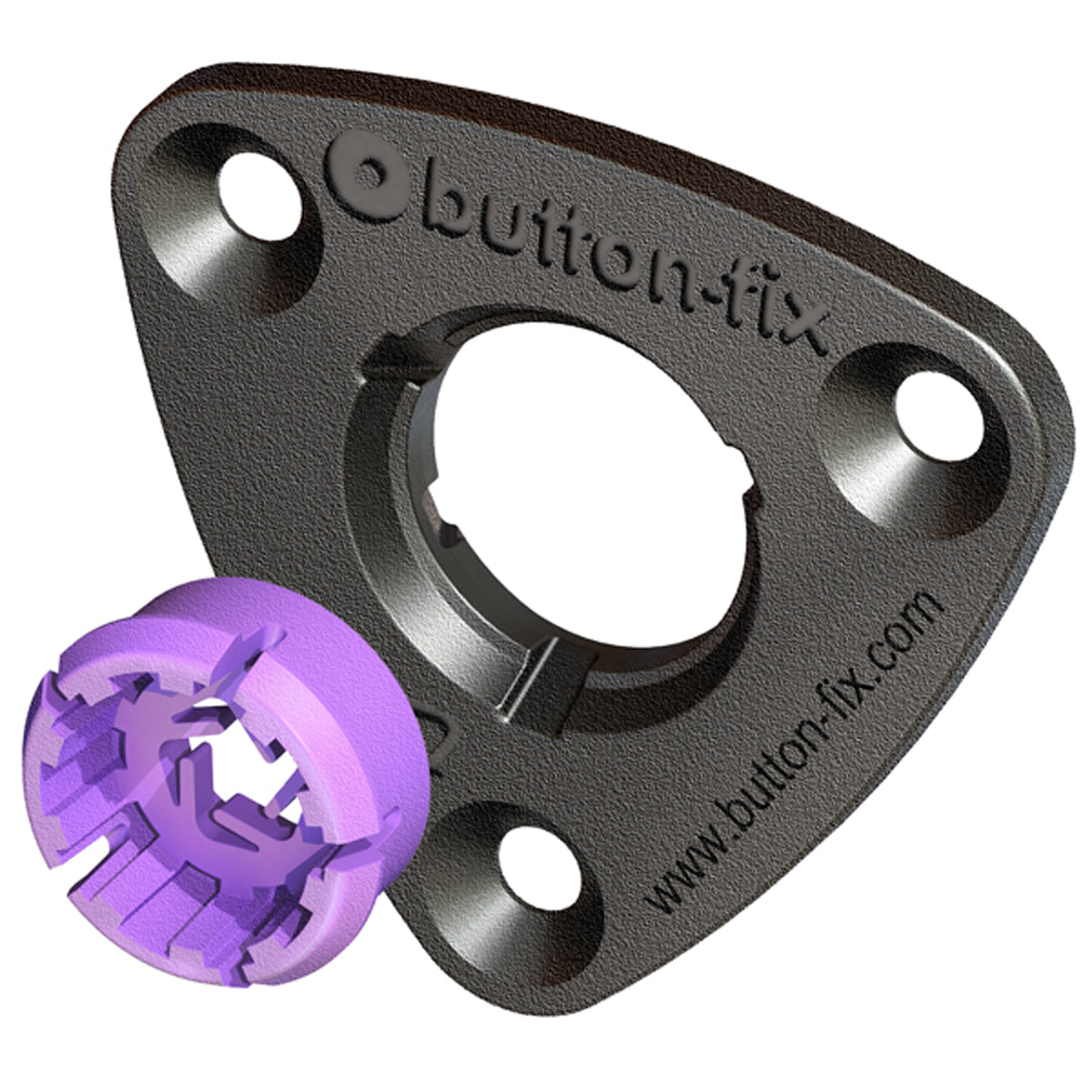

Button-Fix Type 3 Pack Of 20
Our new push-on/pull-off mount for wall and ceiling panels
Simply connects parallel panels, including panels with no clearance at the side. It can be surface-mounted or semi-recessed into the panel and its installation depth matches the Type 1 Button-fix, allowing the two fasteners to be used to hang adjacent panels.
The Fix housing is moulded from PBT and the Button is acetal - both strong and durable engineering polymers. As a general guide, four Button-fix Type 3 fasteners on a vertical panel will support loads weighing up to a maximum of 60kg (132 lbs), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Four Type 3 Button-fixes can also support a ceiling panel of up to 10kg (22 lbs). Manufactured in the UK.
Guide loads
Wall panel with 4 x Fixes, guide load = 60 kg max.
Ceiling panel with 4 x Fixes, guide load = 10 kg max.
- Advice on panel loads is given with the proviso that the screws and substrate are properly matched, and all other instructions complied with. For critical applications it is essential to perform your own tests.
- The guide load for using Type 3 on ceiling panels should be applied to any panel that is not vertical and its weight acts to disengage the Button-fix.
Features:
- Connects panels face-to-face with a 3mm or 8mm gap
- Strong push on/pull off engagement.
- Ideal for acoustic, wall and ceiling panels
Where To Use:
- Wall and lightweight ceiling panels
- Boat interiors with irregular-shaped panels
- Acoustic panels including acoustic felt panels.
- Upholstered panels, bed headboards and banquette seating
- Panels at the end-of-run or in tight corners on a Button-fix Type 1 installation, where sliding engagement is not possible.
Button-Fix Type 3 Pack Of 20 Our new push-on/pull-off mount for wall and ceiling panels Simply connects parallel panels, including panels with no clearance at the side. It can be surface-mounted or semi-recessed into the panel and its installation depth matches the Type 1 Button-fix, allowing the two fasteners to be used to hang adjacent panels. The Fix housing is moulded from PBT and the Button is acetal - both strong and durable engineering polymers. As a general guide, four Button-fix Type 3 fasteners on a vertical panel will support loads weighing up to a maximum of 60kg (132 lbs), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Four Type 3 Button-fixes can also support a ceiling panel of up to 10kg (22 lbs). Manufactured in the UK. Features: Connects panels face-to-face with a 3mm or 8mm gap Strong push on/pull off engagement. Ideal for acoustic, wall and ceiling panels Where To Use: Wall and lightweight ceiling panels Boat interiors with irregular-shaped panels Acoustic panels including acoustic felt panels. Upholstered panels, bed headboards and banquette seating Panels at the end-of-run or in tight corners on a Button-fix Type 1 installation, where sliding engagement is not possible. Button-fix Type 3 Push Fit + button Packed in 20 of each piece 47.2 x 47.2 x 8 mm Black
Button-fix Type 3 Push Fit + button
Packed in 20 of each piece
47.2 x 47.2 x 8 mm
Black
