Type 1 Fix & Green Button, 20 Pack

Connect parallel panels with the Type 1 Fix and green button combination. Slide-and-click engagement allows sideways assembly without a gap above the panel, or drop-down engagement where the layout allows it.

Key details

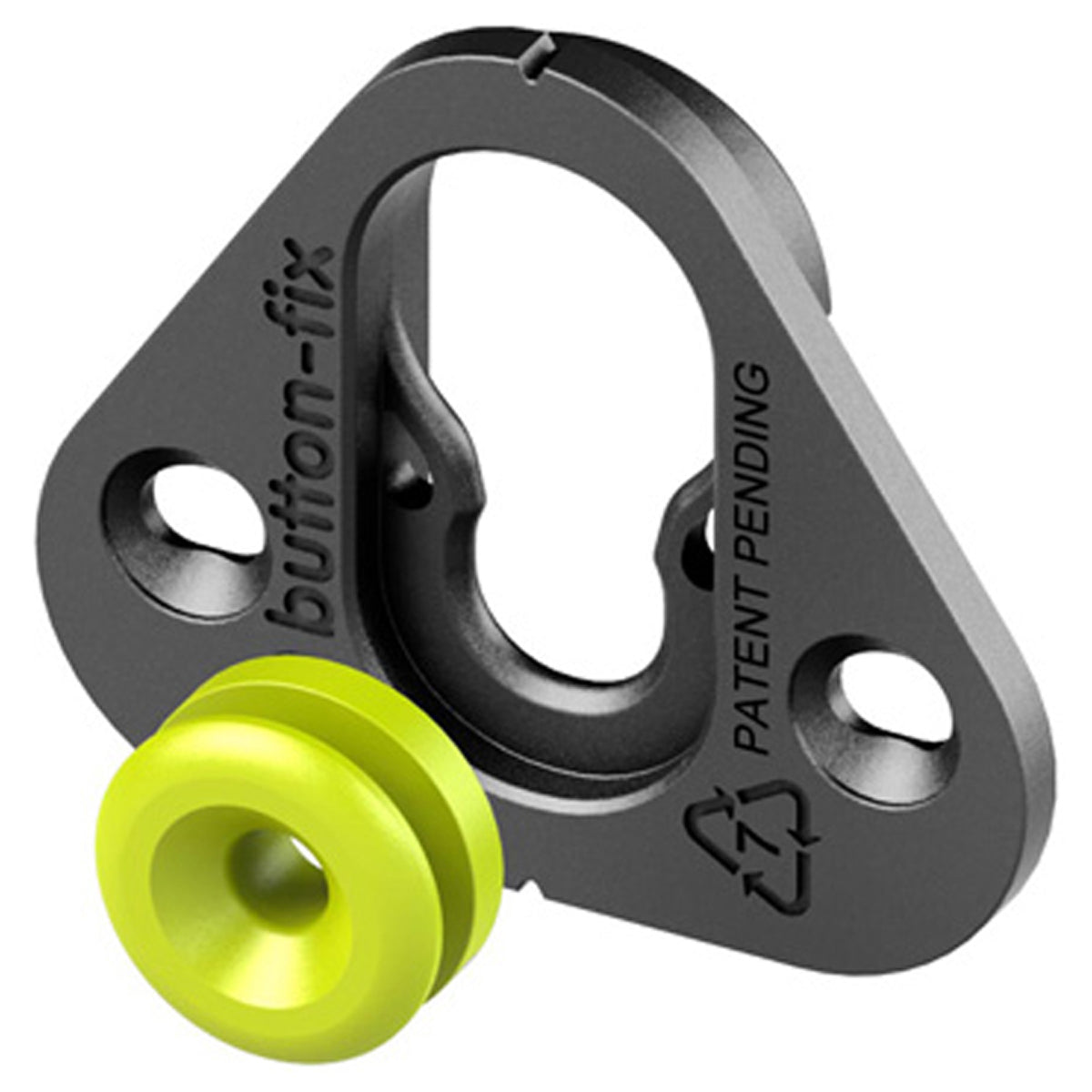

• Black Fix with green button
• Pack of 20
• Countersunk for wood screws
• Surface-mounted or semi-rebated
• Country of origin: United Kingdom
• Stock code: BNF020

Panel layout and guide loads

Type 1 is recommended for parallel panels where strength is important, including designs with cantilevered loads such as shelving. The fixing is reversible for surface-mounted or semi-rebated layouts.

Guide loads for a panel with four Fixes are up to 200kg vertically or 110kg in a ceiling orientation. These are not per-fixing ratings: the screws and substrate must be correctly matched and all fitting instructions followed. Tests used 18mm MDF or plywood; make allowances for other panels and test critical applications.

Choosing this component

Plan the sliding direction before fixing the components to the panel and support. Type 1 offers drop-down or sideways engagement, giving a demountable parallel-panel connection when the required movement is available.

Related panel fixings and tools

Compare Type 3 Face Fit & Purple Button, 20 Pack or browse the related products. Match the fixing type and mounting arrangement to the current installation instructions.

Frequently asked questions

Can I use push-on engagement instead?

Type 1 uses sliding engagement. Compare Type 3 face-fit if your parallel-panel design calls for push-on and pull-off engagement.

How do I identify this item when ordering?

Use Hart Wholesale stock code BNF020 and check the listed component and quantity against your order. Follow the fitting instructions for the chosen fixing system.
