PRODUCT DESCRIPTION

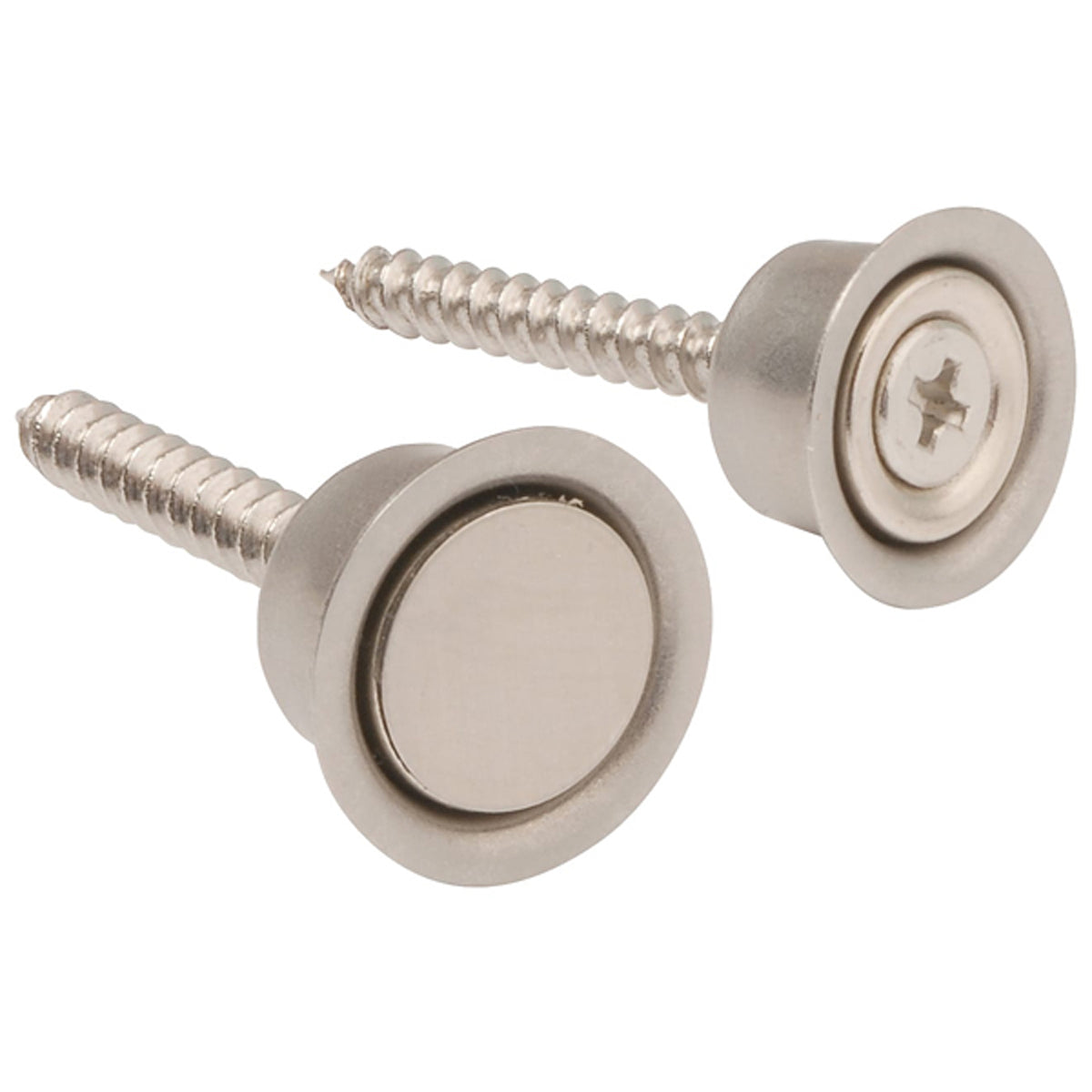

Precision 12 Concealed Magnetic Catch for 16–30 mm Doors
A compact concealed magnetic catch for doors 16–30 mm thick, as specified in the PLS12PRO fitting guide. Its round assemblies recess into the door and jamb, retaining the closed door by magnetic attraction without a protruding catch on the finished face.
Key details
- Door thickness: 16–30 mm, subject to the fitting guide
- 12 mm installation bore; check the specified recess depth
- Non-contact magnetic retention when correctly aligned
- Adjustable hold using power-adjustment packers
- Stock code: CA741A
- Model reference: PLS12PRO
- Supplied as one catch set
Installation and adjustment
Use the PLS12PRO guide when preparing the door and jamb. The opposing assembly is offset towards the door stop as shown in the instructions, and the magnetic gap is adjusted during fitting. Check that the intended door construction provides suitable material for the recess and fixing.
Handle the magnetic assemblies carefully and keep them separated until secured as instructed. Do not allow the magnets to strike together.
Compare the Precision range
Compare Precision 24 for full-size interior doors or Precision 24XHD extra-heavy-duty catch, or browse door and cabinet catches.
Frequently asked questions
Does the 12 mm size mean it suits a 12 mm thick door?
No. The model uses a 12 mm installation bore. The fitting guide specifies a door thickness of 16–30 mm.
Is this a push-to-open catch?
This listing is for magnetic retention of a closed door. No push-to-open ejection mechanism is specified; select the opening hardware separately.
Does this replace a security lock or a fire-door latch?
This is a door-retaining catch, not a security lock. No fire-door approval is established by this listing; follow the specification for the complete doorset.
Product demonstration
Use the fitting instructions for your exact model and supplied version when preparing the door.
TECHNICAL DETAILS
- Application: Security
- Width: 8mm
- Diameter: 12mm
- Colour: Satin Stainless Steel
