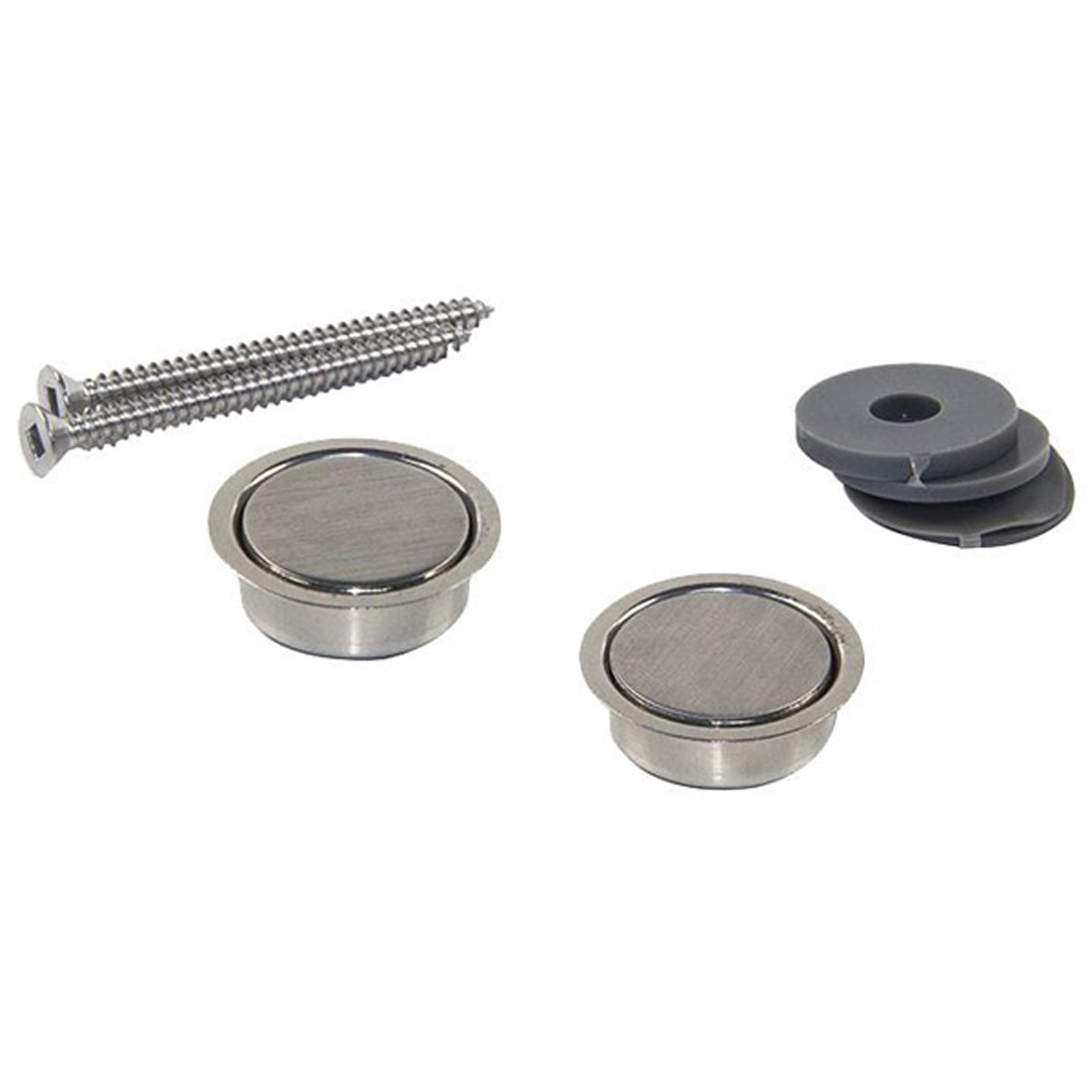

Precision 24 Concealed Magnetic Door Catch

A concealed magnetic catch for full-size interior doors, including wardrobe, cupboard and double-door applications. The round magnetic assemblies are recessed into the door and frame and remain out of sight when the door is closed.

Key details

• 24 mm nominal catch format
• Non-contact magnetic retention when correctly installed
• Holding strength adjusted using spacers and the gap between the assemblies
• Stock code: CA741
• Model reference: PLS24PRO
• Supplied as one catch set

Installation and adjustment

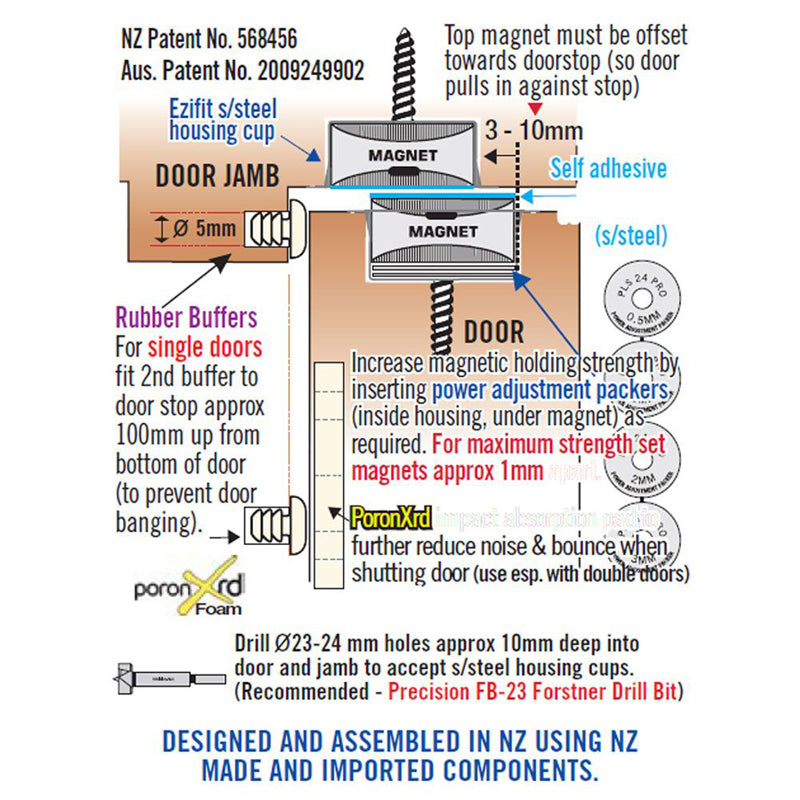

Position and align the assemblies to the model-specific instructions. The housing cups and adjustment packers allow the magnetic hold to be set during installation; the gap affects retention. Check the required bore and recess depth before drilling, and fit the cover plates and buffers as directed.

Handle the magnetic assemblies carefully and keep them separated until secured as instructed. Do not allow the magnets to strike together.

Compare the Precision range

Compare Precision 12 for 16–30 mm doors or Precision 24XHD extra-heavy-duty option, or browse door and cabinet catches.

Frequently asked questions

Can the magnetic holding force be adjusted?

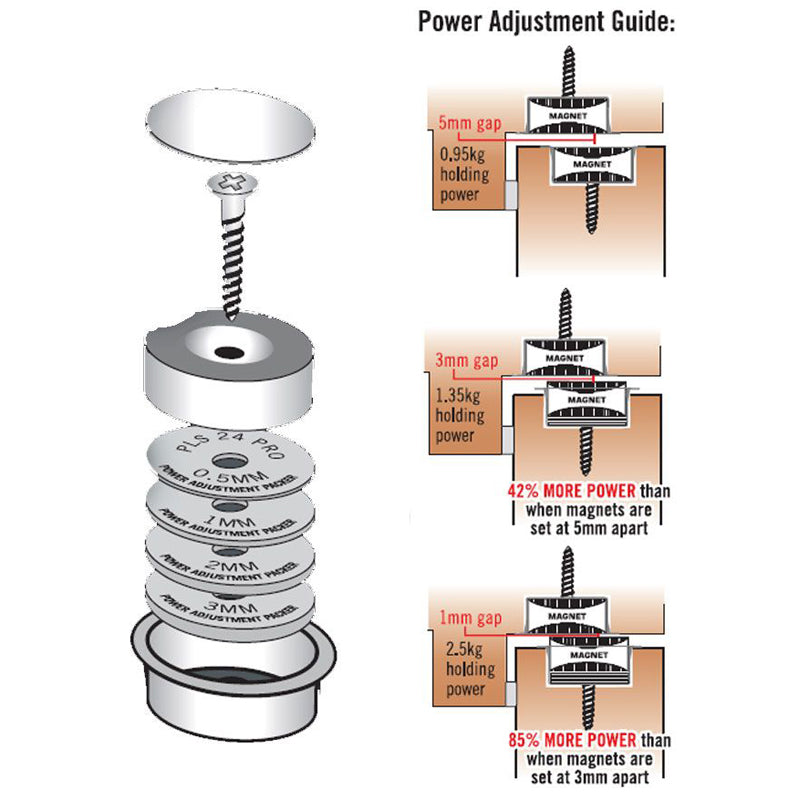

Yes. The fitting guide uses power-adjustment packers beneath the magnetic assembly to change the air gap and holding strength. Test the closing and release action after fitting.

When should I choose Precision 24 rather than Precision 12?

Precision 24 is the full-size interior-door option. Precision 12 is the smaller model with a guide specifying 16–30 mm door thickness; check the preparation for the chosen model.

Does this replace a security lock or a fire-door latch?

This is a door-retaining catch, not a security lock. No fire-door approval is established by this listing; follow the specification for the complete doorset.

Product demonstration

Use the fitting instructions for your exact model and supplied version when preparing the door.
