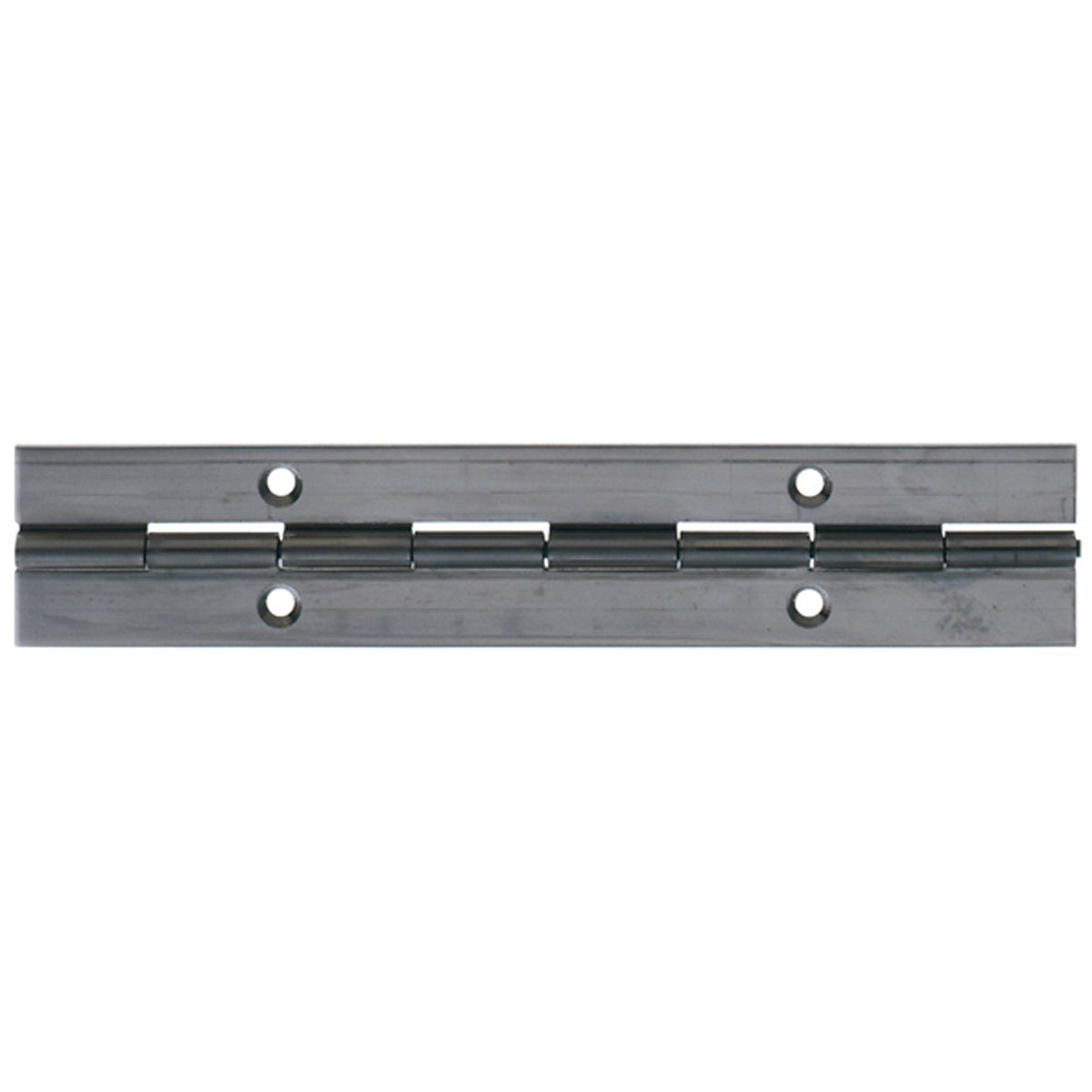

1829 × 39 × 1.6mm Mill-Finish Stainless Steel Continuous Hinge

This medium-duty stainless steel continuous hinge, also known as a piano hinge, measures 1829mm long and 39mm wide when fully open. Its 1.6mm-thick stainless steel leaves have a practical mill finish, and the hinge uses a stainless steel pin.

The hinge has 36 factory-produced countersunk fixing holes at 102mm centres. The technical drawing specifies 4mm-diameter fixings. It also shows a 3.2mm-diameter pin, 25mm knuckle length and 7mm closed projection.

Its 1.6mm leaves and medium-duty classification distinguish it from thinner light-duty continuous hinges. No certified load capacity, fire-door rating or security classification is declared for this product.

Supplied as one complete 1829mm hinge length. Fixing screws must be ordered separately.

Key features

• Medium-duty continuous hinge
• Stainless steel construction
• Mill-finish stainless steel leaves
• Stainless steel hinge pin
• 1829mm overall length
• 39mm open width
• 1.6mm leaf thickness
• 7mm closed projection
• 3.2mm-diameter pin
• 25mm knuckle length
• 36 countersunk fixing holes per hinge
• 102mm hole centres
• Suitable for compatible 4mm-diameter fixings
• Supplied as one complete hinge

Specifications

Typical applications

• Cabinet and cupboard doors
• Long lids and covers
• Furniture and fitted joinery
• Equipment cases and storage boxes
• Inspection and access panels
• Doors, enclosures and fabricated assemblies

Cutting and installation

1. Confirm compatibility with the application and required clearances.
2. Support and align the hinge before marking fixing positions.
3. Select compatible 4mm fixings for the substrate.
4. If shortening it, use suitable stainless-steel cutting equipment and remove sharp edges and swarf.
5. Test movement before final tightening.

Fixing screws are not included. Cutting can alter hole positions and end clearances.

Questions and answers

What size is this continuous hinge?

It measures 1829mm long, 39mm wide when fully open and 1.6mm thick. The closed projection is 7mm.

What material and finish does it have?

The hinge and pin are stainless steel, and the leaves have a mill finish. The stainless steel grade is not declared, so no grade should be assumed.

How many fixing holes are provided?

There are 36 factory-produced countersunk fixing holes per hinge, positioned at 102mm centres.

What size fixings are required?

Use compatible 4mm-diameter fixings of a suitable type, length and material for the substrate.

Are fixing screws included?

No. Fixing screws must be ordered separately.

Is it fire rated or load rated?

No fire-door rating, security classification or certified load capacity is declared. Medium duty is a product-range description, not a certified door-weight rating.
