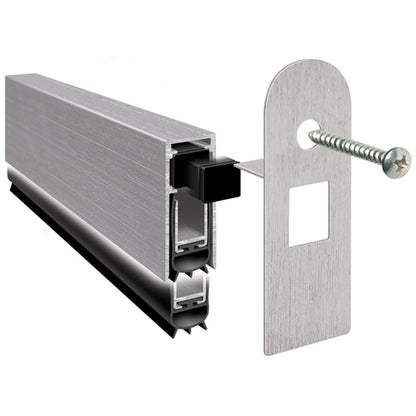

  • EXISOUND RECESSED CONCEALEX A8100 SUP 0330 – EXT102A
  • ExiSound Concealex A8100 Superior Recessed Drop Seal – 826 mm
1 2

ExiSound Concealex A8100 Superior Recessed Drop Seal – 330 mm

ExiSound Concealex A8100 Superior Recessed Drop Seal – 330 mm

Stock Code: EXT102A

£13.19 GBP
Sale
View full details
Previous
ExiSound Concealex A8100 Superior Recessed Drop Seal – 426 mm
Next
EXISOUND CONCEALEX COMMERCIAL 1030

PRODUCT DESCRIPTION

The ExiSound Concealex A8100 Superior is an automatic drop seal designed to recess centrally into the bottom of a door. This 330 mm version has a satin anodised aluminium casing and a self-levelling, sound-insulating TPE seal. Check the door construction, available routing space and required finished length before ordering.

Product details

  • Stock code: EXT102A
  • Nominal length: 330 mm
  • Profile: 35 mm deep × 14 mm wide
  • Maximum drop: 17 mm
  • Finish: satin anodised aluminium
  • Operation: adjustable spring plunger and self-levelling seal
  • Fitting: recessed centrally into the base of the door

Choosing and fitting the seal

This recessed model requires a 14 mm wide × 35 mm deep slot in the bottom of the door. Follow the model’s fitting instructions for the endplates, plunger position and adjustment. If routing the door is unsuitable, compare the face-fix Concealex drop seal. You can also browse the door sealing range.

Test information

The manufacturer's A8100 Superior brochure reports fire testing for 30 and 60 minutes to BS EN 1634-1:2014 and acoustic testing up to 44 dB to BS EN ISO 10140-2:2010. CERTIFIRE certificate CF5785 covers smoke-sealing use within its stated door-assembly and installation conditions. These figures do not automatically give an installed door assembly a fire or acoustic rating.

Frequently asked questions

Does this seal fit without routing the door?

No. The A8100 Superior is recessed into a prepared slot in the door bottom. A face-fix model uses a different fitting method.

How is the plunger positioned?

Follow the model's fitting instructions for plunger position and adjustment before preparing the door.

Is this an intumescent strip?

No. CERTIFIRE CF5785 states that the Concealex drop seals contain no intumescent material. Check the complete door assembly's requirements before specifying a seal.

Will this seal make my door FD30 or FD60 rated?

No. Product test information does not establish a rating for an untested door assembly. Check the applicable doorset evidence and certificate conditions.

TECHNICAL DETAILS

  • Application: Intumescent Products
  • Size: 35 mm deep × 14 mm wide
  • Width: 14 mm
  • Length: 330 mm
  • Finish: Satin anodised aluminium
