Cabinet shelf supports, shelf pins and pegs
Find shelf fittings for cupboards, cabinets and furniture at Hart Wholesale. Compare cabinet shelf supports, shelf pins, pegs, sleeves and sockets, then match the fitting to your cabinet drilling and shelf material. For replacement parts, check the original fitting’s dimensions and fixing method before ordering.

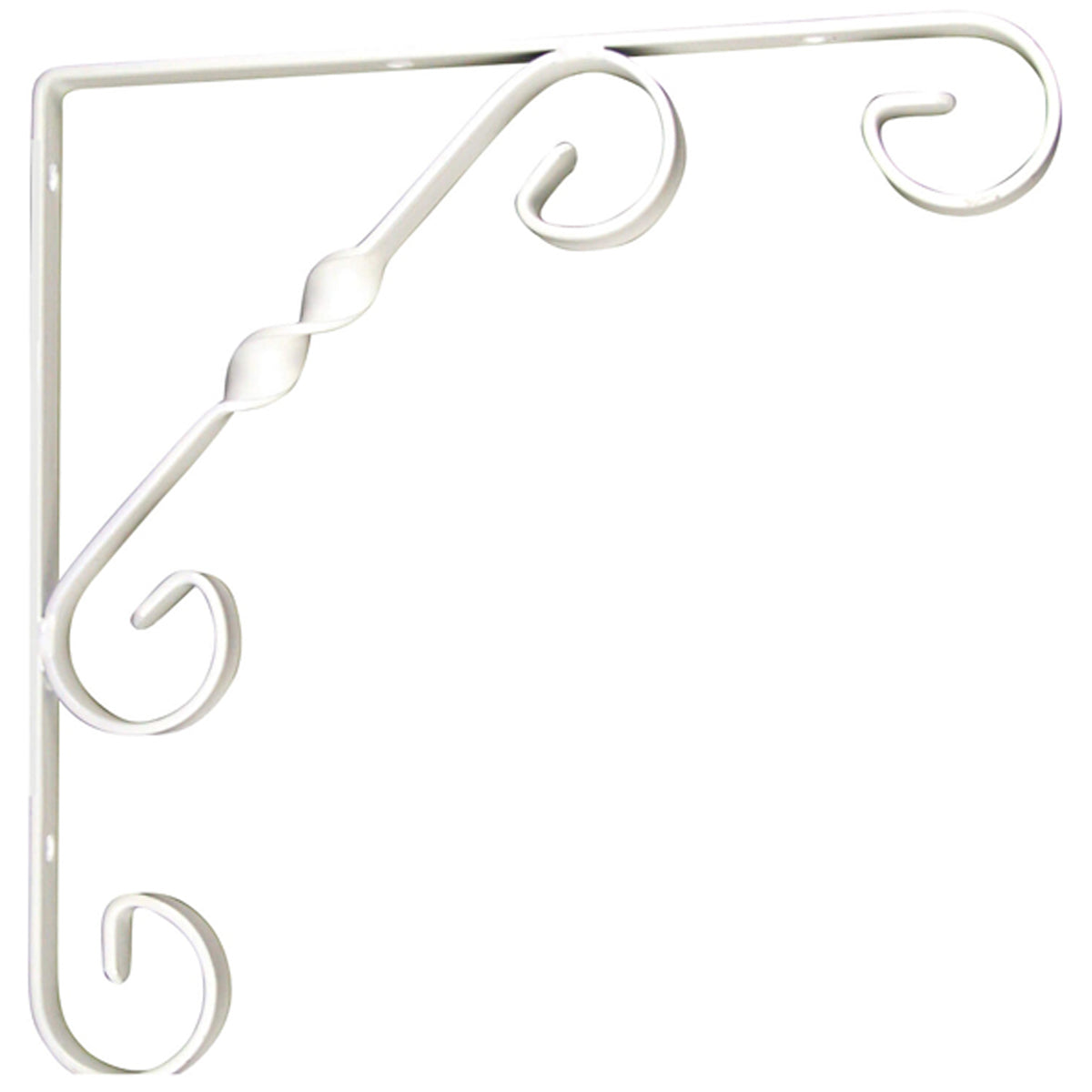

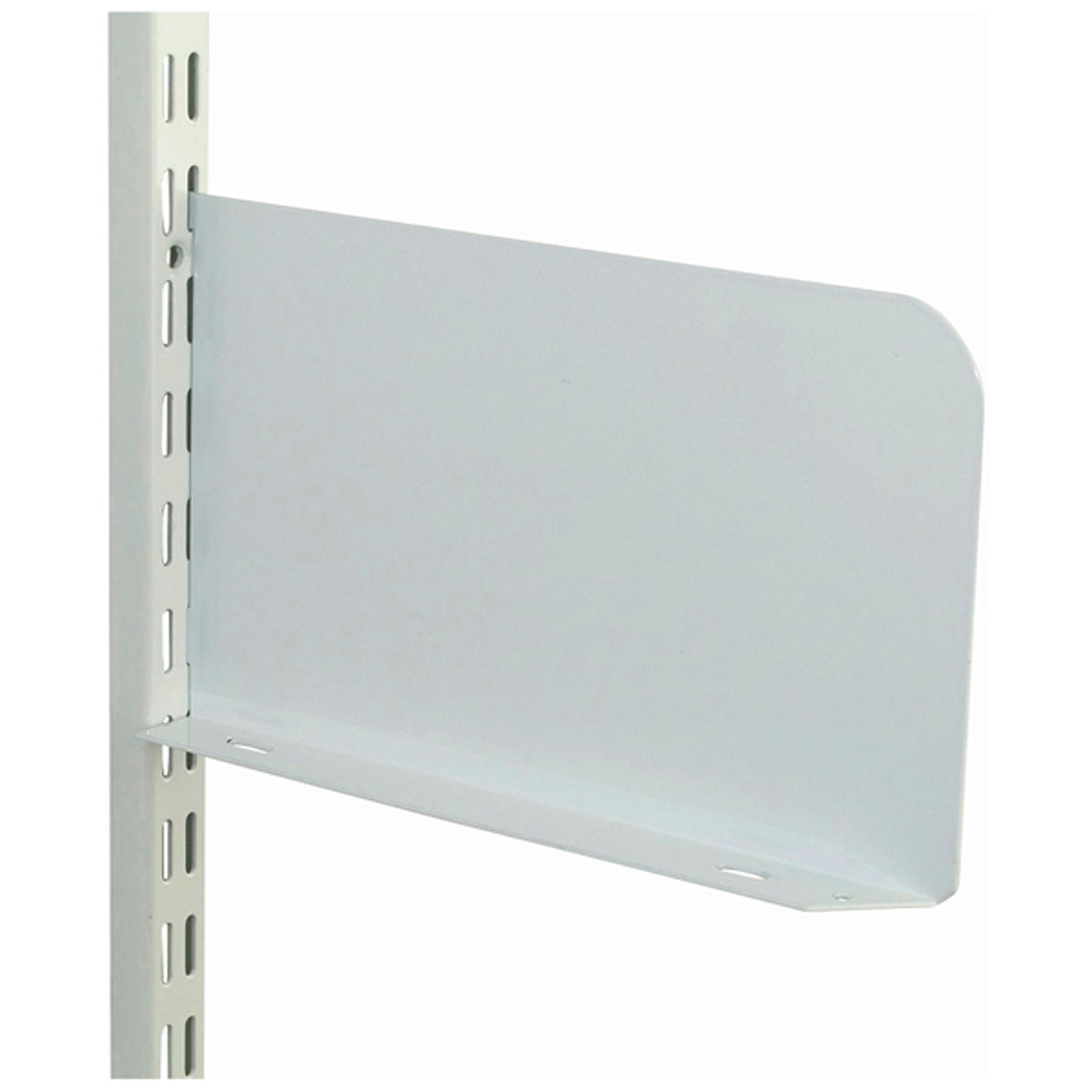

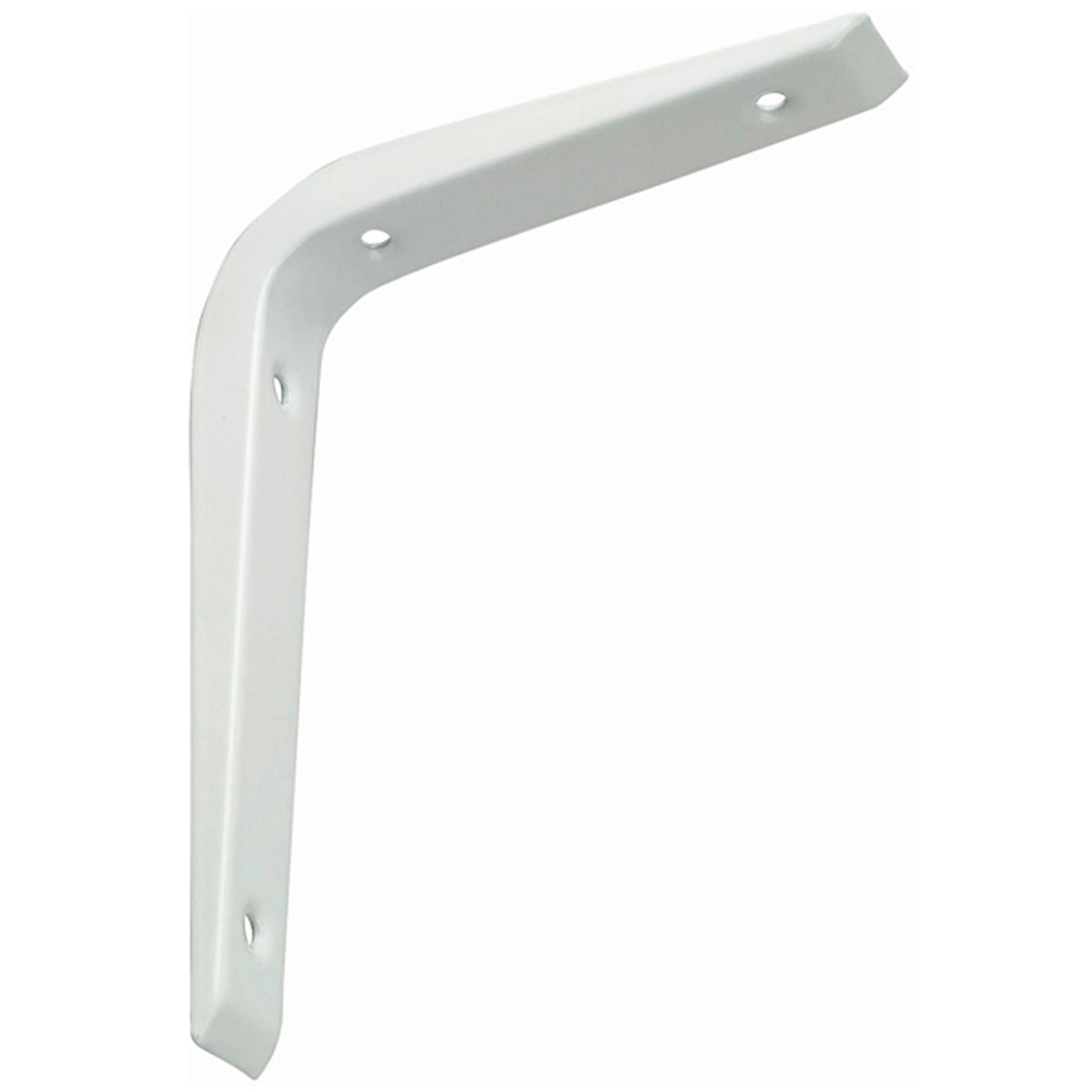

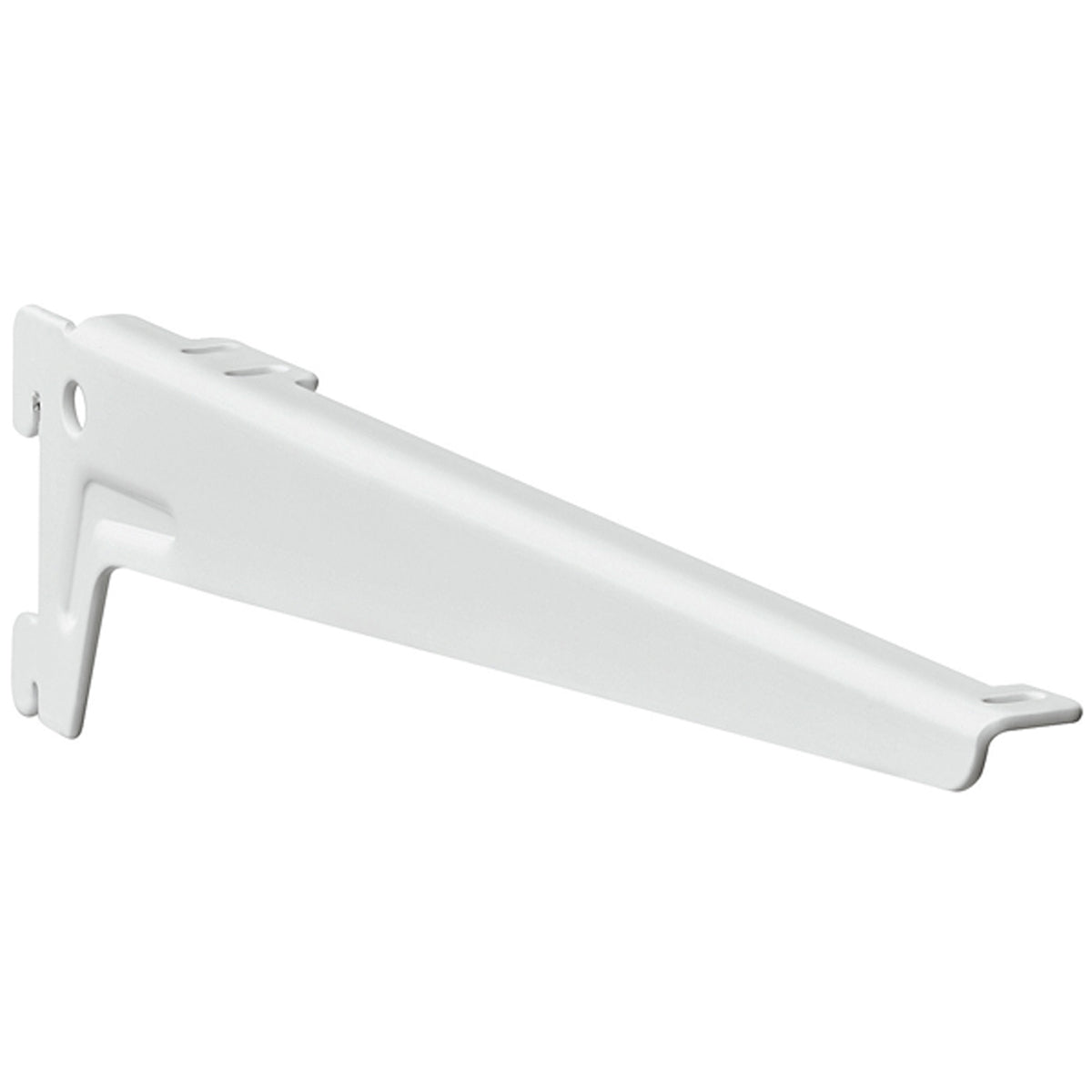

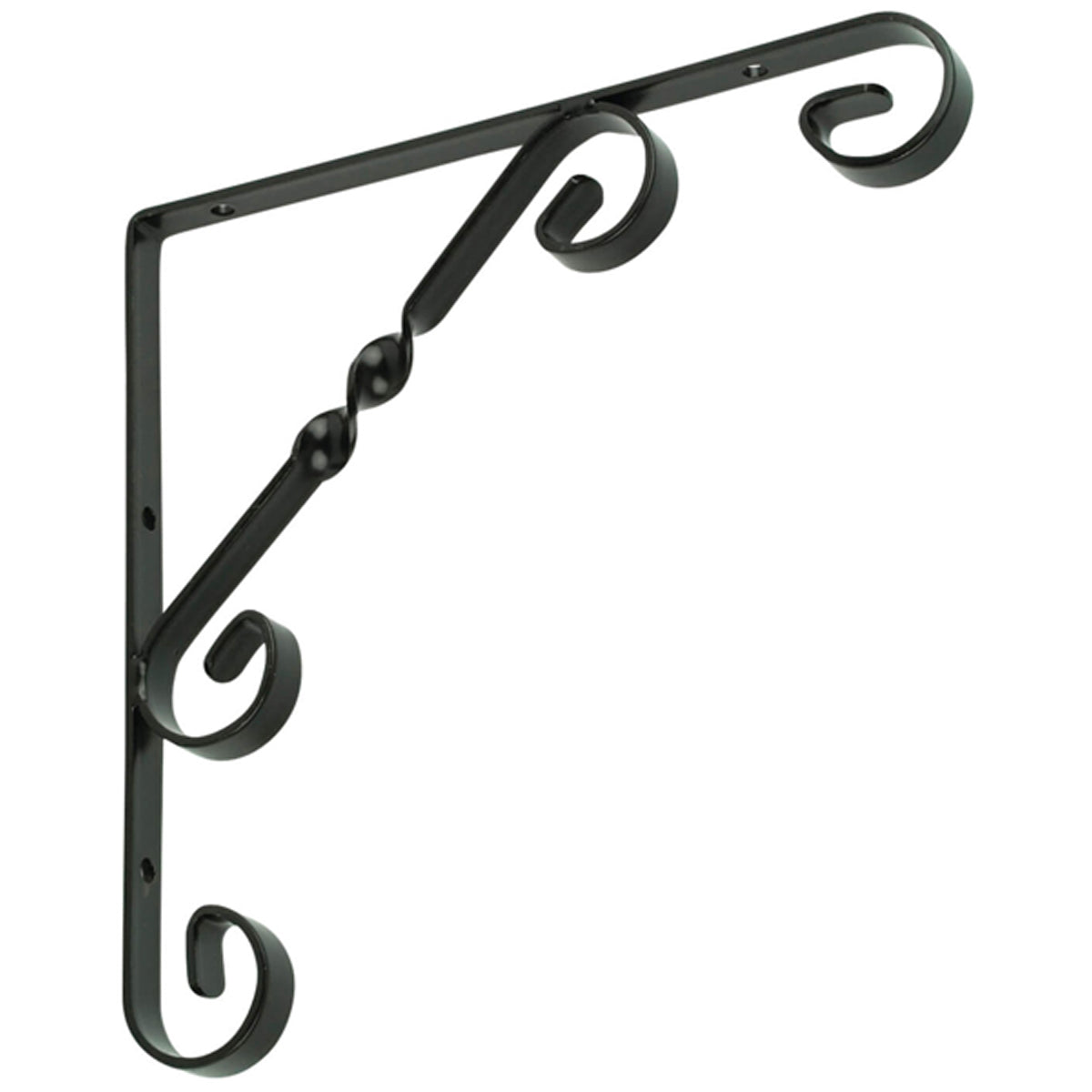

For shelves fixed directly to a wall, browse our separate wall shelf brackets collection.
How to choose cabinet shelf supports
Start by identifying how the existing shelf is supported. A push-in pin, a screw-fixed fitting and a support used with a separate socket require different preparation. The replacement must suit the cabinet construction and provide the correct contact with the shelf.
- Fixing dimensions: measure the cabinet hole and the diameter and insertion length of the original fitting.
- Shelf material: establish whether the shelf is timber, furniture board or glass, and measure its thickness.
- Support shape: compare the surface beneath the shelf and any retaining or locking features.
- Matching components: check whether sleeves, sockets, rings or buffers are required and whether they are supplied separately.
- Ordering quantity: check whether the listing is for one fitting or a pack.
For a pin-style fitting, compare the measurements carefully. For example, our transparent 5 mm shelf support pins should only be selected where their dimensions and application match the cabinet.
Choose the finish after confirming the fitting’s dimensions and suitability. A matching colour does not establish that two supports are interchangeable. For glass shelves, use a fitting specifically stated to suit glass and check any required protective pads or buffers.
Follow the selected product’s installation instructions and load information. The complete arrangement includes the shelf, cabinet material, fixing method and positioning of the supports; one product’s capacity must not be applied to the whole range.
Cabinet shelf support FAQs
What is the difference between a shelf pin and a shelf peg?
These terms are often used for small fittings that support shelves inside cupboards and cabinets. The name alone does not establish compatibility. Compare the fixing dimensions, support shape and intended application.
How do I choose a replacement cabinet shelf support?
Measure the original fitting and cabinet hole, then compare the product photographs and dimensions. Check the insertion length, shelf contact and fixing method. Select by measurements and suitability rather than appearance alone.
Are all shelf pins the same size?
No. Pin diameters, lengths and supporting surfaces vary. Measure the existing cabinet drilling and check the selected product’s dimensions before ordering.
When do I need a sleeve or socket?
A sleeve or socket is required where it forms part of the specified support system. Check the product details for compatible components and confirm whether they are included or purchased separately.
Can I use cabinet shelf supports with glass shelves?
Only where the selected fitting is stated to suit glass. Check the permitted glass thickness, mounting method and any protective contact components required for that installation.
How much weight can cabinet shelf supports hold?
Capacity depends on the selected fitting and the complete installation. Follow its stated load rating and conditions. Do not assume that a rating applies to one support, or multiply individual ratings without supporting installation guidance.
Need help identifying a replacement? Contact Hart Wholesale with a clear photograph, measurements and any available stock code.
-
7mm Spade Shelf Support – Dark Bronze, 60kgBR110BZ
Regular price £0.05 GBPRegular priceUnit price / perSale price -
8 × 10mm Shelf Support Socket – Bronze PlatedBR110BZA
Regular price £0.02 GBPRegular priceUnit price / perSale price -
Brown Plastic Cabinet Shelf Support Plug Pin | 2822710728227107
Regular price £0.05 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT SPOON PLUG D5 ST/PNP x10028204711
Regular price £0.02 GBPRegular priceUnit price / perSale price -
SOCKET PLUG IN D7.5 ST/NP BX50028250704
Regular price £0.03 GBPRegular priceUnit price / perSale price -
SOCKET PLUG IN D7.5 ST/BRS BX10028250508
Regular price £0.03 GBPRegular priceUnit price / perSale price -
Clear Plastic Screw-Fix Shelf Support 3 × 19mmBR101
Regular price £0.23 GBPRegular priceUnit price / perSale price -
Shelf Support Punch Tool for Ø7mm Sleeve636752
Regular price £36.24 GBPRegular priceUnit price / perSale price -
Florentine Bronze Ring Shelf SupportBR100FB
Regular price £0.35 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT RING ONLY EBRBR100EB
Regular price £0.21 GBPRegular priceUnit price / perSale price -
Polished Nickel Ring Shelf SupportBR100NP
Regular price £0.22 GBPRegular priceUnit price / perSale price -
Florentine Bronze Steel Shelf Support Sleeve 6.5mmBR100AFB
Regular price £0.05 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT SLEEVE D6.5 ST/EBBR100AEB
Regular price £0.03 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT SLEEVE D6.5 ST/NPBR100ANP
Regular price £0.04 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG SPN 100KG PNP BX10028201701BOX
Regular price £5.74 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG 80KG D7x16.5 BGV BX10028243905BOX
Regular price £1.73 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG 80KG D5.5x22 PNP BX10028242702BOX
Regular price £3.66 GBPRegular priceUnit price / perSale price -
RSJC60 GLASS SHELF SUPPORT BX1000SCX04507
Regular price £25.80 GBPRegular priceUnit price / perSale price -
IF PULL-IN SHELF SUPPORT BX0100SCX02697
Regular price £17.19 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG 100KG D5x24 PNP BX10028240708BOX
Regular price £4.97 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG D5 9.4KG BLK BX10028224817BOX
Regular price £10.71 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG D5 6.25KG BLK BX10028224333BOX
Regular price £15.50 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG 60KG 11x16.5 BX10028212403BOX
Regular price £5.16 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG STOP 60KG PNP BX10028206706BOX
Regular price £1.33 GBPRegular priceUnit price / perSale price -
SHELF SUPPORT PLUG SPN 100KG BRS BX10028201505BOX
Regular price £5.74 GBPRegular priceUnit price / perSale price -
RSJC71 SHELF SUPPORT+PIN PNPSCX02546
Regular price £0.07 GBPRegular priceUnit price / perSale price -
RAISED BOOKCASE STRIP STUD SINGLE 18x20 BLK - 46285DFA412B
Regular price £0.88 GBPRegular priceUnit price / perSale price -
-
Tonk Flat Shelf Strip Recess Router CutterBR214X
Regular price £29.44 GBPRegular priceUnit price / perSale price -

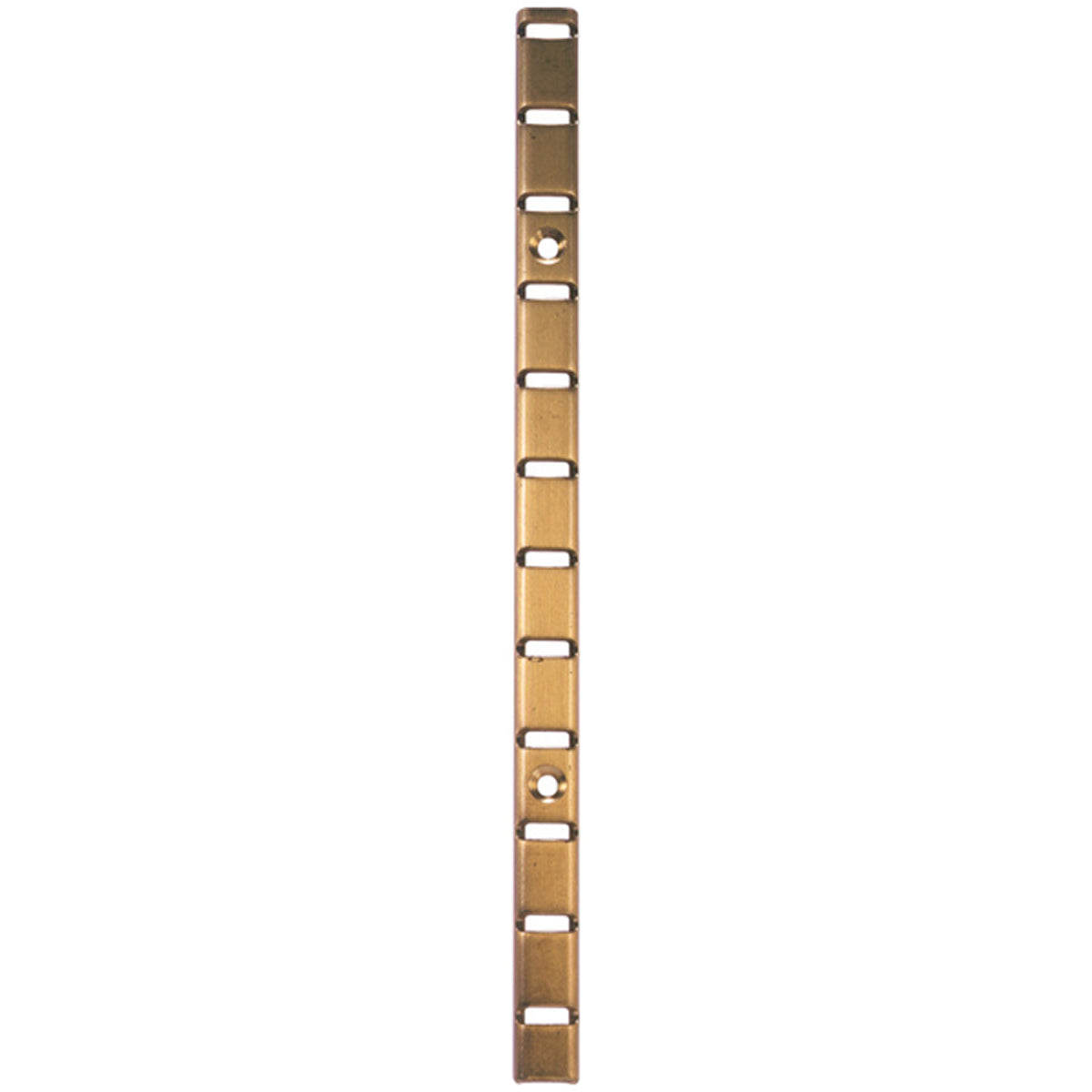

Tonk Flat Shelf Strip 1829mm, Bronze Finish SteelBR214BRO
Regular price £5.25 GBPRegular priceUnit price / perSale price -
TONK FLAT SHELF STRIP 1829 MS/SNPBR214SNP
Regular price £7.74 GBPRegular priceUnit price / perSale price -
Tonk Flat Shelf Strip 1829mm, Brass-Plated SteelBR214
Regular price £7.36 GBPRegular priceUnit price / perSale price -
Tonk Flat Shelf Strip 1829mm, Polished BrassBR214PB
Regular price £20.61 GBPRegular priceUnit price / perSale price -
Tonk Flat Single Shelf Clip, Bronze Finish SteelBR214AB
Regular price £0.21 GBPRegular priceUnit price / perSale price -
TONK FLAT SINGLE CLIP MS/EBRBR214A
Regular price £0.24 GBPRegular priceUnit price / perSale price -
Tonk Raised Shelf Strip 1829mm, Zinc-Plated SteelBR215Z
Regular price £4.96 GBPRegular priceUnit price / perSale price -
Tonk Raised Shelf Strip 1829mm, Chrome-Plated SteelBR215F
Regular price £13.41 GBPRegular priceUnit price / perSale price -
Tonk Raised Shelf Strip 1829mm, Brass-Plated SteelBR215EB
Regular price £6.33 GBPRegular priceUnit price / perSale price -
Tonk Raised Shelf Strip 1829mm, Satin Nickel SteelBR215Y
Regular price £6.64 GBPRegular priceUnit price / perSale price -
Tonk Raised Single Shelf Clip, Zinc-Plated SteelBR215DZ
Regular price £0.23 GBPRegular priceUnit price / perSale price -
Tonk Raised Single Shelf Clip, Bronze SteelBR215DB
Regular price £0.22 GBPRegular priceUnit price / perSale price -
Tonk Raised Single Shelf Clip, Brass-Plated SteelBR215D
Regular price £0.23 GBPRegular priceUnit price / perSale price -
Tonk Raised Double Shelf Clip, Satin Nickel SteelBR215CN
Regular price £0.37 GBPRegular priceUnit price / perSale price -
TONK RAISED DOUBLE CLIP MS/EBRBR215CE
Regular price £0.32 GBPRegular priceUnit price / perSale price -
Tonk Raised Double Shelf Clip, Bronze SteelBR215CB
Regular price £0.37 GBPRegular priceUnit price / perSale price -
Tonk Raised Double Shelf Clip, Zinc-Plated SteelBR215C
Regular price £0.37 GBPRegular priceUnit price / perSale price -
Tonk Raised Shelf Strip 1829mm, Bronze-Coated SteelBR215B
Regular price £6.08 GBPRegular priceUnit price / perSale price -
TONK RAISED SINGLE CLIP MS/SNPBR215SN
Regular price £0.18 GBPRegular priceUnit price / perSale price -
Tonk Flat Shelf Strip 1829mm, Bright Zinc-Plated SteelBR214Z
Regular price £4.72 GBPRegular priceUnit price / perSale price -
Tonk Flat Single Shelf Clip, Satin Nickel-Plated SteelBR214SN
Regular price £0.23 GBPRegular priceUnit price / perSale price
