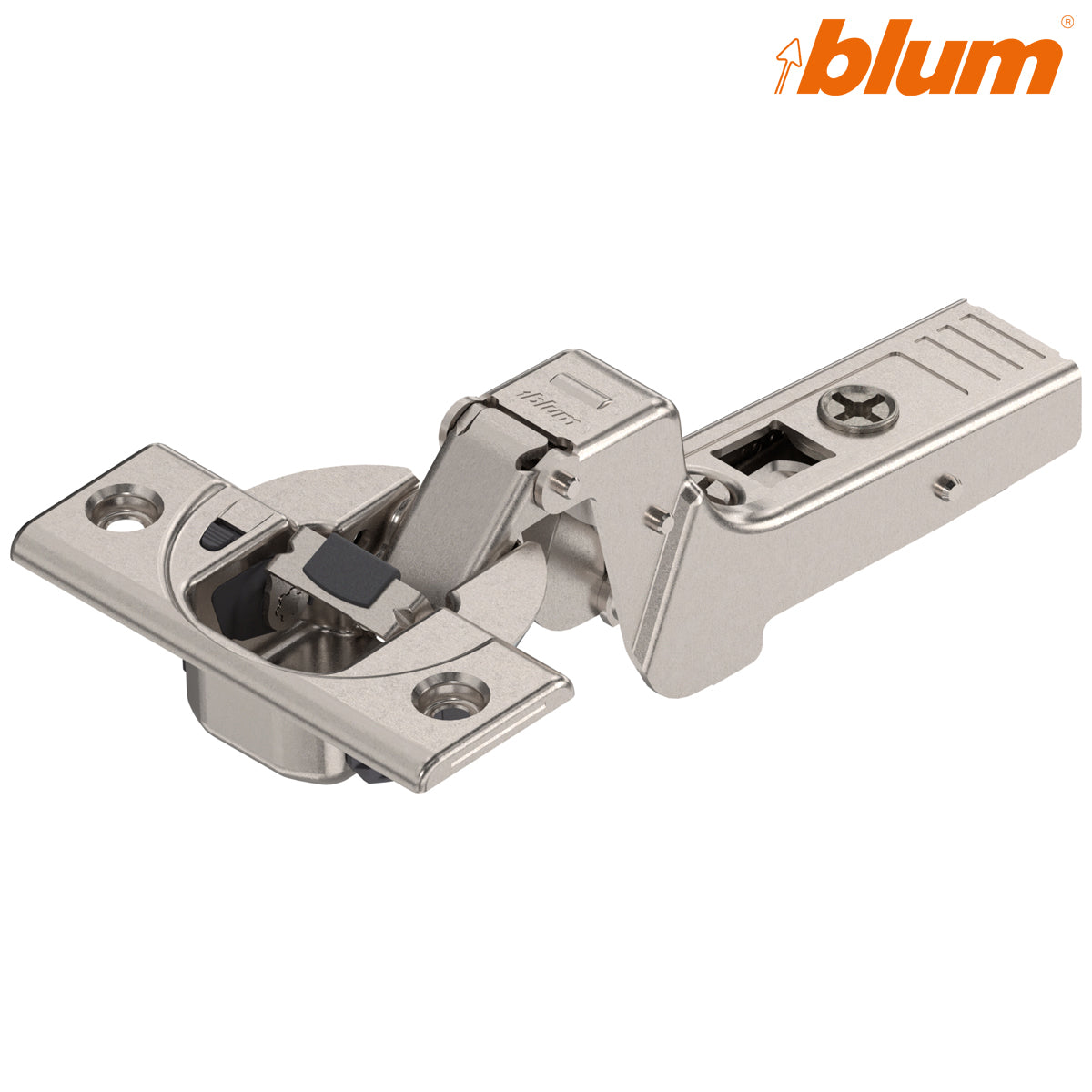

BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET SCREW-ON

BLUM CLIP BLUMOTION PROFILE HINGE 95deg INSET SCREW-ON

Stock Code: HI71B9750

£3.71 GBP
Sale
View full details
Previous
Blum 71B9780 CLIP top BLUMOTION 95° Inset Thick-Door Knock-In Hinge
Next
Blum 71B970A CLIP top BLUMOTION 95° Inset Aluminium-Frame Hinge

PRODUCT DESCRIPTION

Blum 71B9750 CLIP top BLUMOTION is a 95° inset hinge for thick or profiled cabinet doors. Its fully cranked arm positions the closed door inside the cabinet opening. The specialised geometry helps manage clearance around thick edges and mouldings, subject to the exact door profile and Blum planning data. Integrated, individually switchable BLUMOTION provides controlled soft closing, while the CLIP connection attaches to a separately selected compatible mounting plate without tools.

Why choose the Blum 71B9750

  • Inset application for compatible thick or profiled timber, MDF or panel-based fronts.
  • 95° opening angle; sprung closing with integrated, switchable BLUMOTION.
  • Screw-on 35 mm hinge cup, 13 mm cup depth; 3–7 mm drilling distance subject to the application plan.
  • Three-dimensional adjustment: side ±2 mm, depth +3/−2 mm; height adjustment depends on the selected plate.
  • Nickel-plated steel; one hinge supplied. Mounting plate and suitable fixing screws are separate.

Technical specification

Blum part number 71B9750
Hart Wholesale SKU HI71B9750
Range and application CLIP top BLUMOTION; 95° inset thick or profiled door
Arm and cup Fully cranked arm; screw-on 35 mm cup, 13 mm deep
Drilling distance 3–7 mm, subject to the application plan
Front-thickness planning range 16–32 mm; suitability depends on door profile, drilling and gap
Adjustment Side ±2 mm; depth +3/−2 mm; height depends on mounting plate
Material, finish and quantity Nickel-plated steel; one hinge
Mounting plate Not included

Plan the inset gap

An inset door closes within the cabinet opening, requiring consistent margins around the front. Plate position and height, door thickness, cup drilling distance and the shape of the edge all affect the finished alignment. Blum planning data covers fronts from 16–32 mm, but this does not guarantee fit for every door. The required minimum gap increases with front thickness; mouldings and rounded edges can change clearance. Check the complete door section against current Blum planning guidance and trial-fit unusual profiles or fronts near the upper end of the range. This is not an aluminium-frame hinge.

Screw-on fitting and separate mounting plate

“Screw-on” describes the cup-to-door fixing, not the cabinet plate. Choose a compatible Blum CLIP mounting plate for the required cabinet fixing and inset position. The hinge clips to that plate without tools. One hinge is supplied; mounting plate and fixing screws are not included.

Switchable soft close and alternatives

BLUMOTION can be switched off on an individual hinge for a lighter door when less damping is appropriate. Do not mix CLIP top BLUMOTION and standard CLIP top hinges on the same door; use matching hinges throughout the installation. For tool-free cup fixing, compare the 71B9790 INSERTA inset hinge; the cup fixing methods are not interchangeable. Explore the Blum CLIP top hinge range for other applications.

Frequently Asked Questions

What type of door is the 71B9750 designed for?

An inset thick or profiled timber, MDF or panel-based door with a suitable 35 mm cup boring. It is not an aluminium-frame-door hinge.

What does inset mean?

The closed door sits inside the cabinet opening rather than covering the cabinet side.

What door thickness is supported?

Blum planning data covers 16–32 mm fronts. Final suitability depends on the profile, drilling distance, mounting plate and required gap.

What cup drilling is required?

A 35 mm-diameter hole approximately 13 mm deep; plan the 3–7 mm drilling distance against the exact application.

Does the hinge include soft close?

Yes. BLUMOTION is integrated and can be switched off on an individual hinge.

Can I combine this with a standard 71T9750 hinge?

No. Do not combine CLIP top BLUMOTION and standard CLIP top hinges on the same door.

Is the mounting plate included?

No. Select a compatible Blum CLIP mounting plate and suitable fixing screws separately.

What is the difference between 71B9750 and 71B9790?

Both are 95° inset thick-door BLUMOTION hinges; 71B9750 has a screw-on cup, whereas 71B9790 uses tool-free INSERTA cup fixing.

TECHNICAL DETAILS

  • Application: Inset
  • Size: 95mm
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
