PRODUCT DESCRIPTION

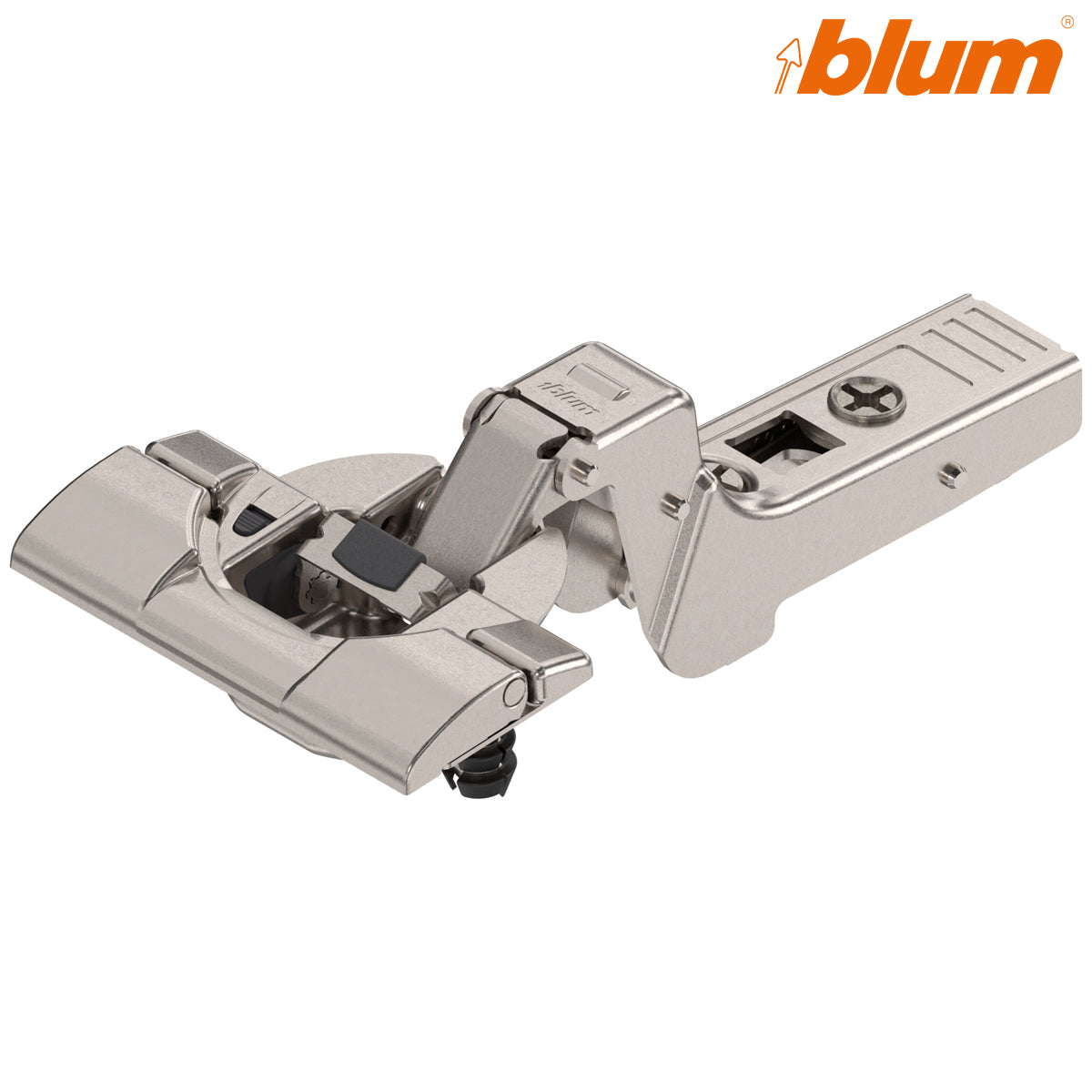

Blum 71B9790 CLIP top BLUMOTION 95° Inset INSERTA Hinge

The nickel-plated Blum 71B9790 is a sprung, soft-close hinge for thick or profiled inset cabinet doors. Its cranked arm positions the closed door inside the cabinet opening, while the 95° opening angle helps manage movement around shaped fronts. Integrated BLUMOTION provides controlled closing and can be deactivated on an individual hinge for a small or lightweight door. INSERTA secures the cup to a correctly prepared door without conventional cup screws.

Key features

  • Blum part 71B9790, item 09350433; Hart Wholesale SKU HI71B9790.
  • Inset thick or profiled furniture-door application; Blum planning range approximately 16–32 mm, subject to the actual door profile and clearances.
  • 95° opening, integrated switchable BLUMOTION and self-closing action.
  • Tool-free INSERTA cup fixing and tool-free CLIP connection to a separate compatible cabinet mounting plate.
  • Three-dimensional door adjustment; nickel-plated steel; one hinge supplied.

Plan the inset door and INSERTA boring

An inset door closes within the cabinet opening. Door thickness, edge profile, cup position, required reveal and mounting-plate choice determine whether it clears the cabinet through its swing. Check current Blum planning data and trial-fit unusual or thick moulded fronts before production. This is a 35 mm cup hinge for suitable furniture doors, not a shaped-boss aluminium-frame hinge.

INSERTA fixes the cup into a prepared 35 mm cup hole and two 8 mm fixing holes on 45 mm centres, with a 9.5 mm offset; cup drilling depth is 13 mm and the listed cup drilling distance is 3–7 mm. Confirm the exact boring pattern against current Blum instructions before drilling. INSERTA describes only the cup-to-door fixing, not the cabinet mounting plate.

Blum part number 71B9790
Blum item number 09350433
Application and opening Inset; 95°
Door planning range Approximately 16–32 mm, subject to application planning
Cup and fixing 35 mm cup, 13 mm drilling depth; INSERTA, two 8 mm holes on 45 mm centres with 9.5 mm offset
Cup drilling distance 3–7 mm, subject to planning
Adjustment Side approximately ±2 mm; depth approximately +3/−2 mm
Finish and quantity Nickel-plated steel; one hinge

Choose a compatible Blum CLIP top mounting plate separately for the inset reveal, cabinet fixing and door thickness. Do not combine standard non-BLUMOTION and BLUMOTION CLIP top hinges on the same door. Compare the 71B9750 screw-on inset hinge if a screw-on cup is needed, or browse the CLIP top range.

Frequently Asked Questions

What is an inset cabinet hinge?

It positions the closed door within the cabinet opening instead of overlapping the side panel.

Is the 71B9790 suitable for thick doors?

Blum planning information covers approximately 16–32 mm fronts, but the door profile and required clearance must also be checked.

What does INSERTA mean?

It is Blum’s tool-free method of securing the cup into a correctly prepared door. It does not replace the separate cabinet mounting plate.

Is the mounting plate included?

No. Select and order a compatible Blum CLIP mounting plate separately.

Can BLUMOTION be switched off?

Yes, on an individual hinge when less damping is suitable.

Is this supplied individually?

Yes. This listing supplies one hinge.

TECHNICAL DETAILS

  • Application: Inset
  • Finish: Nickel Plated
  • Colour: Nickel
  • Material: Steel
