Name: TECTUS FR TE340 3D HINGE 160x28 BMA
Brand: SIMONSWERK UK LTD
SKU: HIB207D
Price: 77.60 GBP
Availability: InStock

PRODUCT DESCRIPTION

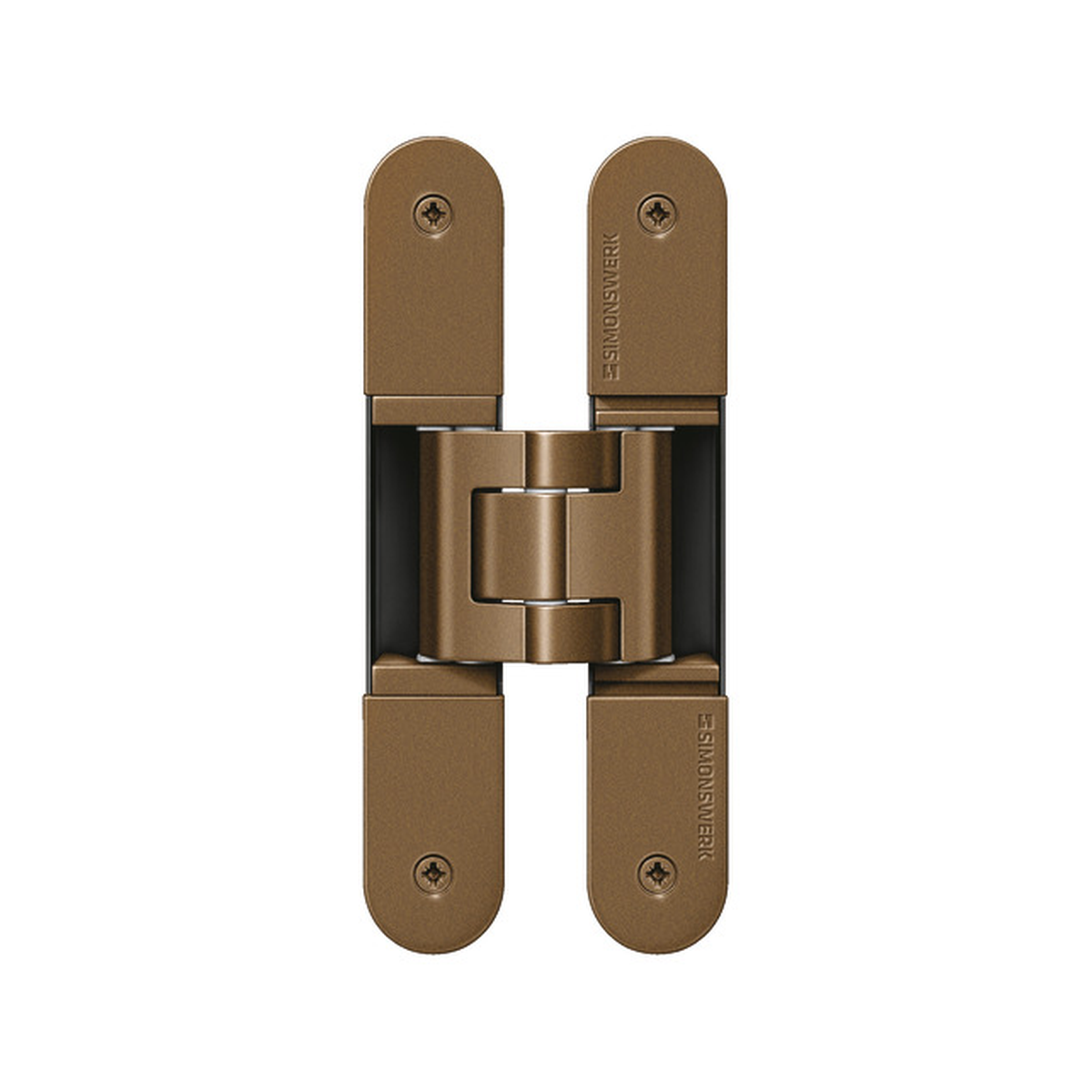

The Tectus TE340 3D FR concealed hinge in Bronze Metallic, finish code 168, provides a metallic bronze finish with an integrated intumescent kit for unrebated residential and heavy-duty doors. When the door is closed, the hinge remains completely concealed for a clean door face.

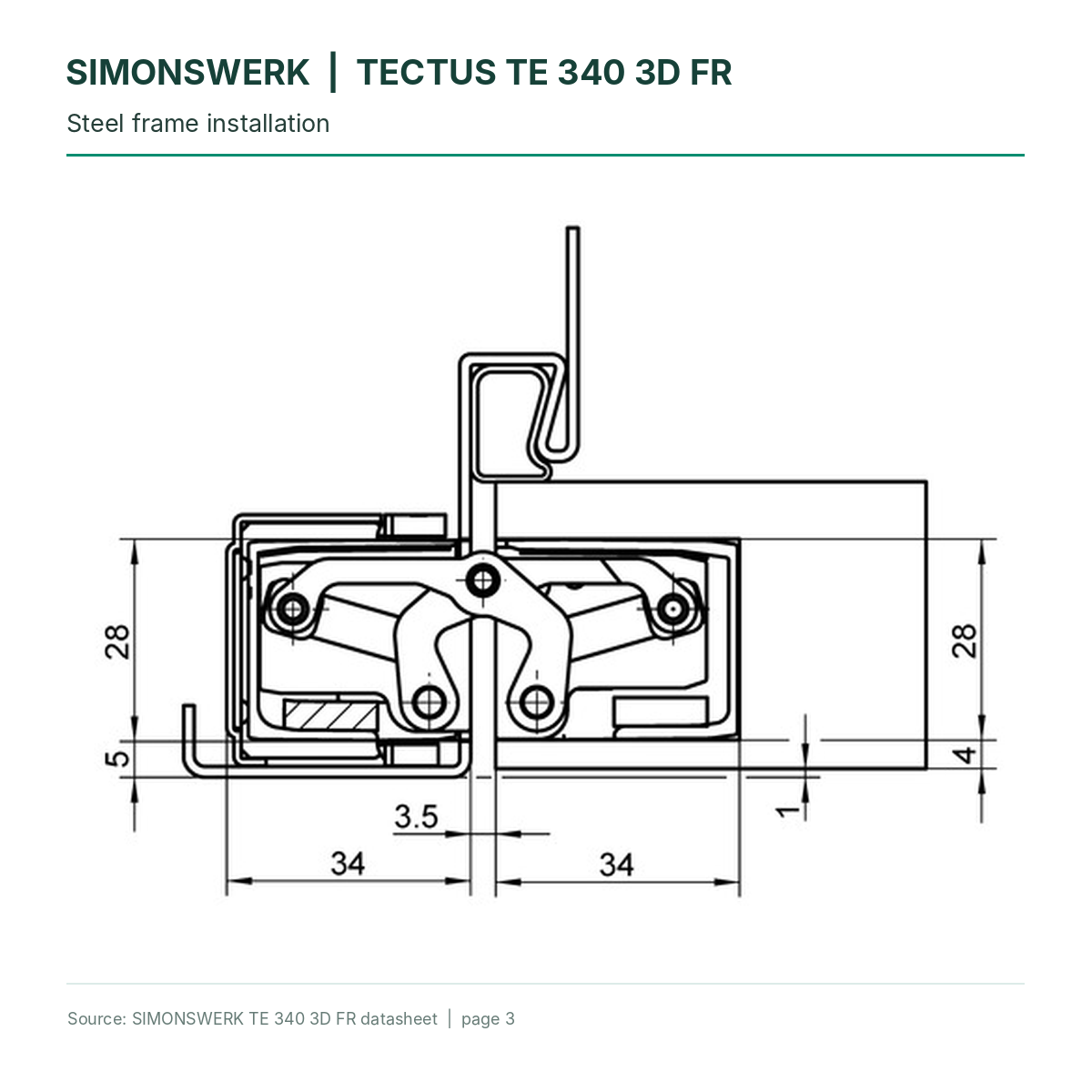

This FR model is designed for timber or steel door leaves with timber, steel or aluminium frames. Its three-dimensional adjustment helps achieve precise alignment, while maintenance-free slide bearings simplify ongoing care. The sideways-closing hinge body gives a neat mortise appearance.

Technical specifications

Model: TE340 3D FR
Finish: Bronze Metallic, code 168
Integrated intumescent kit
Load capacity: Up to 80kg using two hinges on a door leaf measuring 1m wide × 2m high, subject to the manufacturer's technical application conditions

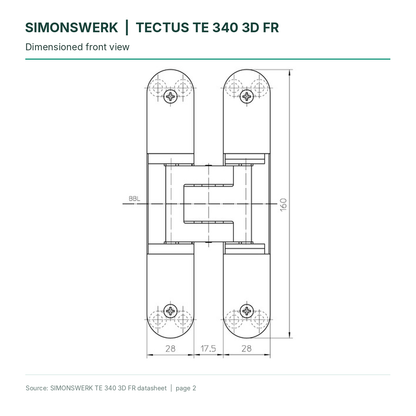

Overall length: 160mm
Width at door and frame: 28mm
Minimum door thickness: 36mm
Opening angle: Up to 180°
Side adjustment: ±3mm
Height adjustment: ±3mm
Compression adjustment: ±1mm
Suitable for right- and left-hand applications
Maintenance-free slide bearings
Cutter diameter: 24mm
Collar ring diameter: 30mm
Quantity supplied: 1 hinge

Installation and fire-door suitability

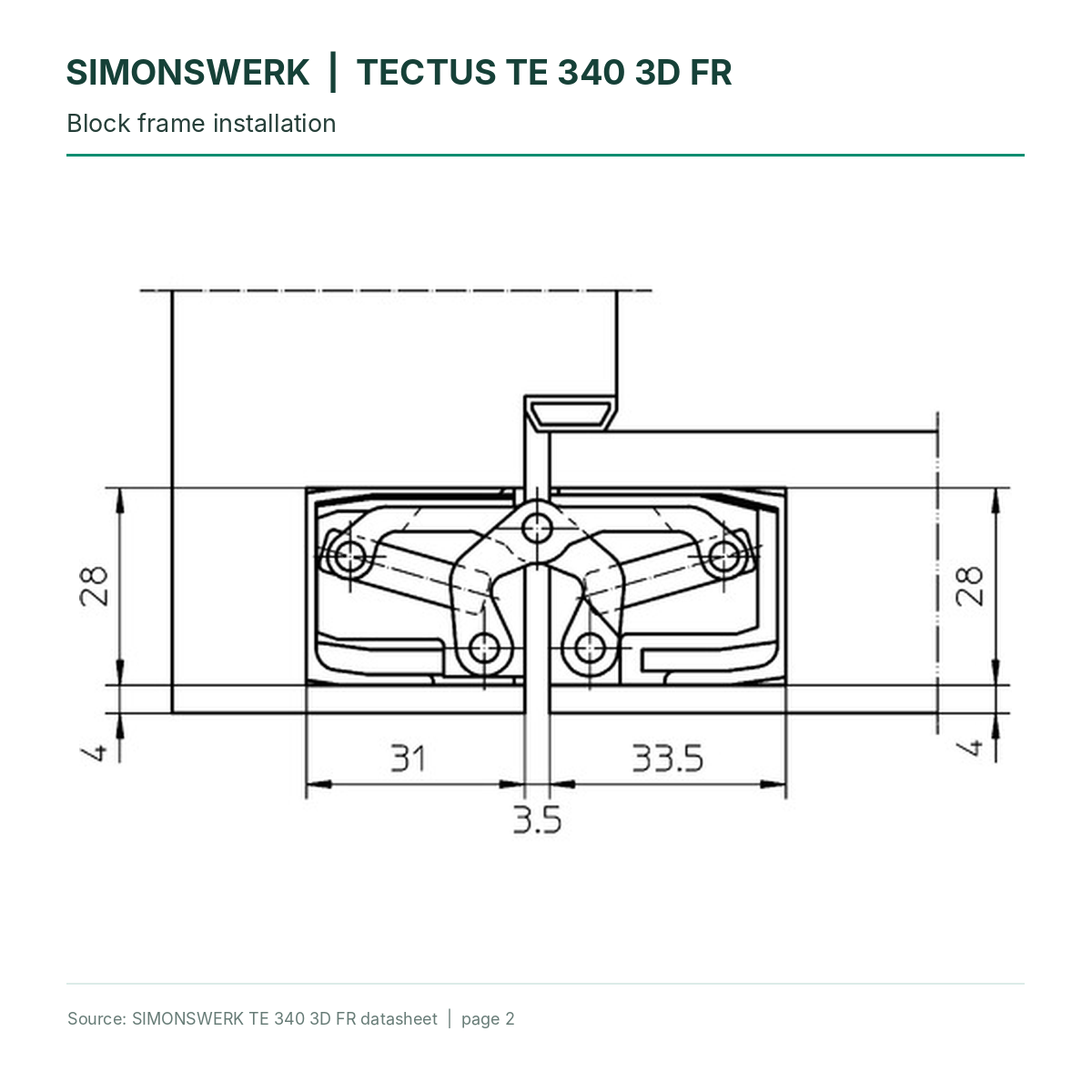

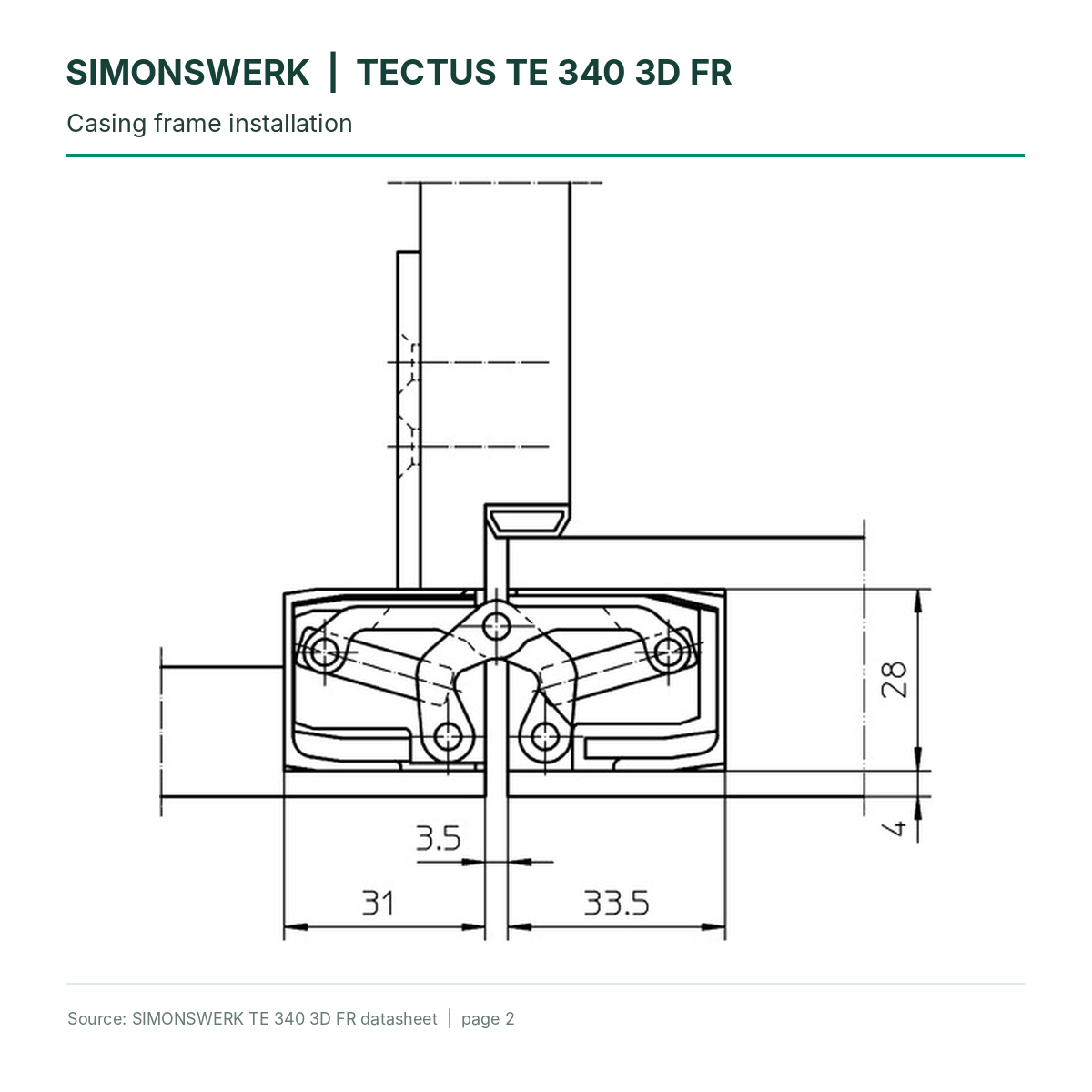

Use the appropriate TE340 routing templates and frame receiver for the door construction. Fire-door suitability depends on the door construction, and test evidence must cover the complete door set and assembly. Confirm suitability with the door manufacturer before installation; the hinge alone does not establish a fire rating for the door.

Follow the manufacturer's installation and load-capacity guidance. At an opening position of 180°, the door may require additional fixing.

Product code: HIB207D
