Name: Blum 71B3750 CLIP top BLUMOTION 110° Inset Screw-On Hinge
Brand: JULIUS BLUM UK LTD
SKU: HI71B3750
Price: 3.05 GBP
Availability: InStock

PRODUCT DESCRIPTION

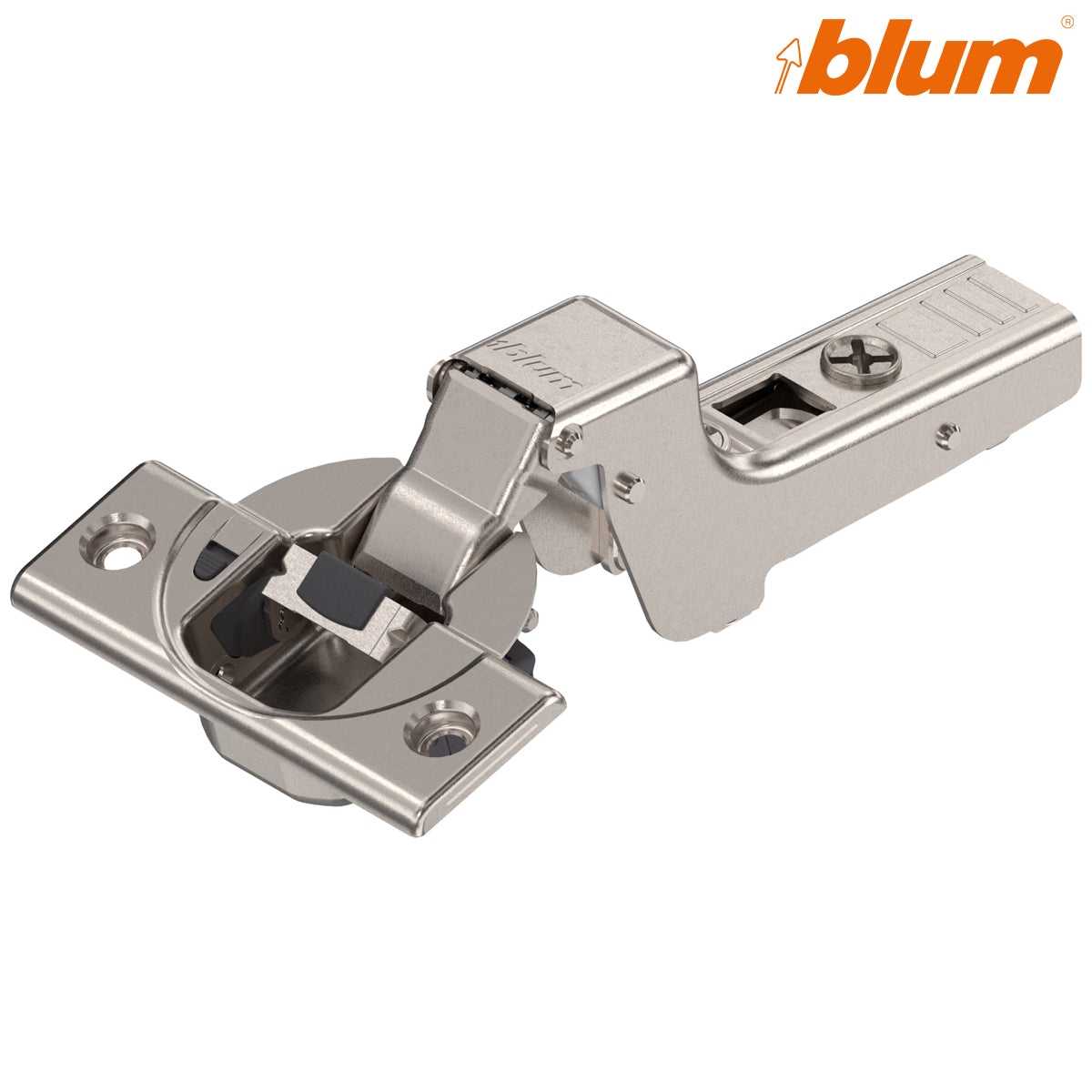

Blum 71B3750 CLIP top BLUMOTION 110° Inset Screw-On Hinge

The Blum 71B3750 is a sprung, nickel-plated hinge for cabinet doors that close within the opening, rather than overlapping the cabinet sides. Its fully cranked arm provides an inset application. Integrated, switchable BLUMOTION slows the final stage of closing; it can be deactivated on individual hinges when less damping is needed.

Fixing and installation

The 35 mm hinge cup is secured to the back of a prepared door using screws. The hinge arm then clips onto a compatible Blum CLIP mounting plate, sold separately, so the door can be detached without removing the cup. An inset result depends on hinge-arm geometry and positioning the mounting plate farther inside the cabinet, not on a special inset cup. The existing Blum installation guidance specifies setting the plate back by the door thickness plus 1.5 mm; verify the actual gaps, drilling distance and plate spacing with a trial fit.

Blum article 71B3750; Hart SKU HI71B3750.
Fully cranked inset application; 110° opening angle; suitable for doors up to 24 mm thick according to the existing specification.
Sprung self-closing action with integrated, switchable BLUMOTION.
Screw-on 35 mm cup: 13 mm drilling depth, 45 mm screw-fixing centres and 3–7 mm cup drilling distance according to the existing specification.
Side adjustment ±2 mm; depth adjustment +3/−2 mm; height depends on the chosen mounting plate.
Nickel-plated steel; one hinge supplied, mounting plate and cabinet fixings sold separately.

Choose a compatible plate from the Blum CLIP top mounting plate range and compare other options in the CLIP top hinge collection. For an inset soft-close hinge with tool-free cup fitting, compare the 71B3790 INSERTA version; for a knock-in fixing, compare the 71B3780. These require different door preparation. The 71T3750 is a sprung inset screw-on hinge without integrated BLUMOTION. An 86° opening-angle stop may be suitable where nearby cabinetry or appliances limit door travel; check compatibility before ordering.
