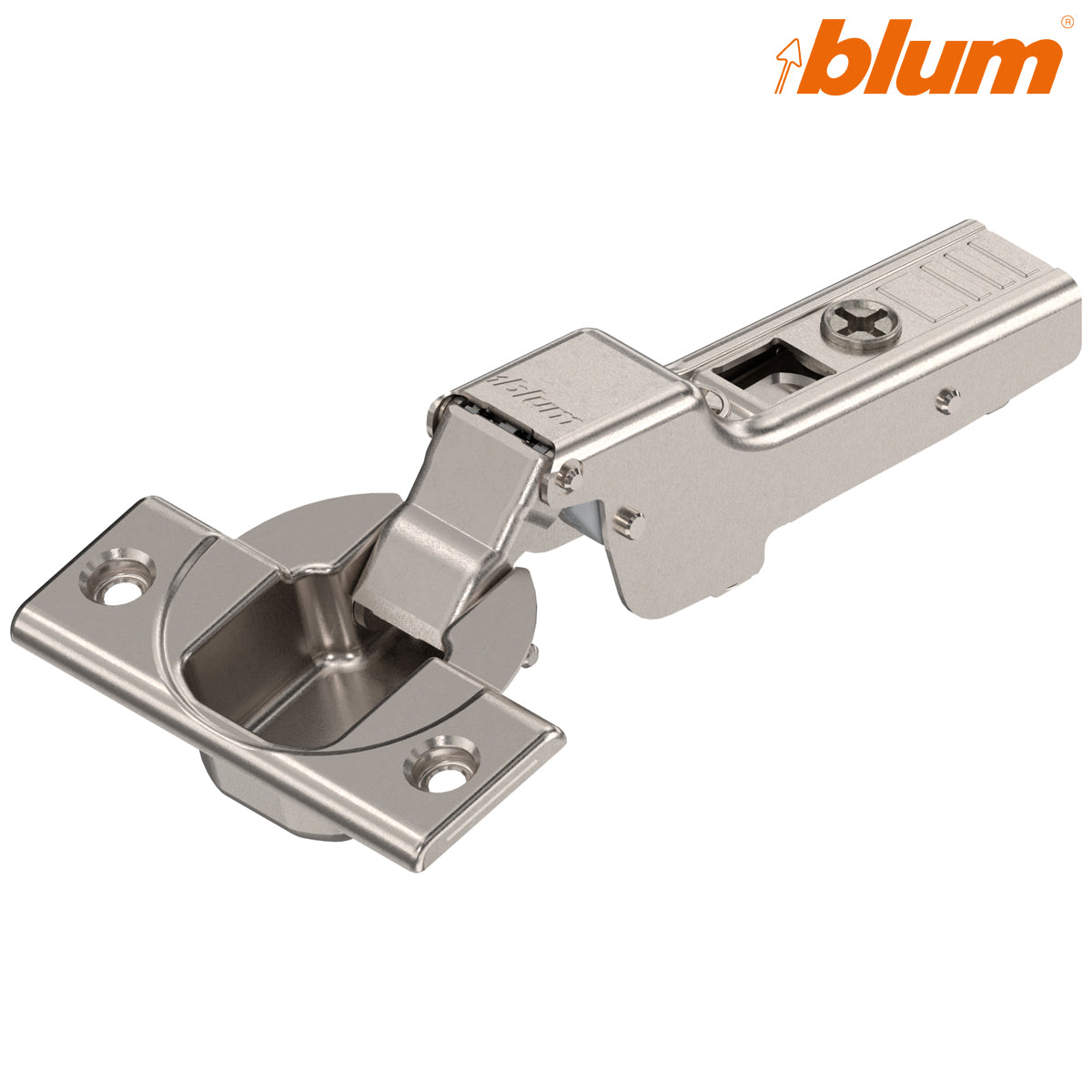

Name: Blum 71T3650 CLIP top 110° Half-Overlay Sprung Screw-On Hinge, Nickel
Brand: JULIUS BLUM UK LTD
SKU: HI71T3650
Price: 1.69 GBP
Availability: InStock

PRODUCT DESCRIPTION

Blum 71T3650 CLIP top 110° Half-Overlay Screw-On Hinge

The Blum 71T3650 is a sprung concealed hinge for a dual or half-overlay cabinet-door application. Two doors can hinge from opposite sides of a shared central partition, each covering only part of the panel. Dual describes the fitting arrangement, not the number supplied: one purchase supplies one hinge.

Door-side screw-on cup

This model's product data identifies screw-on hinge-cup fixing, not INSERTA. Fit the 35 mm cup to a correctly prepared door with appropriate screws. The arm then clips without tools to a separately purchased compatible Blum CLIP mounting plate on the cabinet. Select the plate and drilling pattern using the actual cabinet geometry and Blum planning information; the mounting plate is not included. The existing data lists a 13 mm cup boring depth, but the old table also carried INSERTA dimensions from a different fixing version, so do not use those fixing-hole measurements to drill this screw-on hinge.

Sprung closing and adjustment

The 110° hinge has a closing spring, not integrated BLUMOTION soft close. A sprung hinge pulls the door shut; do not assume a switchable or built-in damper. The prior technical data lists ±2 mm side adjustment and +3/−2 mm depth adjustment with a spiral screw, with height adjustment through the selected plate. Test door clearance and thickness against current Blum planning information rather than treating an unverified 24 mm limit as universal.

Key features

CLIP top 110° half-overlay or dual application
Sprung/self-closing, without integrated soft close
35 mm screw-on hinge cup; tool-free CLIP arm-to-plate connection
Nickel-plated steel; one hinge supplied
Compatible cabinet mounting plate required and sold separately

Technical specifications

Blum part / Hart Wholesale SKU	71T3650 / HI71T3650
Application / opening	Dual or half-overlay; 110°
Cup / fixing	35 mm screw-on cup; verify exact door drilling with Blum
Closing	Sprung; no integrated BLUMOTION
Adjustment	Side ±2 mm; depth +3/−2 mm; height via selected plate
Finish / sale quantity	Nickel-plated steel; one hinge
Mounting plate	Required, sold separately

For a tool-free INSERTA cup instead of conventional screws, see the 71T3690 dual INSERTA hinge. Check the different drilling pattern before substituting it. Browse Blum concealed hinges for other applications.
