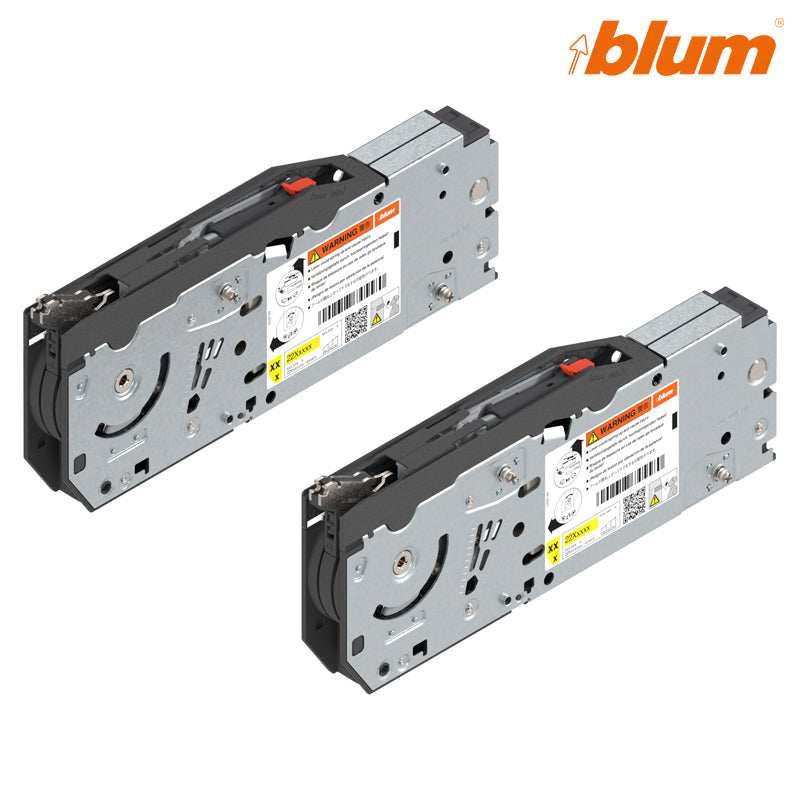

The Blum AVENTOS HF top 22F2510 lift mechanism set is an AVENTOS HF top bi-fold lift system for two-piece cabinet fronts that fold in the centre while opening upwards. Designed for a lift-factor range of 2700–13500, it provides controlled movement and convenient access to wall cabinets and overhead storage.

Integrated BLUMOTION provides smooth, quiet and controlled closing. Once correctly selected and adjusted for the cabinet front, the mechanism allows the door to open with minimal effort and remain securely in the chosen position.

AVENTOS HF top bi-fold lift system

AVENTOS HF top is Blum's current-generation bi-fold lift system. The cabinet front is made in two pieces joined by a centre hinge. When the cabinet opens, the lower section folds upward while the upper section rises, keeping the front compact and clear of the user's head and workspace.

This product uses the AVENTOS HF top 22-series mechanism. It is not compatible with original AVENTOS HF (20-series) components. Do not mix generations.

Lift factor and mechanism selection

The Blum 22F2510 covers a lift-factor range of 2700–13500. Lift factor is a selection value calculated from the cabinet dimensions and front weight — it is not a weight measurement and must not be expressed in kilograms. Accurate calculation is essential when selecting an AVENTOS HF top mechanism. Use the Blum Product Configurator or official planning documents to verify the correct mechanism for your application.

Key features

• Genuine Blum AVENTOS HF top bi-fold lift mechanism set
• Blum article number 22F2510
• Stock code HI22F2510
• Lift-factor range 2700–13500
• Integrated BLUMOTION soft-close action
• For two-piece bi-fold cabinet fronts
• AVENTOS HF top (22-series) generation
• Two lift mechanisms supplied as a set

Product details

• Manufacturer: Blum
• Range: AVENTOS HF top
• Blum article number: 22F2510
• Stock code: HI22F2510
• Mechanism type: Bi-fold lift
• Lift factor: 2700–13500
• Closing action: Integrated BLUMOTION
• Generation: AVENTOS HF top (22-series)

Compatibility note

This is an AVENTOS HF top (22-series) mechanism. It is not interchangeable with original AVENTOS HF (20-series) components. Verify the generation of all existing components before ordering replacement or additional parts. Telescopic arms, cover caps and centre hinges must be ordered separately.

Browse the full Blum AVENTOS HF top range for compatible arms, cover caps and accessories. For the higher lift-factor mechanism, see the Blum AVENTOS HF top 22F2810 set for LF 10000–19300.

Frequently asked questions

What is the Blum 22F2510 used for?

It is an AVENTOS HF top bi-fold lift mechanism set for two-piece cabinet fronts that fold in the centre while opening upwards.

What does 2700–13500 mean?

It is the mechanism's lift-factor range — a selection value, not a weight. Lift factor is calculated from the cabinet dimensions and front weight using the Blum planning method.

Is this the same as original AVENTOS HF?

No. This is AVENTOS HF top (22-series). Original AVENTOS HF uses 20-series components and is a separate, non-interchangeable generation.

Does this mechanism include BLUMOTION?

Yes. Integrated BLUMOTION provides smooth, quiet and controlled closing.

Are telescopic arms and cover caps included?

No. Arms, cover caps and centre hinges are separate components.

How many mechanisms are supplied?

The set contains two lift mechanisms.
