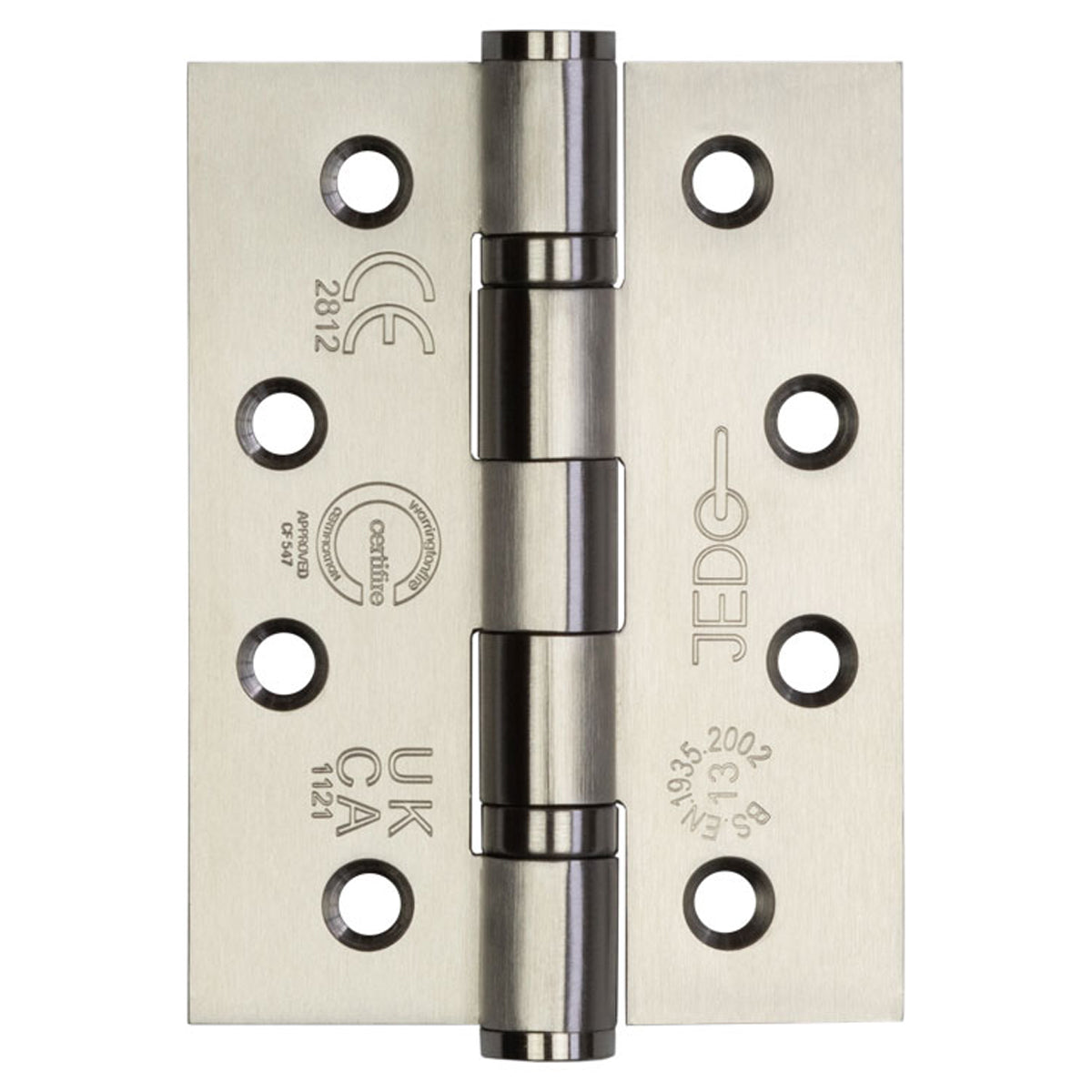

PRODUCT DESCRIPTION
The Frelan J9533SSS Ball Bearing Hinge delivers heavy-duty performance in Grade 201 stainless steel. With FD30/60 fire rating, Certifire approval and a 120kg door weight capacity (3 hinges), it’s ideal for busy commercial interiors.
KEY FEATURES
- Type: Ball Bearing Hinge
- Material Grade: 201 Stainless Steel
- Finish: Satin Stainless Steel
- Mechnical Cycles: 200,000
- Max Door Weight: 120kg (3 hinges)
- Fire Rating: FD30/60
- Certifire: Yes
- Hinge Grade: 13
- Corrosion Grade: 4
- Mechanical Warranty: 10 Years
- Use: Internal, Residential / Commercial
- UKCA / CE: Yes / Yes
- Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)
- Carton Qty: 40
DIMENSIONS
- Height: 102mm
- Width: 76mm
- Knuckle: 14.5mm
- Thickness: 3mm
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 1 & GRA 1.2)
TECHNICAL DETAILS
- Application: Hinges
- Width: 3mm
- Height: 76mm
- Length: 102mm
- Colour: Satin Stainless Steel
