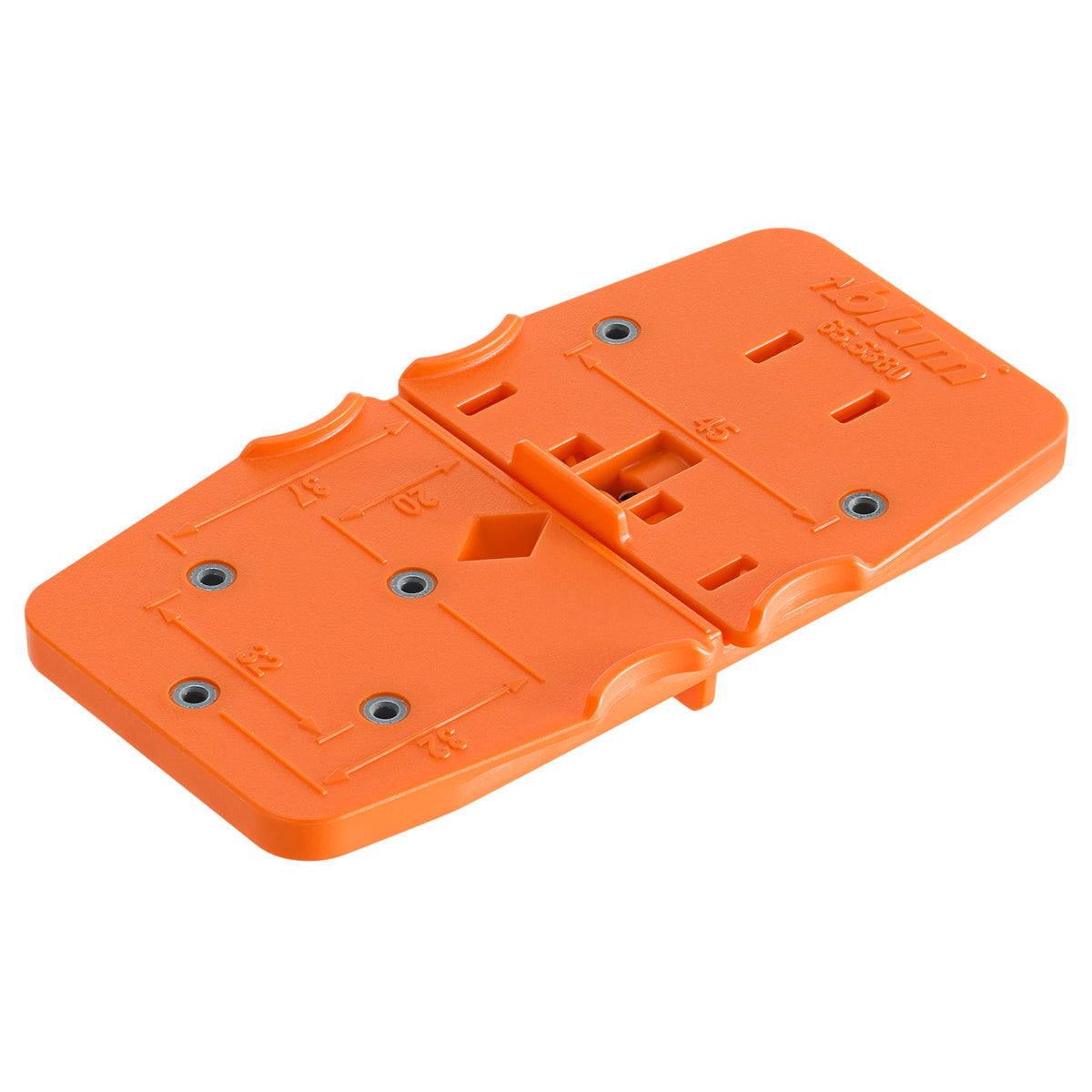

Achieve perfectly positioned hinge and mounting plate fixings every time with the Blum 65.5380 Drilling Template. Engineered by Julius Blum UK Ltd, this precision jig is the professional's choice for consistent, repeatable drilling in workshop and on-site environments. Whether you're fitting cabinet hinges or securing mounting plates, this template eliminates guesswork and delivers millimetre-accurate results across every job.

Key Features

• Designed specifically for processing mounting plates and hinges
• Calibrated in millimetres for precise, reliable dimension transfer
• Fixed-dimension template — transfers a predefined set dimension through the template itself
• 6-roller guide system for smooth, controlled positioning
• Inner bushing diameter of 2.65 mm for accurate drill guidance
• Durable Nylon construction — lightweight yet robust for daily workshop use
• Distinctive RAL 2004 Pure Orange finish for easy identification on busy sites
• Non-adjustable design ensures consistent, repeatable results every time

Technical Specifications

• Type: Drilling Template / Jig
• Calibration: Millimetres
• Application: Mounting plates & hinges
• Area of Use: Workshop and construction site
• Length: 121.5 mm
• Dimension Transfer: Through the template (fixed predefined dimension)
• Adjustable: No
• Number of Rollers: 6
• Inner Bushing Diameter: 2.65 mm
• Material: Nylon
• Colour / Finish: RAL 2004 Pure Orange
• Pack Contents: 2 pieces
• SKU: JIG6010
• Barcode: 9010891144227

Why Choose the Blum 65.5380?

Blum is synonymous with precision engineering in the cabinet and joinery industry. The 65.5380 drilling template is purpose-built to work seamlessly with Blum's hinge and mounting plate systems, ensuring every fixing hole is placed exactly where it needs to be. Ideal for joiners, kitchen fitters, and furniture manufacturers who demand accuracy and efficiency on every project.
