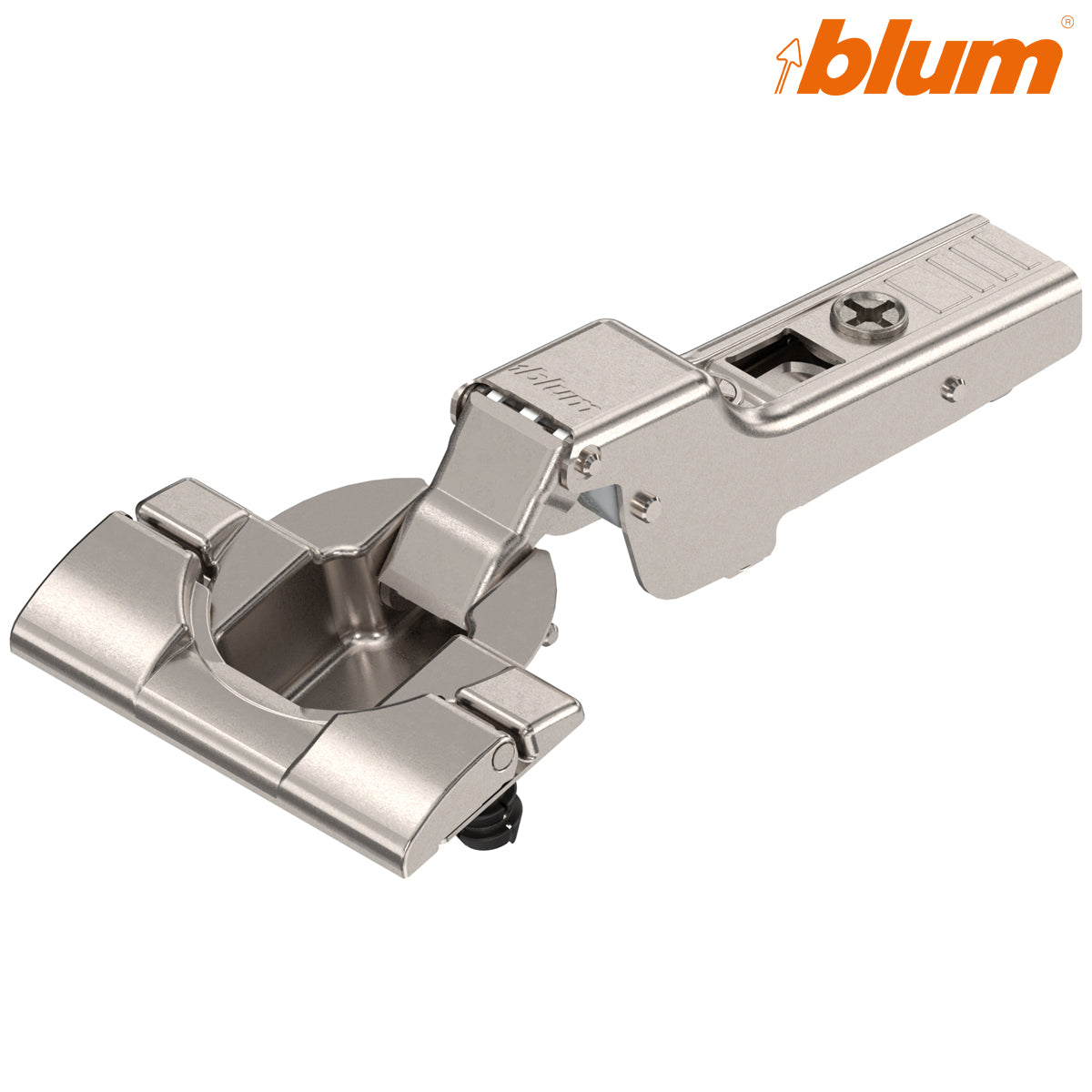

Blum 70T3690.TL CLIP top 110° Half-Overlay Unsprung INSERTA Hinge

Blum 70T3690.TL CLIP top 110° Half-Overlay Unsprung INSERTA Hinge

Stock Code: HI70T3690TL

£2.27 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 70T3690.TL CLIP top 110° Half-Overlay Unsprung INSERTA Hinge

The Blum 70T3690.TL is an unsprung concealed hinge for dual or half-overlay cabinet-door applications. Its half-cranked hinge arm is designed for frameless cabinets where two doors share one central cabinet panel and each door overlays part of that panel.

This hinge has no internal closing spring, allowing the door to move freely without being pulled closed. Its free-swing operation makes it suitable for correctly planned handleless furniture using a compatible Blum TIP-ON push-to-open device.

The INSERTA hinge cup provides tool-free attachment to a correctly drilled door. Close the INSERTA locking mechanism to secure the 35mm cup and its expanding dowels without conventional hinge-cup screws.

Blum’s CLIP connection also allows the hinge arm to attach to or release from a compatible mounting plate without tools.

Supplied as one hinge. The mounting plate, TIP-ON device and cabinet fixings are sold separately.

Key features

  • Dual or half-overlay cabinet-door application
  • Designed for two doors sharing a central cabinet panel
  • Half-cranked hinge-arm configuration
  • 110° opening angle
  • Unsprung, free-swing operation
  • Suitable for planned TIP-ON push-to-open furniture
  • No integrated BLUMOTION soft close
  • Tool-free INSERTA hinge-cup installation
  • 35mm steel concealed hinge cup
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Convenient spiral-screw depth adjustment
  • Nickel-plated finish
  • Supplied individually

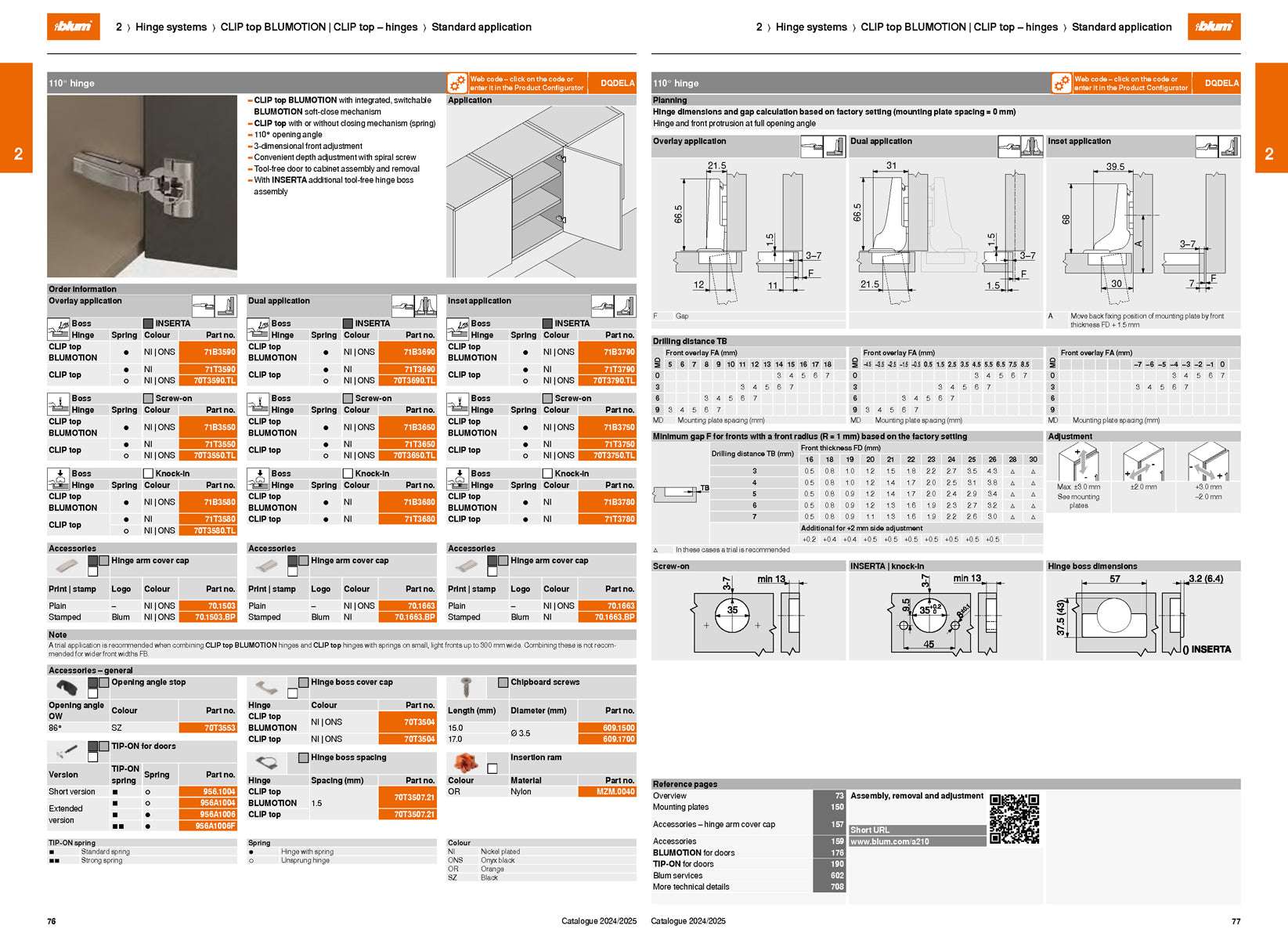

Technical specifications

Manufacturer Blum
Product range CLIP top
Blum part number 70T3690.TL
Hart Wholesale stock code HI70T3690TL
Application Dual/half overlay
Cabinet construction Frameless
Hinge-arm configuration Half cranked
Opening angle 110°
Closing action Unsprung/free swing
Integrated soft close No
Push-to-open suitability Yes, with a compatible separately purchased device
Door fixing Tool-free INSERTA hinge cup
Hinge-cup diameter 35mm
Cup-drilling depth Approximately 13mm
INSERTA fixing holes Two 8mm holes on 45mm centres
Side adjustment ±2mm
Depth adjustment +3/−2mm
Cabinet connection Blum CLIP mounting plate
Mounting plate included No
Material Steel
Finish Nickel plated
Quantity supplied One hinge

Application guidance

A dual or half-overlay installation normally has two doors attached to opposite faces of the same central cabinet panel. Each door covers only part of that panel, allowing both doors to close correctly without colliding.

The final door overlay depends on the cabinet construction, hinge-cup drilling distance, door thickness and mounting-plate height. Check the required geometry before drilling multiple doors.

INSERTA installation

INSERTA is not fitted into a plain 35mm cup hole alone. The door must also have two accurately positioned 8mm fixing holes. Insert the hinge into the prepared drilling pattern and close the locking mechanism to expand the fittings inside the door.

Browse our Blum CLIP mounting plates and Blum TIP-ON devices.

Frequently asked questions

What is a dual or half-overlay hinge?

It is used where two cabinet doors share one central cabinet panel. Each door overlays approximately half of the panel rather than covering it completely.

Is this hinge intended for face-frame cabinets?

No. The 70T3690.TL is designed primarily for frameless cabinet construction using a separate Blum CLIP mounting plate.

What does unsprung mean?

An unsprung hinge has no closing spring. The door moves freely and is not pulled into its closed position.

Is it suitable for push-to-open doors?

Yes. Its free-swing operation makes it suitable for correctly planned handleless furniture using a compatible Blum TIP-ON device.

Can I add a BLUMOTION damper?

BLUMOTION is not recommended for the intended free-swing TIP-ON application because damping can resist the door movement needed for push-to-open operation.

What does INSERTA mean?

INSERTA is Blum’s tool-free hinge-cup fixing. The cup and expanding fittings lock into an accurately drilled three-hole pattern without conventional hinge-cup screws.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

Does the hinge cup fit without drilling?

No. The door requires a 35mm cup bore and two accurately positioned 8mm INSERTA fixing holes.

How many hinges are supplied?

This listing is for one hinge.
