Name: Blum 71B3650 BLUMOTION 110° Half Overlay Screw-On Hinge – Onyx Black
Brand: Blum
SKU: HIO71B3650
Price: 3.32 GBP
Availability: InStock

PRODUCT DESCRIPTION

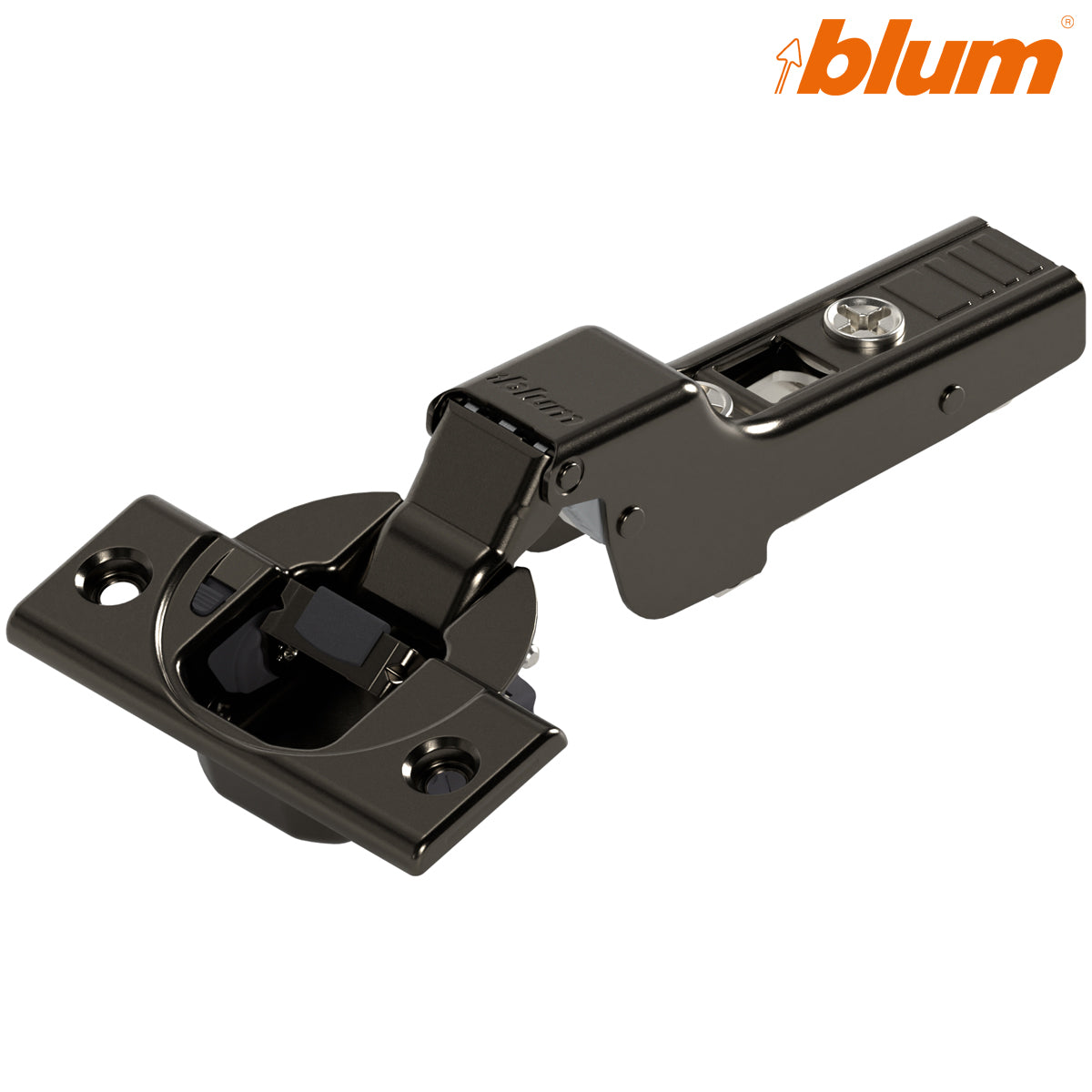

Blum 71B3650 CLIP top BLUMOTION 110° Half Overlay Screw-On Hinge – Onyx Black

The Blum 71B3650 CLIP top BLUMOTION hinge combines a half-cranked hinge arm with a traditional screw-on cup fixing. It is designed for dual or half-overlay applications where two cabinet doors are fitted to opposite sides of the same central partition.

The hinge's Onyx Black finish complements dark cabinetry, black cabinet hardware and contemporary furniture interiors. Its coordinated dark appearance is particularly effective where the hinge remains visible while the cabinet door is open.

BLUMOTION soft closing is integrated directly into the hinge cup, providing smooth and controlled closing without requiring a separate damper. The damping function can be deactivated on individual hinges when less resistance is required for a smaller or lighter door.

Key features

Genuine Blum CLIP top BLUMOTION concealed hinge
Designed for dual and half-overlay cabinet doors
Half-cranked arm for doors sharing a central partition
110° opening angle
Integrated BLUMOTION soft-close mechanism
BLUMOTION can be deactivated when required
Traditional screw-on hinge-cup fixing
35mm steel hinge cup
45mm screw-fixing centres
Tool-free CLIP attachment to the mounting plate
Three-dimensional door adjustment
Convenient spiral-screw depth adjustment
Premium Onyx Black finish
Supplied as one hinge

Technical specifications

Manufacturer	Blum
Blum part number	71B3650
Blum item number	09113259
Hart stock code	HIO71B3650
GTIN/EAN	9009494216738
Hinge system	CLIP top BLUMOTION
Door application	Dual/half overlay
Hinge-arm type	Half-cranked
Opening angle	110°
Closing action	Spring closing with integrated, deactivatable BLUMOTION
Hinge-cup fixing	Screw-on
Hinge-cup diameter	35mm
Cup drilling depth	13mm
Fixing-hole centres	45mm
Fixing-hole offset	9.5mm from the cup centreline
Cup drilling distance	3–7mm
Hinge-cup flange	57 × 22mm
Side adjustment	±2mm
Depth adjustment	+3mm / −2mm
Height adjustment	Through the selected mounting plate
Material	Steel
Finish	Onyx Black
Quantity	One hinge
Mounting plate included?	No – order separately

Where is a half-overlay hinge used?

A half-overlay hinge is normally used where two cabinet doors share the same central cabinet partition. The half-cranked arm positions each door so both can close correctly while covering only part of the shared panel edge.

This hinge should not be confused with the straight-arm 71B3550 overlay hinge or the full-cranked 71B3750 inset hinge. Choosing the correct arm geometry is essential for obtaining the intended door position.

Traditional screw-on fixing

The hinge requires a 35mm cup drilling approximately 13mm deep. Two screw-fixing positions are arranged on 45mm centres, with the fixing-hole line offset 9.5mm from the centre of the hinge-cup drilling.

The screw-on fixing is well suited to replacement work, bespoke cabinetry and workshop installation. Choose fixing screws appropriate for the door material and thickness.

Mounting plate required

HIO71B3650 is supplied as one hinge. A compatible Blum CLIP mounting plate must be purchased separately. The required mounting-plate height depends on the cabinet construction, drilling distance and intended door overlay.

For tool-free hinge-cup installation, see the Blum 71B3690 half-overlay INSERTA hinge. For inset doors, consider the Blum 71B3750 inset screw-on hinge.

Browse the complete Blum CLIP top hinge collection.

Frequently asked questions

What does dual or half overlay mean?

It means two doors can be fitted to opposite sides of the same central cabinet partition, with each door covering only part of the panel edge.

Does the Blum 71B3650 include soft close?

Yes. BLUMOTION soft closing is integrated directly into the hinge cup.

Can BLUMOTION be switched off?

Yes. The damping mechanism can be deactivated on individual hinges when less resistance is required.

What does screw-on fixing mean?

The 35mm hinge cup is secured to the back of the cabinet door using screws through the two flange fixing holes.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

What drilling pattern is required?

The hinge requires a 35mm cup drilling approximately 13mm deep, with two screw-fixing positions arranged on 45mm centres.

TECHNICAL DETAILS

Application: Dual
Size: 35mm Boss
Finish: Onyx Black
Colour: Onyx Black
Material: Steel
