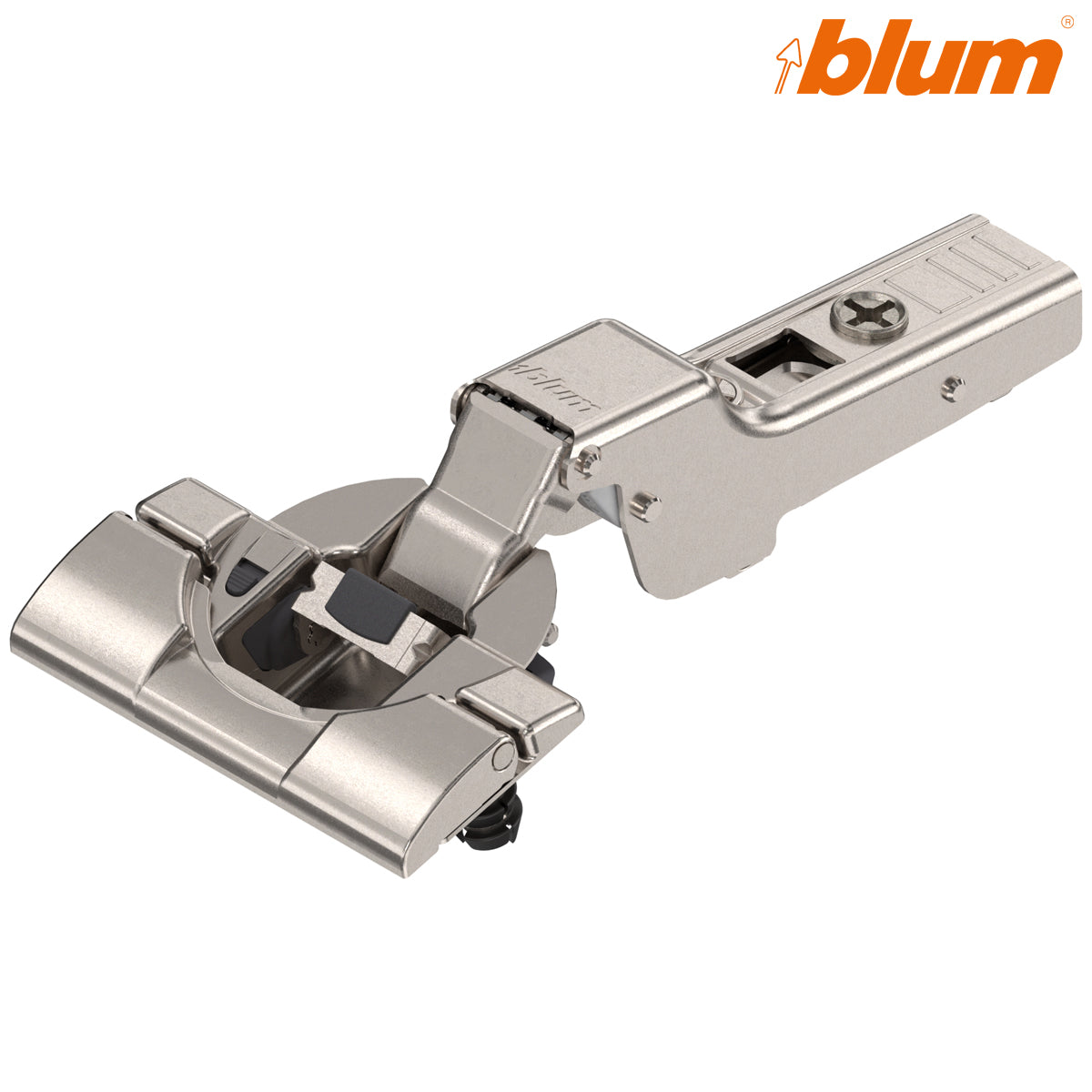

Blum 71B3690 CLIP top BLUMOTION 110° Half-Overlay INSERTA Hinge

Blum 71B3690 CLIP top BLUMOTION 110° Half-Overlay INSERTA Hinge

Stock Code: HI71B3690

£3.89 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B3690 CLIP top BLUMOTION 110° Half-Overlay INSERTA Hinge

The Blum 71B3690 is a soft-close concealed hinge for dual or half-overlay cabinet-door applications. Its half-cranked hinge arm is designed for installations where two doors share the same central cabinet panel and each door overlays part of that panel.

The hinge opens to 110° and incorporates Blum’s BLUMOTION damping system for smooth, controlled closing. BLUMOTION can be switched off on individual hinges when reduced damping is required for a small or lightweight door.

This version uses Blum’s INSERTA tool-free hinge-cup fixing. The 35mm cup and expanding fittings lock into an accurately prepared door without conventional hinge-cup screws.

Once the cup is installed, the hinge arm connects to a compatible Blum CLIP cabinet mounting plate without tools. This allows the complete door to be removed and refitted without releasing the INSERTA cup.

Supplied as one hinge. The cabinet mounting plate and cabinet fixings are sold separately.

Key features

  • Designed for dual or half-overlay cabinet doors
  • Suitable for two doors sharing one central cabinet panel
  • Half-cranked hinge-arm configuration
  • 110° opening angle
  • Integrated BLUMOTION soft closing
  • BLUMOTION can be deactivated on individual hinges
  • Sprung and self-closing
  • Tool-free INSERTA hinge-cup fixing
  • 35mm steel concealed hinge cup
  • Two 8mm INSERTA fixing holes on 45mm centres
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Convenient spiral-screw depth adjustment
  • Nickel-plated steel construction
  • Supplied individually

Technical specifications

Manufacturer Blum
Product range CLIP top BLUMOTION
Blum part number 71B3690
Hart Wholesale stock code HI71B3690
Application Dual/half overlay
Hinge-arm configuration Half cranked
Opening angle 110°
Closing action Sprung/self-closing
Soft-close system Integrated, switchable BLUMOTION
Door fixing Tool-free INSERTA hinge cup
Hinge-cup diameter 35mm
Cup-drilling depth 13mm
INSERTA fixing-hole diameter 8mm
Fixing-hole centres 45mm
Cup-drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3/−2mm
Height adjustment Depends on the selected mounting plate
Cabinet connection Blum CLIP mounting plate
Mounting plate included No
Material Steel
Finish Nickel plated
Quantity supplied One hinge

What is a half-overlay application?

A half-overlay hinge is normally used where two cabinet doors are attached to opposite sides of the same central cabinet panel. Each door covers only part of the panel, allowing both doors to close without colliding.

“Dual” does not mean that one door overlays both sides of a cabinet. It describes two separate doors sharing one cabinet partition.

How INSERTA fixing works

The cabinet door must be prepared with a 35mm hinge-cup bore and two additional 8mm holes positioned on 45mm centres. Insert the hinge into this complete drilling pattern and operate the INSERTA locking mechanism to secure the expanding fittings inside the door.

INSERTA cannot be fitted correctly into a single plain 35mm cup hole. All three drillings must be present and accurately positioned.

Application planning

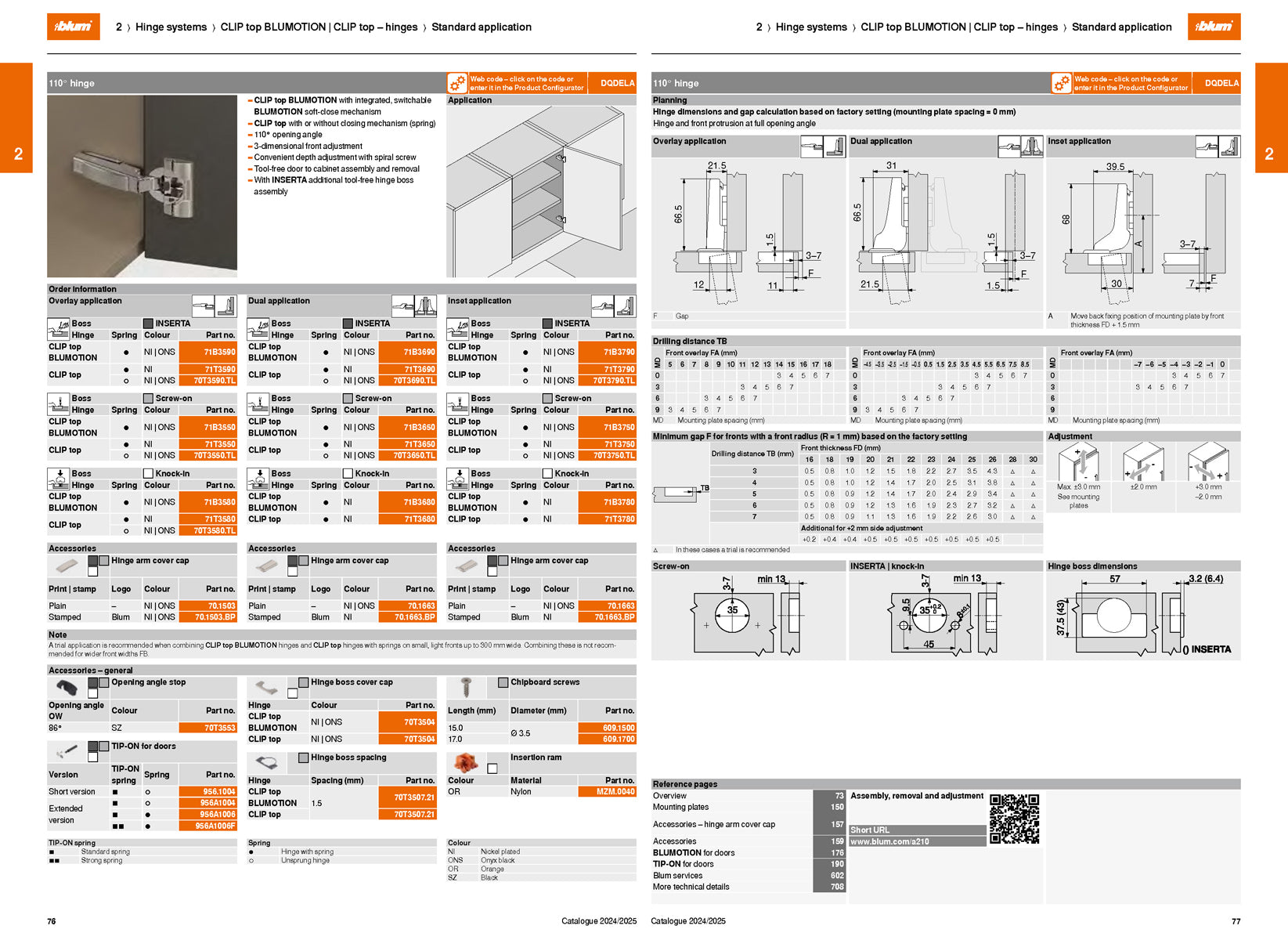

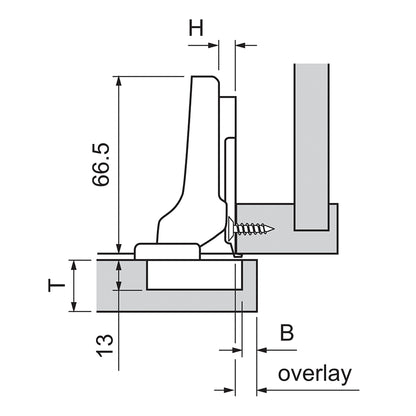

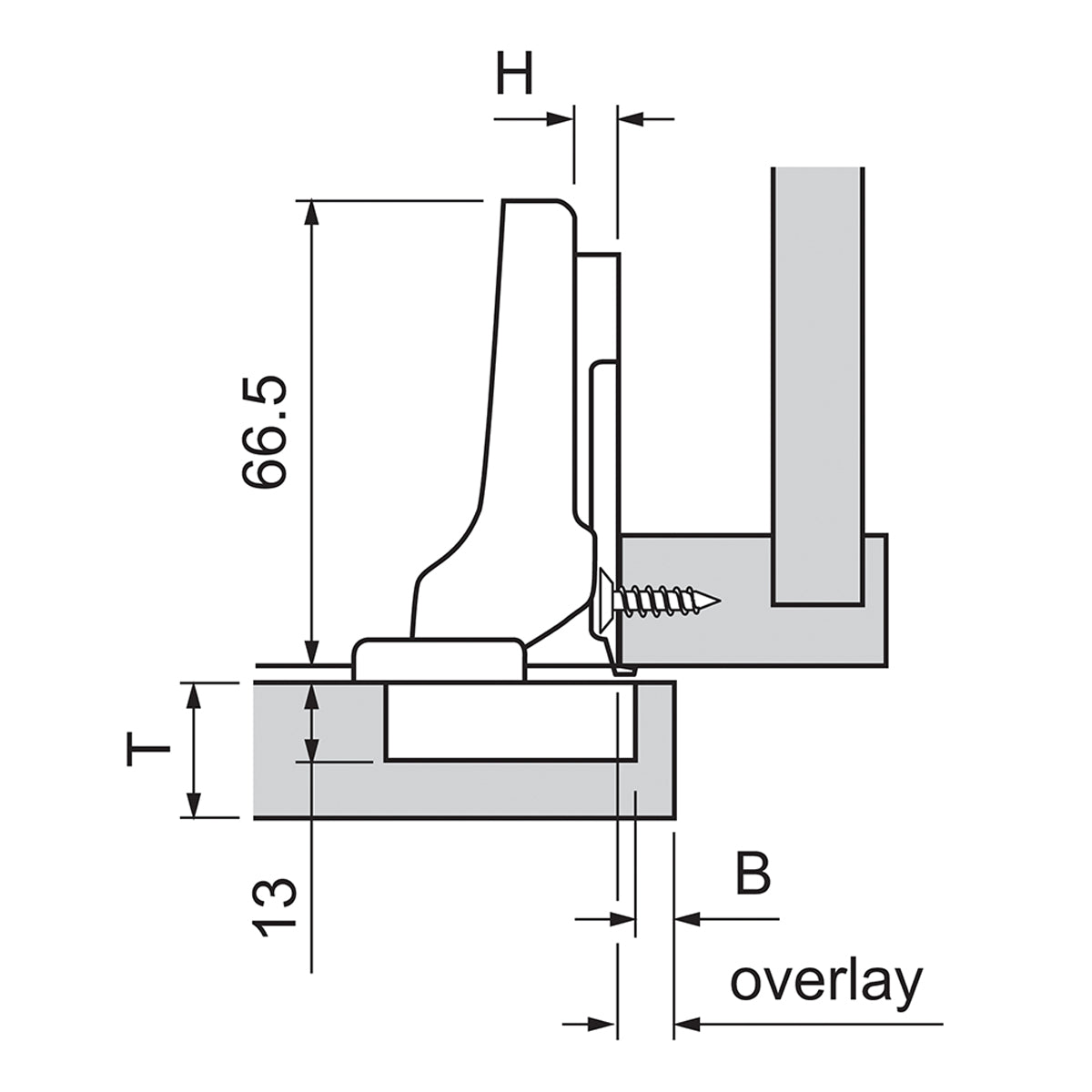

The finished door overlay depends on the cabinet-panel thickness, door thickness, cup-drilling distance and selected mounting-plate height. Check the actual cabinet construction and complete a trial installation before drilling multiple doors.

Browse our Blum CLIP mounting plates and the complete Blum CLIP top hinge range.

Frequently asked questions

Does the Blum 71B3690 include soft close?

Yes. BLUMOTION soft closing is integrated into the hinge and can be switched off on individual hinges when required.

What is a dual or half-overlay hinge?

It is used where two cabinet doors share one central cabinet panel, with each door covering part of that panel.

Is the 71B3690 a full-overlay hinge?

No. Its half-cranked arm is designed for dual or half-overlay applications. The corresponding full-overlay INSERTA BLUMOTION hinge is 71B3590.

What does INSERTA mean?

INSERTA is Blum’s tool-free hinge-cup fixing system. It locks the hinge into an accurately drilled door without conventional cup-fixing screws.

Is an INSERTA boss plate purchased separately?

No. The INSERTA cup and locking mechanism are parts of the hinge. The cabinet-side Blum CLIP mounting plate is purchased separately.

Does the door require special drilling?

Yes. It requires a 35mm cup bore and two accurately positioned 8mm INSERTA fixing holes on 45mm centres.

Is the cabinet mounting plate included?

No. Select the appropriate Blum CLIP mounting plate according to the cabinet construction and required overlay.

Can the complete door be removed without tools?

Yes. The CLIP connection allows the hinge arm to be released from the cabinet mounting plate without removing the INSERTA cup.

How many hinges are supplied?

This listing is for one hinge.
