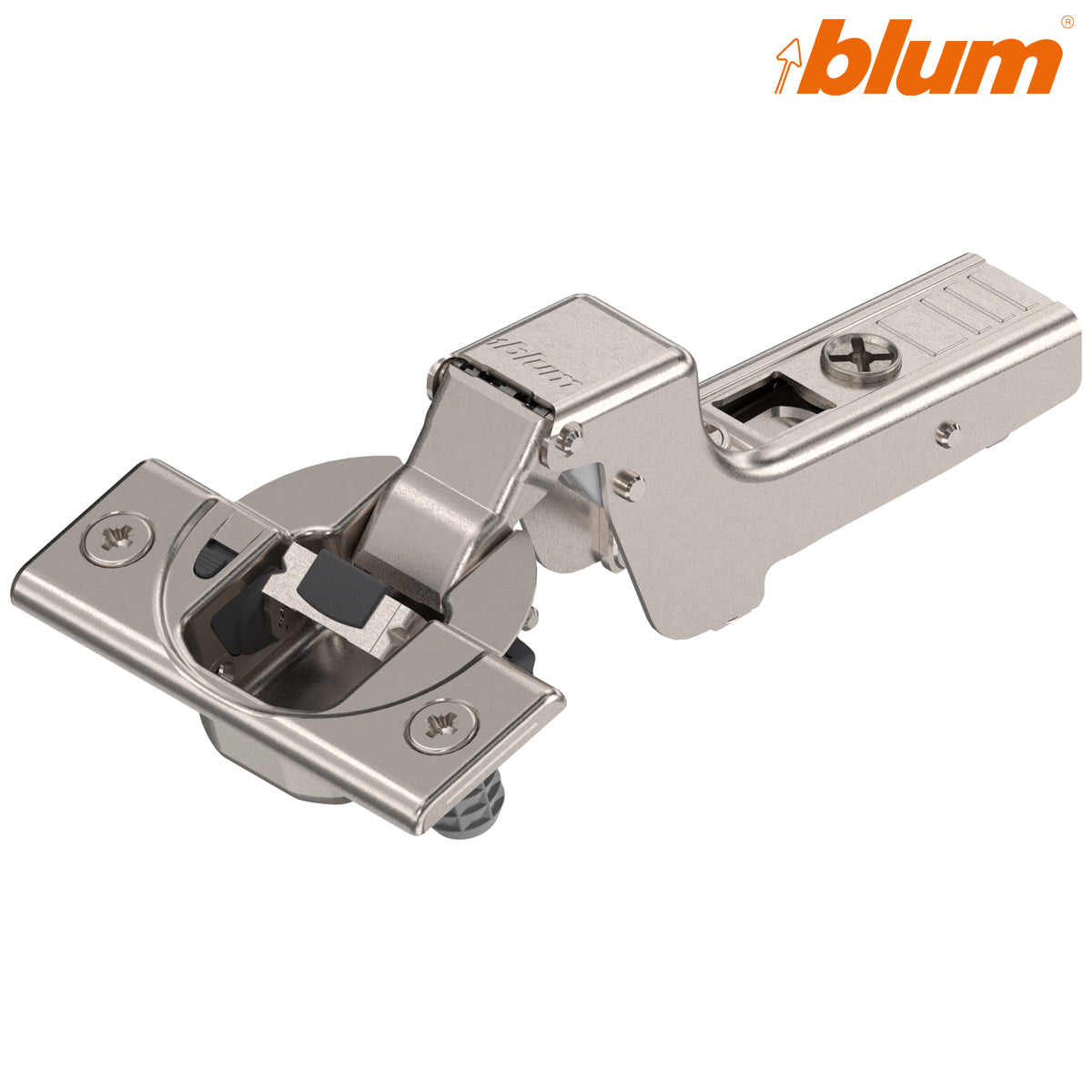

Blum 71B3780 CLIP top BLUMOTION 110° Inset Knock-In Hinge

Blum 71B3780 CLIP top BLUMOTION 110° Inset Knock-In Hinge

Stock Code: HI71B3780

£3.04 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B3780 CLIP top BLUMOTION 110° Inset Knock-In Hinge

The Blum 71B3780 is a soft-close concealed hinge for inset cabinet doors that close within the cabinet opening. Its fully cranked hinge arm provides the geometry required for a correctly planned inset installation.

The hinge opens to 110° and incorporates Blum’s BLUMOTION damping system for smooth, controlled closing. BLUMOTION can be switched off on individual hinges when less damping is required for a small or lightweight door.

This version has a 35mm steel hinge cup with pre-mounted knock-in dowels. The cup is installed into an accurately prepared three-hole drilling pattern using suitable insertion equipment, making it particularly suitable for workshop and production environments.

Once the cup is fitted, the hinge arm connects to a compatible Blum CLIP mounting plate without tools. This allows the complete door to be removed and refitted without disturbing the cup fixing.

Supplied as one hinge with pre-mounted cup-fixing dowels. The cabinet mounting plate and cabinet fixings are sold separately.

Key features

  • Designed for inset cabinet doors
  • Fully cranked hinge-arm configuration
  • 110° opening angle
  • Integrated BLUMOTION soft closing
  • BLUMOTION can be deactivated on individual hinges
  • Sprung and self-closing
  • 35mm knock-in steel hinge cup
  • Pre-mounted cup-fixing dowels
  • Suitable for prepared three-hole drilling patterns
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Convenient spiral-screw depth adjustment
  • Nickel-plated steel construction
  • Supplied individually

Technical specifications

Manufacturer Blum
Product range CLIP top BLUMOTION
Blum part number 71B3780
Hart Wholesale stock code HI71B3780
Application Inset
Hinge-arm configuration Fully cranked
Opening angle 110°
Closing action Sprung/self-closing
Soft-close system Integrated, switchable BLUMOTION
Door fixing Knock-in hinge cup with pre-mounted dowels
Hinge-cup diameter 35mm
Cup-drilling depth 13mm
Dowel-hole diameter 8mm
Dowel-hole centres 45mm
Cup-drilling distance 3–7mm
Side adjustment ±2mm
Depth adjustment +3/−2mm
Height adjustment Depends on the selected mounting plate
Cabinet connection Blum CLIP mounting plate
Mounting plate included No
Material Steel
Finish Nickel plated
Quantity supplied One hinge

Knock-in installation

The door must be prepared with a 35mm hinge-cup bore and two accurately positioned 8mm dowel holes on 45mm centres. The pre-mounted dowels are pressed into these holes using suitable hinge-insertion equipment.

Knock-in does not mean the hinge can be installed without preparation or simply hammered into a standard screw-on cup drilling. Correct drilling and controlled insertion help prevent damage to the hinge, dowels and cabinet door.

Inset-door planning

An inset door closes within the cabinet opening rather than overlaying the cabinet side panels. The required surrounding gap depends on the door thickness, edge profile, cup-drilling distance, mounting-plate position and cabinet construction.

The mounting plate must be positioned correctly for the actual door thickness and required inset position. Complete a trial installation before drilling a full set of doors.

Choosing the correct cup fixing

  • Choose 71B3780 for a knock-in cup with pre-mounted dowels
  • Choose 71B3790 for tool-free INSERTA cup fixing
  • Choose 71B3750 for a conventional screw-on cup

All three versions provide an inset application, 110° opening and integrated BLUMOTION. The difference is how the hinge cup is secured to the door.

Browse our Blum CLIP mounting plates and the complete Blum CLIP top hinge range.

Frequently asked questions

Does the Blum 71B3780 include soft close?

Yes. BLUMOTION soft closing is integrated into the hinge and can be deactivated on individual hinges when required.

What does knock-in mean?

The hinge cup has pre-mounted dowels that are pressed into accurately drilled fixing holes in the cabinet door.

Is the knock-in cup tool-free?

No. Suitable drilling and controlled insertion equipment are recommended. Only the CLIP connection between the hinge arm and mounting plate is tool-free.

Are the cup-fixing dowels included?

Yes. The knock-in dowels are pre-mounted on the hinge cup.

Are boss plates purchased separately?

No. The boss or hinge cup is part of the hinge. It is the cabinet-side Blum CLIP mounting plate that must be purchased separately.

Is the mounting plate included?

No. Select the appropriate Blum CLIP mounting plate for the cabinet construction and required inset position.

What is the difference between 71B3780 and 71B3790?

The 71B3780 uses pre-mounted knock-in dowels. The 71B3790 uses Blum’s tool-free INSERTA locking system.

Can the door be removed without tools?

Yes. Once installed, the hinge arm can be released from the mounting plate without removing the cup from the door.

How many hinges are supplied?

This listing is for one hinge.
