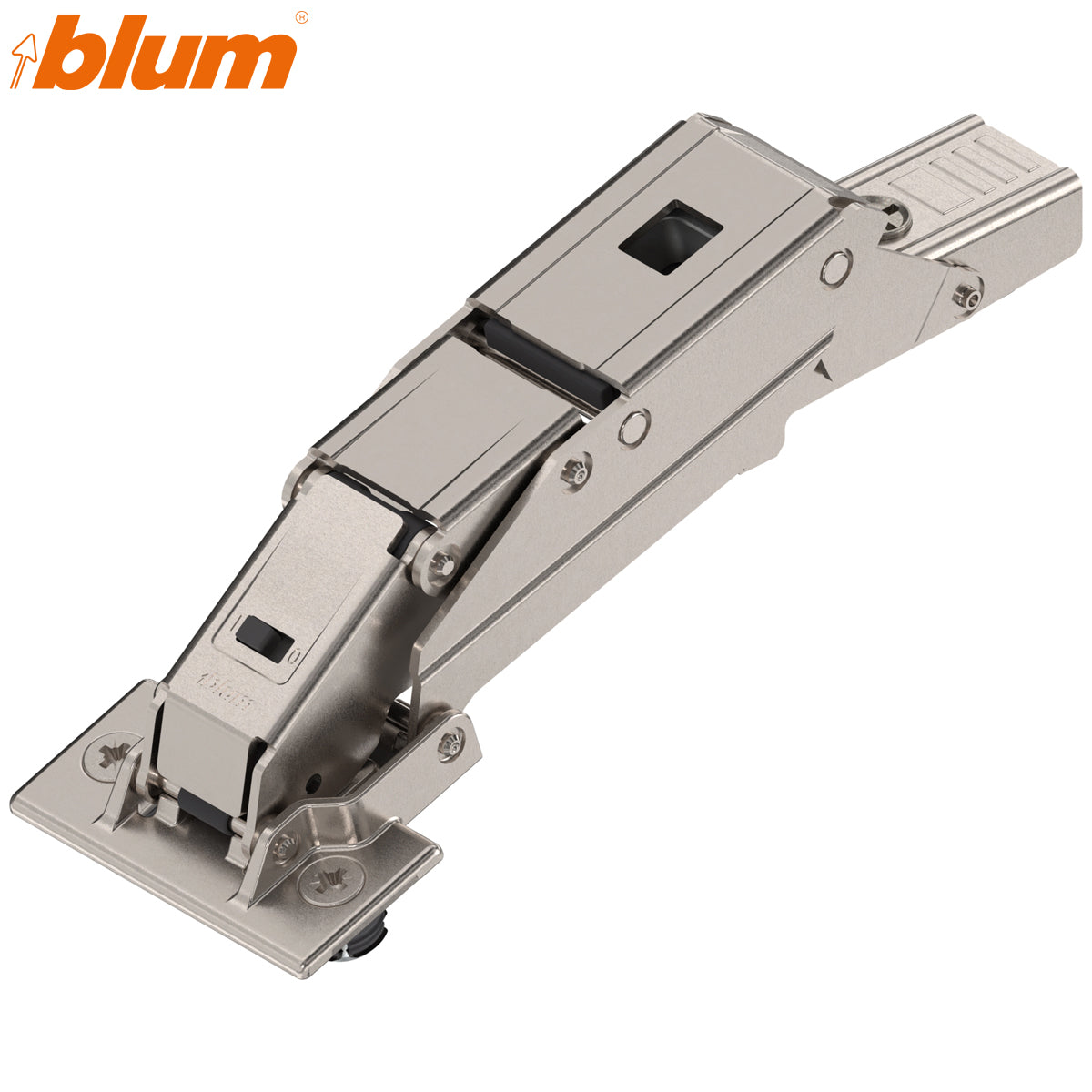

Blum CLIP top BLUMOTION 71B453T Thin Door Hinge 110° Overlay EXPANDO‑T Nickel

Blum CLIP top BLUMOTION 71B453T Thin Door Hinge 110° Overlay EXPANDO‑T Nickel

Stock Code: HI71B453T

£11.19 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71B453T CLIP top BLUMOTION Thin-Door Hinge – 110° EXPANDO‑T

The Blum 71B453T is a specialist concealed hinge for thin furniture fronts measuring 8–14mm thick. Its innovative EXPANDO‑T fixing system provides a secure attachment in thin materials without requiring a conventional 35mm hinge-cup hole.

This makes the hinge suitable for contemporary furniture designs using thin chipboard, MDF, HDF, HPL, mineral composites, selected stone composites and ceramic fronts, provided the chosen material has sufficient strength and stability.

Integrated BLUMOTION soft-close delivers a smooth and controlled closing action, while the 110° opening angle and zero-protrusion design make the hinge particularly useful for cabinets containing internal drawers, shelves and pull-outs.

Key features

  • Genuine Blum part number 71B453T
  • Designed for thin furniture fronts
  • Suitable for compatible fronts from 8–14mm thick
  • EXPANDO‑T expanding fixing system
  • No conventional 35mm hinge-cup drilling required
  • 110° opening angle
  • Overlay application
  • Zero-protrusion hinge geometry
  • Suitable for cabinets with internal drawers and pull-outs
  • Integrated BLUMOTION soft-close
  • Individually switchable damping function
  • Sprung, self-closing action
  • Tool-free CLIP mounting-plate connection
  • Three-dimensional door adjustment
  • Nickel-plated finish
  • Supplied individually

Technical specifications

Specification Details
Manufacturer Blum
Product range CLIP top BLUMOTION
Blum part number 71B453T
Hart Wholesale stock code HI71B453T
Front type Thin furniture front
Front thickness 8–14mm
Primary application Overlay
Opening angle 110°
Door protrusion Zero protrusion
Closing action Sprung and self-closing
Soft-close Integrated, switchable BLUMOTION
Front fixing EXPANDO‑T
Conventional cup drilling Not required
Cabinet connection Tool-free CLIP mounting plate
Adjustment Three-dimensional
Finish Nickel-plated
Quantity supplied One hinge
Mounting plate Not included

EXPANDO‑T fixing for thin fronts

Conventional concealed hinges require a relatively deep 35mm cup hole. This can be unsuitable for thin fronts because insufficient material remains beneath the hinge cup.

EXPANDO‑T uses expanding fixings inserted into a much smaller prepared drilling pattern. Tightening the fixing screws causes the dowels to expand inside the front material, creating a secure connection without a conventional cup recess.

The correct drilling dimensions and tightening torque must be used for the selected material. Installation should be completed by an experienced furniture manufacturer, particularly when working with stone, composite or ceramic fronts.

Suitable front materials

Blum has tested EXPANDO‑T with several thin-front materials, including chipboard with sufficient transverse tensile strength, MDF, HDF, high-pressure laminate, mineral composite materials, quartz composite artificial stone, Nero Assoluto natural granite and suitable ceramic panels.

Material thickness alone does not guarantee suitability. The front must have sufficient strength and stability to retain the fixing securely. A trial installation is recommended before starting a production batch.

Zero protrusion for internal pull-outs

The 71B453T has zero-protrusion geometry in an overlay application. When the door is fully opened, it does not project unnecessarily into the cabinet opening.

This provides clearance for internal drawers, pull-out shelves and storage mechanisms positioned behind the hinged door. The cabinet and mounting-plate positions must still follow Blum’s planning dimensions.

Integrated BLUMOTION soft-close

BLUMOTION is incorporated into the hinge arm and slows the front during the final closing movement. This provides a smooth, quiet close and helps reduce impact on thin or brittle front materials.

The damping function can be switched off on an individual hinge. This allows the closing performance to be adjusted for small or lightweight doors.

Installation and adjustment

The EXPANDO‑T fixings are placed into the correctly drilled front and tightened to the torque specified for the chosen material. The hinge arm then clips onto a compatible Blum mounting plate without tools.

Side, height and depth adjustment allow the finished door position and cabinet gaps to be refined after installation.

The mounting plate is not included. Choose the required plate height and cabinet fixing method from our Blum CLIP top mounting plates.

Optional opening-angle stops can reduce the opening movement to approximately 85° or 92° where adjacent walls, handles or furniture components restrict door travel.

Browse our complete Blum CLIP top hinge collection.

Frequently asked questions

What door thickness is suitable for the 71B453T?

Blum specifies this hinge for compatible thin furniture fronts from 8–14mm thick.

Does it require a 35mm hinge-cup hole?

No. The EXPANDO‑T system uses expanding fixings and does not require conventional hinge-cup drilling.

Which materials can EXPANDO‑T be used with?

Blum has tested it with suitable chipboard, MDF, HDF, HPL, mineral composites, quartz composite, selected granite and ceramic panels. The material must have sufficient strength and stability.

Is BLUMOTION included?

Yes. The soft-close mechanism is integrated into the hinge arm and can be switched off when required.

What does zero protrusion mean?

In an overlay application, the open door remains clear of the cabinet interior, helping internal drawers and pull-out shelves move past the hinge side.

Is a mounting plate included?

No. A compatible Blum CLIP mounting plate must be ordered separately.

Can the opening angle be restricted?

Yes. Optional Blum stops are available to reduce the opening angle to approximately 85° or 92°.

Is this hinge supplied as a pair?

No. HI71B453T is priced and supplied as one hinge.

TECHNICAL DETAILS

  • Application: Overlay
  • Colour: Nickel
