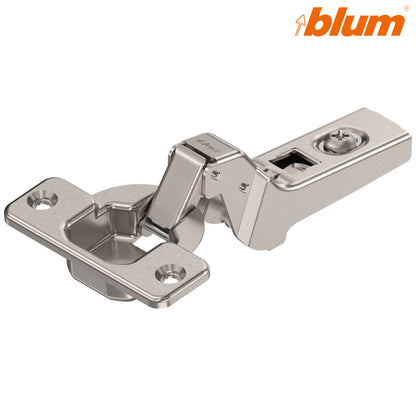

  • Blum 71M2750 CLIP 100° inset sprung cabinet hinge with screw-on 35mm cup in nickel

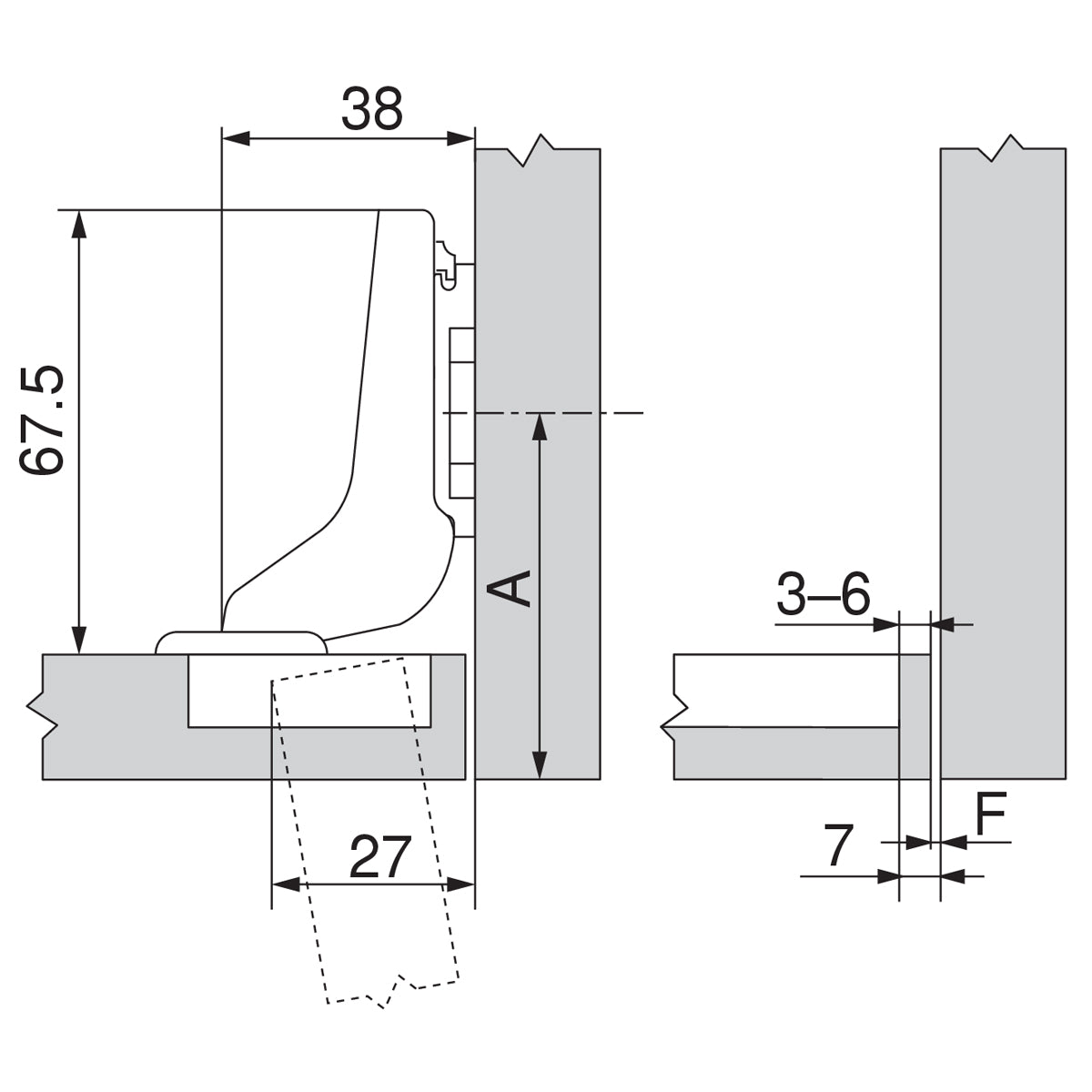

  • Blum 71M2750 inset hinge showing the fully cranked arm and screw-on cup

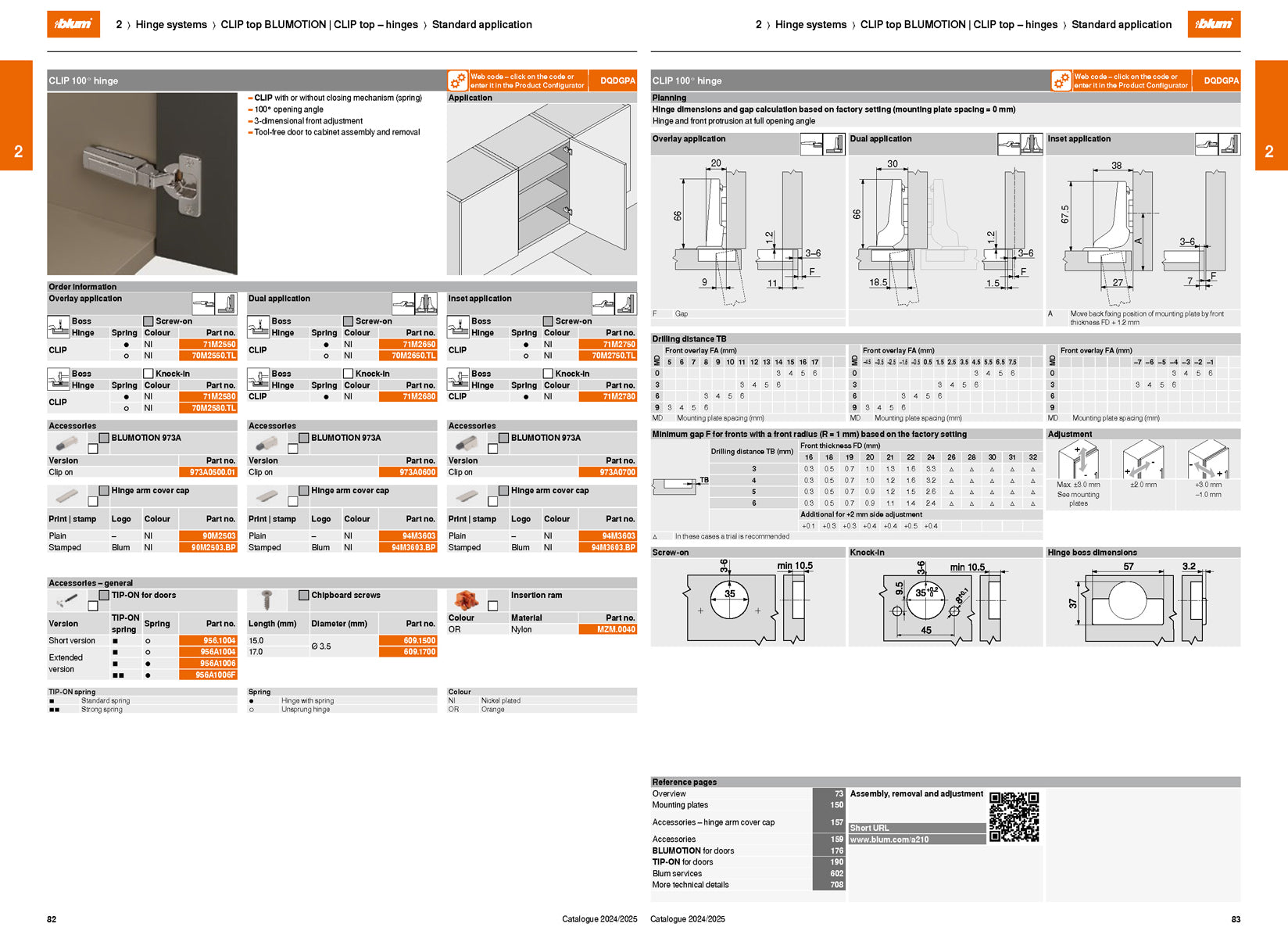

  • Blum 71M2750 CLIP 100° inset hinge dimensions, adjustment and drilling details A technical catalog page for Alu-Holz CLIP top illumination (CLIP top) hinges, showing installation diagrams, cross-sections, force diagrams, and specification tables.
1 3

Blum 71M2750 CLIP 100° Inset Screw-On Hinge – Box of 250

Blum 71M2750 CLIP 100° Inset Screw-On Hinge – Box of 250

Stock Code: HI71M2750

£1.14 GBP
Sale
View full details

PRODUCT DESCRIPTION

Blum 71M2750 CLIP 100° Inset Screw-On Hinge

The Blum 71M2750 is a sprung concealed cabinet hinge for inset doors that sit within the cabinet opening. Its fully cranked hinge arm provides the geometry required for a correctly planned inset installation.

The hinge opens to 100° and contains a closing spring that pulls the door into its closed position. It is self-closing but does not contain integrated BLUMOTION soft close. Soft closing can be added using the compatible Blum 973A0700 clip-on damper.

Trade-box quantity: Price shown per hinge. This product is supplied in complete manufacturer’s boxes of 250 hinges and must be ordered in multiples of 250.

The 35mm steel hinge cup is secured to the back of the door using screws. Once installed, Blum’s CLIP connection allows the hinge arm to attach to or release from a compatible mounting plate without tools.

Key features

  • Designed for inset cabinet doors
  • Fully cranked hinge-arm configuration
  • 100° opening angle
  • Sprung, self-closing action
  • No integrated soft-close mechanism
  • Compatible with the optional Blum 973A0700 damper
  • Screw-on 35mm hinge cup
  • Tool-free CLIP connection to the mounting plate
  • Three-dimensional door adjustment
  • Nickel-plated steel construction
  • Mounting plates sold separately
  • Factory trade box containing 250 hinges

Technical specifications

Manufacturer Blum
Product range CLIP 100°
Blum part number 71M2750
Hart Wholesale stock code HI71M2750
Application Inset
Hinge-arm configuration Fully cranked
Opening angle 100°
Closing action Sprung/self-closing
Soft close No; optional 973A0700 damper
Door fixing Screw-on hinge cup
Hinge-cup diameter 35mm
Cup drilling depth 10.5mm
Fixing-hole centres 45mm
Cup drilling distance 3–6mm
Side adjustment ±2mm
Depth adjustment +3/−1mm
Height adjustment Up to ±3mm, depending on mounting plate
Cabinet connection Blum CLIP mounting plate
Mounting plate included No
Material Steel
Finish Nickel plated
GTIN 9002617341324
Trade-box quantity 250 hinges

Installation guidance

Inset-door clearance depends on the door thickness, drilling distance, mounting-plate spacing and required cabinet gap. Select the mounting plate using the actual cabinet construction rather than assuming that every inset application uses the same plate.

Browse our Blum CLIP mounting plates and Blum BLUMOTION devices.

Frequently asked questions

What is an inset cabinet hinge?

An inset hinge is used where the closed door sits within the cabinet opening rather than overlaying the cabinet side panels.

Does the 71M2750 include soft closing?

No. It is sprung and self-closing, but it does not contain integrated BLUMOTION. The compatible 973A0700 damper is available separately.

What does screw-on mean?

It means the 35mm hinge cup is secured to the door using screws. The hinge arm still clips onto a separate cabinet mounting plate.

Is the mounting plate included?

No. A compatible Blum CLIP mounting plate must be selected and purchased separately.

Can the door be removed without unscrewing the hinge?

Yes. The CLIP mechanism allows the hinge arm to be released from its mounting plate without removing the hinge cup from the door.

How many hinges are supplied?

The hinge is priced individually but supplied in complete manufacturer’s boxes of 250. Orders must be placed in multiples of 250.

Is this a CLIP top hinge?

No. The 71M2750 belongs to Blum’s CLIP 100° hinge range.

TECHNICAL DETAILS

  • Application: Inset
  • Colour: Nickel
